Kryptinė DVB-T2 antena MUX8 4K LTE

Trumpai apie prekę

Prekė: Kryptinė DVB-T2 antena MUX8 4K LTE. Kategorija: Antenos.

• Gamintojas: no brand
• Modelis: Antena TERCERA
• Spalva: silver

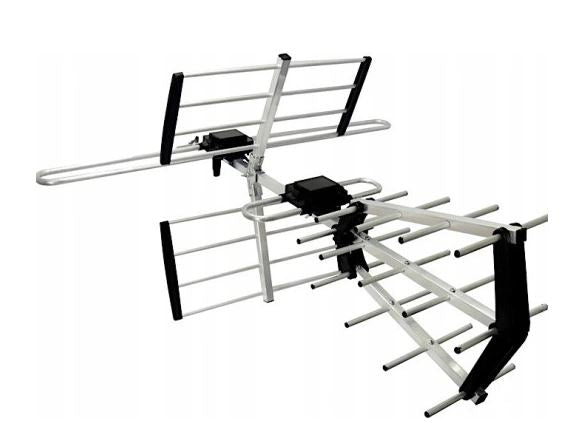

Antenna TERCERA

It is a antenna designed to receive all channels of television DVB-T, DVB-T2 MUX-1, MUX-2, MUX-3, MUX-4 and MUX-8 (in two polarizations V and H). It is distinguished by very high power, which is due to the developed construction and enhanced components. Importantly, the antenna is characterized by strength and resistance to weather conditions. Thanks to this, will work perfectly in all conditions, providing stable access to television.

✅ One of the strongest antennas available on the market

✅ It has a reinforced construction

✅ Very weather resistant

✅ It has an additional dipole and filter against LTE interference

✅ Provides high image quality

✅ Receives 4K image

✅ Antenna adapted to receive channels DVB-T2

✅ Length: 79 cm

✅ Height: 79 cm

✅ Output Impedance: 75 Ohm

✅ Connector Type: F (standard)

✅ Gain: 14-18dB

✅ Number of items: 27

✅ Range up to: 100 km

✅ Receipt channel: VHF 1-12 CZ, UHF 21-69 CZ

✅ Folding durable construction (Assembly does not require tools)

LTE filter eliminates interference from mobile networks providing high-speed Internet services in the 800 MHz band, the end of the TV band is located in the immediate vicinity of the LTE 800 MHz band. This may result in interference with the reception of digital terrestrial television. On the TV screen, the picture may stop, colored bars and squares may appear. The antenna offered at this auction, thanks to the use of the LTE filter, cuts unwanted signals above 790 MHz, and thus is resistant to the above-described interference from the LTE network.

Directional antenna for terrestrial TV reception enables reception of MUX 8 in two polarizations V and H. Now even more reliable, by adding an LTE filter, eliminating interference from mobile networks.

MUX-1, MUX-2, MUX-3, MUX-8

MUX8 in horizontal and vertical polarization

✅ VHF band 47-230 MHz

✅ UHF band 470-790 MHz

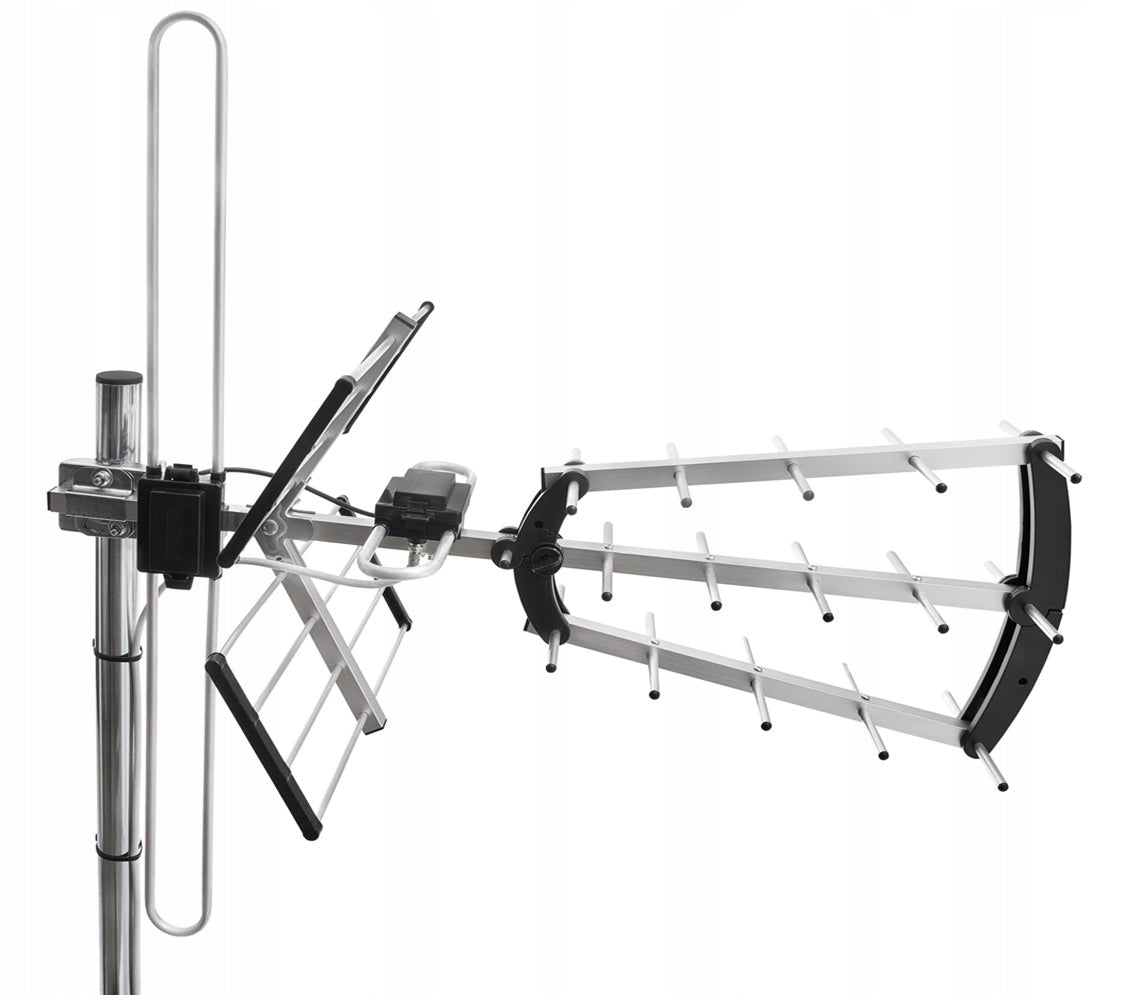

The antenna allows reception in horizontal or vertical polarization, just screw the dipole in the position corresponding to the polarity of the transmitter in your region

✅ Vertical - vertical polarization

✅ Horizontal - horizontal polarization

VERTICAL OR HORIZONTAL POLARIZATION?

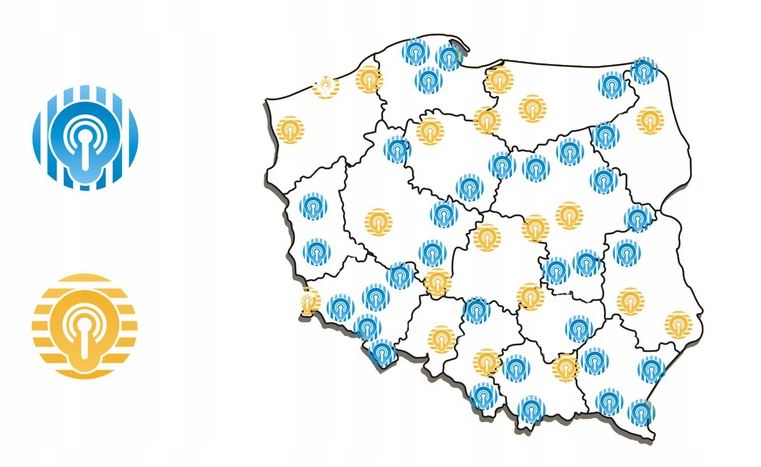

Digital Terrestrial Television transmitters in Poland are divided into those broadcasting in vertical or horizontal polarization. The COMBO antenna, through a very well-thought-out design, has been adapted to both vertical and horizontal polarization reception.

If you do not know in what polarity your nearest transmitter broadcasts, you can easily check on the Internet by typing in the search engine: dvbt range map.

There you will also check in which direction it is best to direct the antenna in your area and whether you are within the range of all multiplexes.

The lightweight design of the antenna and the aluminum construction make our antenna extremely resistant to

✅ Wind

✅ UV radiation

Hermetically sealed antenna box protects against moisture entering the symmetrizer

✅ The antenna is made of aluminium

The length of our antenna is 79 cm ideal for locations with limited space (e.g. balcony, mast)

To connect our antenna you do not need a power supply built-in amplifier has a gain of 18dB and provides an effective range of up to 100 km (range depends on the power of the transmitter)

If the power of the antenna is not enough in your area you do not need to replace the antenna with a larger just buy an additional amplifier twisted to the f socket + antenna power supply antenna range increases then to 160 km

Assembling our antenna is child's play and you don't need any tools - the entire assembly should not take more than 5 minutes

✅You do not need to use any tools all parts fit together perfectly and are solidly assembled.
