Kryptinė TV antena Dipol Tri Digit Mini, DVB-T2 UHF, 14 dBi, su simetrikliu

Trumpai apie prekę

Prekė: Kryptinė TV antena Dipol Tri Digit Mini, DVB-T2 UHF, 14 dBi, su simetrikliu. Kategorija: Antenos.

• Gamintojas: Dipol
• Modelis: 17
• Spalva: silver

Gain up to 14 dBi

Product Polish

When choosing the delivery method "pick-up at the point" it is not possible to send to the Parcel Vending Machine due to the size of the antenna.

Specially designed and constructed to receive changed channels and new frequencies!

Specially designed to receive new DVB-T2 frequencies

Tri Digit Mini has been designed for reception in the UHF band 470-694 MHz (channels 21-48), in which it reaches gain up to 14 dBi (version without amplifier).

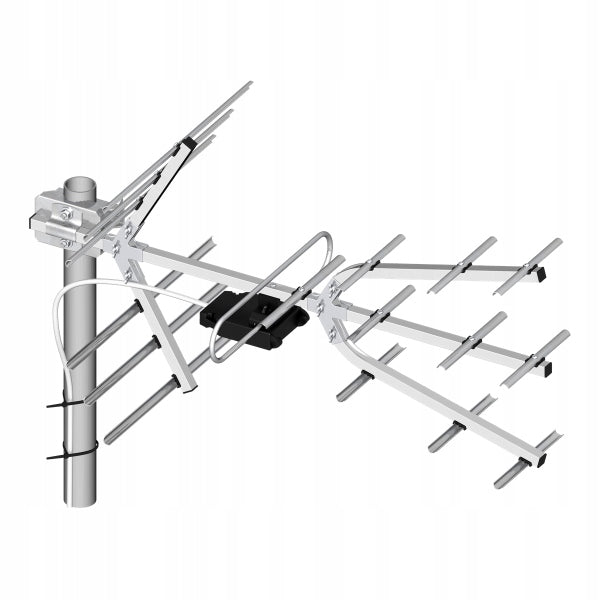

Tri Digit Mini is a directional antenna for receiving DVB-T and DVB-T2 digital terrestrial television in the UHF 470 - 694 MHz band. It receives channels 21-48, i.e. multiplexes: MUX-1, MUX-2, MUX-3, MUX-4 and MUX-6. Compact dimensions provide many mounting options (e.g. on the balcony) and longer operation, thanks to the lower susceptibility of the antenna to wind. The modernly constructed antenna is characterized by high gain and allows signal reception from far-reaching transmitters.

The main elements of the antenna are made of aluminium. Steel structural elements are galvanized. This guarantees high resistance of the antenna to weather conditions and damage. In addition, small dimensions ensure less susceptibility to wind. You can be sure that the antenna will serve you for many years!

Specially designed can antenna allows easy access to devices mounted inside (symmetrizer, amplifier), while perfectly protecting them from water.

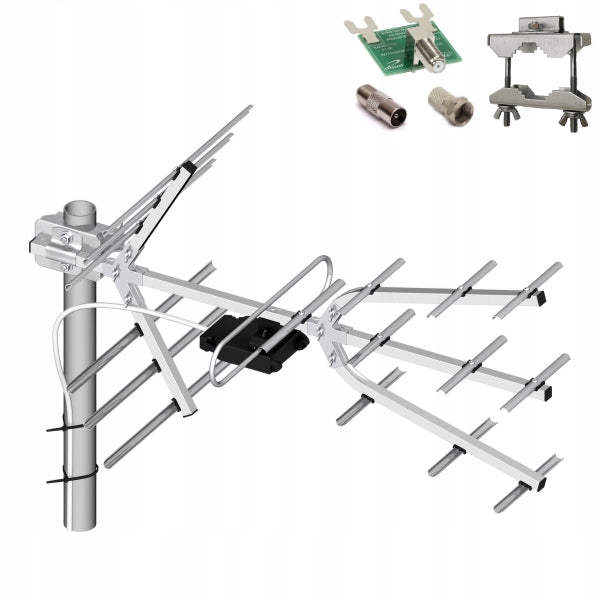

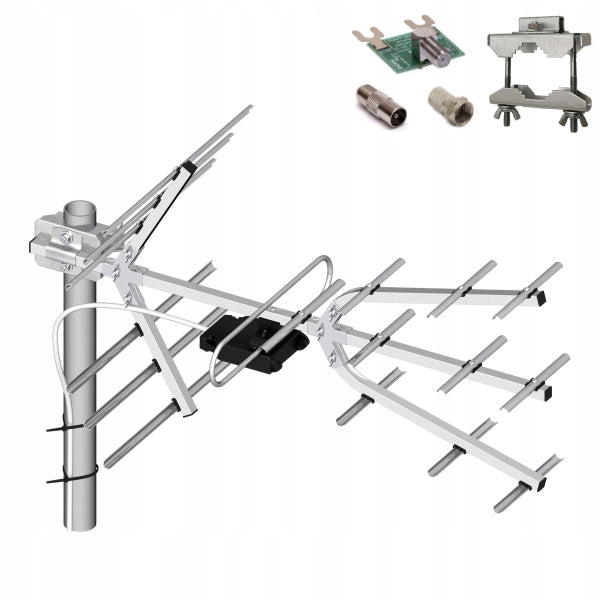

The set includes the latest symmetrizer brand Dipol for channels 21-48, antenna plug, connectors type F and cover used to mount the antenna to a vertical or horizontal tube. At our other auctions you can buy a mast and antenna cable.

The antenna uses a symmetrizer for the F connector, which ensures a good matching of the antenna and small signal loss. In addition, the installation of the antenna cable is very simple and convenient. An additional advantage is the possibility of using compression connectors that provide the most durable connection.

Easy installation

The antenna is pre-assembled at 90%. Installation involves tightening a few screws and takes less than a few minutes.

All standard amplifier plates fit into the antenna.

You buy PROVEN Polish PRODUCT

The antenna was designed and manufactured in Poland and tested for the declared parameters in the Department of Electronics of the AGH University of Science and Technology in Krakow.

Energy gain [dBi] antenna as a function of frequency [MHz]

Distinguishing features:

• antenna receives DVB-T2 signals in the UHF band in new frequencies 470 - 694 MHz
• Antenna made of aluminium
• Antenna box to protect against water
• modern design - large profit with small dimensions
• possibility of mounting standard receipt amplifiers
• very easy installation
• 100% product Polish
• Factory carton packaging
• Antenna by Dipol

Technical data:

• Profit [dBi]: 14 dBi
• Channels: 21- 48
• Band [MHz]: 470 - 694
• Front/rear radiation ratio [dB]: 10,7 - 14,5
• Standing Wave Ratio (VSWR): ≤ 1,55
• Polarization: H (V when rotated 90°)
• Impedance [Ω]: 75
• Packaging: box
• Mass [kg]: 0,765
• Dimensions [mm]: 655 x 320 x 320
