Kryptinė TV antena Dipol Tri Digit su stiprintuvu LNA-177, 47 dBi, DVB-T2

Trumpai apie prekę

Prekė: Kryptinė TV antena Dipol Tri Digit su stiprintuvu LNA-177, 47 dBi, DVB-T2. Kategorija: Antenos.

• Gamintojas: Dipol
• Modelis: Tri Digit W
• Spalva: silver

Gain up to 47 dBi

Polish product

Specially designed to receive new DVB-T2 frequencies

Tri Digit has been designed for reception in the UHF band 470-694 MHz (channels 21-48), in which it reaches gain up to 47 dBi (version with amplifier).

The antenna eliminates interference caused by 5G and LTE broadcast in bands 700 and up.

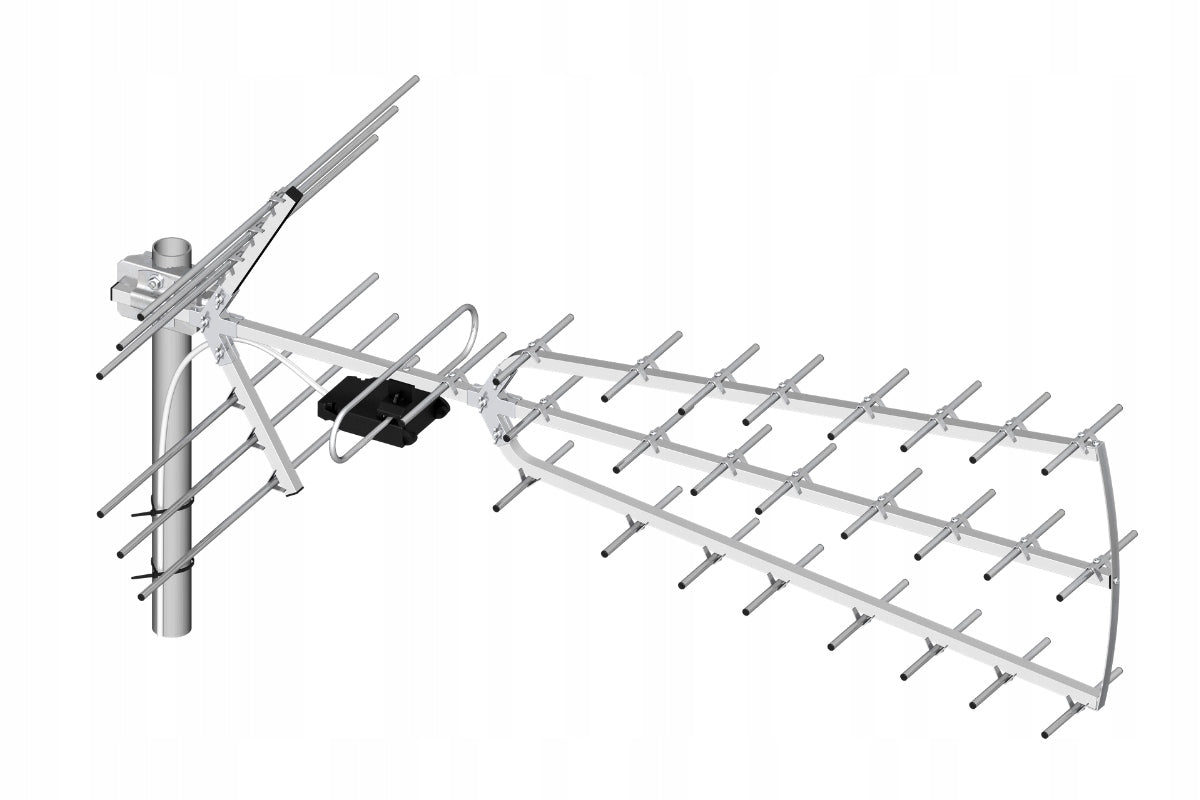

Tri Digit is a directional antenna for receiving DVB-T and DVB-T2 digital terrestrial television in the UHF 470 - 694 MHz band. Receives channels 21-48, or multiplexes: MUX-1, MUX-2, MUX-3, MUX-4 and MUX-6. Thanks to its design, the antenna is characterized by a particularly high gain and allows signal reception from far-reaching transmitters.

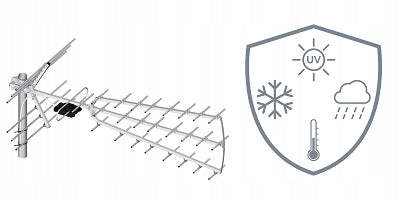

The main elements of the antenna are made of aluminium. Steel structural elements are galvanized. This guarantees high resistance of the antenna to weather conditions and damage. You can be sure that the antenna will serve you for many years!

Specially designed can antenna allows easy access to devices mounted inside (symmetrizer, amplifier), while perfectly protecting them from water.

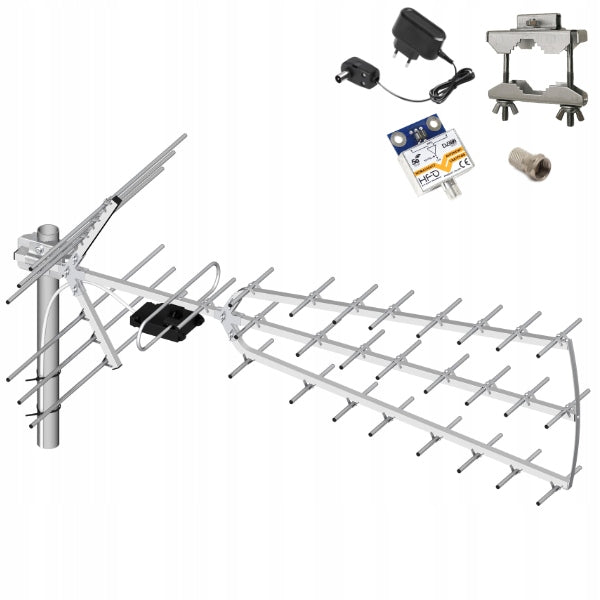

The set includes amplifier LNA-177 with LTE filter 5G, power supply, connector and cover used to mount the antenna to a vertical or horizontal tube. At our other auctions you can buy a mast and antenna cable.

You buy PROVEN Polish PRODUCT

The antenna was designed and manufactured in Poland and tested for the declared parameters in the Department of Electronics of the AGH University of Science and Technology in Krakow.

The antenna uses a shielded amplifier LNA-177 in the latest version with LTE 5G filter, which has high resistance to interference and weather conditions. In addition, the installation of the antenna cable is very simple and convenient. An additional advantage is the possibility of using compression connectors that provide the most durable connection

Easy installation

The antenna is pre-assembled at 90%. Installation involves tightening a few screws and takes less than a few minutes.

All standard amplifier plates fit into the antenna.

Distinguishing features:

• antenna receives DVB-T2 signals in the UHF band at new frequencies 470 - 694 MHz
• antenna made of aluminium
• water-resistant antenna box
• antenna length 1,04m
• possibility of mounting standard receipt amplifiers
• very easy installation
• 100% polish product
• Factory carton packaging
• antenna from Dipol

Technical data:

• Profit [dBi]: to 47
• Frequency range [MHz]: 470 - 694
• Channels: 21-48
• Front/rear radiation ratio [dB]: 11,8 - 17,7
• Standing Wave Ratio (VSWR): ≤ 1,75
• Polarization: H (V when rotated 90°)
• Impedance [om]: 75
• Power supply: 230V AC 12V DC 100mA power supply
• Packaging: box
• Mass [kg]: 1,2
• Length [mm]: 1047
• Width [mm]: 505
• Height [mm]: 320
