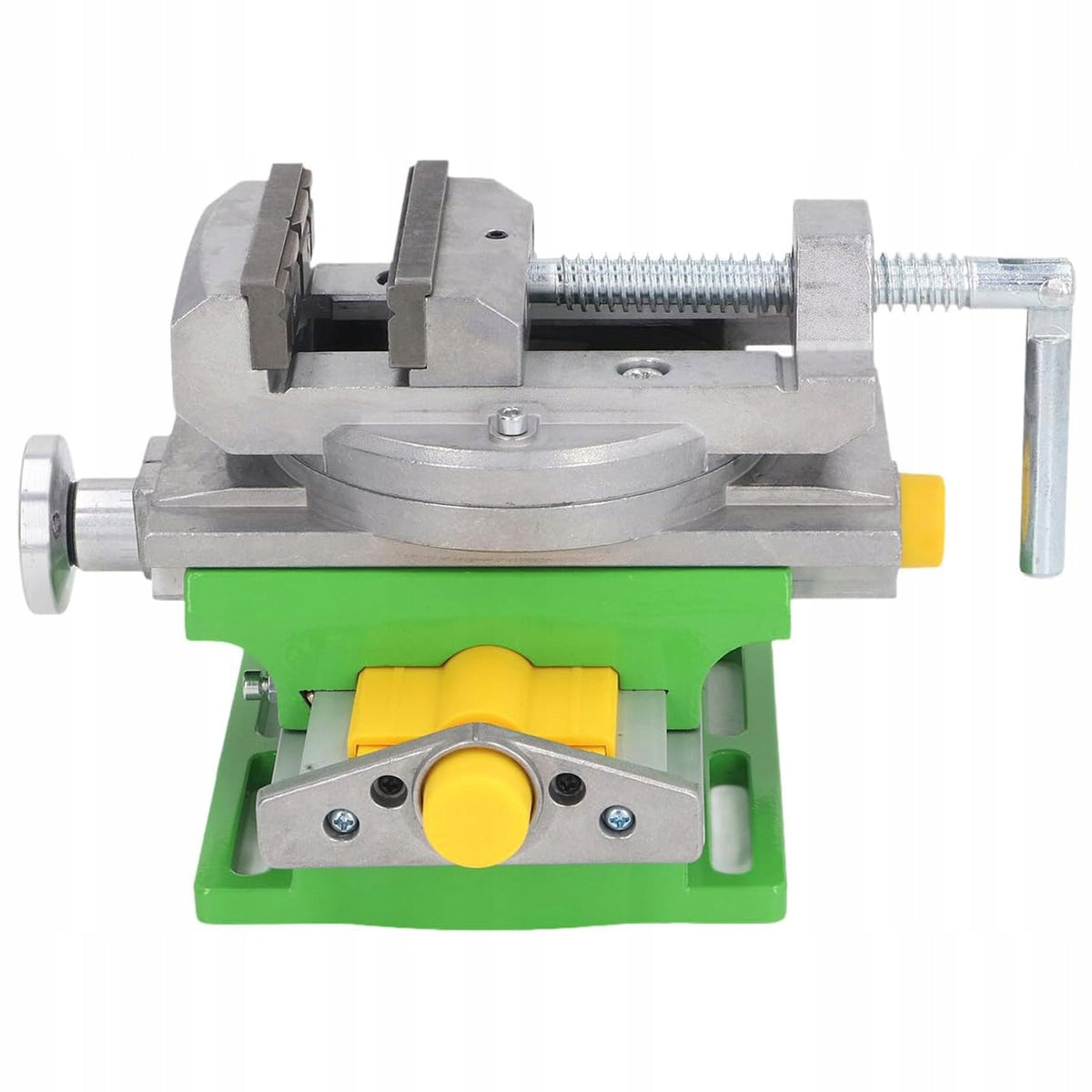

Kryžminiai spaustuvai gręžimo staklėms su pasukama baze

Trumpai apie prekę

Prekė: Kryžminiai spaustuvai gręžimo staklėms su pasukama baze. Kategorija: Spaustuvai.

• Gamintojas: no brand
• Modelis: GBR-MNQ-69

CROSS VISE WITH ROTATION FOR TABLE DRILL PRECISION DRILLING CUTTER

✅ It has two axes + 90° jaw rotation, allowing you to set in multiple planes.

✅ Precision machining of the tail swallow groove to ensure high precision of the vice.

✅ Thanks to the use of aluminum alloys, the vise is extremely light and durable.

✅ It is lightweight and has precise multi-grooved jaws.

✅ Together with a table drill, it can be used as a milling machine.

✅ Ideally suited for home improvement.

✅ Precision 80 mm jaws with grooves and rubber – 80 mm wide jaws, made in powder metallurgy technology, have multi-grooved fastening vertically and horizontally, ensuring a secure hold on details, and the included rubber cover protects against scratches – precision in every detail!

✅ 90° rotation and movement in two axes – Rotating jaws with an angle of up to 90° and an offset of 80 mm (X axis) and 67 mm (Y axis) allow you to position the object in many planes – ideal for complex work with a table drill!

✅ Lightweight and durable aluminium alloy construction – Weighing only 2,73 kg, the vise combines lightness with strength, and the precise groove of the swallow tail guarantees stability and high accuracy during machining – comfort of work without load!

✅ Easy adjustment with ruler and indicator – Built-in scale (1,5 mm) and the ability to loosen the screw to rotate the jaws make it easier to precisely set the angle and position – the work becomes faster and more accurate!

✅ Universal mounting with holes 105 mm – The distance of the fixing holes (105 mm) allows for stable attachment to the workbench or drill – confidence and safety during every task!

Material: Aluminum Alloy

Rotation angle: up to 90°

Maximum horizontal offset (X-axis): 80 mm

Maximum vertical offset (Y axis): 67 mm

Jaw width: 80 mm

Maximum jaw opening: 77 mm (without rubber), 70 mm (with rubber)

Weight with packaging: ≈ 2,73 kg

Mounting hole distance: 105 mm

Ring scale: 1,5 mm

Specifications
