Kryžminis lazerinis nivelyras 16 linijų 360° su žaliu spinduliu ir trikoju

Trumpai apie prekę

Prekė: Kryžminis lazerinis nivelyras 16 linijų 360° su žaliu spinduliu ir trikoju. Kategorija: Lazeriniai gulsčiukai.

• Gamintojas: Bartimex
• Modelis: BT-LL-16B

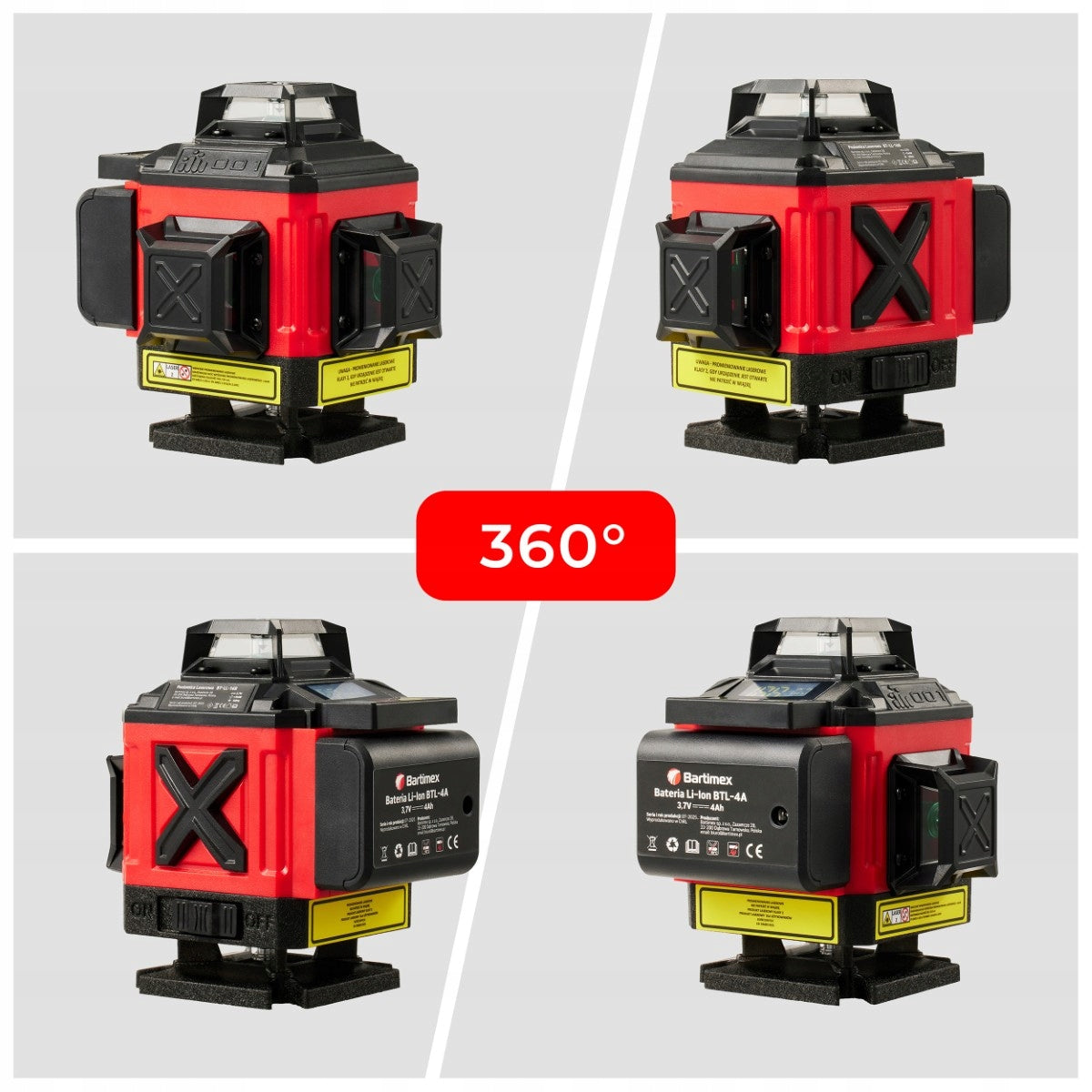

Cross Laser BARTIMEX BT-LL-16B (4D laser level 16 lines 360°) – precision, speed and convenience in one set

The BARTIMEX BT-LL-16B 4D 16 line 360° laser level is a versatile tool for extremely accurate determination of levels, verticals and reference lines in rooms and on construction sites. It will work for both professionals in the industry and home DIYers. Thanks to the work of 360° and 16 lines you can quickly determine the necessary references, which significantly speeds up renovation and assembly work. The green beam used is extremely visible, so the laser works confidently even in strong lighting and in less favorable conditions.

The built-in self-leveling function automatically sets lines, eliminating manual corrections and the risk of error – especially for larger projects requiring precise placement of elements. In addition to the typical leveling and verticalization, the device also allows to draw lines at an angle, making them a universal choice for both finishing and strictly construction tasks.

The most important advantages

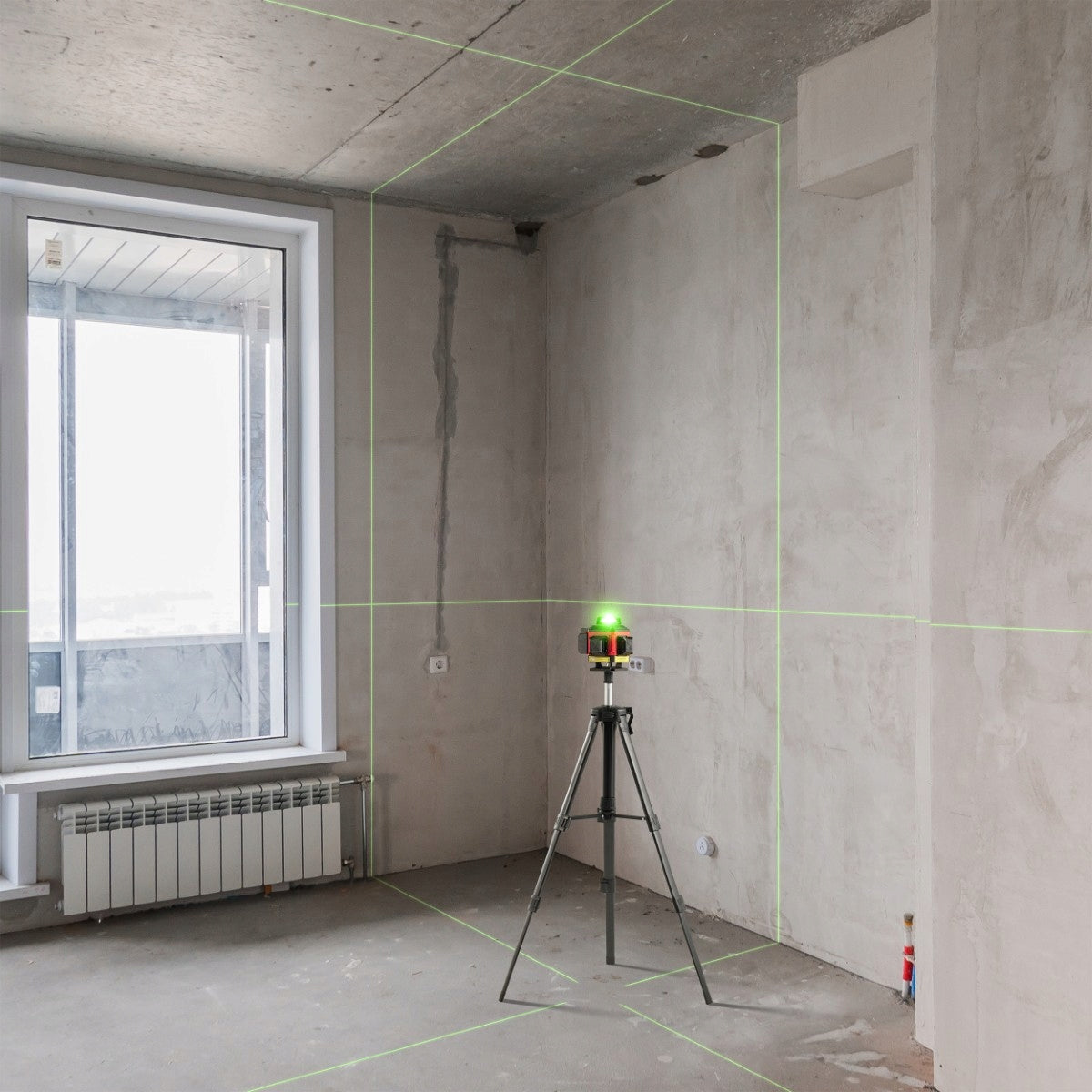

• 16 lines 360° (4D) – full coverage of walls, ceiling and floor for quick leveling and verticals.
• Self-leveling ±4° – instant start of work without manual adjustment; pendulum lock for determining lines at an angle.
• High accuracy ±2 mm/10 m and working distance up to 30 m – reliable, repeatable results for finishing and assembly.
• Working with the remote control – convenient on/off of planes from a distance.
• LCD display – quick control of modes and settings.
• Alarm: informs about exceeding the auto-leveling limit.
• Long run time: With powerful batteries, the device can last up to 12 hours on a single charge.
• High precision – accurate lines for glazing works, GK bodies, custom-made furniture and door/window installation.
• Green laser 532 nm – better visibility in bright interiors.
• IP54 – resistance to dust and splashes; operation in a wide temperature range.
• Complete PRO kit – 1 m tripod, adjustable platform, adapter, mini tripod, 360° magnetic wall mount, 2 4,0 Ah batteries, charger and suitcase.

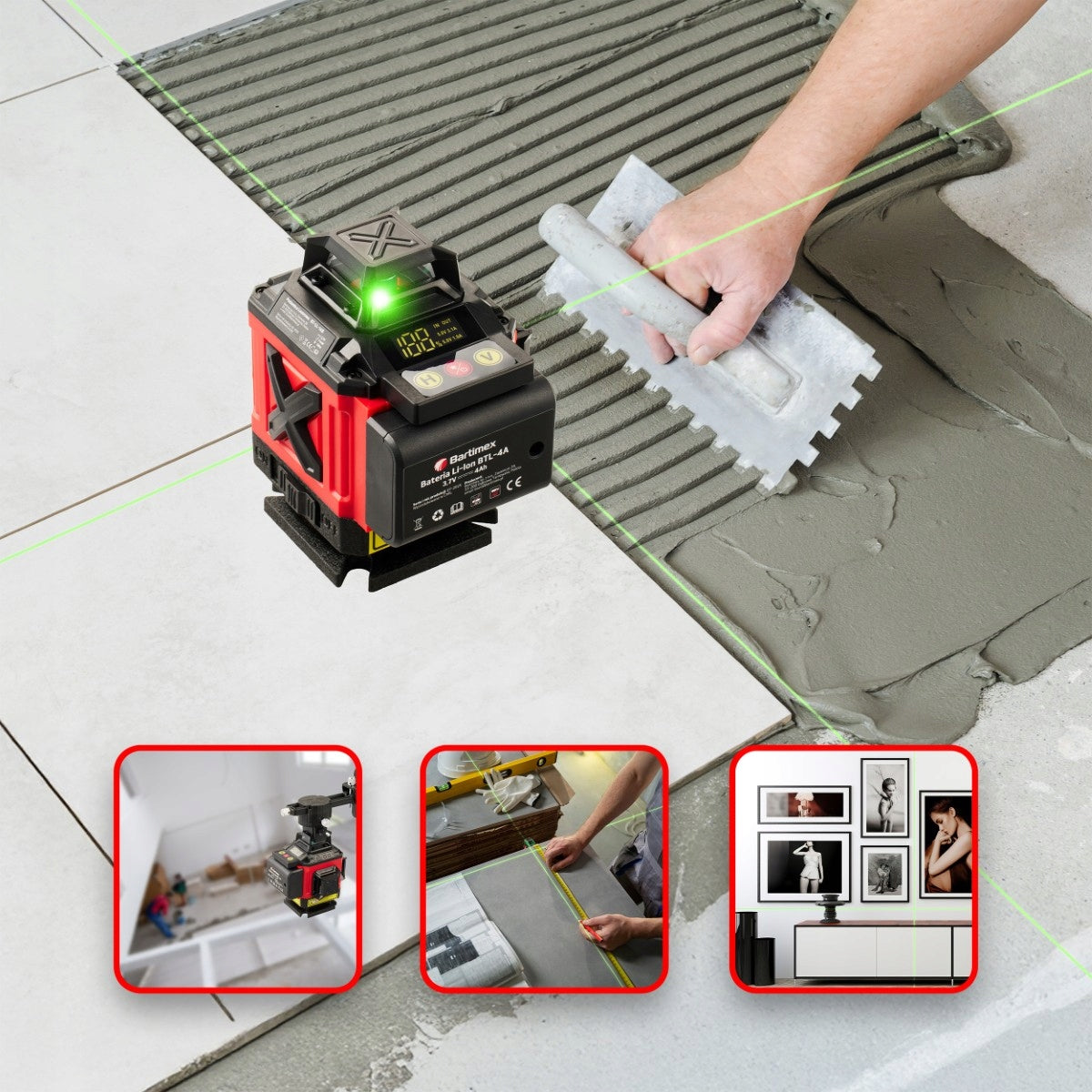

Various applications (professionals and DIY)

• Glaze and floors: leading lines under tiles, stoneware, panels; drop control.
• GK bodies and ceilings: profiles, installation of lighting, slats.
• Custom-made furniture / household appliances: installation of kitchens, recessed cabinets, RTV.
• Window and door joinery: risers/horizontal, door frames, blinds.
• Installation works: wire routes, sockets, switches, strips.
• External works: fences, paving stones, small architecture (with detector).

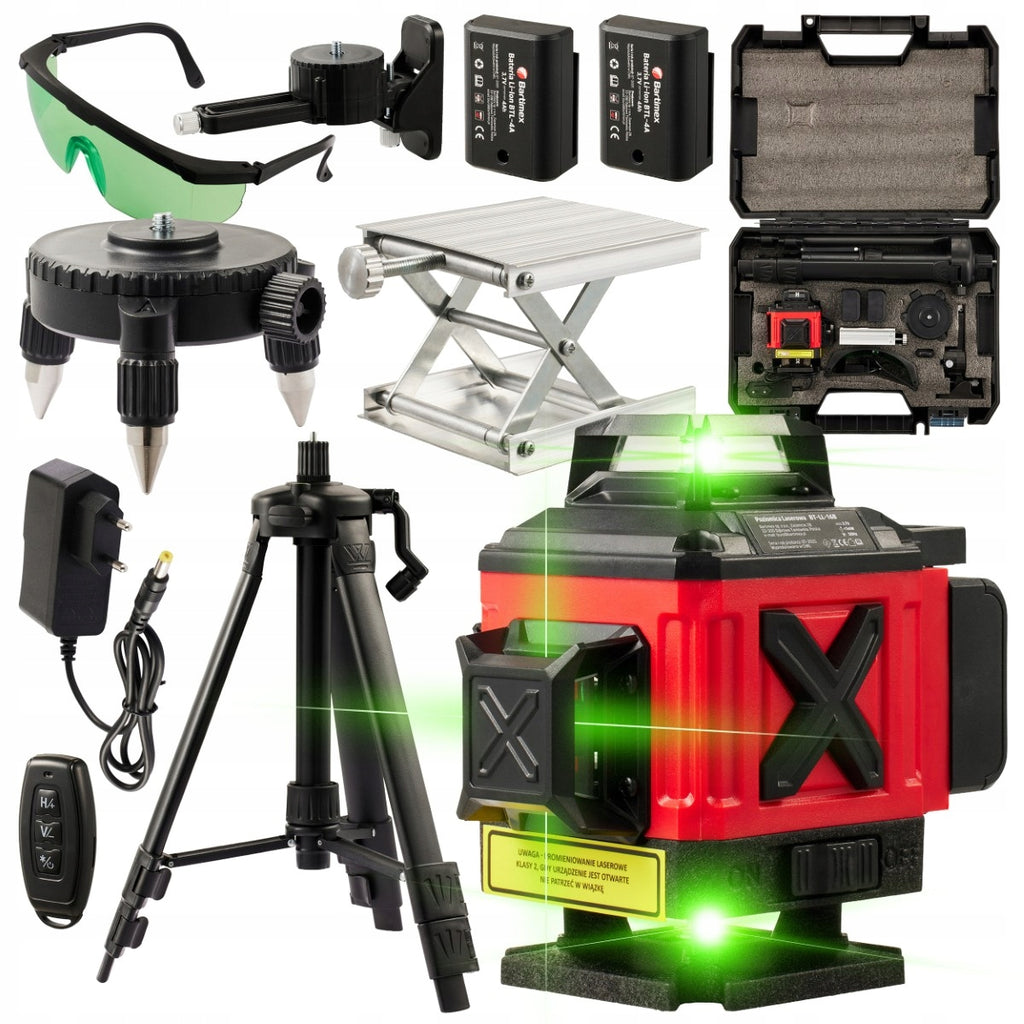

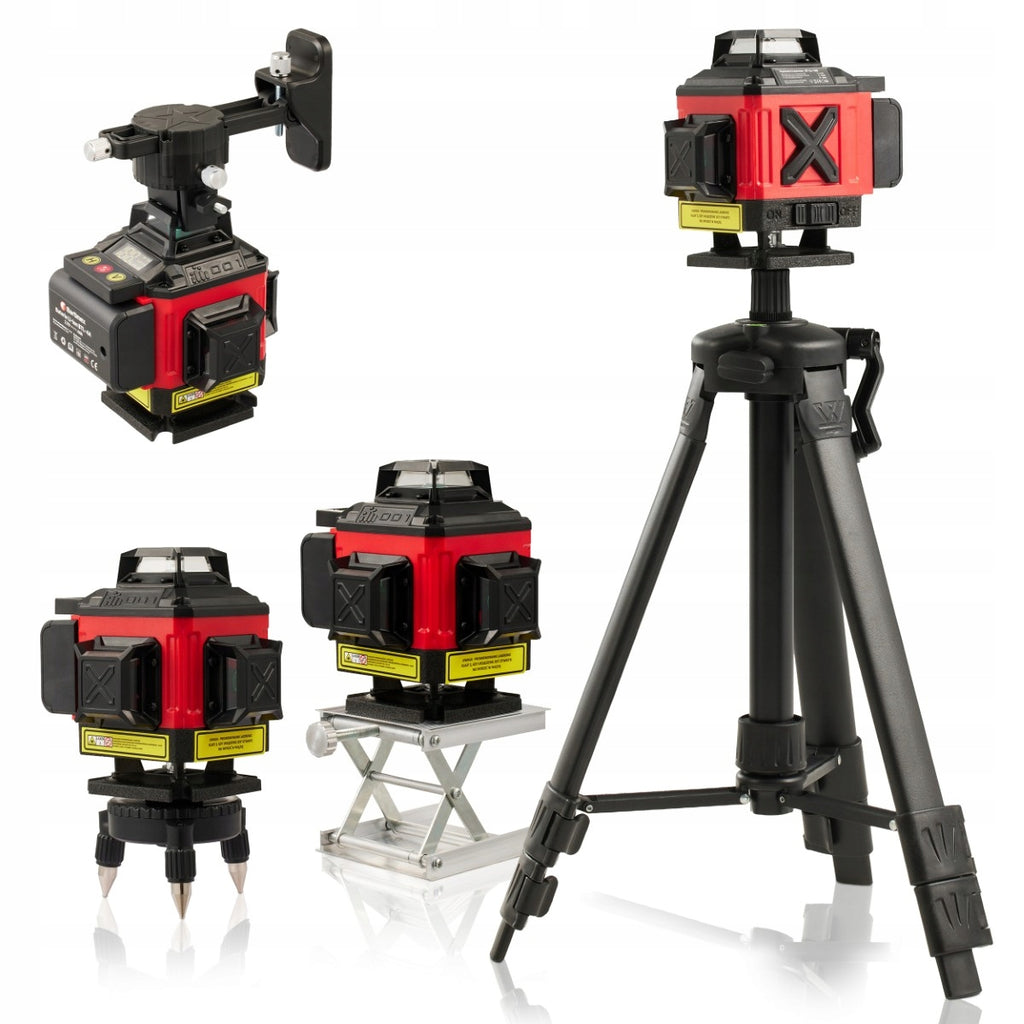

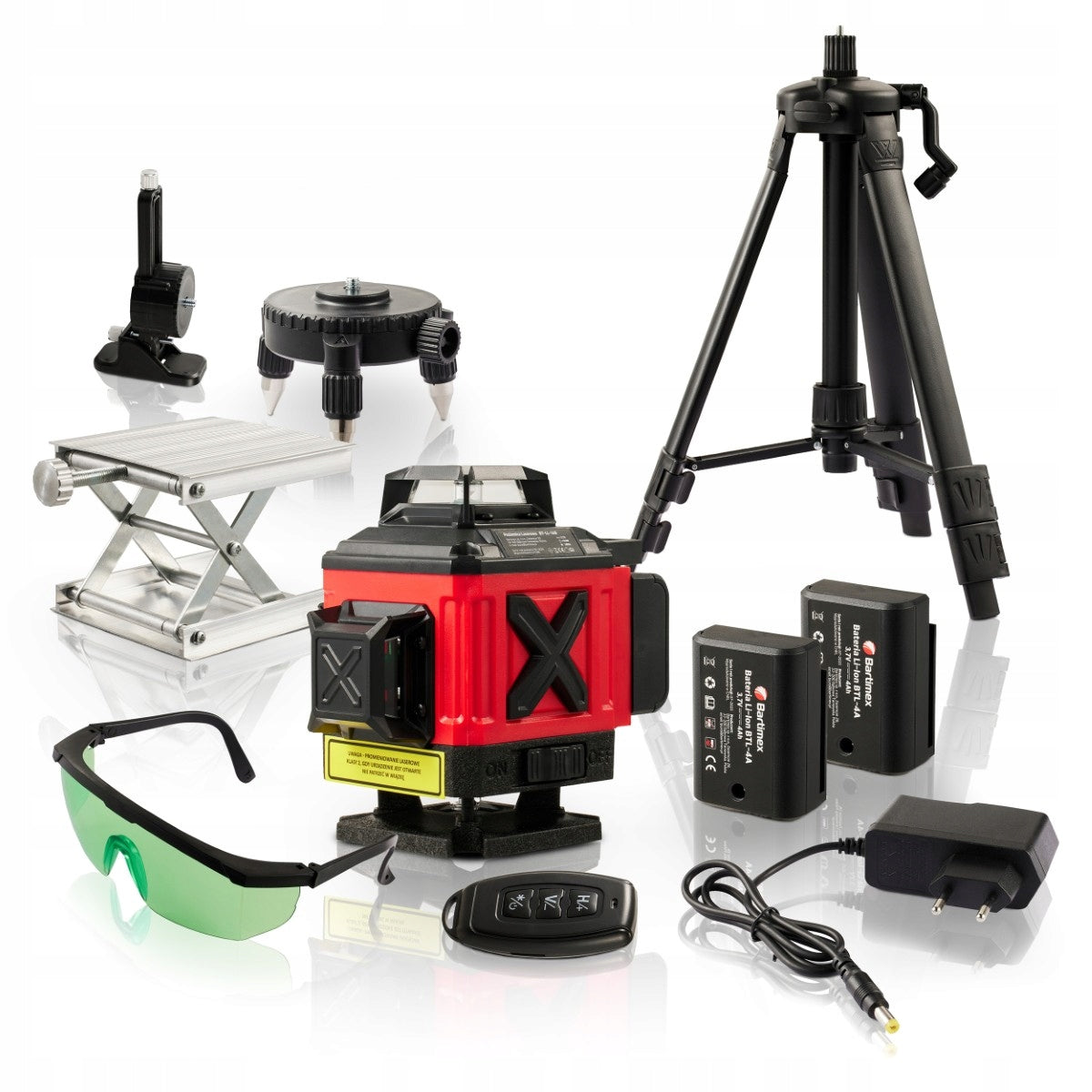

Contents of the PRO 12in1 set

• Cross laser BARTIMEX BT-LL-16B – the heart of the set: 16 lines 360° for quick determination of levels, verticals and bevels.
• 2× 3,7 V 4,0 Ah battery – continuous operation without interruptions; one works, the other you can charge.
• Battery charger – fast energy replenishment and convenient power supply in the field.
• Tripod 1 m (tripod) – stable laser setting at the optimal height in any room.
• Adjustable platform (elevator) – precise lifting/lowering of the laser to the millimeter.
• Mini tripod – compact base for low settings and working close to the floor.
• Magnetic wall mount 360° – quick installation on metal elements and accurate positioning against the wall.
• Remote control – convenient switching on selected planes without approaching the device.
• 1/4" ↔ 3/8" adapter – wide compatibility with various tripods and accessories.
• Transport case – safe storage of the whole set and easy transport.
• Safety glasses – better visibility of green lines and greater comfort of work.
• in Polish manual – quick start and certainty of proper operation of all functions.

Technical data:

• Bundles: 4 heads 360° (2× level, 2× vertical) → 16 lines
• Beam Color: Green (532nm)
• Operating range: 30 m indoors (up to 45 m with detector)
• Accuracy: up to ±2 mm/10 m
• Self-leveling: ±4°
• Modes: self-leveling / pendulum lock (bevels)
• Protection Class: IP54
• Laser Class: II, < 1Mw
• Mounting: 1/4" and 5/8"
• Power supply: 2× Li-Ion battery 3,7 V 4,0Ah, can be operated with power supply/charger
• Working time: up to 10 to 12 hours (depending on the number of active lines and brightness)

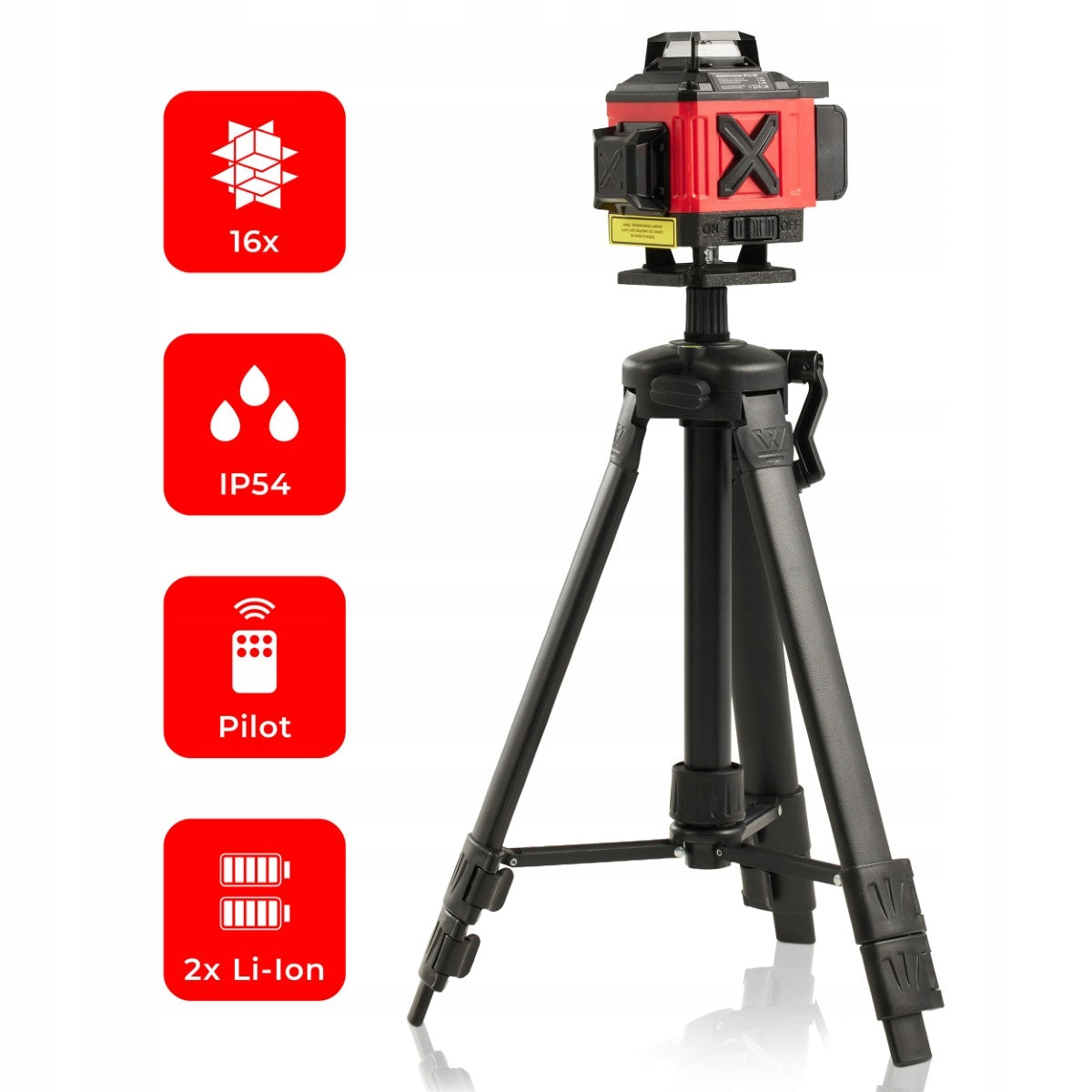

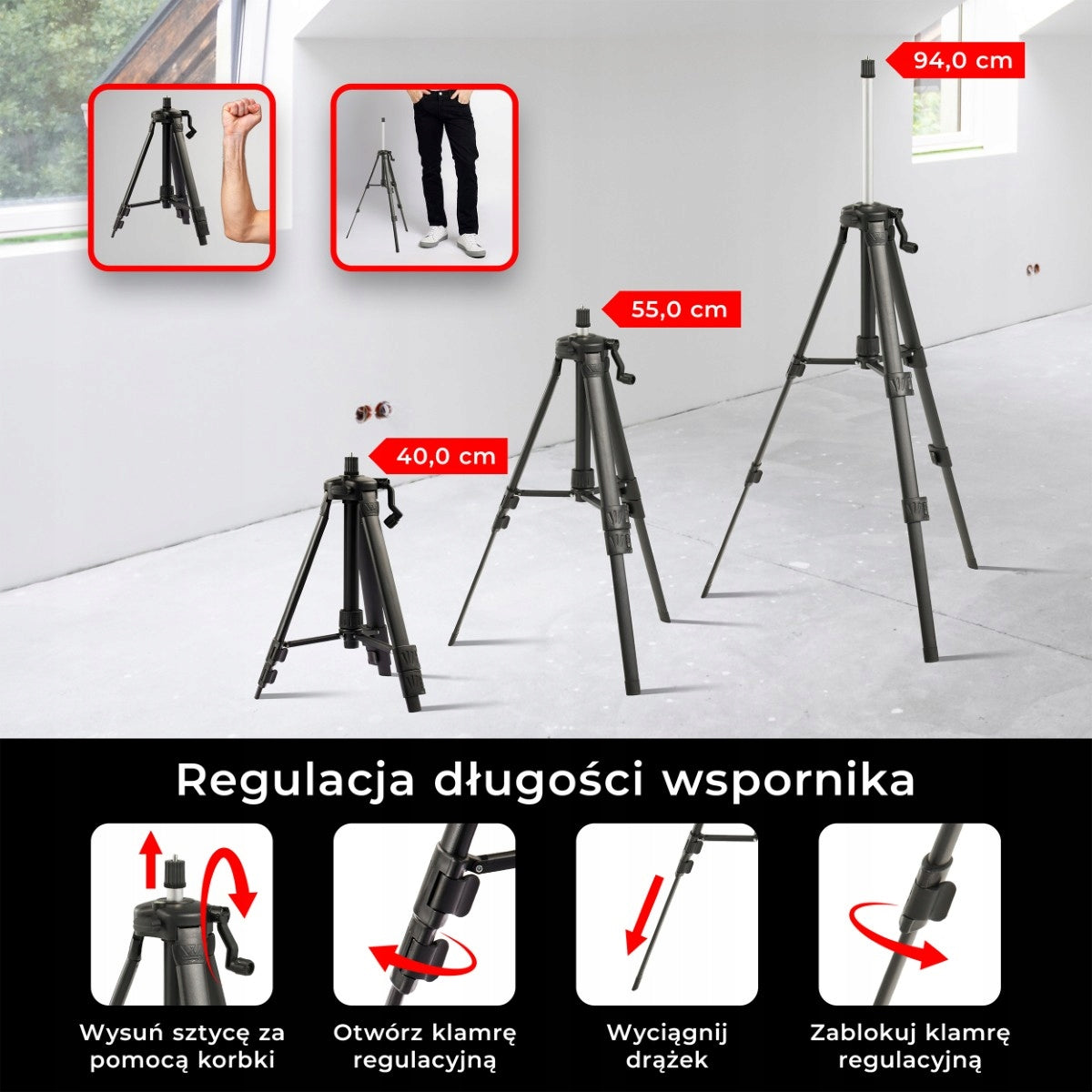

Tripod included:

The laser level comes with a stable tripod, which allows you to securely position the device on virtually any surface:

• Height range: smooth adjustment from 46 cm to 118 cm
• Libella built-in: for more accurate leveling
• Telescopic design: three sections make it easy to adjust the height quickly
• Load capacity up to 1,3 kg: provides stability for level and other light tools
• Adjustment crank: allows precise lifting and lowering of the tripod head

Magnetic wall mount 360°:

The mounting bracket allows for full adjustment in three axes, so you can position the laser exactly where you need it:

• 360° rotation – you can freely turn the device around its axis.
• Extendable adjustment – smoothly change the distance from the wall.
• Changing the angle of the arms – you can easily adjust the slope to the required lines.

This solution enables precise positioning of lines and angles during assembly and finishing works.

Modern technology and quality of workmanship

BT-LL-16B uses a green diode of 532 nm, thanks to which the lines are up to 4× more visible than red at the same power. Self-leveling mechanism stabilizes lines in seconds, and the pendulum lock allows you to draw lines at an angle (handles, drops, bevels). Robust, rubberized housing improves grip and protects electronics. IP54 protection class allows you to work on the construction site and in dust. 1/4" and 5/8" threads ensure compatibility with most tripods and accessories.

Ergonomics and comfort of use

The easy-to-read control panel and remote control make it easy to turn on individual planes without approaching the device. The 360° magnetic holder and the lift platform allow you to precisely set the height and distance from the wall. Transport case with foam ensures order in accessories and safety in transport.

Long-lasting performance with high-performance batteries

• The set includes 2 Li-Ion 3,7 V 4,0 Ah batteries – work with one, charge the other to maintain the continuity of work without downtime.
• Li-Ion technology without the “memory effect” – you can recharge at any time, without having to fully discharge. This is convenience and a really longer lifespan of packages.
• Electronic protection (BMS) in batteries – protection against overcharging, over-discharge, short circuit and overheating.
• Energy-efficient diodes and the ability to deactivate selected planes extend the work on a single charge. Charging via power supply provides convenience and mobility.

Product and work safety

• Laser class II (< 1 mW) – safe for the user. Automatic leveling ± 4° facilitates precise positioning and reduces the risk of measurement errors.
• The set includes safety glasses – they improve the contrast of the “green” line and increase the comfort of work in bright rooms.
• Stable mounting accessories: use a 1m tripod, mini tripod or 360° wall mount from the kit. This reduces the risk of equipment falling and accidentally changing the laser axis (and thus assembly errors).

What sets the BT-LL-16B apart from the competition

• Full 4D / 16 lines 360° – you can set levels and risers throughout the room faster.
• Set of accessories as standard – tripod + lift + 360° handle + remote control + 2 aku.
• Green laser 532 nm – better visibility of lines in interiors, even in bright light.
• Two threads (1/4" and 5/8") – compatibility with construction and photography equipment.
• IP54 and wide temperature range – working in difficult conditions without stress.
