Kryžminis lazerinis nivelyras 16 linijų su 115 cm trikojus, 4D žalias, 2 akumuliatoriai

Trumpai apie prekę

Prekė: Kryžminis lazerinis nivelyras 16 linijų su 115 cm trikojus, 4D žalias, 2 akumuliatoriai. Kategorija: Lazeriniai gulsčiukai.

• Gamintojas: Delphi tools
• Modelis: 16 Linii 2x Akumulator 115 cm Pilot Winda
• Ilgis: 12.5 cm
• Svoris: 0.56 kg

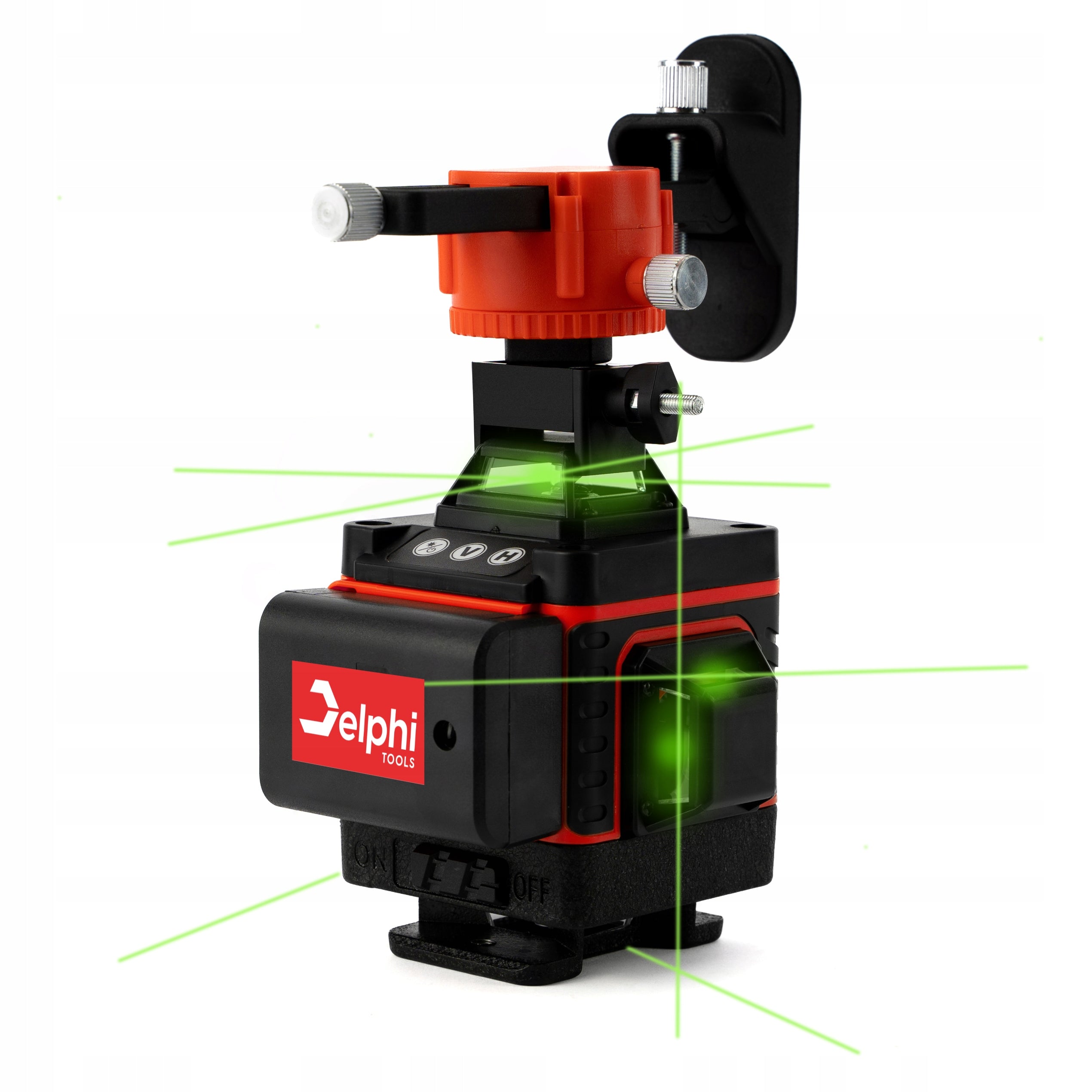

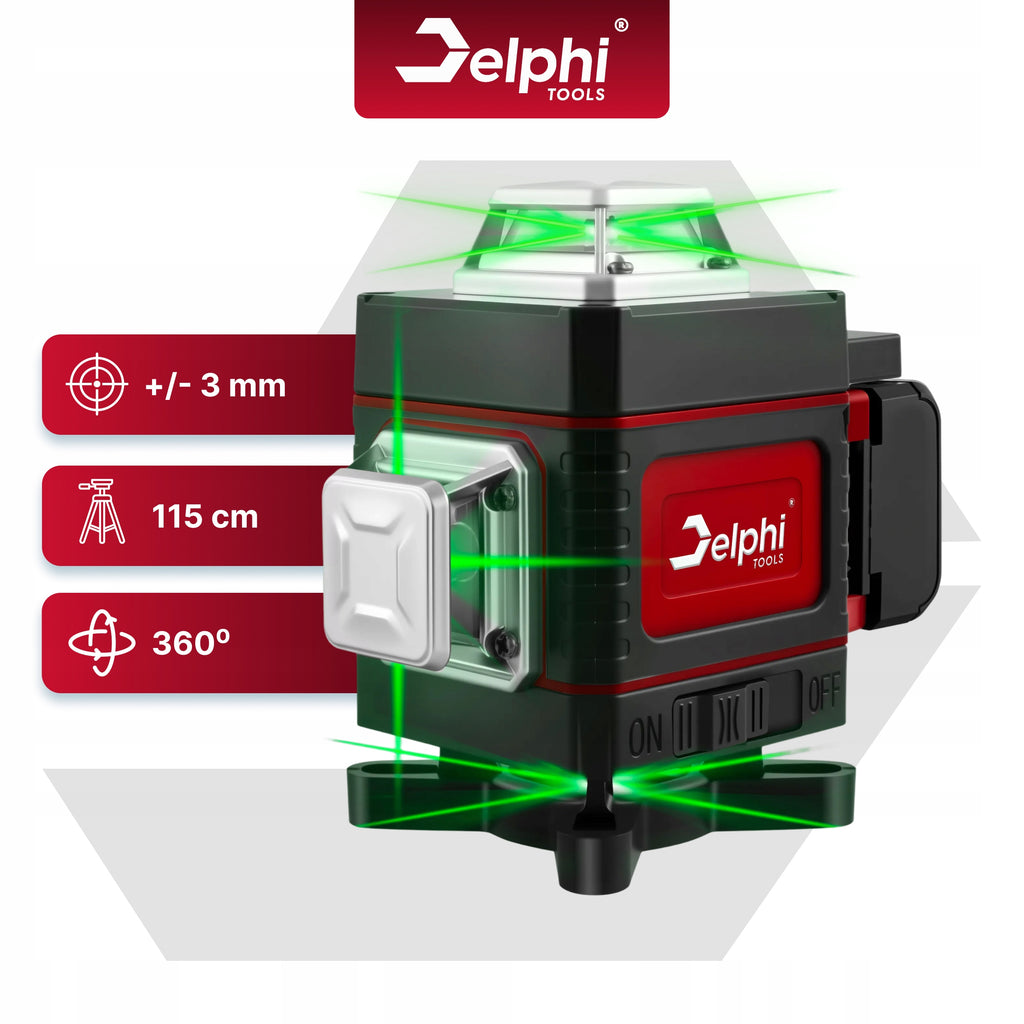

The Delphi Tools Cross Line Laser is a modern measuring device designed for precise horizontal and vertical line projection. It generates clear, 360° green beams, providing excellent visibility both indoors and during finishing work.

➡️Measurement Accuracy ±3 mm - Precisely determines horizontal and vertical lines.

➡️360° Green Beam - Excellent visibility and coverage throughout the entire room.

➡️2x Li-Ion Batteries - Long operating time and quick battery replacement.

➡️115 cm Tripod Included - Stable and convenient device positioning.

➡️Clear Control Panel with Display - Easy parameter control.

➡️Remote Control - Convenient operation without approaching the device.

➡️Pendulum Lock - Safe transport and angled work.

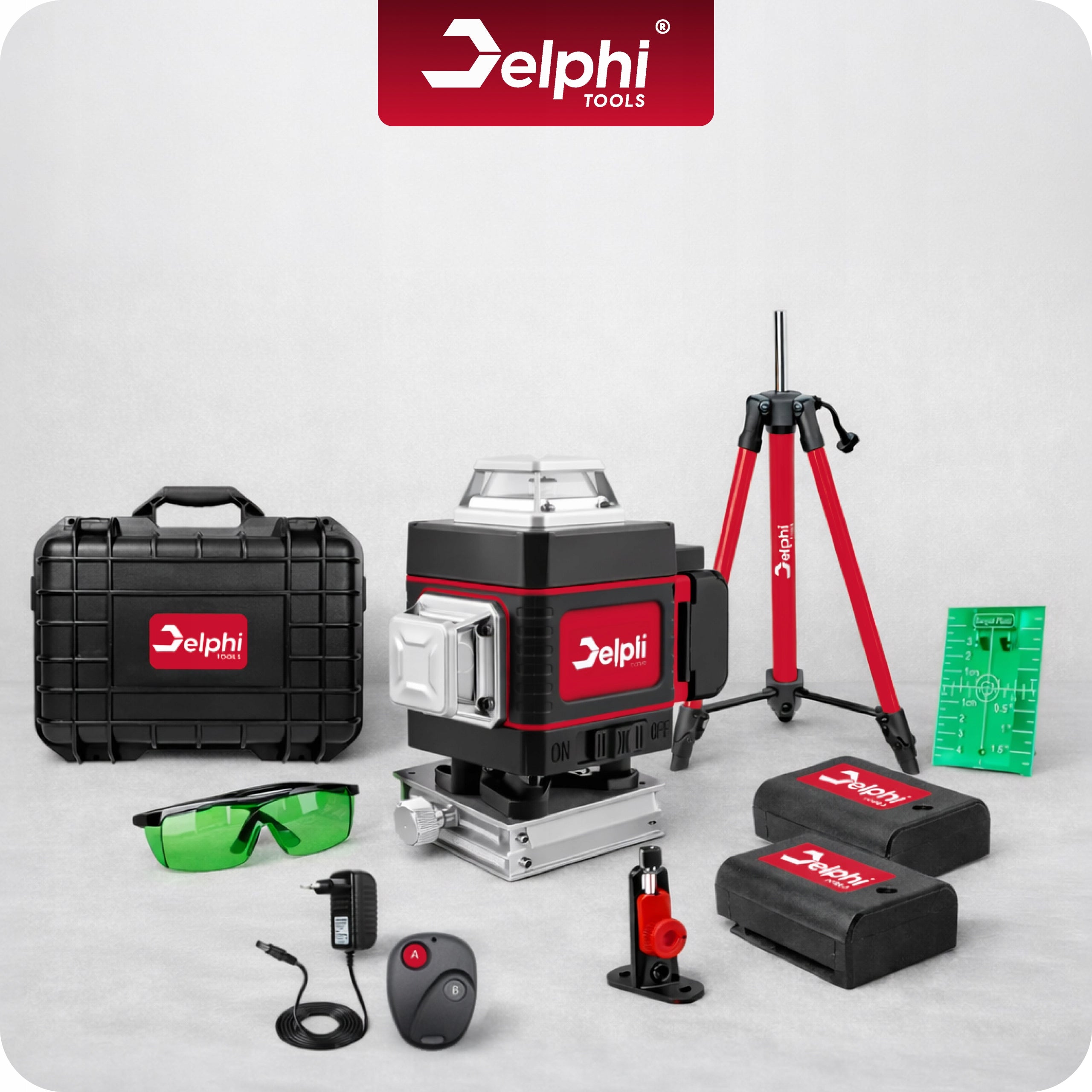

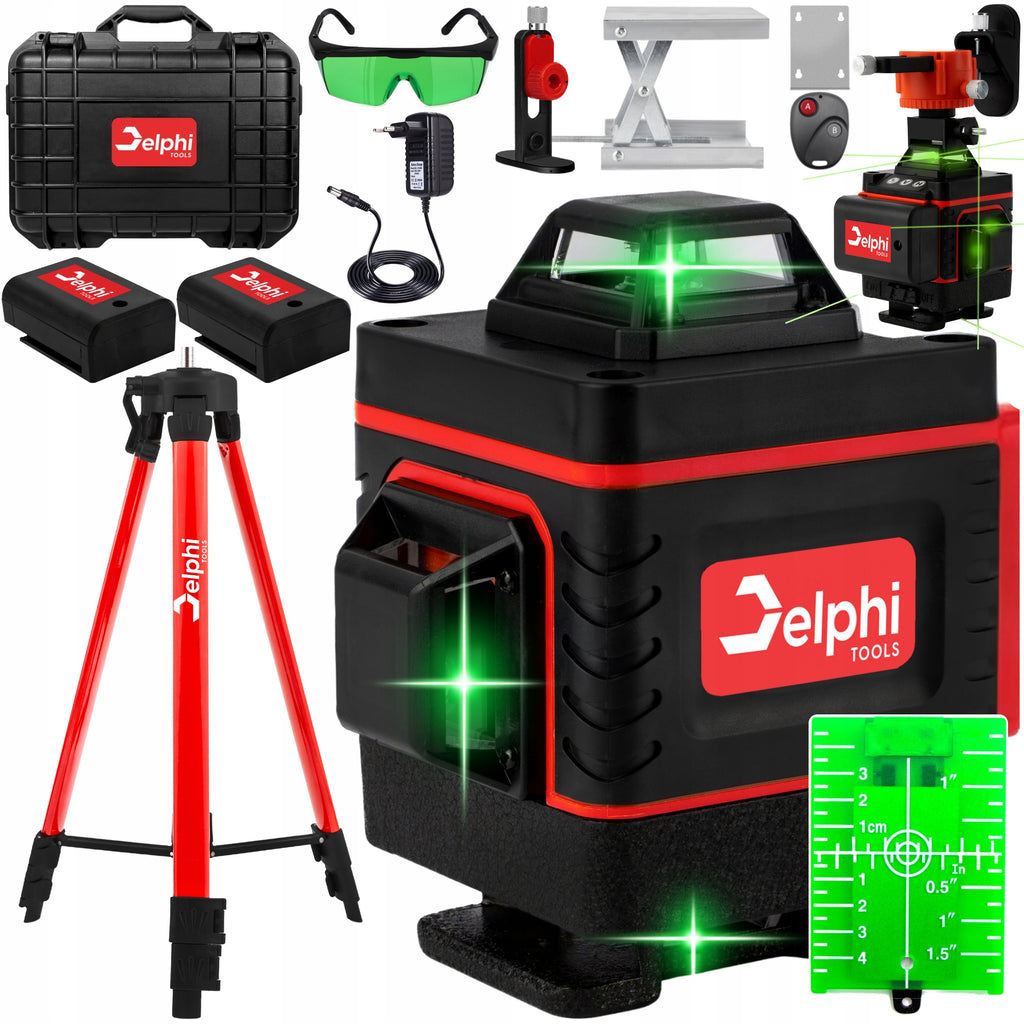

✳ Set includes:

• 1x Cross Laser Delphi Tools
• 2x Battery
• 1x Adjustable platform
• 1x Wall mounting bracket
• 1x Remote control
• 1x Green laser glasses
• 1x Tripod 115 cm
• 1x 5/8 to 1/4 inch adapter
• 1x Transport case
• 1x Charger
• 1x User Manual

FREE:

• 1x Green targeting shield

✳ Specification:

• Laser type: Cross 360° - 4 planes (2 horizontal + 2 vertical)
• Power supply: Li-On battery 2 pcs. 3000 mAh 3,7V
• Measuring range: 25 m
• Laser wavelength: 532nm
• Accuracy: +/- 3mm
• Water resistance rating: IP54
• Working temperature range: from -20°C to 50°C
• Laser beam color: green
• Number of beams: 16 lines
• Mounting thread: 1/4"
• Packaging: Plastic case
• Bevels on a locked pendulum: YES
• Remote control: YES

✳ Pendulum lock - safe transport and angle work

The laser is equipped with a pendulum lock, which protects the self-leveling mechanism during transport and storage. Locking the pendulum protects the delicate optical system from mechanical damage and extends the life of the device.

This function also allows to work in manual mode, i.e. to set lines at any angle (e.g. when installing handrails, stairs or decorative elements). When the pendulum is locked, the laser does not perform automatic leveling, which allows full control over the projection angle.

Turning on the pendulum lock: hold down the "V H" buttons

✳ Line flicker alarm

The laser is equipped with the alarm flickering line function, which informs the user about exceeding the range of automatic leveling. When the device is set at too high an inclination, the laser lines begin to pulsate, signaling an incorrect setting.

Thanks to this, the user immediately receives information that it is necessary to correct the position of the device. This function eliminates the risk of taking measurements on an incorrectly leveled plane, which significantly increases the accuracy of work.

Flicker alarm is a practical protection that increases the precision of measurements and comfort of use, especially during intensive assembly and finishing works.

✳ Green laser beam

The 360° laser emits an intense green beam, which guarantees exceptional visibility even in very bright and sunny rooms. Green lines are much better visible than red lines, which translates into higher comfort and greater precision - regardless of lighting conditions. Thanks to this, the device is perfect both on the construction site and during finishing works in interiors.

✳ 2x Li-Ion Battery

The device is equipped with two Li-Ion batteries, which ensures continuity of operation without downtime. The replaceable battery system allows for quick replacement and rotational work.

Lithium-ion batteries are characterized by:

• lack of memory effect
• stable operating voltage
• fast charging
• long service life

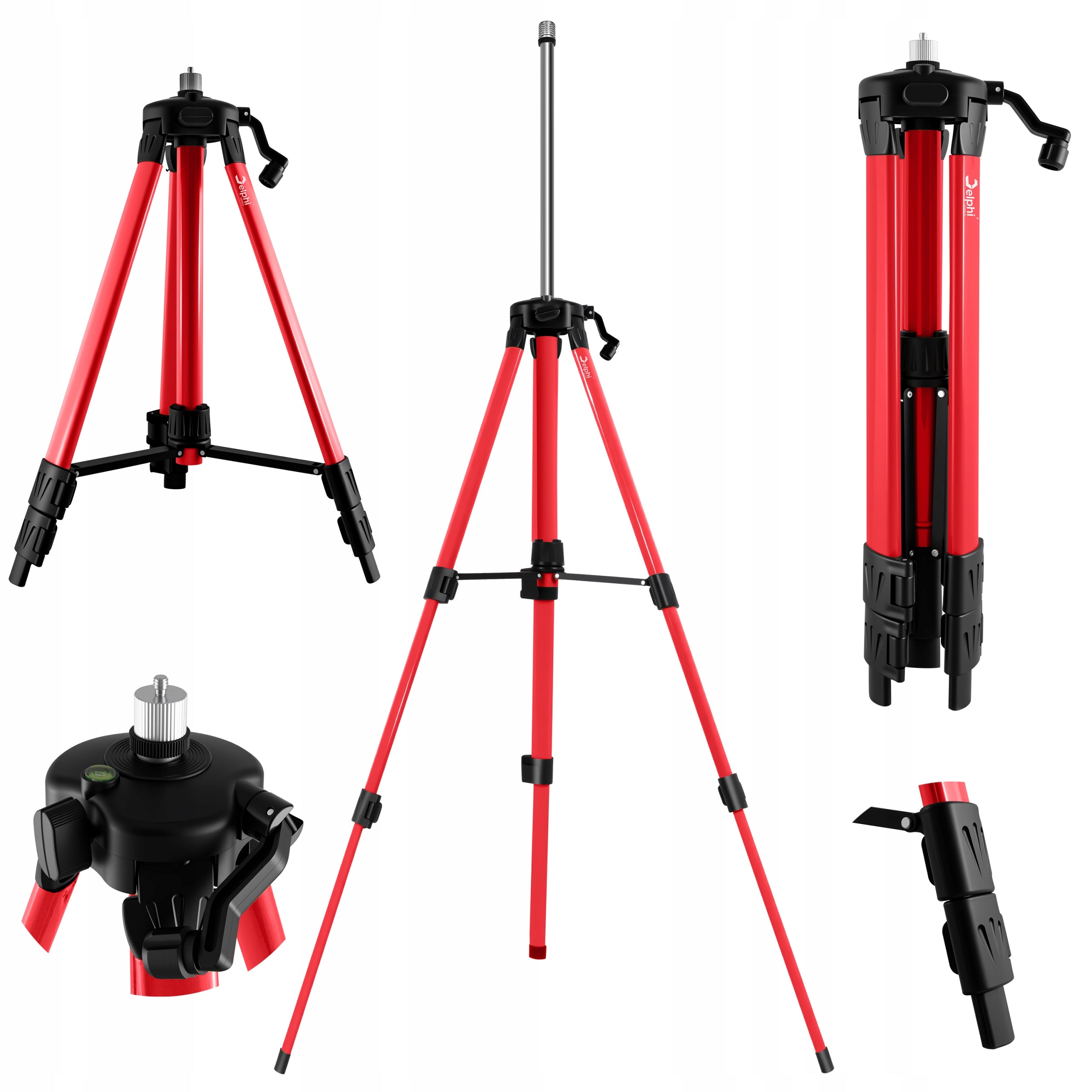

✳ Tripod 115cm

• Adjustable height: telescopic legs allow you to set the tripod in the range from approx. 40 cm to 115 cm, which allows precise adjustment to the user's needs.
• 5/8" thread: compatible with most construction lasers on the market (5/8" to 1/4" adapter is included).
• Central lock: fast and stable leg locking system prevents the tripod from moving during operation.
• Lightweight construction: made of aluminum for durability while maintaining low weight - ideal for field work.
• Built-in libella - facilitates precise leveling of the tripod.

✳ Transport case

The cross laser is supplied in a robust transport case made of durable plastic resistant to mechanical damage. The rigid design effectively protects the device and accessories from shocks, dust and moisture during transport and storage.

The interior of the suitcase is designed with properly matched compartments that stabilize the laser, batteries, charger and other elements of the set. Each component has its own place, which prevents the movement of content and facilitates the organization of work.

The ergonomic handle ensures comfortable carrying, while the sturdy latches provide a secure closure.

✳ Remote control

The laser is equipped with a practical remote control, which allows you to conveniently manage the functions of the device without having to approach it. This solution significantly improves work, especially in larger rooms or during installation at height.

With the buttons, you can turn selected laser lines on and off and control operating modes. The remote control allows for quick response and precise adjustment of settings during measurements.

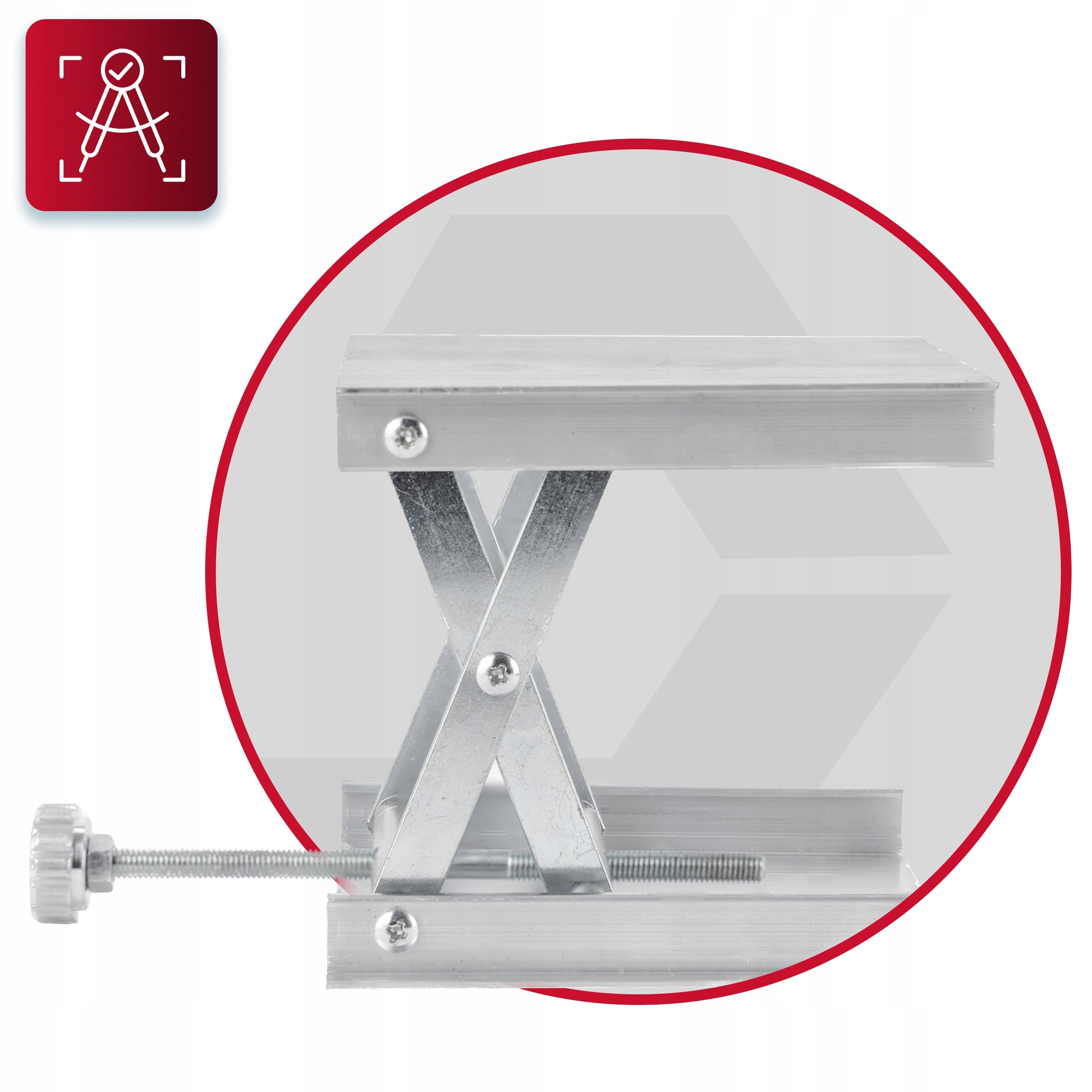

✳ Micro-adjustment handle

Handle with micro-adjustment for very precise laser height setting (e.g. when transferring the level).

✅ Adjustment is carried out using the pressure screw, which raises or lowers the device with an accuracy of millimeters.

✅ Made of aluminium - light, stable and durable.

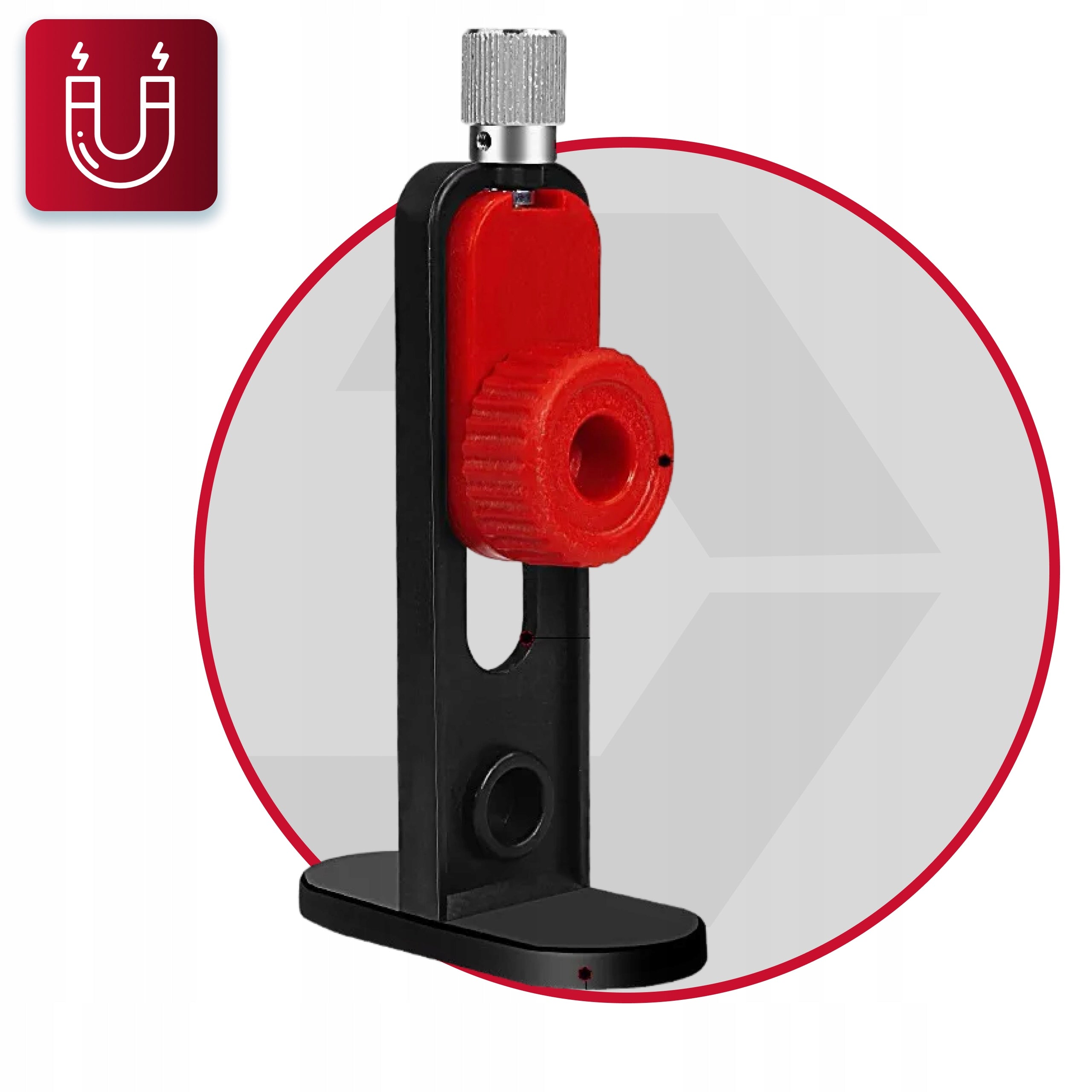

✳️Magnetic Wall Mount

Magnetic mount enabling laser mounting to metal surfaces (e.g., door frames, profiles, scaffolding).

✅ Features strong magnets and adjustment for laser positioning using knobs.

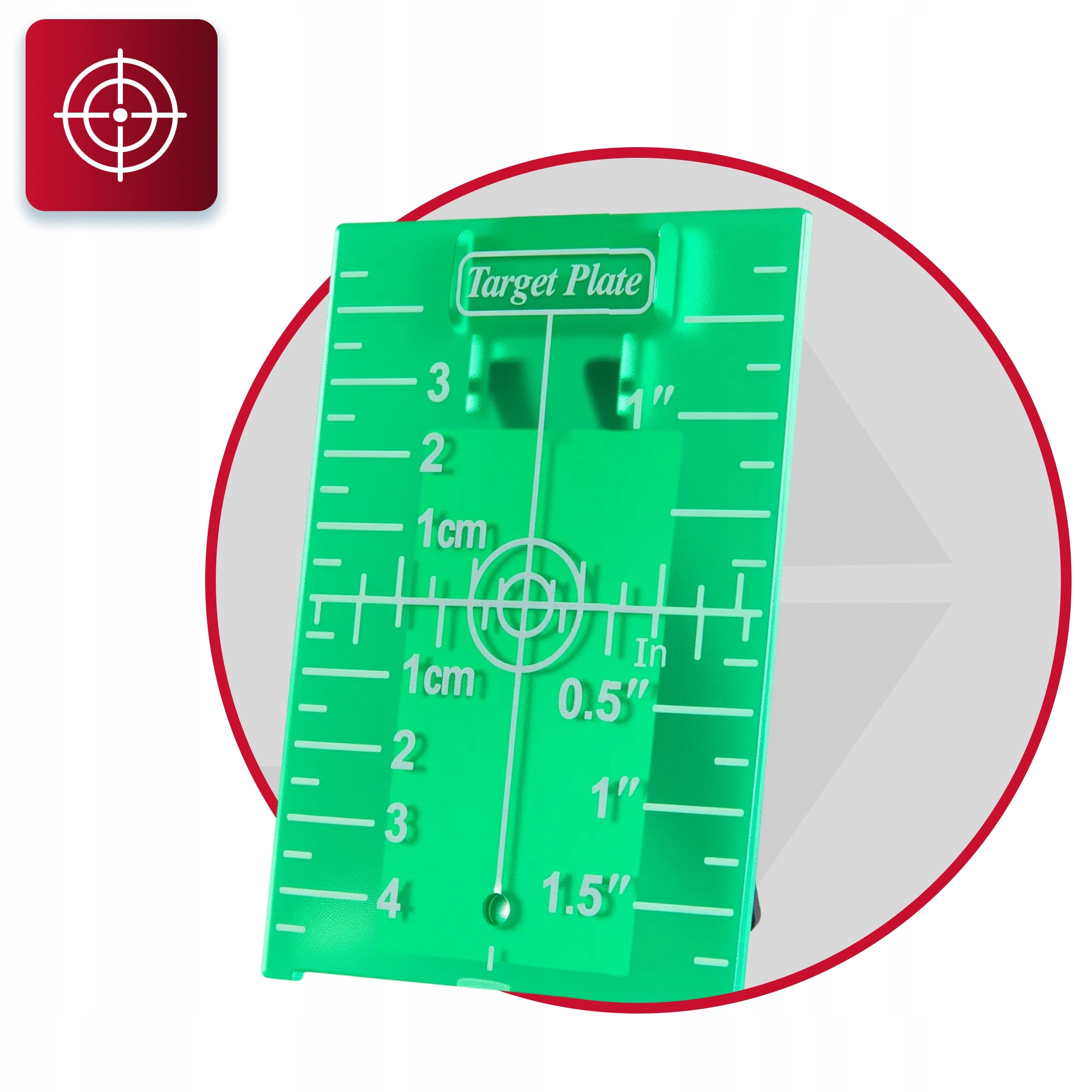

✳ Green targeting shield

• Increases the visibility of the laser beam, especially in bright rooms and over longer distances.
• The pitch in cm and inches makes it easy to precisely determine the position of the laser line relative to the reference point.
• Built-in magnet allows quick attachment to metal elements - e.g. profiles, beams or steel doors.
• The central aiming point allows you to accurately determine the place of incidence of the laser beam.
• Folding leg ensures stable positioning of the disc on flat surfaces.
• Ideal for assembly, glazing, finishing and installation work.

Gallery

Delphi Tools is a brand created for people involved in DIY both in their free time and on a daily basis. We focus on comfort in the use of equipment, which in addition to interesting design is characterized by high durability. For many years, we have been trying to provide you with tools that will facilitate repairs and save time, and also meet the highest quality standards and exceed the expectations of users.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Delphi tools
Parametry	Model	16 Linii 2x Akumulator 115 cm Pilot Winda
Parametry	Power supply	rechargeable battery
Parametry	Maximum working range	25 m
Parametry	Measurement accuracy (+/-)	3 mm
Parametry	Number of laser beams	16
Parametry	Laser color	green
Parametry	Horizontal line display angle	360°
Parametry	Vertical line display angle	360°
Parametry	Protection rating	IP54
Parametry	Product height	12.5 cm
Parametry	Product width	10 cm
Parametry	Length	12.5 cm
Parametry	Weight	0.56 kg
Parametry	Manufacturer code	8528758
Parametry	EAN (GTIN)	5905108470357
Parametry	Batteries included	yes
Parametry	Packaging status	original
Parametry	Additional features	pendulum lock,360° laser,works below zero degrees Celsius,receiver included,glasses included,touchpad,cover included,self-leveling,tripod included,target plate included,handle included
Parametry	Certificates of conformity	CE,WEEE
