Kryžminis lazerinis nivelyras YATO 4D, žalias spindulys, 360°

Trumpai apie prekę

Prekė: Kryžminis lazerinis nivelyras YATO 4D, žalias spindulys, 360°. Kategorija: Lazeriniai gulsčiukai.

• Gamintojas: Yato
• Modelis: YATO_YT-30424

4D four-plane laser with electronic compensator and green beam. It displays 16 lines simultaneously, which together form four planes, 360 degrees each (two horizontal and two vertical). This allows you to get two horizontal lines and one vertical on each wall at the same time. Japanese laser diode technology guarantees very good indoor visibility and a working range of up to 30 meters.

The laser diodes use Japanese technology, which guarantees excellent indoor visibility and a working range of up to 30 meters.

The electronic compensator uses laser leveling technology to level the beams. The motors position the laser perfectly vertically and horizontally and maintain this state in terms of self-leveling continuously. The advantage of this solution over gravitationally leveling lasers is high vibration resistance. Passing person, passing construction vehicles, soil thickening pavers and many other sources of smaller or larger vibrations will not interfere with the work of the person using the laser.

• IP54 protection class guarantees dustproofness and resistance to drops falling from any direction
• housing made of durable plastic in IP54 protection class, with rubber non-slip pads
• 2 3,7 V batteries with increased capacity of 3600 mAh allow continuous operation with replacement use
• max. working time on a single battery charge: 3 hours
• packed in a suitcase with foam filling to absorb vibrations

Usage warnings:

Attention! Laser radiation. Do not stare at the laser beam. Class 2 laser device.

Parameters:

• Working range: 30 m
• Laser: yes
• Laser class: 2
• Laser power: ≤1 mW
• Laser wavelength: 508 - 530 nm
• Laser accuracy: ±2 mm / 10 m
• Type of laser indication: linear, cross, with electronic compensator
• Laser pointer color: green
• Self-regulation range: ±3˚
• Power supply: battery
• Battery Type: Li-Ion
• Battery voltage: 3.7 V d.c.
• Battery capacity: 3600 mAh
• Battery power: 13.32 Wh
• Max. working time: 3 h
• Dimensions: 117x99x133 mm
• Tripod included: yes
• Tripod thread size: 1/4" (6.35 mm) 20UNC
• Operating temperature range: -10 ~ +40˚C
• Degree of protection: IP54
• Weight: 0.51 kg

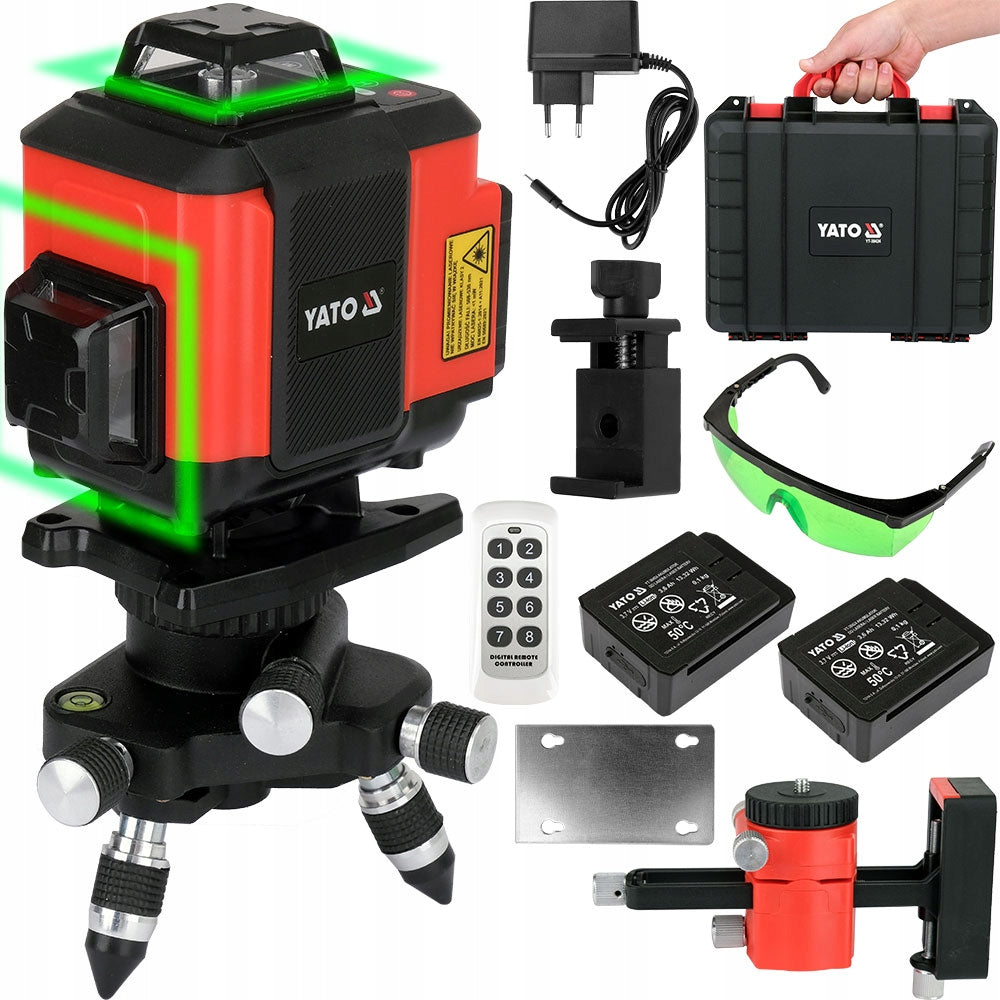

Contents of the set:

• laser
• battery x2
• charger
• pilot
• wall mount
• adapter for tripod
• metal plate
• mini tripod with XYZ axis adjustment
• up-down adjustable platform
• safety glasses

AR9GWEYT-30424MK3S
