Kryžminis statybinis lazeris NIVEL SYSTEM CL4G su 4 plokštumomis, žalias spindulys

Trumpai apie prekę

Prekė: Kryžminis statybinis lazeris NIVEL SYSTEM CL4G su 4 plokštumomis, žalias spindulys. Kategorija: Lazeriniai gulsčiukai.

• Gamintojas: Nivel System
• Modelis: CL4G
• Ilgis: 15.1 cm
• Svoris: 3 kg

• Nivel System CL4G is a multi-purpose 4D cross laser.
• equipment sets perfectly leveled reference lines (horizontal and vertical) on the wall, which support all finishing and general construction works.

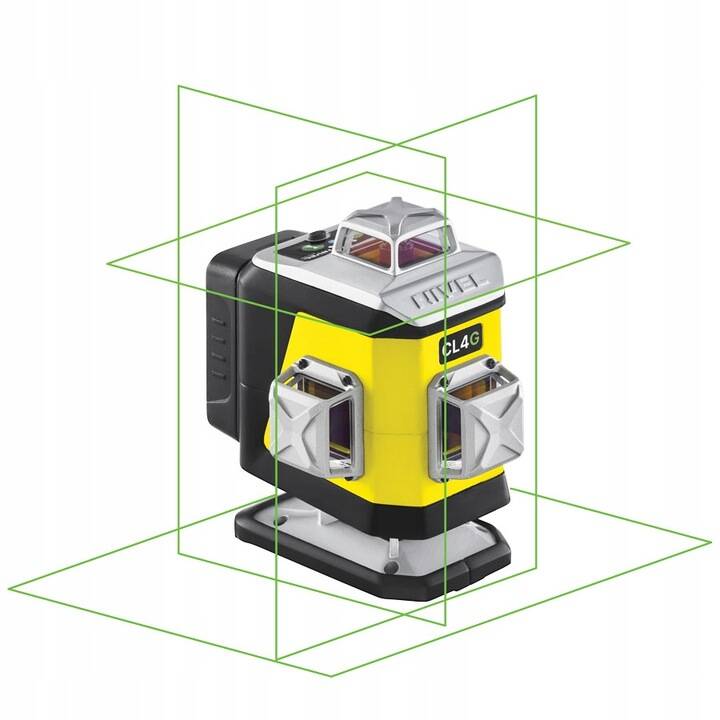

• Laser has 4 laser heads, thanks to which the user has the ability to work with four laser planes – in the range of 360° each.
• Simultaneous display of these planes allows you to determine the right angle.
• This option is useful i.a. in construction and finishing works (e.g. glazing).
• Locking the compensator makes the instrument can be tilted and use oblique lines.
• The built-in tripod thread allows a secure and stable attachment of the instrument on a tripod, adapter or laser shelf.
• Reinforced laser housing elements protect against damage due to impacts and shocks.

• Accuracy and reliability – a very visible green laser beam guarantees comfortable operation in all conditions (4 times better visible compared to a red laser), the equipment allows you to work with an accuracy of ±2 mm/10 m
• Versatility and multitasking – 4 laser planes (360°), control of construction works in the range of 4 axes (4D), the lower laser beam already at the level of 19mm allows leveling floors, laying terracotta. Additional upper horizontal beam – this is even more possibilities (e.g. when working with cardboard-gypsum, suspended ceilings).
• Digital indication – the ability to work with the RD800 DIGITAL digital sensor, where the height difference is presented in millimeters
• Fast leveling – a modern magnetic vibration compensation system ensures quick preparation of the device for work, the laser stably determines the beam, even on an unstable base, and when locked allows you to work with bevels
• Even greater range – pulse function allows you to work with a laser sensor outside buildings at long distances (working diameter 140m)
• Intuitive operation – easy and quick to use control panel with application for mobile devices (Bluetooth)
• Laser adapter – secure attachment even in difficult conditions on the construction site, additionally the possibility of setting at a given height
• Efficient power supply – Li-ion battery (4000mAh), rechargeable during operation
• Resistant to damage, durable equipment – armored, reinforced with a metal body housing, metal laser head covers, rubber corners cushion and protect the laser from damage due to impacts and shocks, dust and water resistant equipment (IP54)

Technical data:

• Laser beam: green laser (515 nm), class 2
• Accuracy: ±2,0mm/10m
• Operating range: 30 m (70 m with sensor)
• Bluetooth: YES
• Plane inclination: YES
• Self-leveling range: ±3.0°
• Generated planes: 2 x horizontal (360°), 2 x vertical (360°)
• Tripod mount: 1/4″, 5/8″
• Power supply: Li-ion 3,7V (4000mAh)
• Resistance class: IP54
• Operating temperature range: -10°C to +50°C
• Dimensions: 148 x 90 x 151 mm
• Weight: 920g

The set includes:

• Cross laser CL4G
• Laser shield TR-G
• Floor disc FTR-G (2 pieces)
• GL-G laser glasses
• Laser lift LF-1
• Multi-adapter CL-BR
• Li-Ion battery Aku CL
• USB charger CH-USB
• Transport case
