Kūno kraujospūdžio matuoklis FH20B1-B-WB, 1 colio, raktas, plokštelė, diskas

Trumpai apie prekę

Prekė: Kūno kraujospūdžio matuoklis FH20B1-B-WB, 1 colio, raktas, plokštelė, diskas. Kategorija: Kranų ir po kriaukle montuojami filtrai.

• Gamintojas: Aquafilter
• Modelis: FH20B1-B-WB

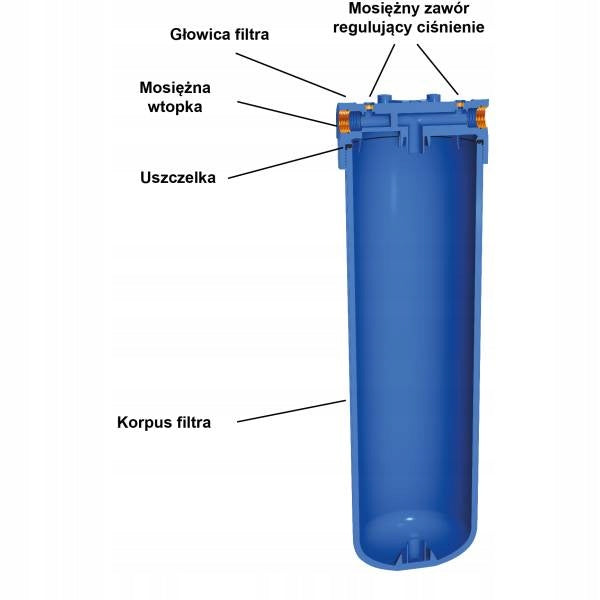

FH20B1-B-WB: in-line body type BIG BLUE. It consists of two parts of a lampshade and a head with a 1" brass thread. It is equipped with a vent valve that allows you to release the air stored in the filter after replacing the cartridge and a blood pressure monitor.

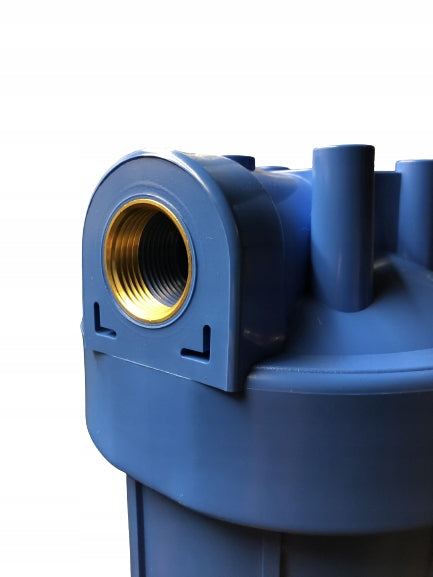

The brass plug allows you to freely screw in and out the vent or blood pressure monitor.

The body can be mounted individually or connected in series. The body is installed on a pipe supplying cold water to the house or apartment.

FH20B1-B-WB installed in front of devices: softener, iron remover or boiler, will perfectly protect them against the deposition of various types of contaminants, while increasing their service life.

It works with a wide range of mechanical, specialized and carbon 20" BIG BLUE cartridges available on the market.

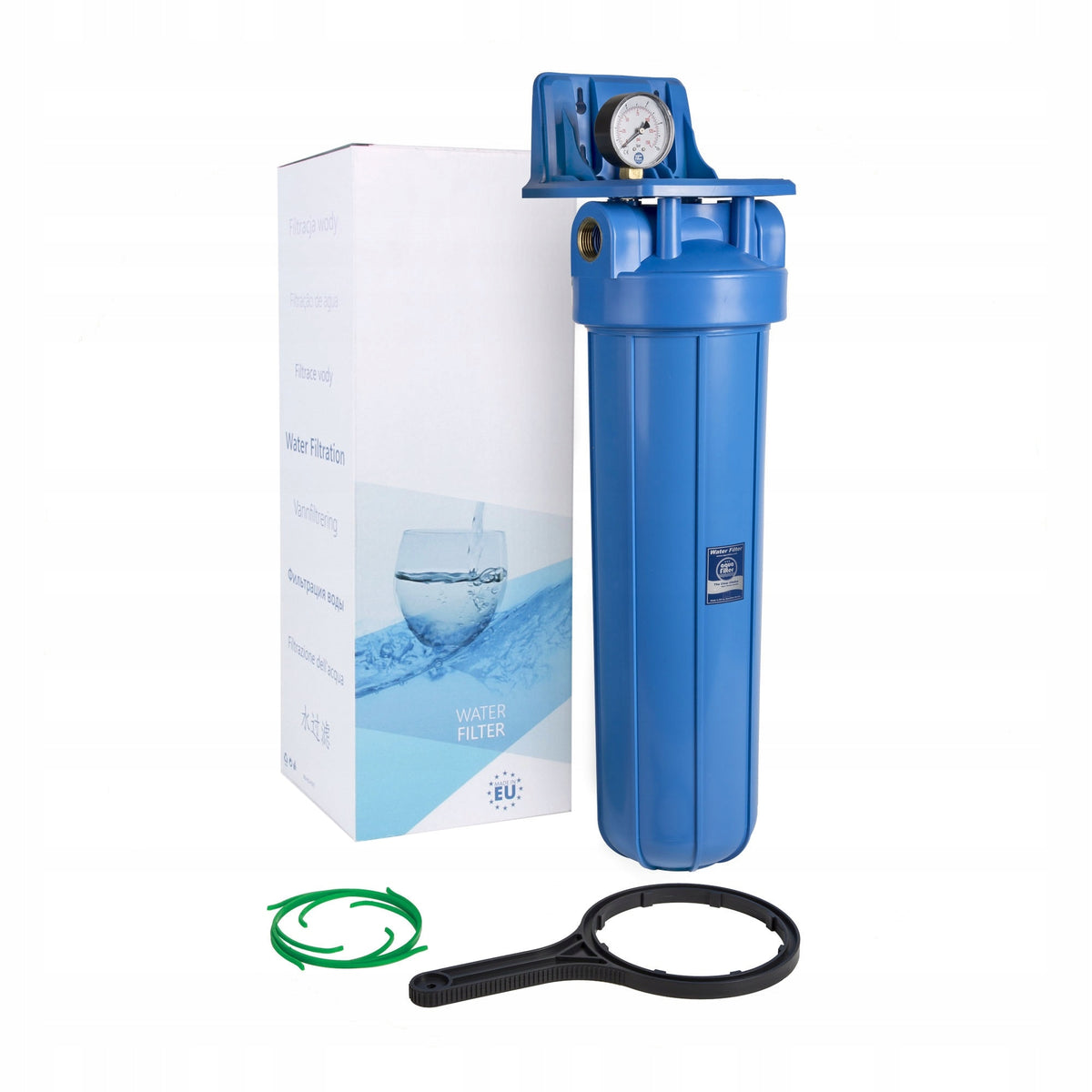

The FH20B1-B-WB body is available in a set with mounting plate, key and blood pressure monitor and bacteriostatic centering disc.

Technical data:

• Connection Diameter: 1"
• Maximum working pressure: 6 bar
• Maximum temp. Working: 45C
• Body Material: PP
• Head Material: PP
• Cartridge sizes: 4 1/2"*20" (52 cm *11,5 cm)
• O-ring sealing: EPDM

IMPORTANT INFORMATION

Teflon tape (PTFE) should only be used to seal all threaded joints. It is strictly forbidden to use flax tows, flax hemp, sealing varnishes, sealing pastes and any other sealants of this type.

The use of tows or flax hemp causes that under the influence of contact with water they increase their volume, which can lead to excessive stress and consequently to cracking or tearing of the threaded insert.
