Kvėpavimo monitorius kūdikiams NANNY MEDICAL su jutikline plokštele

Trumpai apie prekę

Prekė: Kvėpavimo monitorius kūdikiams NANNY MEDICAL su jutikline plokštele. Kategorija: Kūdikių ir kvėpavimo stebėjimo monitoriai.

• Gamintojas: Nanny
• Modelis: BM02
• Spalva: white

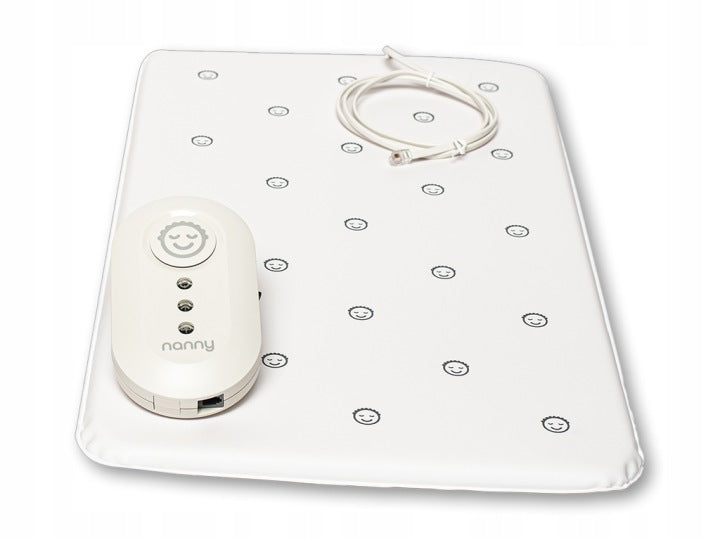

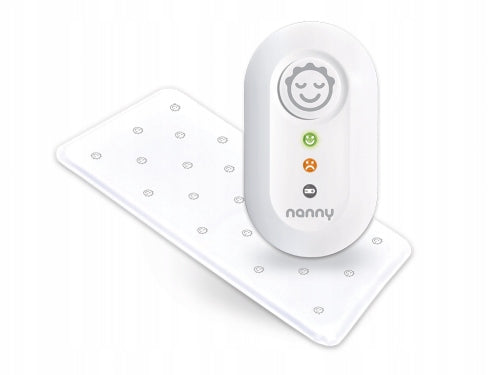

Nanny BM-02 is a certified medical device designed to monitor your baby's breathing. It is suitable for infants with a minimum weight of 1 kg (2.2 lbs). Its primary purpose is to provide early alerts if a baby's breathing rate drops or if there is a potential risk of breathing cessation. The device performs an automatic self-test every time it is turned on, ensuring it cannot be accidentally deactivated. The monitor is non-contact, emits no radiation, and does not restrict the baby's movement.

The sensor pad is made of high-quality, durable plastic that is moisture-resistant and protected against deformation and liquid penetration.

This medical monitor features the largest sensor pad surface area on the market. It is approved by European health institutes and is classified as a Class IIb medical device (Certificate No. 93/42/EEC). Nanny is manufactured by the Czech company Jablotron, which specializes in infant breathing monitoring technology.

Breathing monitor Nanny - basic features:

• modern breath monitor: for children 0+
• recommended weight of the child: from min. 2 kg to max. 15 kg
• safe for the child, there is no direct contact with the child, therefore it is not harmful to him
• Created to monitor the proper breathing of the child and watch over his safe sleep and increase the comfort of care
• medical monitor with the largest sensory plate area on the market
• product of the Czech company Jablotron specializing in monitoring breathing in a child
• It has been approved by European health institutes and is classified as a Class II b medical device (certificate No. 93/42/EC) and EC certificate No. MED 040093 - we can send it to @
• approved for use in medical institutions for childcare.
• NOTE: The BREATH MONITOR only alerts you when your baby stops breathing or starts breathing irregularly. The device will not perform any rescue operation.

How the Nanny monitor works:

• The device will not turn on when the batteries do not pass the power test, which takes place after turning on the device, so that the device can not suddenly stop working.
• mats placed in the baby's crib recognize touch by moving his chest
• strong audible alarm – well audible even through the wall due to the quality of the siren if the child does not breathe for more than 20 seconds, the light will flash and after 5 seconds, a loud alarm is triggered
• The breath monitor also notifies the user if the child breathes less than 8 times per minute (alarm immediately, flashes red and green simultaneously)
• beep confirmation, enable location if necessary – alarm unit can be mounted up to 5m from the cot (extension cable included)
• Long battery life – the battery lasts up to 6 months.
• quick and easy installation, attachment to the bed for a special strap
• The removable plate is covered in a special film that allows for easy cleaning and at the same time protects sensitive sensors
• an additional sensor can be purchased for the unit, ideal for another bed

Contents of the Nanny breath monitor package:

• 1 x Sensor pad (mattress pad) 500 × 305 × 15 mm, weight 1000 g
• 1 x Display
• 2 x AA alkaline batteries 1,5 V
• 1 x 5 m extension cord
• 1 x Connection Socket
• free set of colorful stickers lion, kitten and sheep,
• 2 antibacterial wipes
• 1 x Plastic Wall Mounts
• instruction in Polish, including first aid
• product Czech Republic

• Product: Breath Monitor NANNY BM -01
• Power supply ,, 700-1200 hPa: 3 V, 2× 1,5 V alkaline batteries type AA LR6
• Standby consumption: 0,2 mA
• Consumption during alarm: 100 mA
• Voltage of weak battery signalling: 2,38 V ± 0,15 V
• Alarm breathing frequency: < 8 inhalations/min. (i.e. < 0,13 Hz)
• Average battery life: – in a home environment of 6 months (it is shortened by frequent alarm testing) alarm testing)
• Average battery life: - in the hospital 4 months (it is shortened by constant use)
• Sensory mat: type BM-02D
• Sizes: 305×500×15 mm
• Weight: 1 000 g
• Material: PCV-P
• Cable length: 1,2 m
• Siren acoustic power: 80 dB/m ±5% dB/m
• Analyzer sizes max: . 140×80×35 mm
• Weight: 123 g
• Material: ABS
• Conditions of use:. ,: 700-1200 hPa 0 °C to +40 °C, humidity or. 10 to 85 %,
• Transport and storage: +5 °C to +35 °C at 15 % to 93 % humidity or
• Product character: BM-02D application part type B
