Laidų ieškiklis Forscher FS801D

Trumpai apie prekę

Prekė: Laidų ieškiklis Forscher FS801D. Kategorija: Detektoriai.

• Gamintojas: Forscher
• Modelis: fs801d

FORSCHER FS801D

Industrial detector cable and pipe finder . The design is based on a unique technology that combines the generation of both analogue and digital tones used by the American company FLUKE, which allows for high accuracy in locating cables and pipes in the ground in walls, floors, etc. High power – depth of search up to 2,5 m. below the surface. The FS801D cable detector can operate under electrical voltage up to 400 VAC.

The Forscher FS801D cable detector allows you to locate and determine the route of wires. Ideally suited for the location of wires in walls, floor and underground. With it, you can quickly locate fuses (switches) and assign them to specific circuits.

characteristics : location of cables and pipes with a range of up to 250 cm below the surface

- digital mode eliminating mistakes in locating cables by filtering out unwanted interference

- Search for interruptions in electrical circuits.

- Rubberized protective case for drops/impacts.

- the ability to locate cables in noisy rooms thanks to the digital indicator and scale (bargraph)

- searching for cable breaks and short circuits

-contactless AC voltage detector that allows you to detect, for example, live wires in the wall.

- AC/DC voltage measurement function 38- 400V

-smooth regulation of transmitter power and receiver sensitivity

- the ability to work in an active electrical network up to 400 VAC

- signal transmission range up to 10km

- power supply: Transmitter - 9V battery, Receiver - LR6 6pcs batteries (includes 2 sets of 1 set. installed + 1 set. reserve)

included:

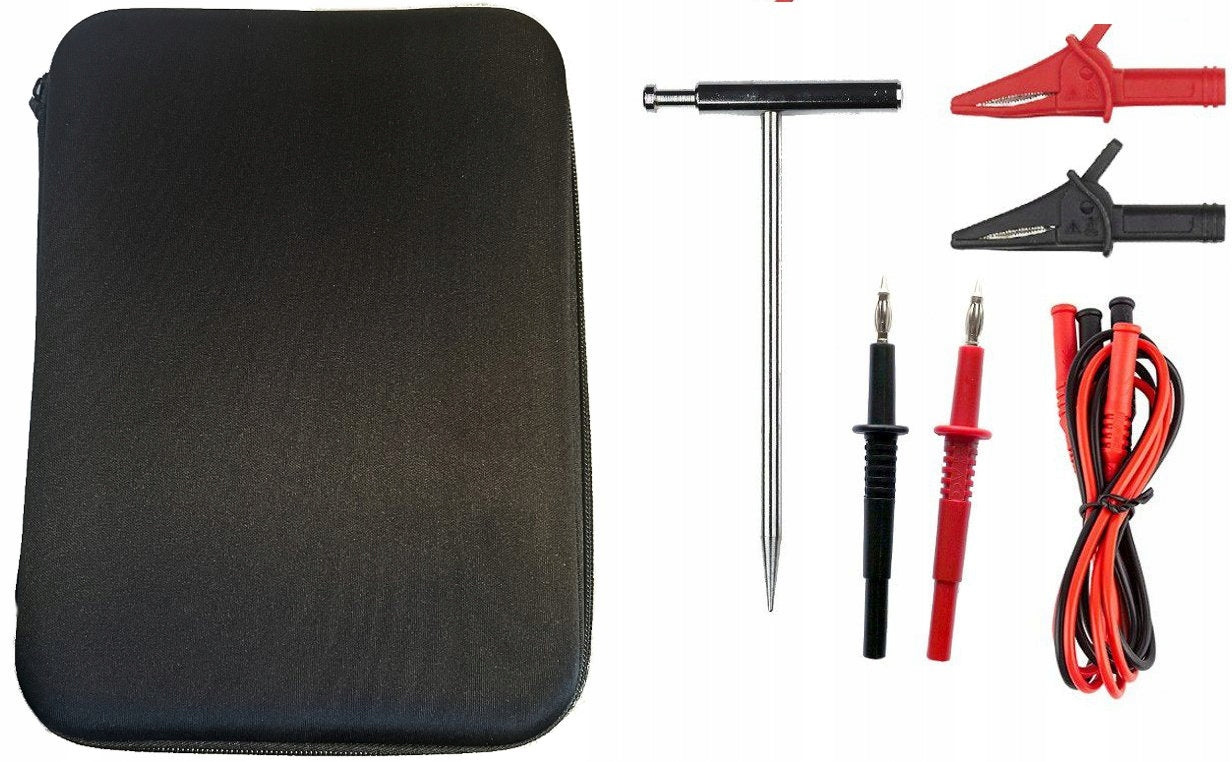

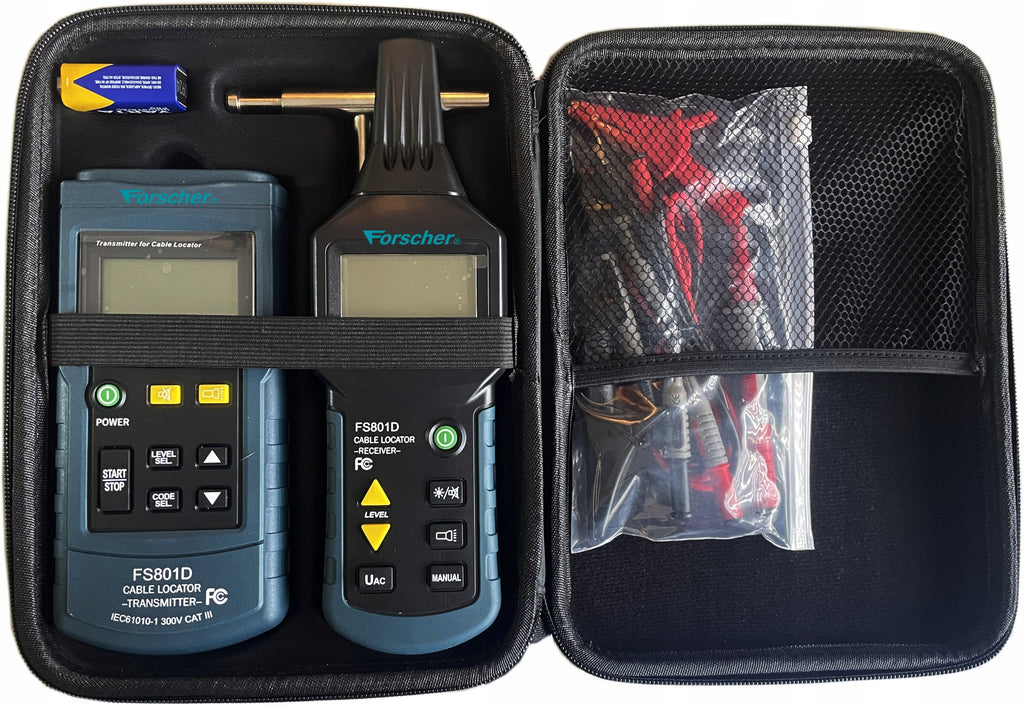

transmitter, receiver, case, crocodile clamps 2 pcs., measuring wires 2 pcs., measuring probes 2 pcs., ground pin, batteries, instruction manual, written warranty card 24 months.

Specification :

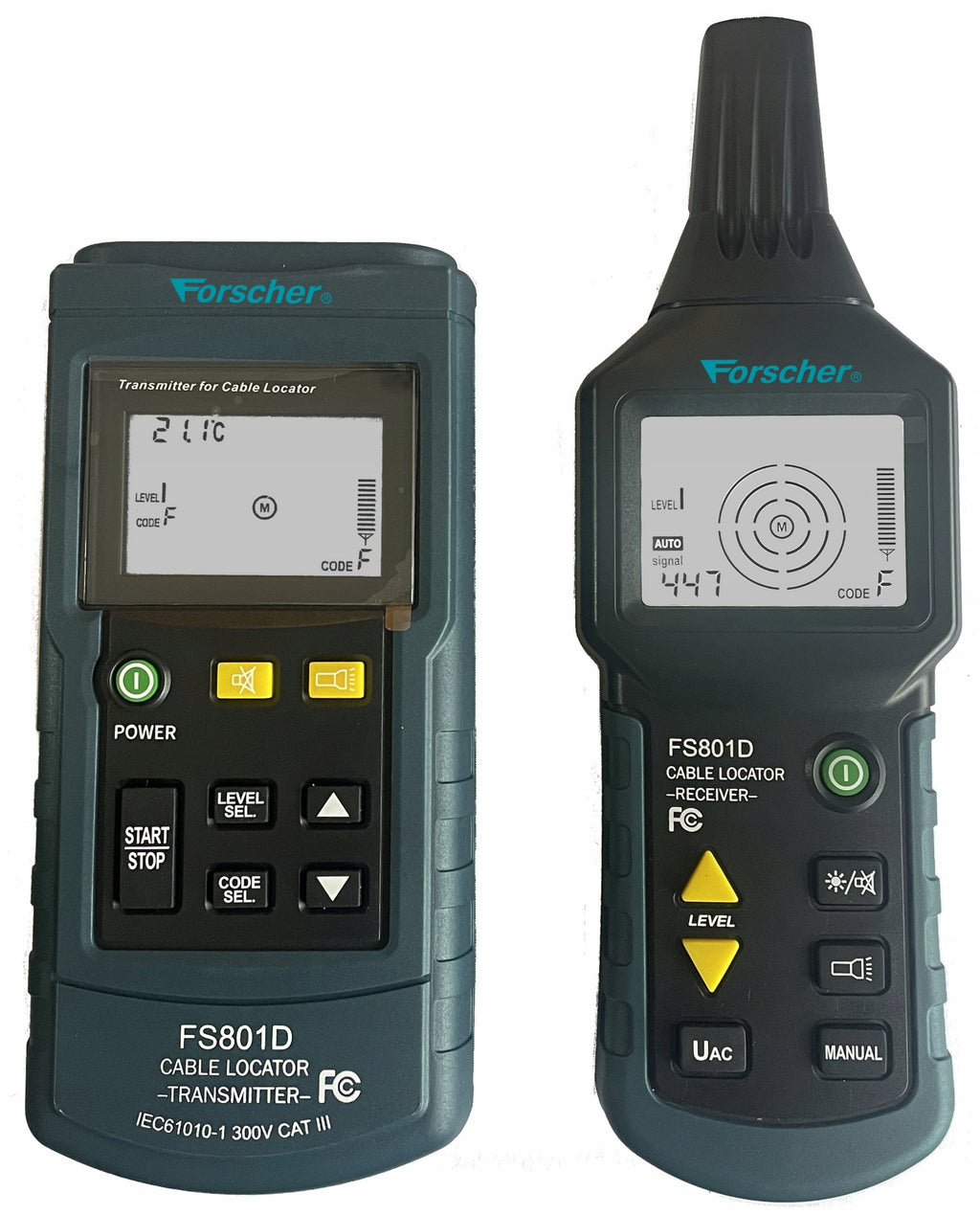

Transmitter

Signal Frequency: 125 kHz

Voltage measurement 36-400 V AC / DC

Operating ambient temperature -10 to 50 degrees Celsius

Power Supply: 9V Battery (Alkaline)

Power consumption: average 31 mAh – max. 115mAh

Dimensions 190 x 89 x 42,5 mm

Weight: 360g without battery

Receiver

Sensitivity:

Measurement of single line underground 0- 2,5m

Unipolar measurements 0-1m

Bipolar measurements 0 – 50cm

Power Supply: 6x LR3 Battery (AAA)

Operating ambient temperature -10 to 50 degrees Celsius

Power consumption: min. 32 mAh – max. 90mAh

Dimensions 241 x 78 x 38 mm

Weight: 280g without battery
