Laidų ir medžio detektorius, tvirtas, IP65

Trumpai apie prekę

Prekė: Laidų ir medžio detektorius, tvirtas, IP65. Kategorija: Detektoriai.

• Gamintojas: Mileseey
• Modelis: WD10

Multifunctional Wall Scanner

detector for detecting metals (magnetic and non-magnetic), wooden structures, live wires, which are not visible to the naked eye and are located in the wall, floor or ceiling.

The device can detect obstacles in concrete (floor, wall), ceramic surface (tiles) or wooden (panels).

Detector of live cables and wires, metal structures and wooden beams in the wall. Wall scanner is a detector that allows you to detect potential obstacles in the wall, ceiling or floor. This will avoid the risk of damage to the electrical and hydraulic system or fill in the missing technical documentation.

• Auto-off: after about 5 minutes, the backlight goes out after 10 seconds.
• Usage temperature range: -10 °C ~ 50 °C,
• Storage temperature range: -20 °C ~ 60°C,
• Power Supply: 3 x AAA 1.5V battery
• Battery life: about 7,5 hours of continuous operation,
• Detected materials: iron, steel and non-magnetic metals (copper, aluminum), wood, live wires,
• Safety LEDs (information): red, yellow and green,
• Detection range up to 80 mm, with accurate and reliable location,
• Buzzer (buzzer) signaling: the ability to start the silent mode (without sound),
• Graphic chart: facilitates precise localization,

Be sure to select the appropriate operating mode of the device after starting, adequate to the type of measurement.

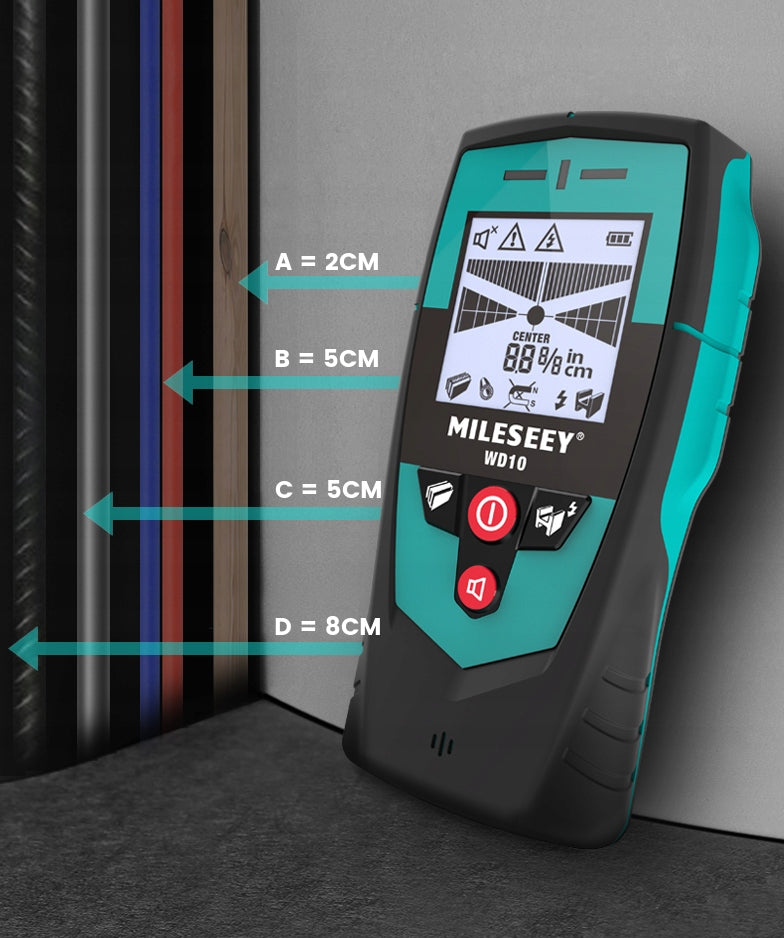

Maximum Detection Depth:

• A: Wood: 2 cm.
• B: Copper wires under voltage: 5 cm,
• C: Non-ferrous metals, e.g. aluminium: 5 cm,
• D: Magnetic metals (ferrous metals): 8 cm,

PRECISE, CERTIFIED HIGH-QUALITY PRODUCT FROM MILESEEY

The detector has a strength class of IP65, which means that it is waterproof and dust-resistant.

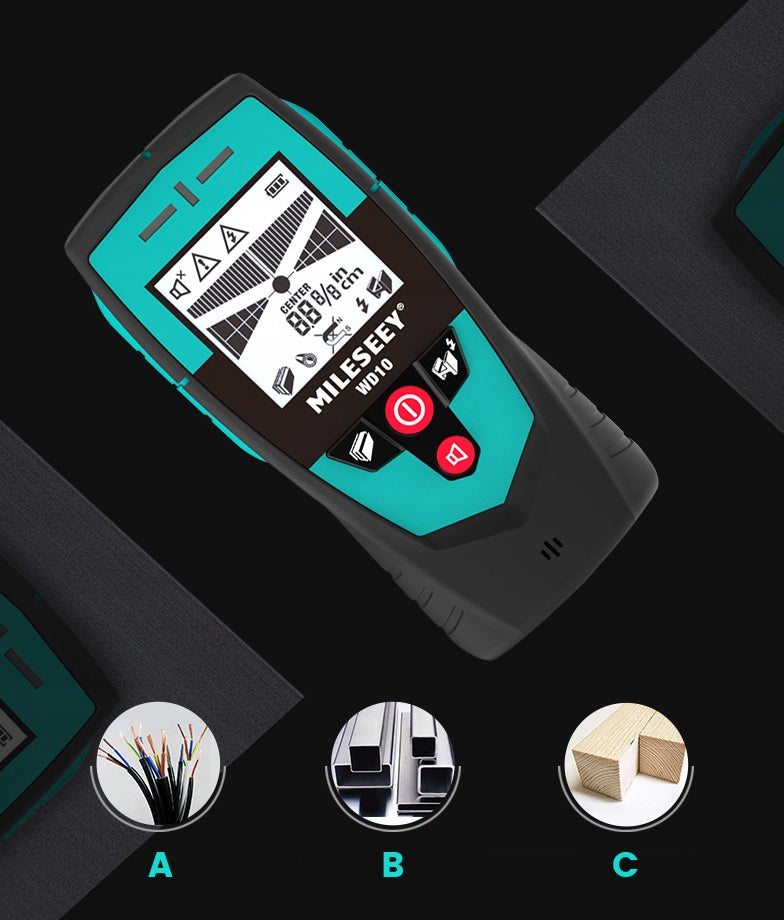

Maximum Detection Depth:

• A: Copper wires (voltage): 5 cm,
• B: Ferrous metals: 8 cm, Non-ferrous metals (e.g. copper): 5 cm,
• C: Wood: 2 cm,

NOTE! BEFORE STARTING THE MEASUREMENT, SELECT THE APPROPRIATE OPERATING MODE, ACCORDING TO THE ATTACHED INSTRUCTION MANUAL.

Pozostałe :

• Auto shutdown time: aboutabout 5 minutes,
• Operating temperature range: 0℃~50℃,
• Storage temperature range: -20℃~70℃,
• Power supply: 3 x AAA 1.5V battery,
• Battery life: about 7,5 hours (continuous operation),
• Weight: 150 g,
• Dimensions: 149 x 70 x 30 mm,

• A: illuminated display,
• B: three-color detection indicator,
• C: button enabled detection of non-metallic materials,
• D: button to enable detection of metal materials and live wires,
• E: device on/off button,
• F: button to turn on/off sound signaling and change units (after long hold),

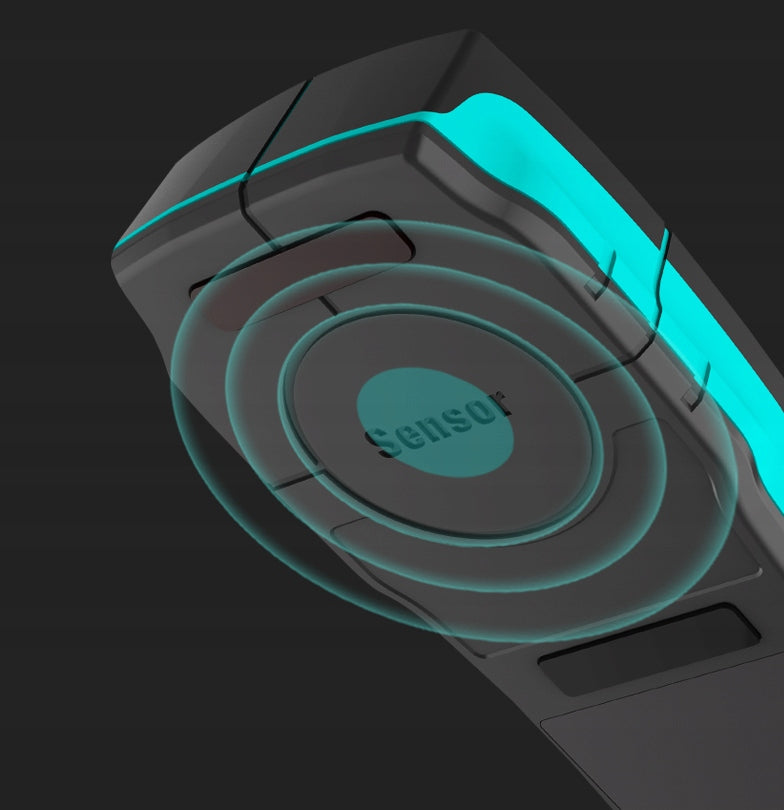

• G: sensor (detector)
• H: Velcro to protect against scratches on wall surfaces
• I: battery compartment
• J: Velcro to protect against scratches on wall surfaces

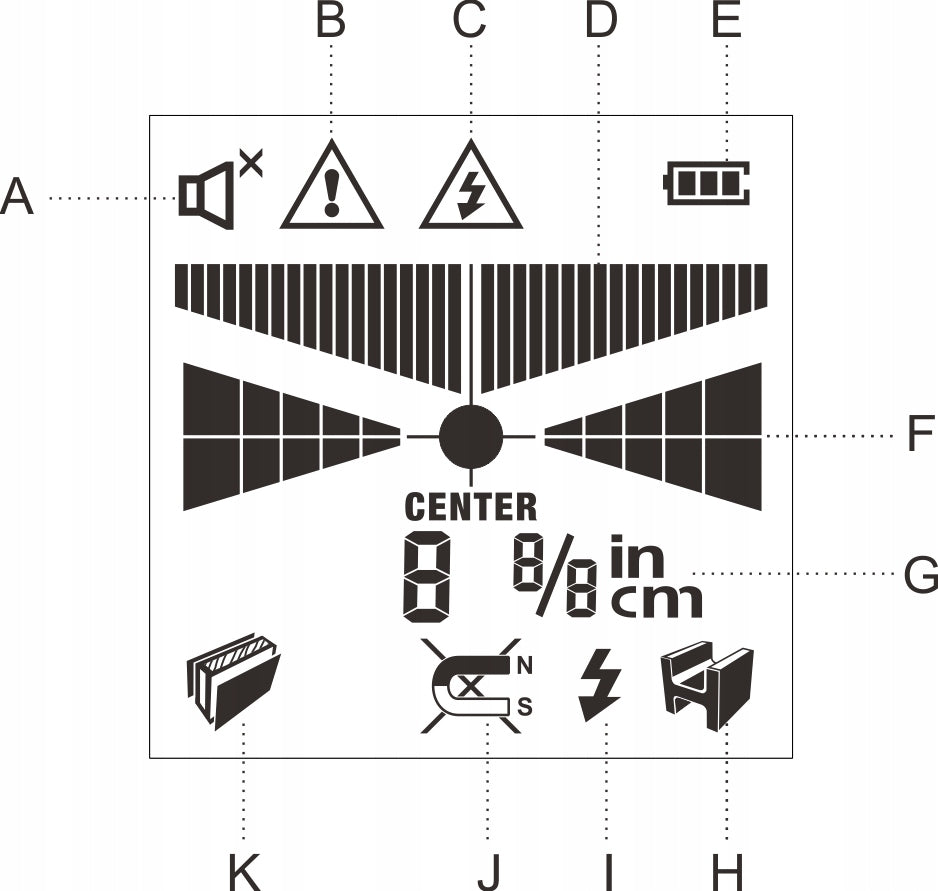

• A: Mute icon,
• B: measurement error,
• C: alert informing about the detection of an object under voltage, regardless of the currently selected mode of operation,
• D: double detection rate,
• E: battery level indicator,
• F: detection agent indicator,
• G: in metal detection mode, a detection depth indicator is available, the values are approximate and are only indicative,
• H: icon indicating magnetic metal detection mode,
• I: icon indicating the mode of detection of wires,
• J: icon indicating the detection mode of non-magnetic metals,
• K: icon indicating wood detection mode

Move the detector in different directions to detect and exactly locate the detected object.

On the back of the device there are two straps protecting against scratching of the surface of walls and other tested surfaces.

• A: detection of metal,
• B: wood detection,
• C: current detection,
• D: middle point indicator,
• E: double signaling,
• F: backlit display,
• G: dust and water resistance class IP65,
• H: precise and fast measurement,
• I: made from environmentally friendly materials,
• J: has a clear display,
• K: safe to use,
• L: The ability to work in silent mode.

The clear 2,2-inch backlit display ensures comfort even in complete darkness.

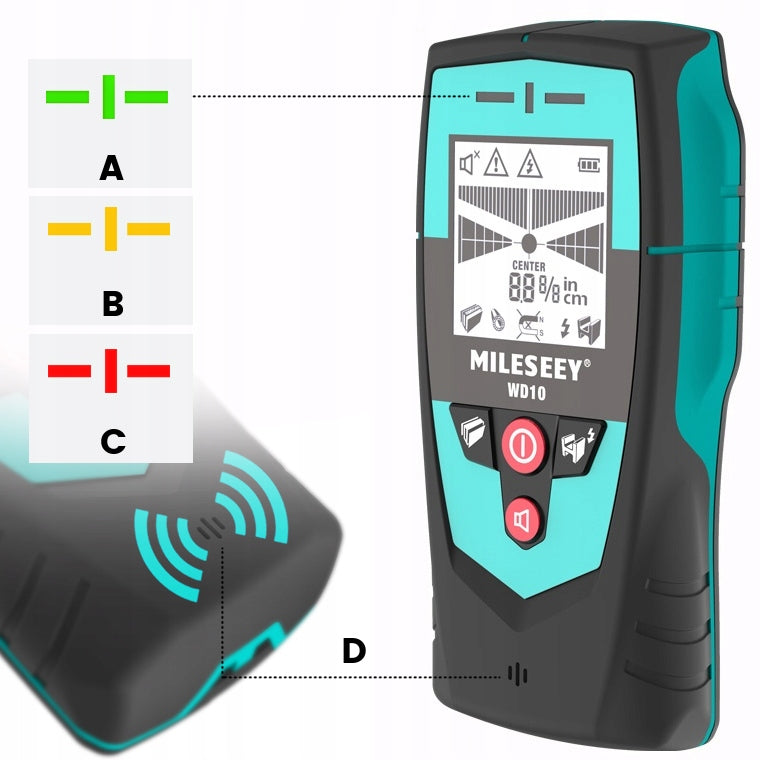

Three-stage - color detection beacon:

• A: diode green: informs that there is no wanted object near ,
• B: yellow LED: informs that the desired element is close to the device,
• C: red LED: signals the detection of the desired element.
• D: beacon: When the desired element is detected, the device, in addition to the graphical indication and traffic light, alarms with an audible signal. It is possible to turn off the sound and work in silent mode.

Detection of metal elements

• In Figure B, the device signals detection with a red LED and an audible signal

Detection of voltage cables

• In Figure B, the device signals detection with a red LED and an audible signal

Detection of wooden (non-metallic) elements:

• In Figure B, the device signals detection with a red LED and an audible signal

BENETECH is a manufacturer of advanced measuring and control equipment. A specialized supplier of professional digital measuring tools, as well as other electronic devices.

BENETECH POLAND is an authorized and direct distributor of this brand in Poland and Europe.

In the brand catalog you will find m.in:

• pyrometers and thermal imaging cameras,
• anemometers (wind meters),
• humidity meters and hygrometers,
• detectors and meters of gases and air quality,
• sonometers (decibel meters) and lux meters (light meters),
• laser rangefinders and tachometers,
• thermometers and pressure gauges,
• thickness and vibration meters (vibrometers),
• tools for electricians and cable detectors,
• electromagnetic radiation meter,
• home and industrial electronics equipment.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Mileseey
Parametry	Power supply	batteries
Parametry	Maximum depth of measurement for iron and steel	80 mm
Parametry	Maximum depth of measurement for copper and non-ferrous metals	50 mm
Parametry	Maximum measurement depth for wood	20 mm
Parametry	Maximum measurement depth for live wires	50 mm
Parametry	Manufacturer code	WD10
Parametry	EAN (GTIN)	5903738811007
Parametry	Product weight with unit packaging	0.27 kg
Parametry	Batteries included	yes
Parametry	Certificates of conformity	CE
Parametry	Kind	wood detector,metal detector,wire detector
