Laiptų LED valdiklis WAVE universalus

Trumpai apie prekę

Prekė: Laiptų LED valdiklis WAVE universalus. Kategorija: Centriniai blokai.

• Gamintojas: Ntronic
• Modelis: AutoSteps18

The subject of the auction is Driver:

LED light controller on the staircase to control multi-point LED lighting on stairs, troughs and even gardens.

Enables automatic control of multi-point LED lighting 12/24V DC.

Simple configuration via screen and 4 buttons allows you to set separate settings for each Animation.

The controller is distinguished by amazing lighting effects controlled by LED lights. Each of the available effects is spectacular and refined. Animations are parameterized by settings such as speed, effect, extinguishing method, lighting time, maximum brightness or even hours of operation.

The LED wave implemented by the controller is really spectacular and stands out from other drivers.

The controller has the function of RESTING LIGHTS. During working hours, selected degrees can light up with limited power.

The icing on the cake is the ASTRONOMICAL CLOCK. The controller can control the lights from sunset to sunrise without the use of a twilight sensor. Working hours change every day. What's more, we can move these work points if we want the stairs to work already, e.g. 20 minutes before sunrise.

If you have BACKLIT HANDRAIL, it is not a problem, because in the driver it is enough to set the output number to which it is connected.

Producer: Ntronic, Poland.

You can additionally purchase laser motion detectors with SHARP sensor for the controller. Detectors are designed to be mounted in an electric can fi 60 (such as for mounting sockets or switches).

You can connect 1 to 4 motion detectors to the controller. Depending on how many places you want to light the stairs. Just assign the sensor number to the appropriate animation.

Adjustable range and narrow detection angle and cause that, unlike PIR sensors, StepSensor01 sensors respond only to people climbing stairs ignoring both passing by the stairs.

The LED wave implemented by the controller is more than a sequential lighting of the stairs.

The stairs light up smoothly and one by one creating a flowing mist effect. The flow time of this mist can be adjusted and set individually for the direction of extinguishing and lighting.

We can switch animations between different effects.

As a result, WINDA, when we climb the stairs, the wave lights up in front of us and, interestingly, goes out behind us, somehow chasing us – IT LOOKS GREAT!

Another effect is the CASCADE, which consists in somehow falling stairs in front of us. As we walk up the stairs, every step before it lights up permanently falls from the direction we are going. It is also visually amazing. Especially when we climb the stairs for the first time and we do not expect this effect!

Each of these animations can be adjusted with parameters such as times, maximum lighting power or direction.

• Output capacity: 4A x 18 degrees
• High power output
• Automatic, manual controls – parallel to the sensors, we can connect buttons or abandon motion sensors.
• All animations can be tested from the screen of the device.
• Fully automatic operation regardless of how the controller is activated, the number of people moving up the stairs and their direction of movement.
• BUILT-IN ASTRONOMICAL CLOCK — if we want, synchronous work with sunrise and sunset.
• Possibility of powering one power supply controller, motion detectors and LEDs.

• Resting light selected LEDs shine all the time, during operation, with limited brightness.
• Limitation of the power of full brightness of the animation: If we find that the candle lights are too strong, we can limit their brightness.
• DETERMINATION OF WORKING HOUR: Work at rigid hours or according to the astronomical clock (we do not need a dusk detector).
• Various animations.
• Regulation of times.
• Support for exit on the mezzanine.

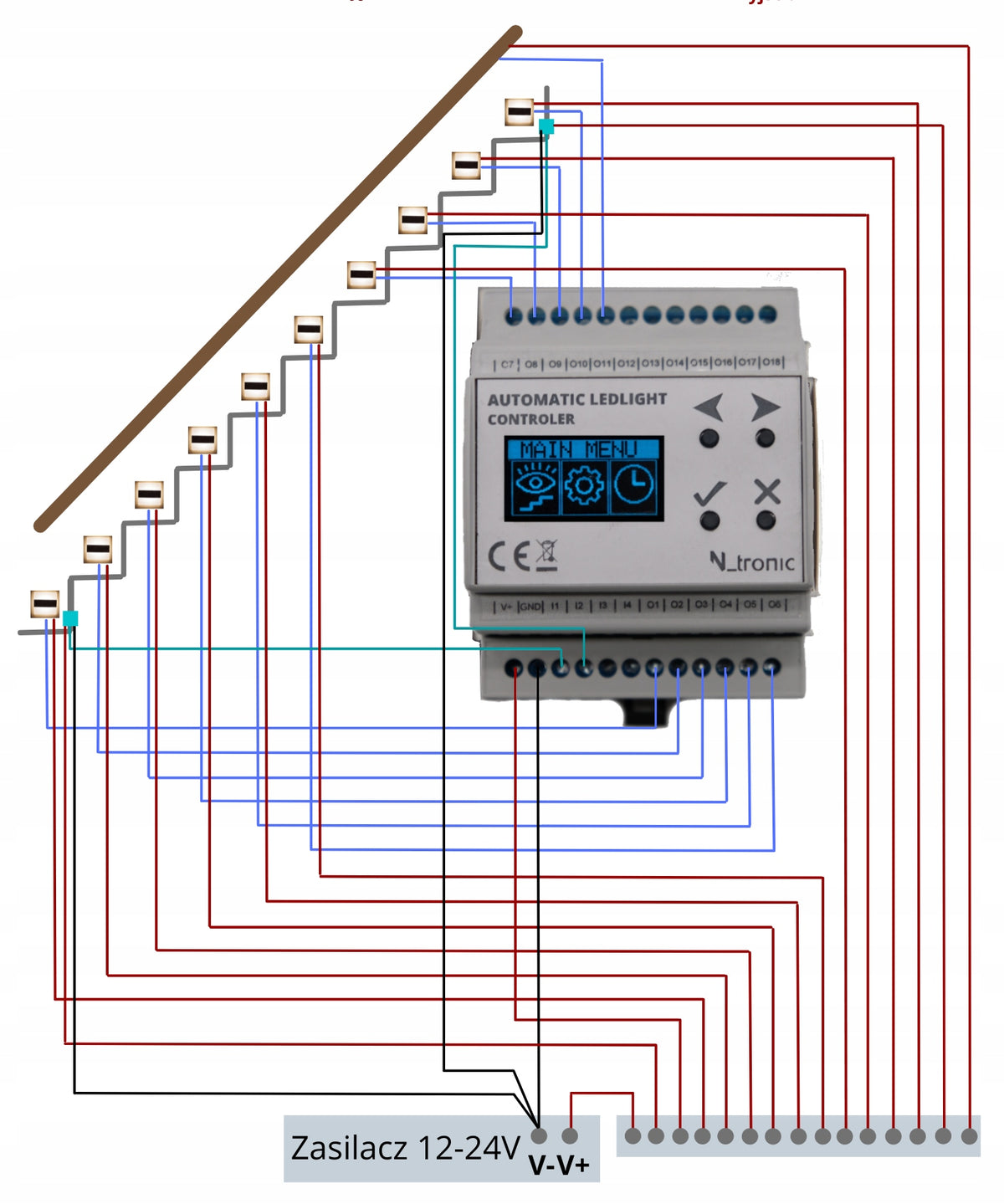

All elements (motion detectors, controller, LEDs) can be powered by one power supply.

• We supply 3 wires (+, -, signal to the controller) to the detector
• To the LED point we bring 2 wires (+, signal to the controller).

A PDF user manual containing m.in is available with the product. installation diagram.

The directory card of the product is also included in the attachment to the auction.

As a manufacturer, we offer technical support and direct warranty and post-warranty service.

However, I think it will work much longer without any problems.

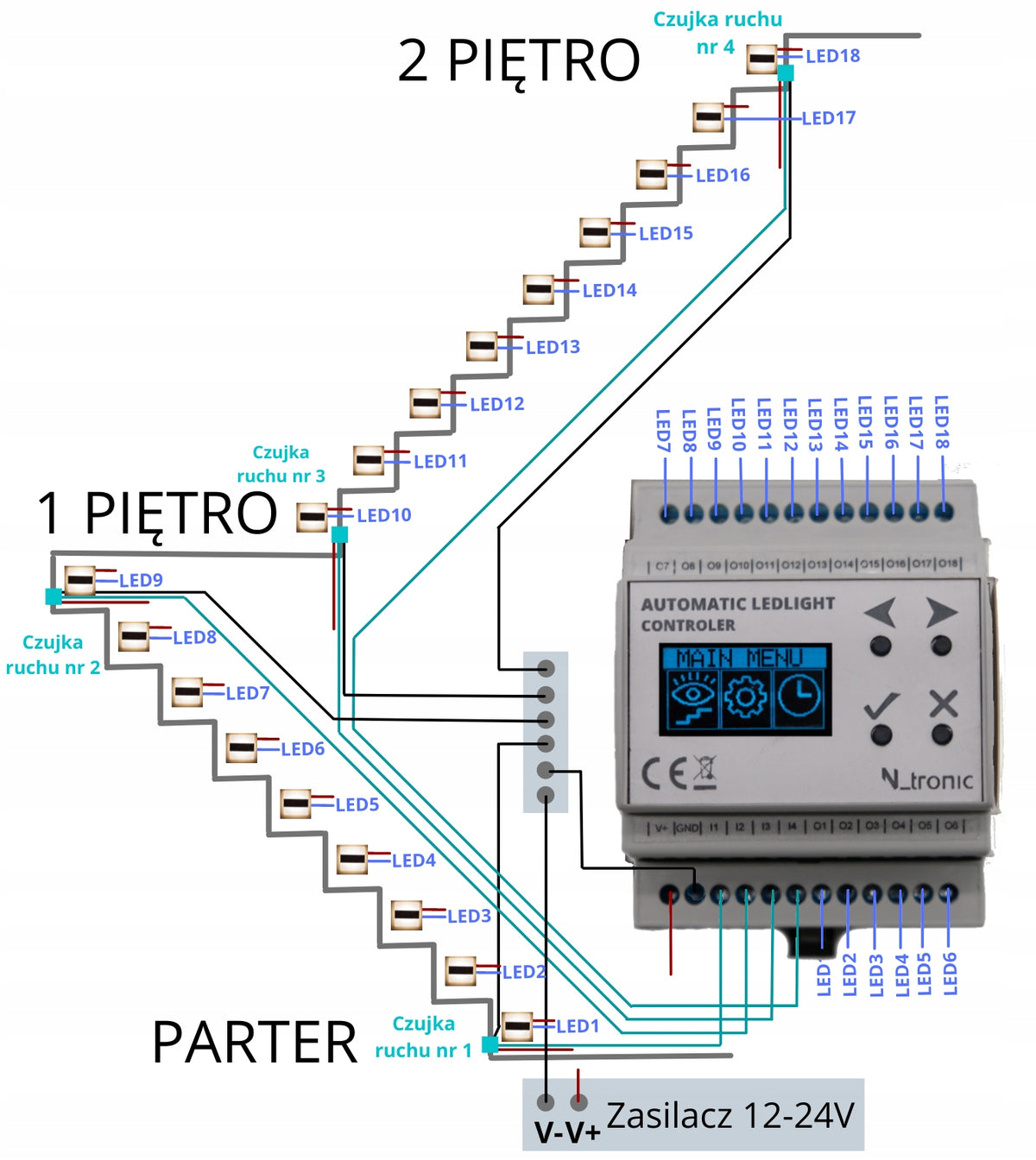

Thanks to the presence of 4 motion detectors, two motion detectors can be used on the mezzanine to activate the direction of the road we are going. This eliminates the effect of unnecessary illumination of entire stairs.

The output numbers for each animation are easily determined by the screen with buttons.

If we have a straight staircase without a mezzanine, 2 motion detectors are enough.

The sensor is designed to be installed in an electric can with a diameter of 60 mm. The leads are located on the terminal block on the back of the sensor:

• +12V – supply voltage
• GND – 0V power supply mass
• OUT – digital OC output (NPN)

The distance to which the sensor is to react is determined by means of a potentiometer on the back of the sensor. Object detection symbolizes the illumination of the diode next to the signal connector.

The sensor setting consists of slowly spinning the potentiometer until the diode goes out, when there is no object in front of the sensor.

StepSensor stair motion sensors from Ntronic are a much better choice for detecting movement on stairs than others available on the market. Most of the sensors offered are not suitable for stair applications.

We meet either PIR sensors with a wide angle of detection and indeterminate range, which react to people passing by the stairs, or cheap optical sensors from import that do not meet the required parameters. These sensors are very sensitive to reflections and glare, for example from the white wall opposite, and tend to fail frequently. These defects practically disqualify them for use on stairs.

Knowing the disadvantages of available detectors, we have developed our own solution, which actually works well in detecting movement on the stairs. These are StepSensor detectors based on SHARP sensors. Active laser sensors operating in the infrared range invisible to the eye. They have a simple design, a well-defined and adjustable range, a narrow detection angle and a properly set optical path to minimize reflections. They operate on both open and closed stairs with a wall opposite. Their small size allows for discreet installation. These sensors offer very good value for money.

• Driver power supply voltage: 8-30 VDC
• Power consumption (type. ): 200 mW
• Output operating voltage: type: 12 VDC; max: 24 VDC
• Output current load (max): 4A x18
• Degree of protection: IP20
• Type of work: continuous,
• Operating temperature: -10°C - +45°C
• Dimensions: 7 cm x 9,0 cm x 6,2 cm
• Mounting: DIN rail TH-35 4 modules

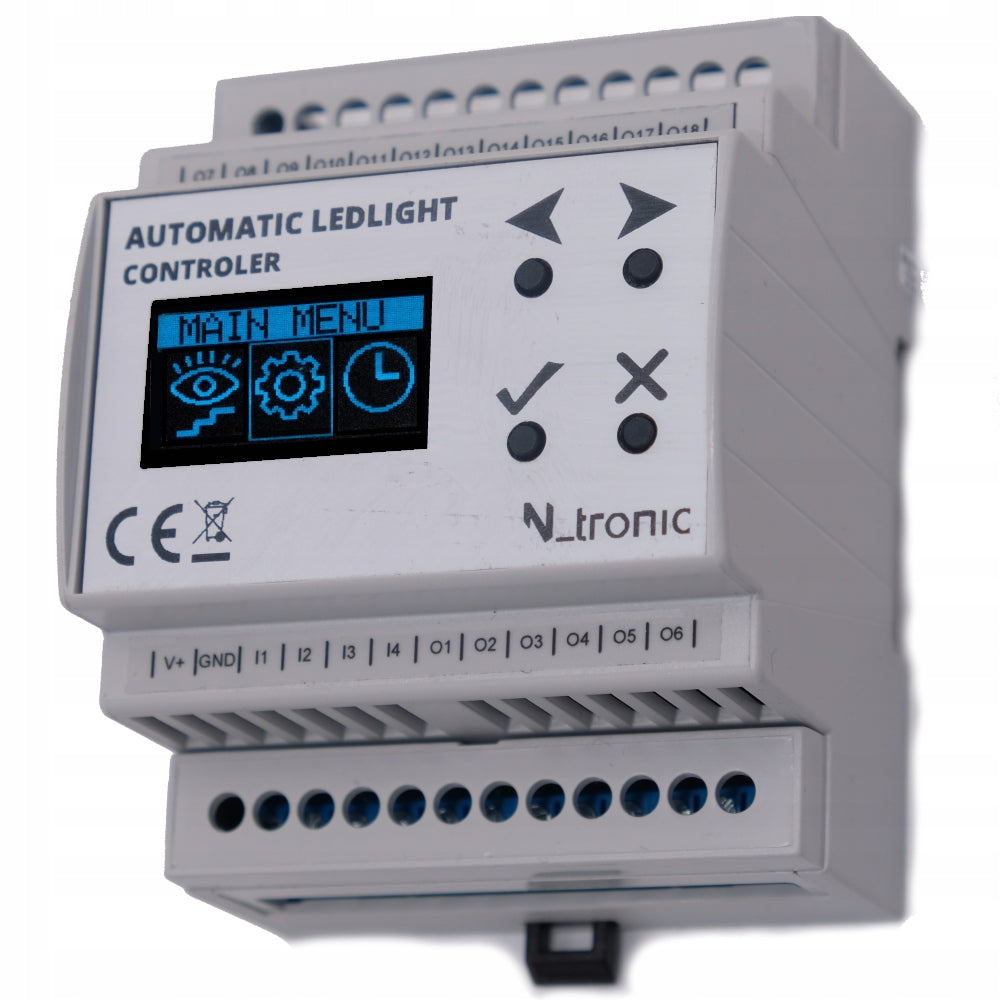

All parameters to the Stair Light Controller are entered using 4 buttons on the OLED screen located on the front of the device.

In addition, the screen allows us to view the operation of the device and simulate the operation of motion detectors.

Below are screens with working time settings.
