Laistymo juosta 100 m ir 30 priedų rinkinys

Trumpai apie prekę

Prekė: Laistymo juosta 100 m ir 30 priedų rinkinys. Kategorija: Laistymo juostos.

• Gamintojas: Water-Close
• Modelis: 20-691038Z20
• Ilgis: 100 m

We offer you, multi-season drip tape for irrigation with a diameter of 16mm with emitter every 10cm thickness 8mil length 100m with a set of 30 accessories

This is a drip tape, which due to the low installation costs is used by large growers as well as by small gardeners and allotment gardeners for above-ground irrigation.

Technical data of tape

• Thickness 8mil
• Diameter 16 mm
• Length 100 mb
• Space drippers every 10 cm
• Working pressure 0,4-0,8 Bar

Instruction:

1. Installation of drip tape:Unroll the drip tape evenly over the area you want nawadniać.Upewnij to be arranged in such a way that it is not exposed to bending or mechanical damage.
2. Connecting the tape to the water source:Connect the drip tape to the irrigation system or directly to the water source with the appropriate fittings and adapterów.Upewnij ensure that all connections are tight to avoid unnecessary leaks.
3. Water pressure adjustment:Gradually open the water supply valve to slowly increase the ciśnienie.Monitoruj pressure in the system, aiming to achieve the recommended working pressure range of 0,4-0,8 Bar. This is the optimal pressure range for the kroplującej.Dopuszczalne tape are slight deviations from this range, however, such deviations should take place under the supervision of użytkownika.Zbyt a sharp and excessive increase in water pressure above the declared working value may cause the tape to break.
4. Control and maintenance:Regularly inspect the drip tape for damage, leaks or zatorów.W if necessary, repair or replace damaged sections of tape.

Attention:

• Always gradually adjust the water supply to get the right working pressure.
• Avoid abruptly increasing water pressure to prevent damage to the drip tape.
• For maintenance-free use, we recommend using water pressure regulators up to 1 bar.

By following the above guidelines, drip tape will effectively and trouble-free irrigate your plants.

Advantages of drip tapes:

• high yield resulting in better crop quality
• resistance to chemicals used in crop fertilisation
• no water loss in irrigation
• less risk of spreading plant diseases

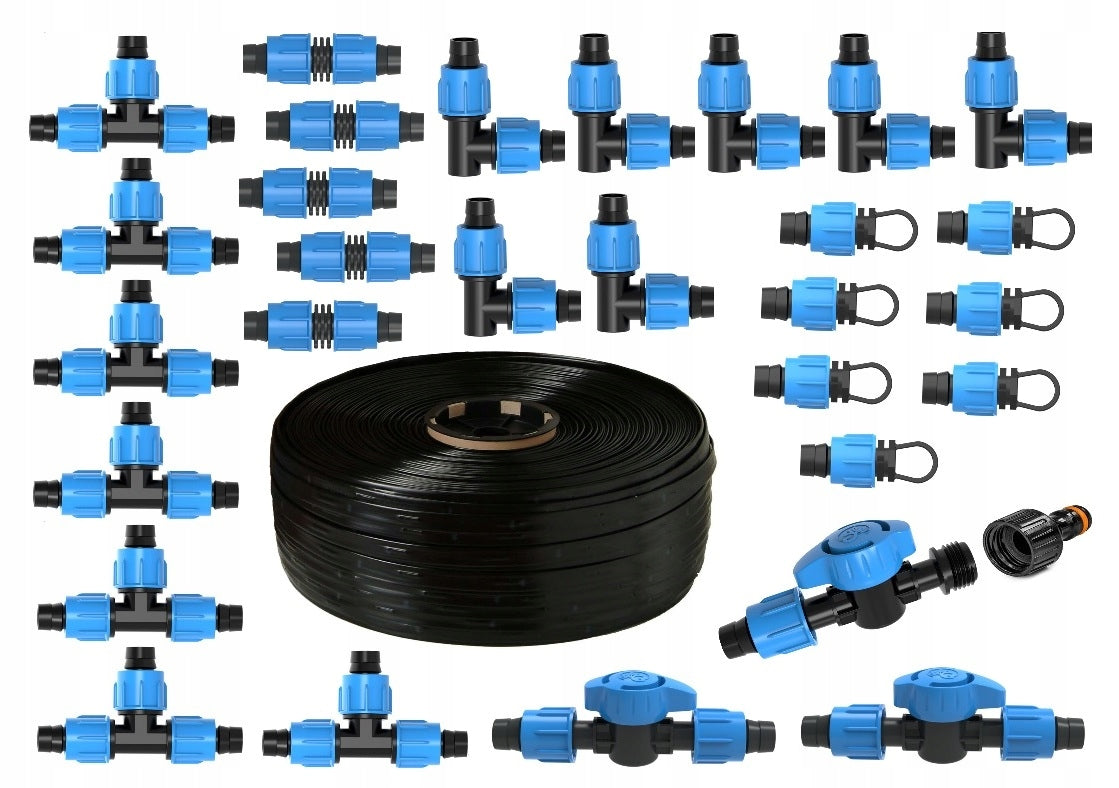

SET INCLUDES

- Drip tape 16mm 8mil 100m long with dripper every 10cm with water expenditure 1.3l/h

- 5 connectors - connectors

- 7 tees

- 7 knees

- 7 cleats

- 1 tap connection 3/4”

- 1 3/4” valve with belt connection

- 2 valves tape - tape

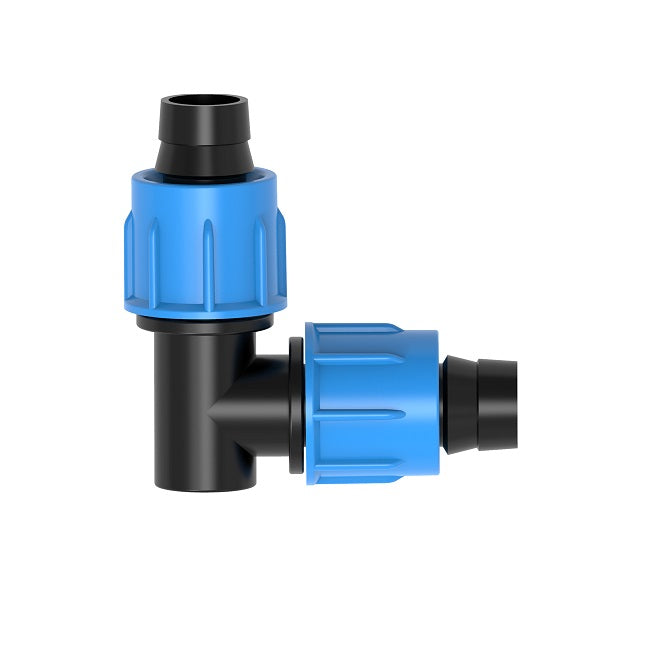

TWISTED KNEE - 7 PIECES

Kolano is used to connect drip tape in irrigation systems to achieve an angle of 90º

Kolano made of high quality plastic resistant to UV radiation

TWISTED TEE - 7 PIECES

The tee is used to connect 16mm drip tape in irrigation systems to branch the irrigation line

Tripod made of high quality UV resistant plastic

TWISTED CORK - 7 PIECES

The cork is used to permanently or temporarily blind the tip of the drip line section

Cork made of high quality plastic resistant to UV radiation

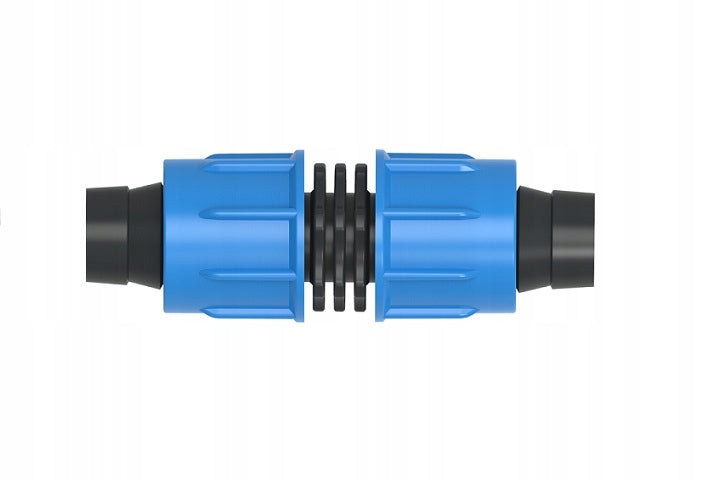

TWISTED CONNECTOR - 5 PIECES

The connector is used to connect or repair mechanically damaged 16mm drip tape in irrigation systems

The connector is made of high quality plastic resistant to UV radiation

TWISTED VALVE - 2 PIECES

Practical valve with double connection for drip tapes 16 mm. Ideally suited for quick disconnection of the drip line supplying a given section of the irrigation system.

The connector is made of high quality plastic resistant to UV radiation

CONNECTION SET TAPE - HOSE

Connection kit between drip tape and garden hose, in the set includes:

Valve tape - 3/4" GZ external thread , for tape 16mm

Garden connector 3/4” - fits sprinklers, guns and many other gardening equipment used per click.
