Laistymo žarna Aqualine 100 m su slėgio reguliatoriumi +177

Trumpai apie prekę

Prekė: Laistymo žarna Aqualine 100 m su slėgio reguliatoriumi +177. Kategorija: Laistymo juostos.

• Gamintojas: Anixol
• Modelis: linia/100/177/AX

Technical data:

Length: 100m

Diameter: 16mm

dripper spacing: 33cm

capacity/emitter 2,2 L/h at 1 bar

wall thickness: 1,15 mm

Operating pressure: 0,5 - 4,2 BAR

minimum filtration: mesh 120

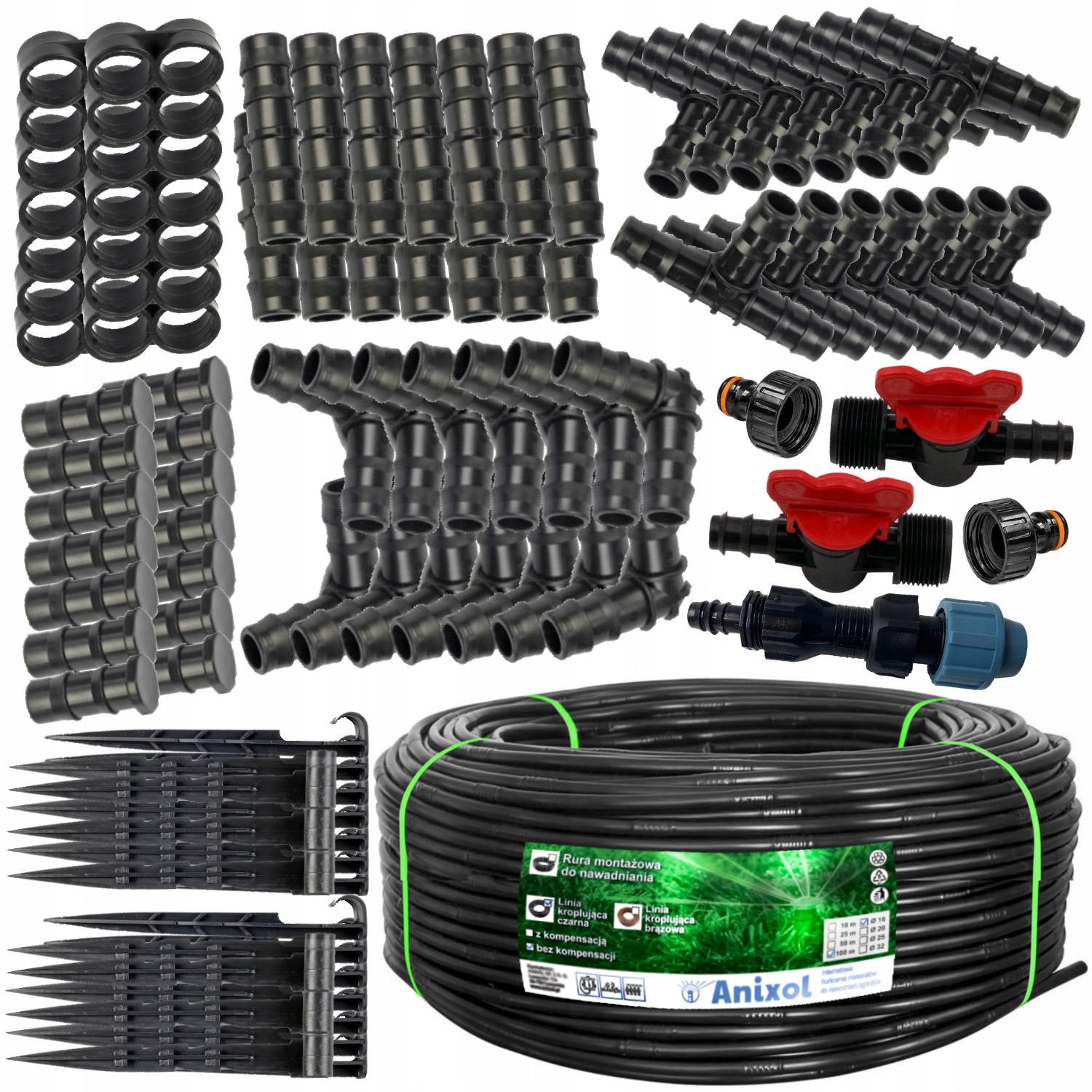

- 100 anchors 16mm length 18cm

- 14 connectors 16mm

- 14 tees 16mm

- 14 elbows 16mm

- 14 cork 16mm

- 14 eyepiece (2x 16mm)

- 2 tap connection 3/4"

- 2 valve 3/4|" GZ with connection to line 16mm

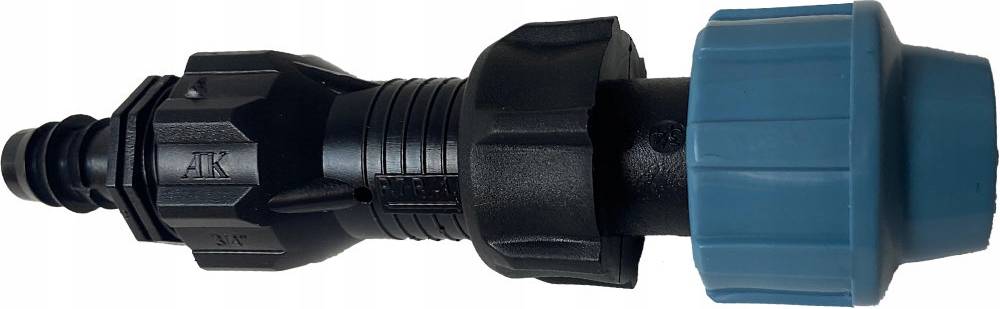

- 1 Pressure reducer,

- 1 Flight to 16 mm diameter pipe with thread call,

- 1 Press pass to drip line with a diameter of 16 mm,

The pressure reducer is an important component installed in irrigation systems. The device reduces the initial pressure to a constant level of 1 Bar withpreventing damage during micro-irrigation.

Fittings from reputable manufacturers, which guarantees the efficiency of the set.

Application:

- Hedge irrigation

- Irrigation discount

- Irrigation of vegetable gardens

- Irrigation of fruit crops

- Irrigation of flower crops

- Irrigation of gardens, trees and more

➡ Made in the European Union

Drip line:

16 / 1mm / 33cm / 2l/h / 100m

Characteristics:

- Droppers, having a cylindrical shape, a unique maze, provide a slight decrease in water flow as the length of the hose increases

- High quality materials prevent roots from ingrowing into the tape and soil from penetrating into the drip holes

- Excellent hose durability thanks to the use of materials resistant to UV radiation and chemicals

- Allows efficient irrigation of large areas, which in turn increases the yield

- Reduces irrigation costs

Drop irrigation system – installation

Installation of the irrigation system is not complicated and you can actually do it yourself. The elements are stabilized at the ground with special pins. Drip lines are connected to the fittings with tees or elbows, while the end with a stopper or eyepiece.

When spreading the line, remember that the dripper holes are on the side – otherwise they may clog. If you have a garden on a slope or on a hill, the droplet system should be spread across to reduce the risk of gravitational water drops.
