Lanksti antibakterinė ventiliacijos žarna, 75 mm, 50 m

Trumpai apie prekę

Prekė: Lanksti antibakterinė ventiliacijos žarna, 75 mm, 50 m. Kategorija: Dalys.

• Gamintojas: Vents
• Modelis: BCE8-293AB

Flexible channel fi 75 puck 50 m

The subject of our auction is Pflexible pipe FI 75 used to create recuperation systems (mechanical ventilation) on the supply and exhaust side.

The cord is antistatic, antibacterial and antifungal

Outside diameter: fi 75

Inner diameter: fi 63,3

The use of corrugated outer layer and smooth inner layer, greatly strengthens the structure of the channel. Polyethylene from which the channel is made ensures its low weight while maintaining high strength and flexibility. Our ventilation ducts have an antistatic coating and very good acoustic and insulation properties, while d2p technology gives them antibacterial and antifungal properties, ensuring hygiene of the supplied air and maintaining proper cleanliness of the system.

Technical data:

Manufacturer: Vents

Characteristics: double-walled channel

Material: High Density Polyethylene (HDPE)

Temperature range. work: -20 to +60°C

Color: green ; Color ww: white

Length: 50mb

Bending radius: 150 mm,

Circuit stiffness: 8 kN/m2 according to EN ISO 9969.

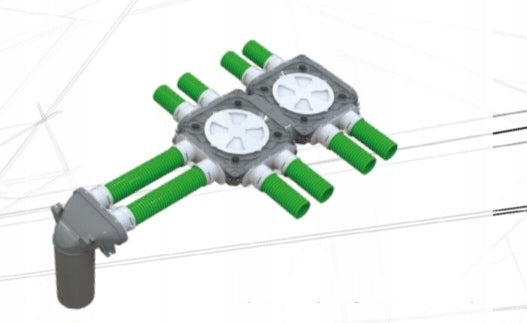

One of the main advantages of FlexiVent is the flexibility of the system, small dimensions thanks to which it allows you to perform installation in the ceiling, walls and ceilings.

• Flexible during installation

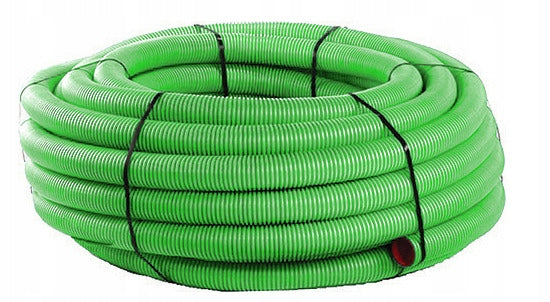

• The cable is packed in 50m circles
• Easy installation – no need for specialized tools
• Completely sealed and durable
• Smooth inner surface minimizes air resistance
• Quiet and efficient
• High installation hygiene – thanks to the antistatic and antibacterial coating of the FlexiVent cable, it protects against the formation of fungi, mold, which has a significant impact on the quality of air supplied to the building
• No corrosion – unlike traditional installations made via spiro steel wires, the FlexiVent system eliminates the need to cut wires, e.g. through an angle grinder during installation, which causes the galvanized layer protecting the cable to break and later corrosion of these places.
• Quick and simple cleaning of the entire installation – the ability to easily and effectively clean the installation without the limitations found in traditional systems such as: protruding mounting screws, tees, which very often prevent cleaning the installation or limit access.
• Small pressure loss – minimizing the number of fittings (t-shirts, knees) that generate point flow resistance significantly affecting the efficiency and energy efficiency of ventilation systems.
• Unlike the traditional FlexiVent system, thanks to the simplicity of installation, the minimum limitation of mounting elements can be installed with within 2-3 working days in a typical single-family building.
