Lankstus akustinis duslintuvas DEC Black DN125, 1 m, rekuperacijai

Trumpai apie prekę

Prekė: Lankstus akustinis duslintuvas DEC Black DN125, 1 m, rekuperacijai. Kategorija: Dalys.

• Gamintojas: DEC International
• Modelis: CO15SBGAB125/1,0

Looking for a way to mute your recuperation or ventilation system? DEC GREENDEC 50 DN125 is a flexible acoustic and thermal silencer designed to reduce noise in ventilation, recuperation and air conditioning systems.

This is no ordinary ventilation pipe. It is a branded DEC flexible silencer with 50 mm insulation, which helps reduce noise from the recuperator, fan, air handling unit and air flow in the ducts.

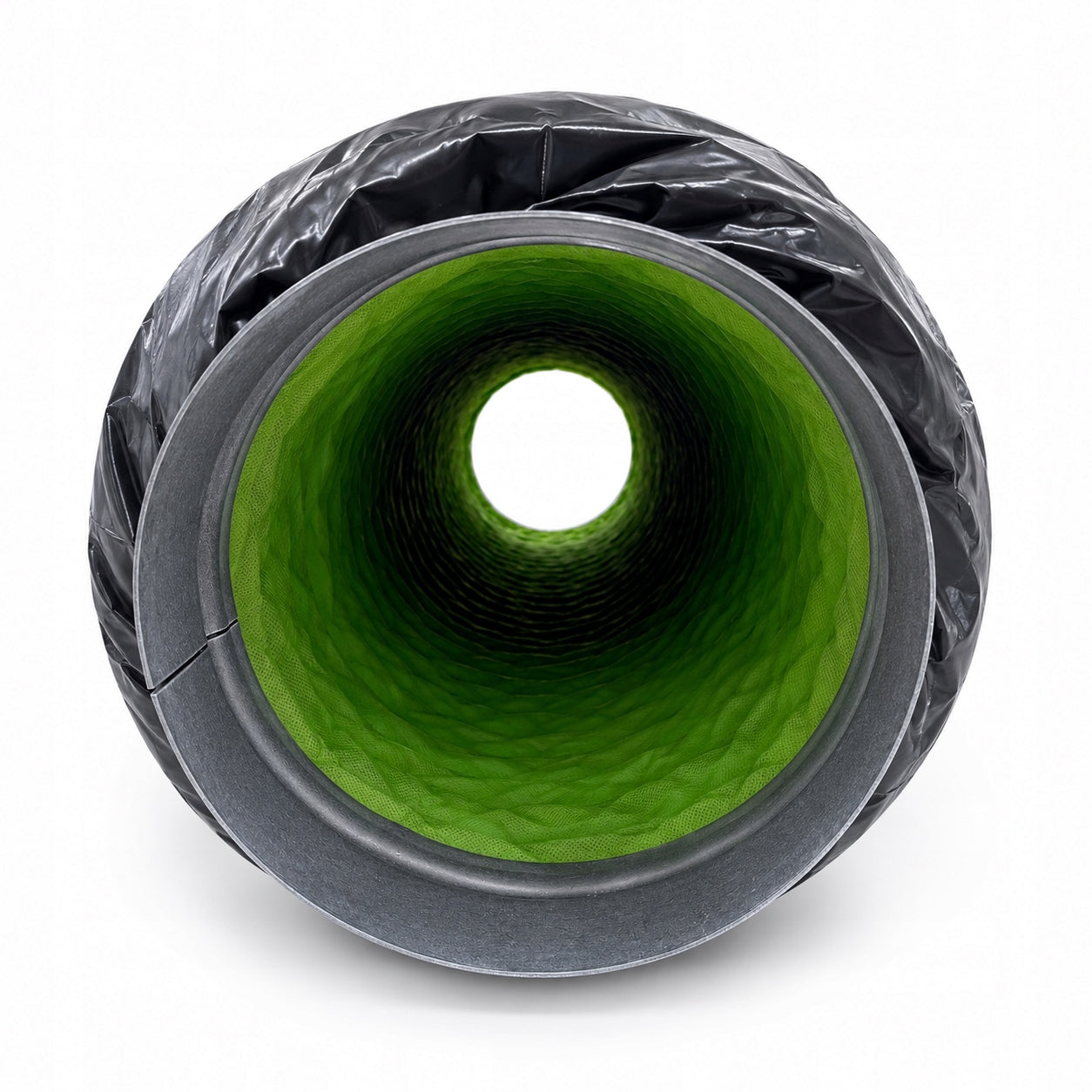

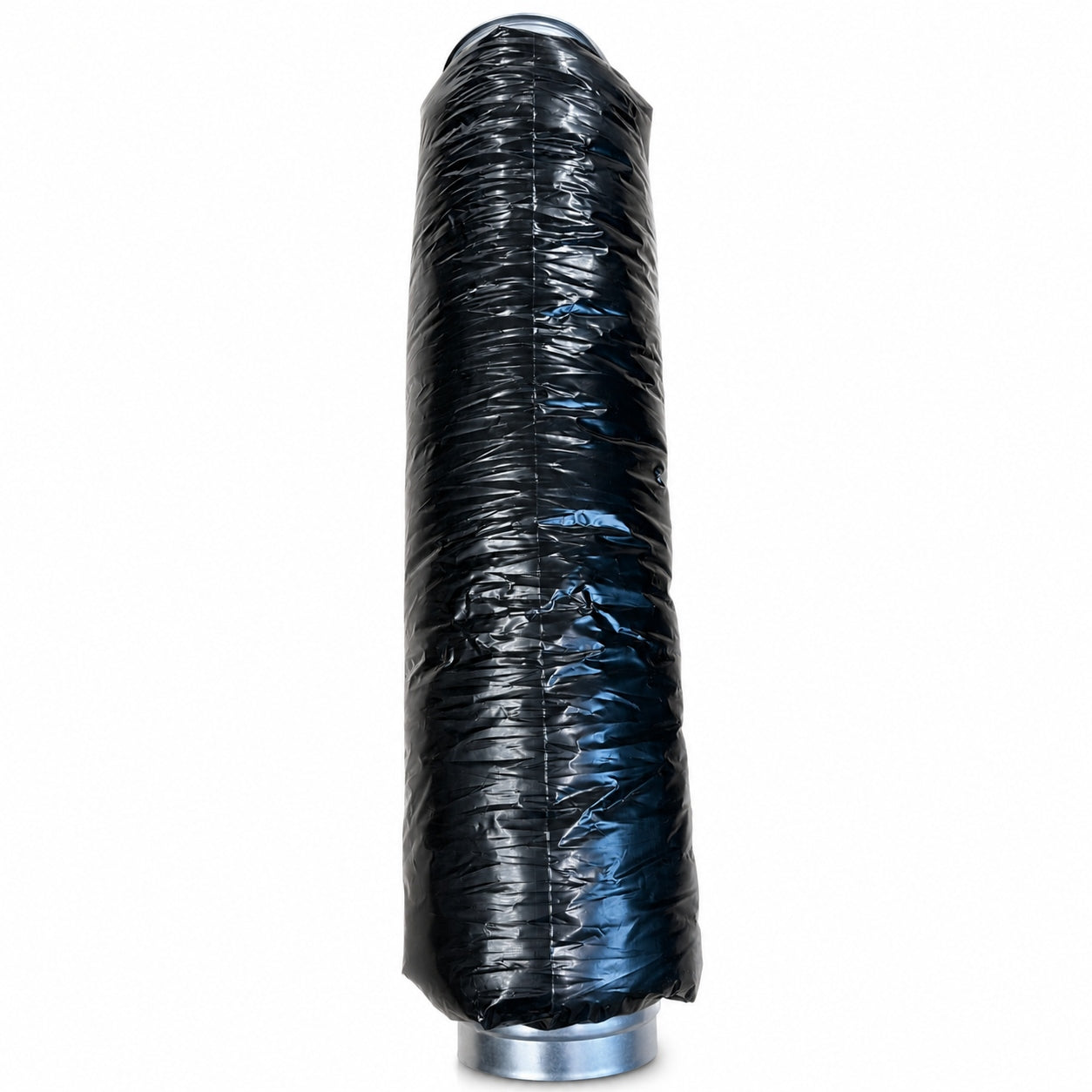

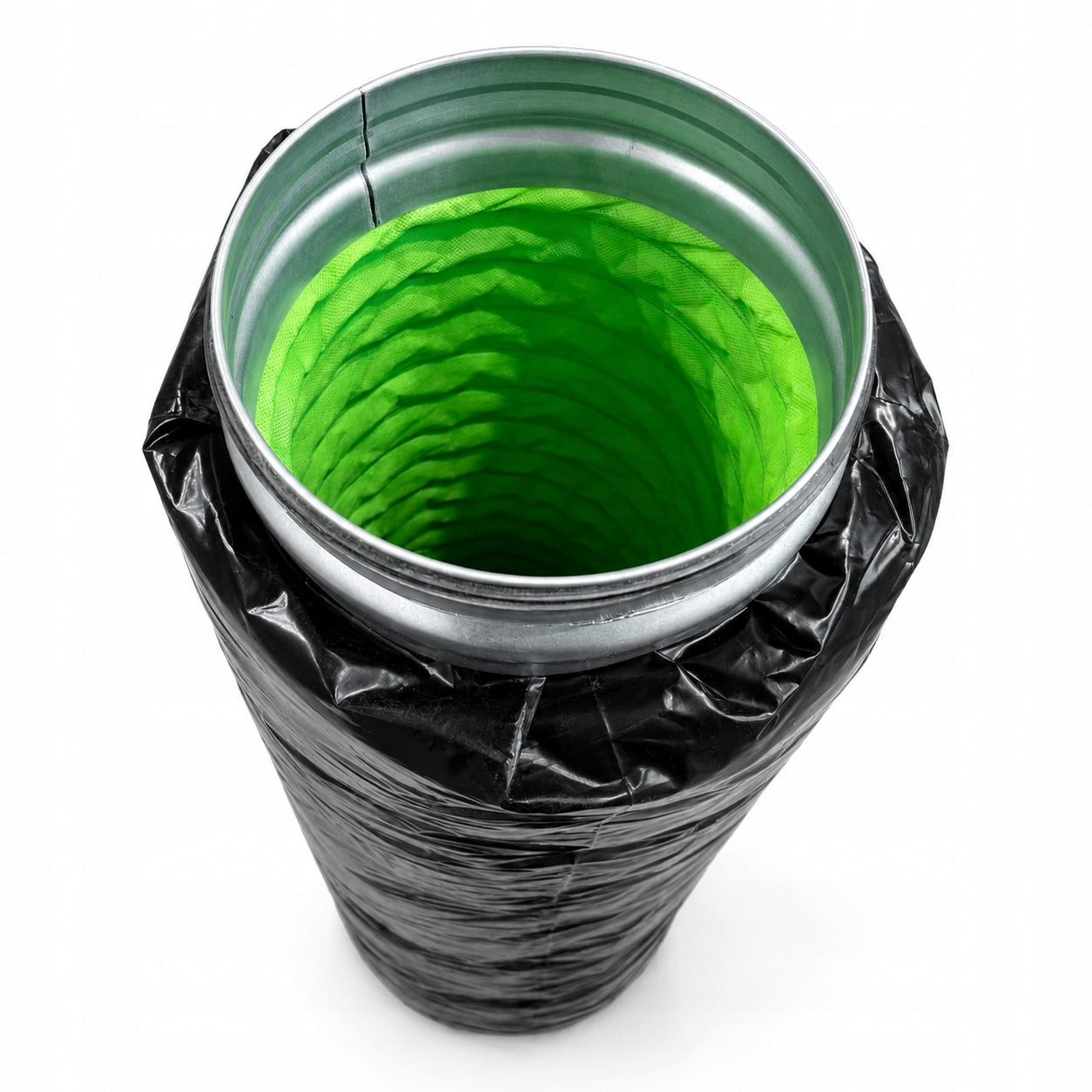

The product has a black outer jacket and a green insert/internal channel GREENDEC Sanitized, thanks to which it is distinguished not only by technical parameters, but also by a modern look.

Why is it worth using a silencer in recuperation?

In a recuperation system, noise can move from the air handling unit to the ducts and then to the rooms. Most often you can hear air noise, fan operation or sounds transmitted by wires.

The use of an acoustic silencer helps to improve the comfort of use of the installation, especially when the channels are conducted nearby:

• bedroom,
• children's rooms,
• living room,
• the Cabinet,
• utility rooms,
• supply and exhaust anemostats.

The most important advantages of the product

• flexible acoustic silencer for ventilation and recuperation,
• helps reduce noise from the recuperator and fan,
• diameter DN125 — a popular size in domestic installations,
• length 1 m – convenient for installation at the control panel or channels,
• sound and thermal insulation 50 mm,
• black outer jacket,
• green cartridge / internal channel GREENDEC Sanitized,
• flexible design for easy installation,
• can be used as a connector between the ventilation unit and the ducts,
• product of the renowned manufacturer DEC International,
• suitable for supply and exhaust systems.

Application

The silencer will work well in installations such as:

• home recuperation,
• supply and exhaust mechanical ventilation,
• air conditioning systems,
• connection of the recuperator to the channels,
• connection of the ventilation unit,
• noise reduction from ventilation devices,
• reduction of air noise in the pipes,
• installations in single-family houses and commercial premises.

GREENDEC Sanitized – hygienic inner layer

The inner channel of the silencer is made of GREENDEC Sanitized material. It is a solution used in ventilation systems, where supply or exhaust air constantly flows through the pipes.

The inner layer helps to reduce the growth of microorganisms and the formation of unpleasant odors on the surface of the material. This is especially important in mechanical ventilation and recuperation systems, where air comfort is important for home users.

Technical parameters

• Producer: DEC International
• Series: Greendec 50
• Product Type: Flexible Acoustic Silencer
• Diameter: DN125 / 125 mm
• Length: 1 m
• Insulation: 50 mm
• Insulation Material: Glass Wool
• Insulation density: 16 kg/m³
• Thermal resistance R: 1,3 m²K/W
• Inner channel: GREENDEC Sanitized polypropylene nonwoven fabric
• Outer Coat: Black
• Connection bushings: galvanized steel
• Maximum air speed: 30 m/s
• Operating temperature range: -30°C to +90°C
• Standard length: 1 m
• Manufacturer code: CO15SBGAB125/1,0

Standards and classifications

The product meets the requirements for flexible ventilation ducts and is designed for professional ventilation systems.

• EN 1506 — connections to ventilation ducts,
• NEN 13180 — flexible hoses for ventilation of buildings,
• EN 13501-1 B-s1,d0 — fire classification for GREENDEC version.

Where to install the silencer?

Most often, the DN125 silencer is mounted:

• at the recuperator,
• at the air handling unit,
• on the supply section,
• in the exhaust section,
• in front of the distribution box,
• when switching from a rigid channel to the rest of the installation,
• where you can hear air noise or the operation of the device.

Thanks to the flexible design, installation is more convenient than with rigid channel elements.

Who is this product for?

This silencer will be a good choice for people who:

• They install recuperation at home,
• modernize mechanical ventilation,
• want to reduce noise from the installation,
• looking for a DN125 silencer for a recuperator,
• need a flexible connection between the control panel and the channels,
• want to use a branded DEC product with 50 mm insulation.

Information for the buyer

Please check the diameter of your installation before purchasing. This product has a diameter of DN125 / 125 mm and a length of 1 m.

Additional components may be needed for proper installation, e.g. clamps, nipples, muffs, reductions or sealing tape – depending on the installation layout.
