Lašelinė laistymo juosta PERFEKT, 25 m rinkinys

Trumpai apie prekę

Prekė: Lašelinė laistymo juosta PERFEKT, 25 m rinkinys. Kategorija: Laistymo juostos.

• Gamintojas: Water-Close
• Modelis: 20-691038Z125NL

WaterCLOSE dropping line without pressure compensation included Perfekt

✅ Brand - WaterCLOSE.

✅ Production - Poland.

✅ Line Diameter - 16 mm.

✅ Line Length - 25 m

✅ Type of dripper without pressure compensation

✅ Water expenditure - 2,0 l/h per emitter.

✅ Spacing of Droppers 33 cm.

✅ The set contains 39 accessories in the Perfekt version.

NUT LOCK connectors are fittings with a locking nut, which are perfect for the construction of irrigation systems. The use of NUT LOCK fittings in the PERFEKT set is a guarantee of high resistance to breaking the line connection. The connection of the fitting to the pipe is extremely simple thanks to the use of a clamping nut, which covers and securely tightens the pipe after tightening the screw cap. NUT LOCK connectors are not only durable, but they are also easy to install and resistant to mechanical damage, and with this set you can perform perfect hydration in your garden on your own.

The multi-season drip line is made of materials with the addition of a stabilizer to protect against UV rays, which increases its service life. We use the highest quality polyethylene raw material for the production of the line. The line is very easy to assemble and meets the optimal needs of crops, ensuring the best conditions for plant growth. Drip lines are used for irrigation of gardens, fields, orchards, nurseries, greenhouses and foil tunnels. The advantages of the line include rational dosage of water in the area of the root system, versatility, as it can be spread loosely, slightly covered with soil or suspended, and the ability to water crops regardless of the time of day.

⭐ Line Assembly Instructions Using NUT Connectors

LOCK ⭐

1 We do not remove the locking nut.

2 Tighten the nut to the wall of the fitting (discovering the bare end of the fitting).

3 We put a drip line on the fitting.

4 Counter nut, unscrewing the nut to the resistance towards the line to ensure a very strong connection

⭐⭐⭐ Ready ⭐⭐⭐

Now your drip line is properly mounted.

Note‼

Removing the locking nut prevents it from being re-wound when the tube is put on.

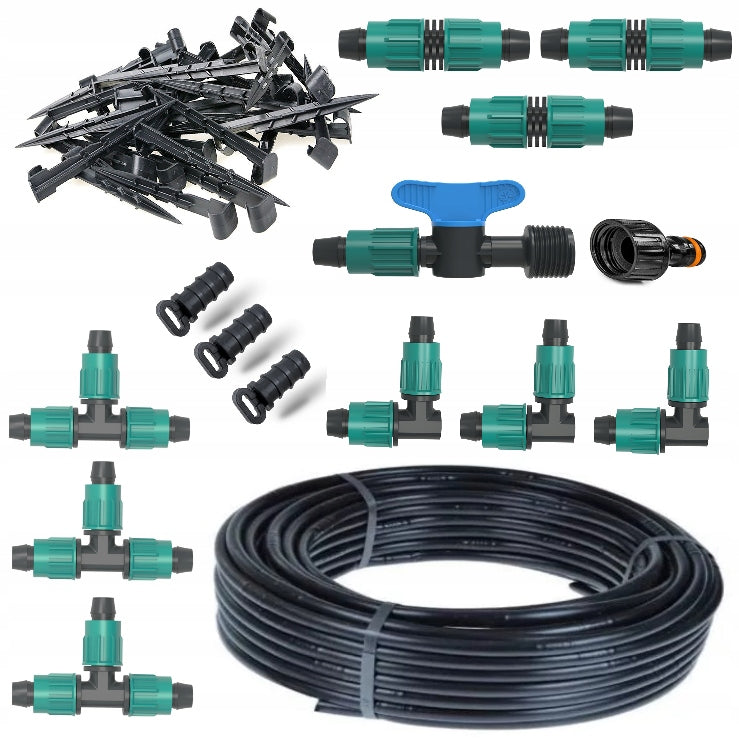

✳ SET INCLUDES ✳

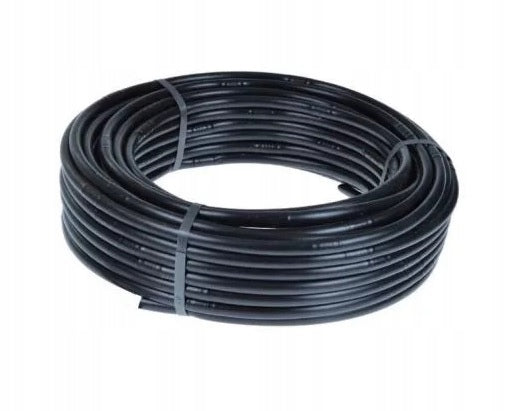

⭐ drip line 16mm 25m long with dripper every 33cm with water expenditure 2l/h from emitter

⭐ 25 line anchor pins

⭐ 3 connectors - connectors

⭐ 3 tees

⭐ 3 elbows

⭐ 3 cleats

⭐ 1 valve 3/4" external thread

⭐ 1 garden connector 3/4" internal thread

✳ PINS - 25 PIECES ✳

Pins designed for fixing 16mm drip lines, made of durable material resistant to external UV factors.

Total length of the pin 18 cm, wide handle pins ensure stable holding of drip wires.

✳ TWISTED KNEE NUT LOCK - 3 PIECES ✳

The knee is used to connect drip line or 16mm PE pipes in irrigation systems to achieve an angle of 90º

Kolano made of high quality plastic resistant to UV radiation

✳ TWISTED TEE NUT LOCK - 3 PIECES ✳

Twisted tee is used to connect drip line or 16mm PE pipes in irrigation systems to branch the irrigation line

Tripod made of high quality UV resistant plastic

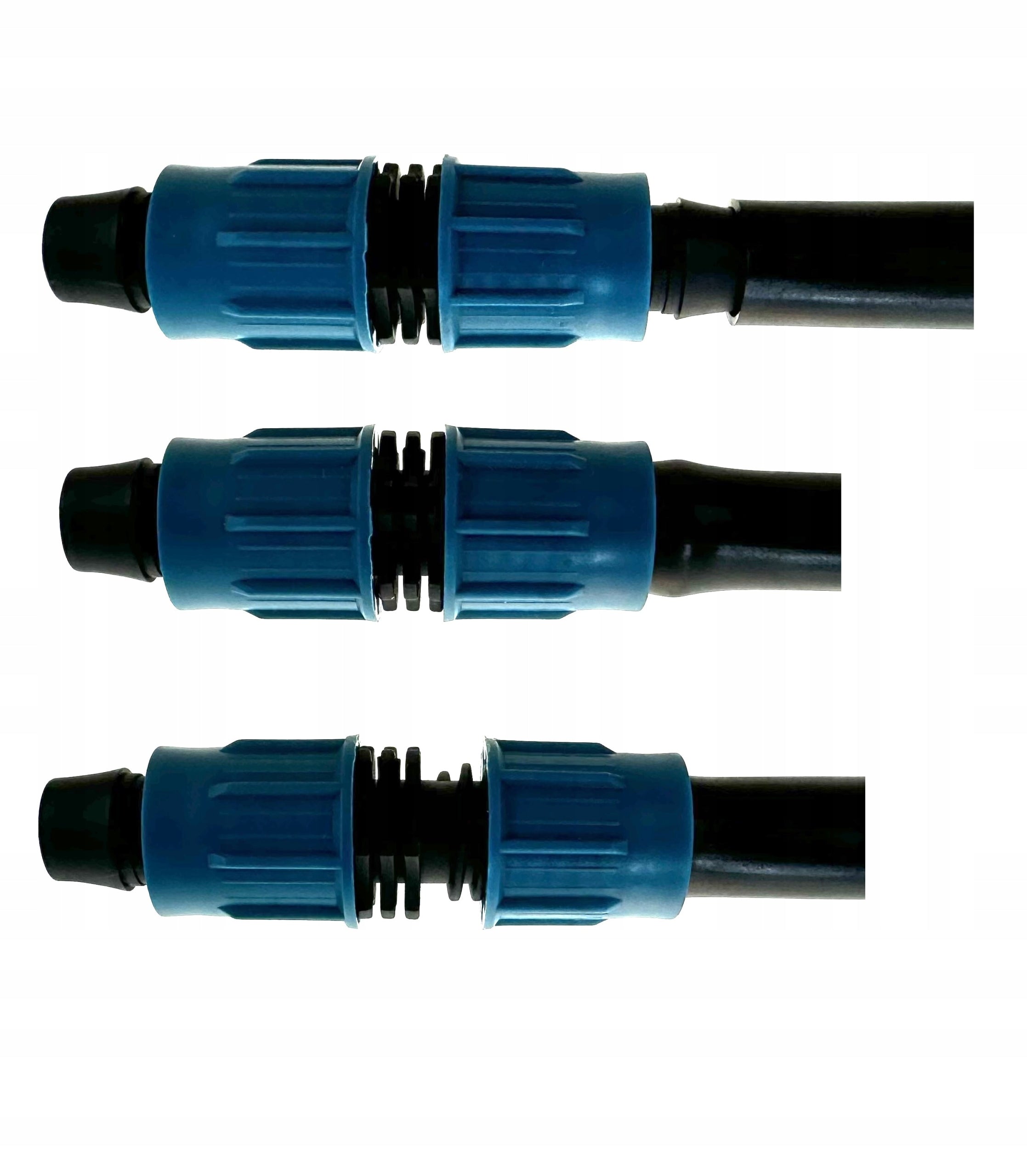

✳ TWISTED NUT LOCK FITTING - 3 PIECES ✳

Twisted connector is used to connect or repair mechanically damaged drip line or 16mm PE pipes in irrigation systems

The connector is made of high quality plastic resistant to UV radiation

✳ PUSH-IN STOPPER - 3 PIECES ✳

The cork is used to permanently or temporarily blind the tip of the drip line section

Cork made of high quality plastic resistant to UV radiation

✳ CONNECTION SET LINE - NUT LOCK HOSE ✳

Connection set between drip line and garden hose, in the set includes:

NUT LOCK valve line - 3/4" GZ external thread

Garden connector 3/4” - fits sprinklers, guns and many other gardening equipment used per click.

Specifications
