Lauko analoginė CCTV kamera, 2 MP, 1080P, 3,6 mm, 24 LED, 4W

Trumpai apie prekę

Prekė: Lauko analoginė CCTV kamera, 2 MP, 1080P, 3,6 mm, 24 LED, 4W. Kategorija: Fotoaparatai.

• Gamintojas: no brand
• Modelis: kamera bezpieczeństwa

📹 4IN1 SECURITY CAMERA – 1080P FULL HD | IP66

🌙 Novosy 24 LEDs (20-30 m) | Lens 3,6 mm | 90° angle | Aluminum alloy

✅ Supports AHD, TVI, CVI, CVBS – compatible with most DVRs

🌟 THE MOST IMPORTANT FEATURES

🎥 4-in-1 security camera

The camera supports AHD/TVI/CVI/CVBS video output – it is compatible with TVI, AHD, CVI and CVBS DVRs.

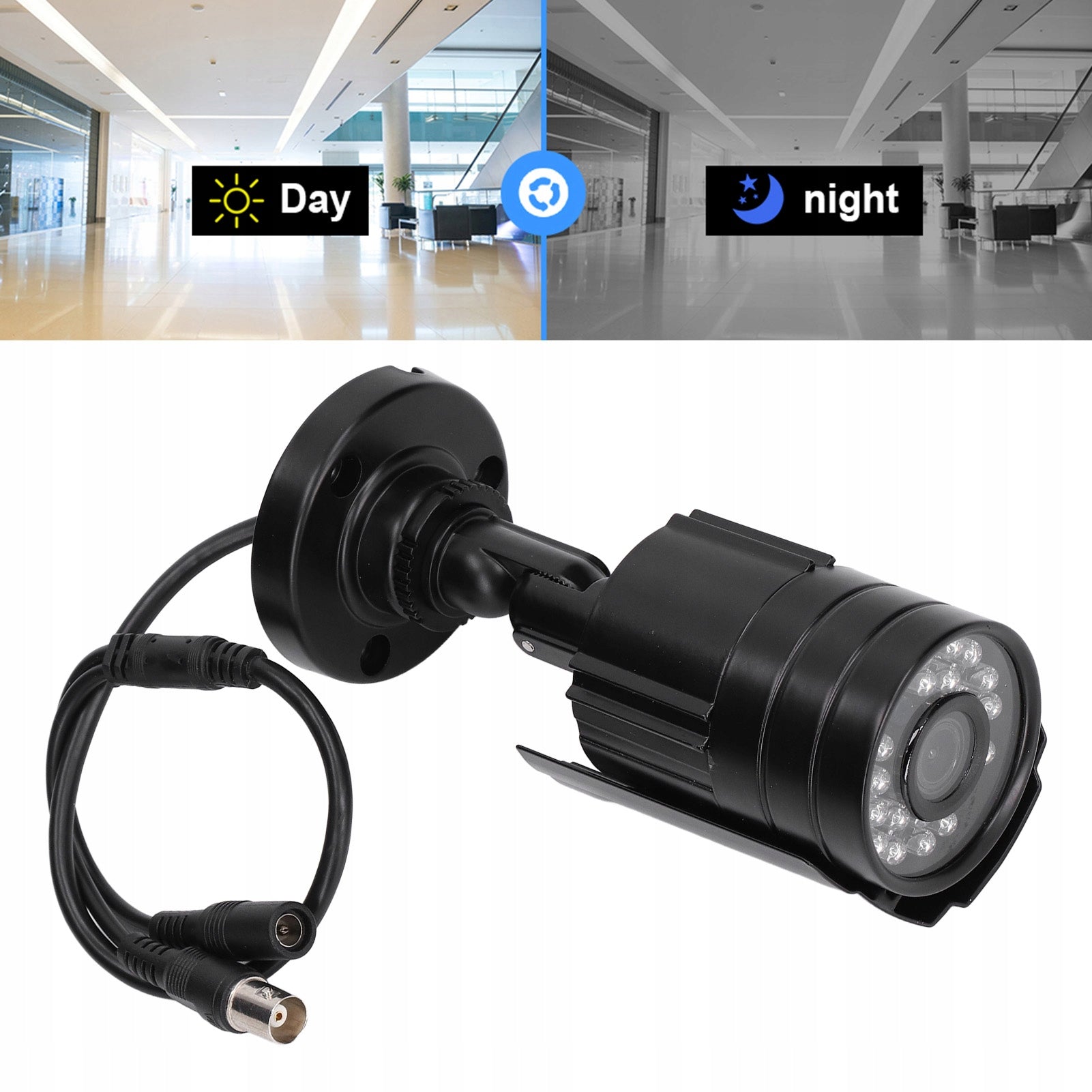

🌙 Infrared Nocision

Built-in 24 infrared LEDs – night vision range of 20-30 meters.

✅ IR‑CUT provides clear images even in the dark.

📺 1080P Full HD

1920 x 1080 resolution surveillance camera – you can enjoy 2MP Full HD video and video – the picture is clear and detailed.

🛡 High quality

CCTV camera made of high quality alloy steel – IP66 degree of protection – stable and robust, ensures safety throughout the day.

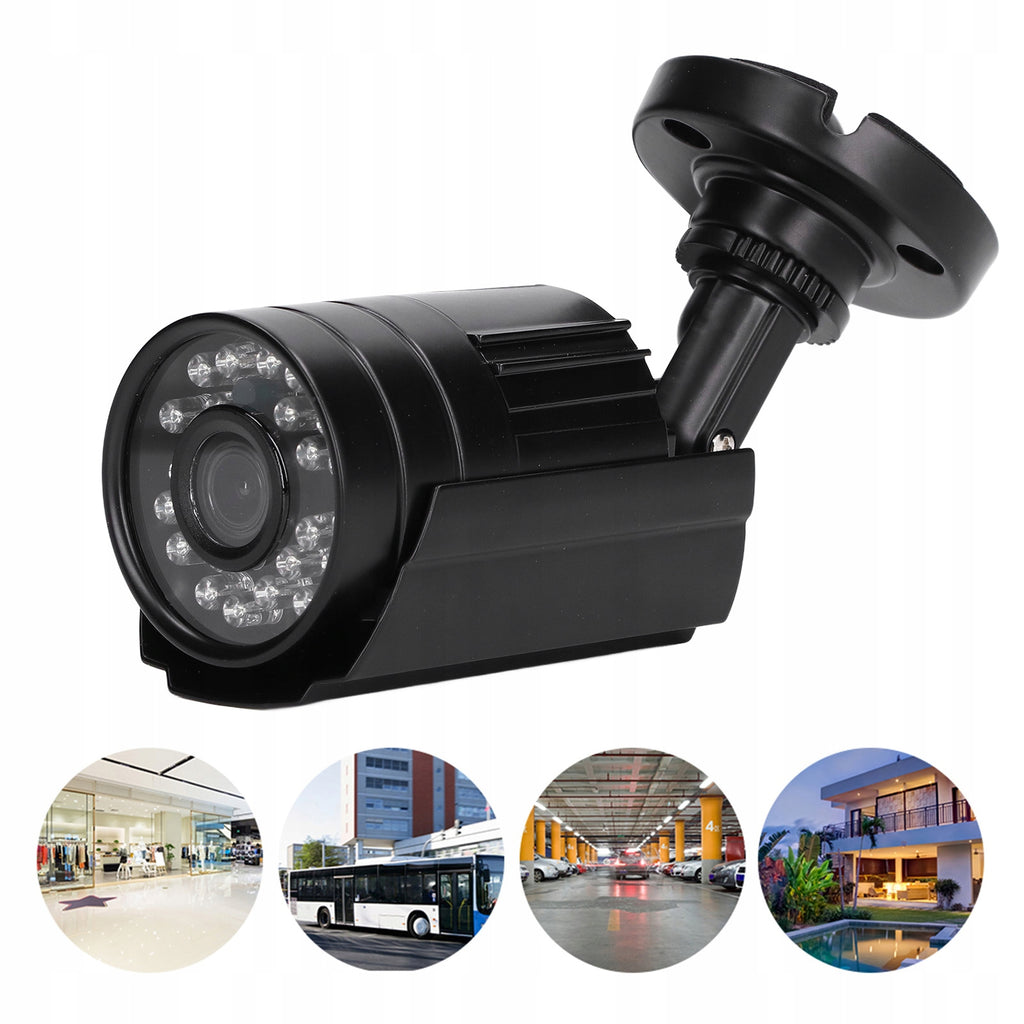

🏠 Wide application

Security cameras are ideal for:

• villas, houses, schools
• shops, offices, gardens
• warehouses, garages and others.

📋 TECHNICAL SPECIFICATION

• Product type: Security camera
• Material: Alloy steel
• PAL system: Countries: China, Asia, Europe, most of Africa ✅
• NTSC system: Countries: Japan, USA, Canada, Mexico and others (60 Hz)
• Resolution: 2 MP (1920 x 1080)
• Angle of view: 90 degrees
• Lens: 3,6 mm
• Day/night switch: IR‑CUT
• Shutter speed: 1/50 (1/60) s to 1/10 000 s
• Cable connector: Power supply 12V (DC) + BNC
• Signal transmission: AHD, TVI, CVI, CVBS
• Novoyance: 24 IR LEDs, range 20-30 m
• Power consumption: Max. 4 IN
• Water resistance rating: IP66
• Working temperature: -20°C to 50°C

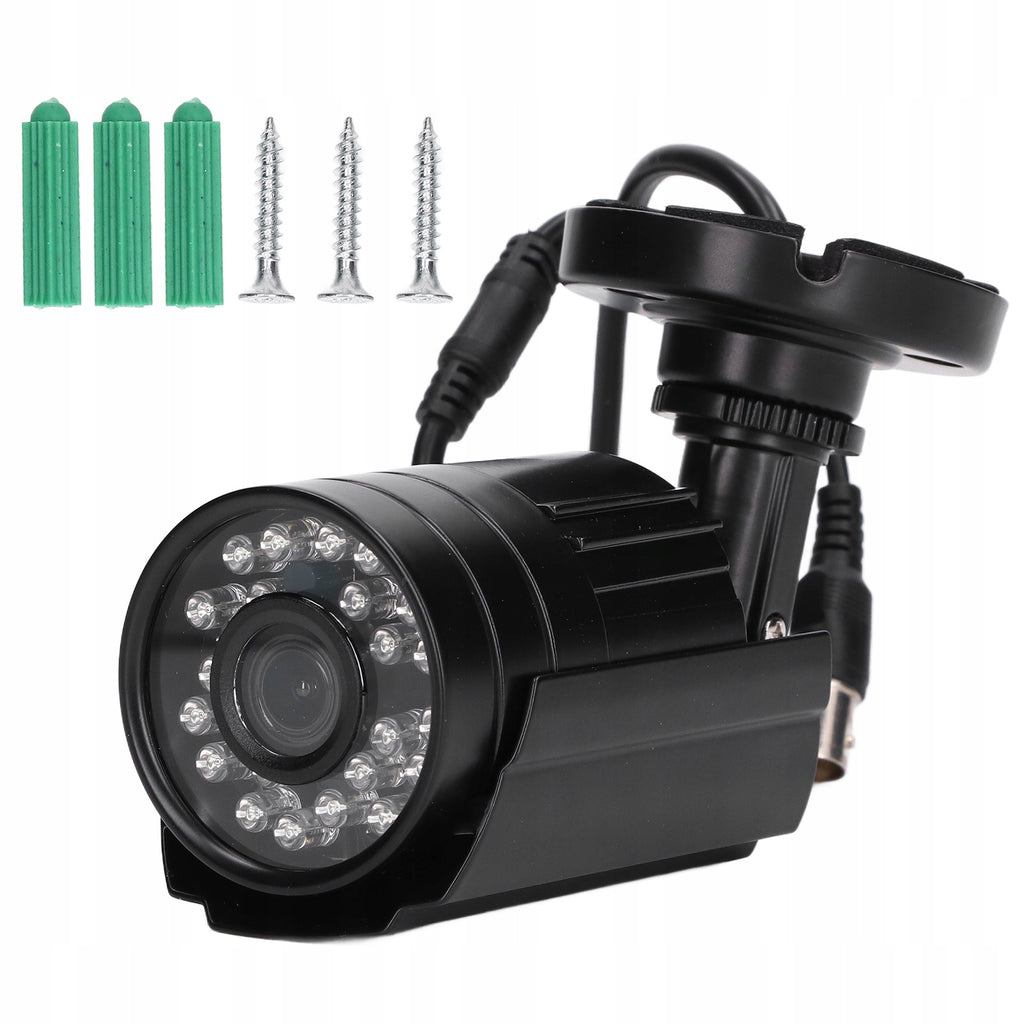

📦 CONTENTS OF THE SET

• Security camera: 1 x
• Mounting screws: 3 x
• Expansion pins: 3 x
• Instructions for use: 1 x

⚠ IMPORTANT INFORMATION

🎥 4‑w‑1 – compatibility

• AHD (HD analog): ✅ Yes
• TVI (HD‑TVI): ✅ Yes
• CVI (HD‑CVI): ✅ Yes
• CVBS (Composite Video): ✅ Yes

✅ The camera works with most analog DVRs available on the market.

🌙 Nokowizja – technical data

• Number of IR diodes: 24
• Night range: 20 – 30 meters
• IR‑CUT switch: Automatic – colour by day, black‑white by night

🛡 Weather resistance

• Protection rating: IP66 – dustproof, resistant to strong water jets
• Working temperature: -20°C to 50°C – works in cold winters and hot summers
• Housing material: Alloy steel – robust, resistant to damage

📐 Optical parameters

• Lens: 3,6 mm
• Angle of view: 90°
• Resolution: 2 MP (1920 x 1080) – Full HD

🔌 Power supply

• DC 12V power supply – power consumption max. 4W.
• The power supply is not included – it must be purchased separately (12V DC, min. 500 mA).
• BNC connector – for video transmission to the recorder.

🌍 PAL / NTSC system – important for Europe

• in Poland and Europe, the PAL system is valid – the camera supports PAL (default) or NTSC (optional).
• Before installation, set the appropriate system in the camera or recorder menu.

✅ Ideal for:

• Houses and apartments – monitoring of the entrance, driveway, garden.
• Shops and offices – protection against theft.
• Warehouses and garages – supervision of property.
• Schools, kindergartens – safety of children.
• Plots and gardens – resistant to rain and dust (IP66).

💡 Installation instructions

• Mount the camera in a dry place (despite IP66, better under the roof).
• Do not point the camera directly at the sun – this can damage the matrix.
• Use good quality BNC cables – especially for longer stretches.
• 12V DC power supply – make sure the current efficiency is adequate (at least 500 mA per camera).
• Check compatibility with the recorder – the camera supports AHD/TVI/CVI/CVBS – every analog recorder should work.

Specifications
