Lauko analoginė vaizdo kamera HIKVISION HILOOK 5 Mpx, 4in1, IR 20 m

Trumpai apie prekę

Prekė: Lauko analoginė vaizdo kamera HIKVISION HILOOK 5 Mpx, 4in1, IR 20 m. Kategorija: Fotoaparatai.

• Gamintojas: HiLook
• Modelis: TVICAM-B5M KAMERA ZEWNĘTRZNA 5MPx ANALOGOWA

4in1 / 5Mpx / 2.8mm / IR20m / IP66 / Metal housing

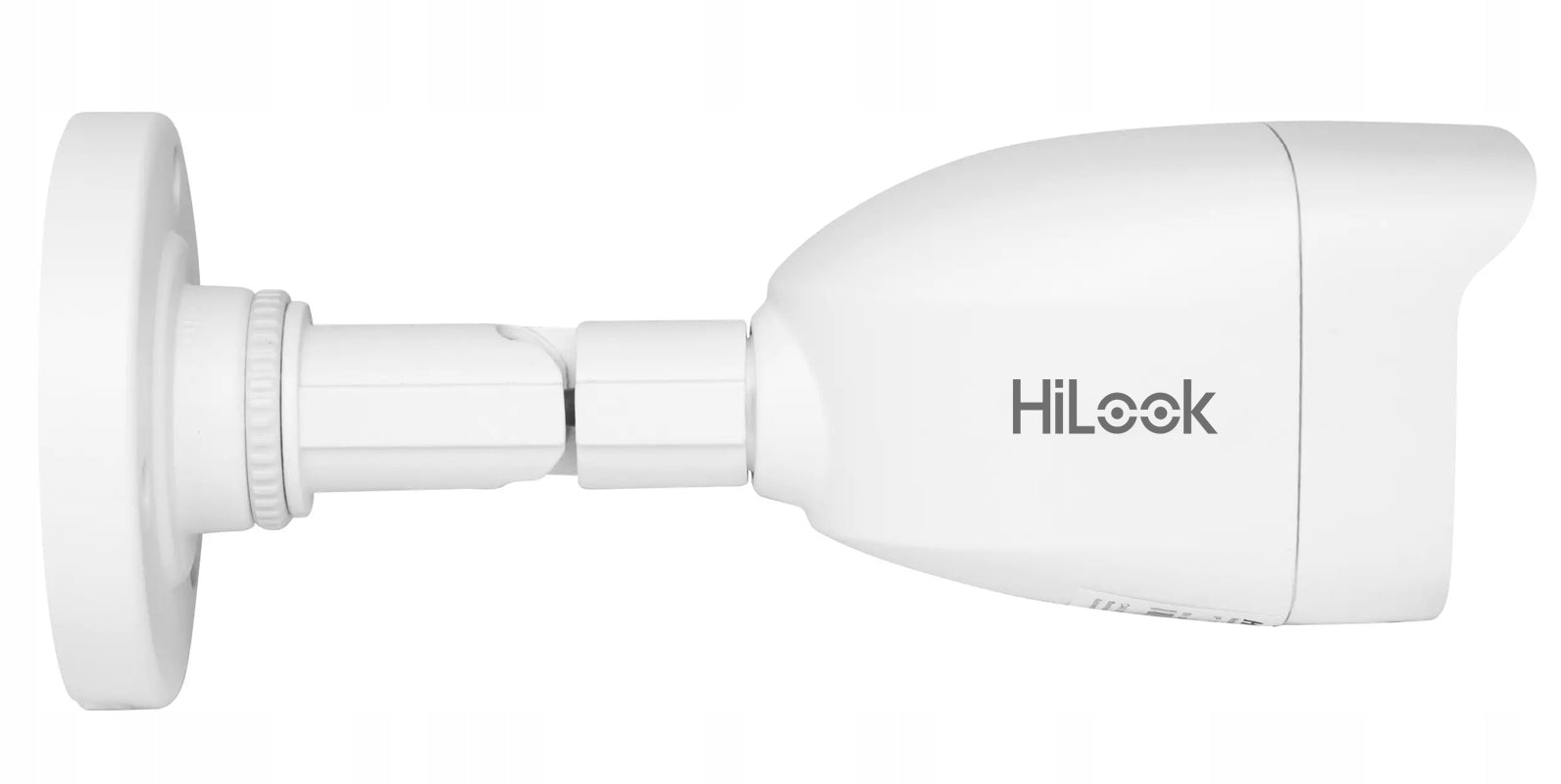

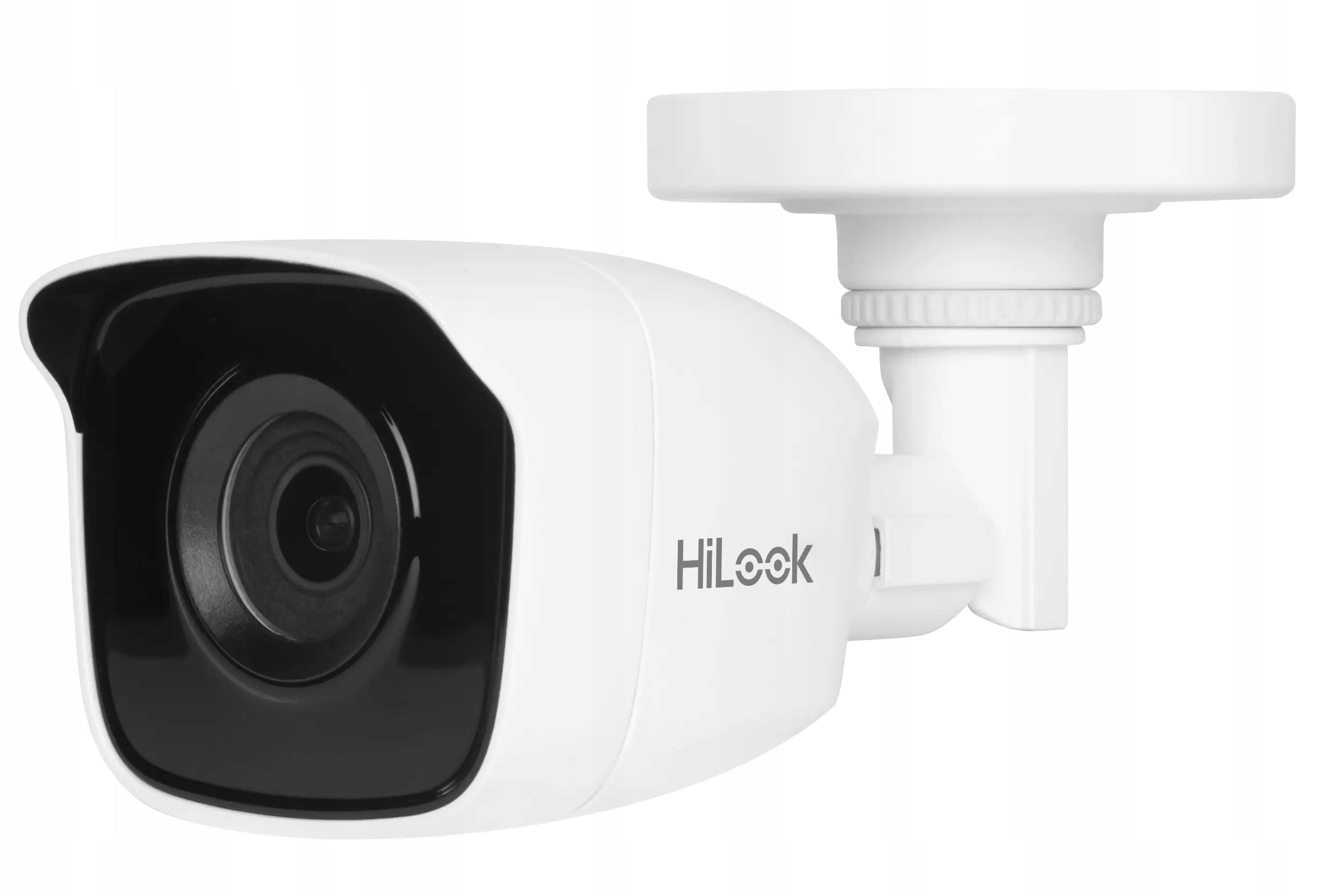

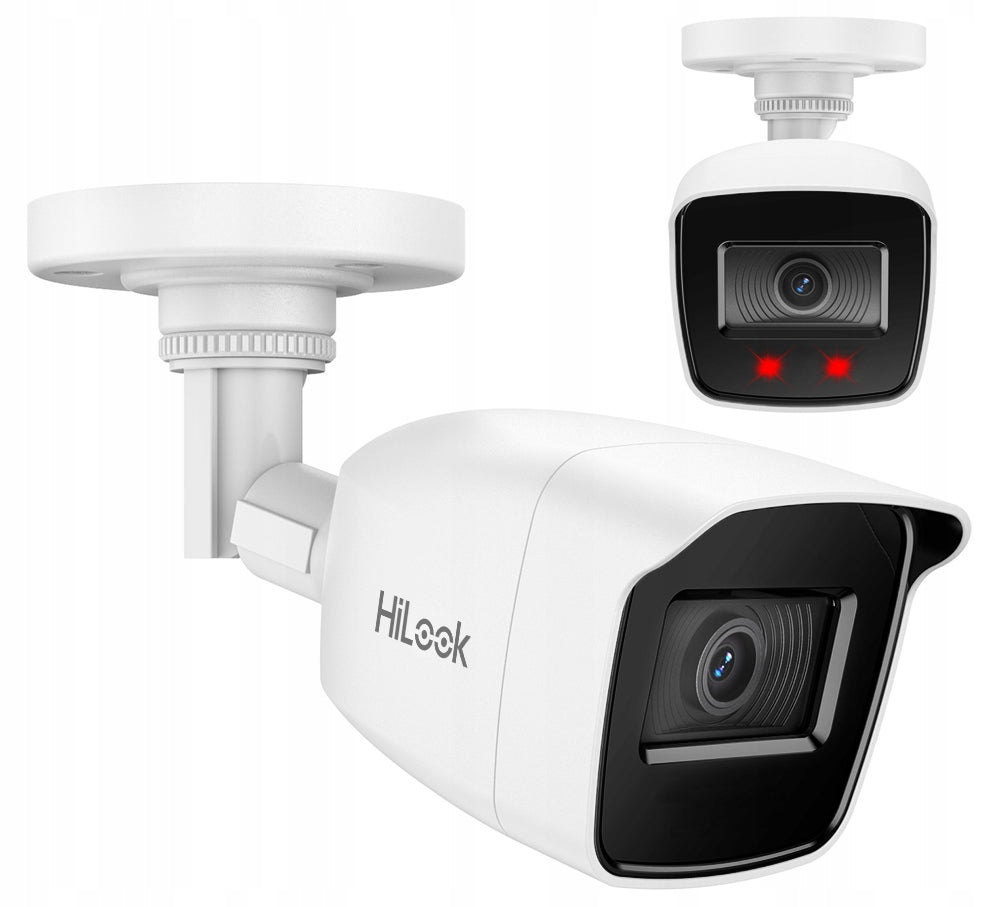

The TVICAM-B5M HiLook model is a modern 5-megapixel bullet camera operating on the 4-in-1 system - TVI, CVI, AHD, and CVBS.

The camera is equipped with a wide-angle 2.8mm lens and an integrated IR 20m infrared illuminator, guaranteeing reliable image recording even at night.

Key Features:

• High image resolution - 2560 × 1944 pixels
• IP66 Metal Bullet Housing, providing full protection against dust and moisture, allowing the camera to be mounted outdoors
• 20-meter range IR infrared illuminator, made with black glass technology
• Easy installation and control via the intuitive on-screen menu (OSD menu)

Technical parameters:

• Converter: CMOS 5 Mpx
• Recording resolution: 2560 × 1944p
• Fixed-focal lens: 2,8 mm
• Angle of view: 85°
• Day/night automatic switch: Yes
• Infrared illuminator: up to 20m
• Working mode: 4in1 (HD-TVI/AHD/HDCVI/CVBS switch)
• Protection class: IP66
• Image functions: dWDR, DNR, BLC
• Automatic white balance: Yes
• OSD Menu: Yes
• Application: external or internal
• Power Supply: 12V
• Material: metal
• Dimensions: 165 x 62 x 58 mm
• Weight: 0.4 kg
• Color: white

The camera is ideal for monitoring objects such as:

• Single and multi-family houses
• Shops
• Offices
• Production halls and warehouses
• Schools
• Preschools
• Playrooms and playgrounds
• Allotment gardens

Automatic night mode

The camera is equipped with automatic night mode - this means that when the ambient lighting drops, the camera goes into black and white mode, supported by an infrared illuminator.

This function allows you to record images by 24/7 in any lighting conditions.

5MP resolution - see more details

The TVICAM-B5M camera is equipped with a high-quality CMOS sensor with a resolution of 5Mpx - such a large number of pixels on the image allows you to record all the details and make digital close-ups, facilitating the identification of recorded objects. W

High resolution, and thus sharper image, increase the quality of the system and allow even more effective protection of the property.

Free change of operating mode

The camera operates in 4in1 mode, which means that it can transmit images in four different technological standards. This eliminates the need for additional changes to the cables and the recorder when modifying the existing monitoring.

Free switching between AHD,CVBS, CVI and TVI modes is possible via the joystick located at the power and video signal plugs.

• 5 MP CMOS sensor
• PAL/NTSC system
• Number of pixels 2560 (H) × 1944 (V)
• Sensitivity 0.01 Lux@(F1.2, AGC on. ), 0 Lux with IR
• Electronic shutter 1/25 (1/30) s to 1/50,000 s
• 2.8 mm lens
• Viewing angle 85° (2.8 mm)
• M12 Lens Mount
• Function Day & Night IR cut filter
• AGC High/Medium/Low/Off
• Auto/Color/BW (Black and White)
• BLC Function Supported
• DWDR Function Supported
• Language menu English
• Functions Brightness, Focus, DNR, Mirroring, Smart IR
• Video Output 1 HD Analog Output
• Switch button TVI/AHD/CVI/CVBS
• Operating conditions from -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
• Power supply 12 VDC ±15%
• Power Consumption Max. 4 IN
• Protection class IP66
• Housing: metal
• IR range up to 20 m
• Size 165 mm × 62 mm × 58 mm (6.50" × 2.44" × 2.28")
• Weight 400g
