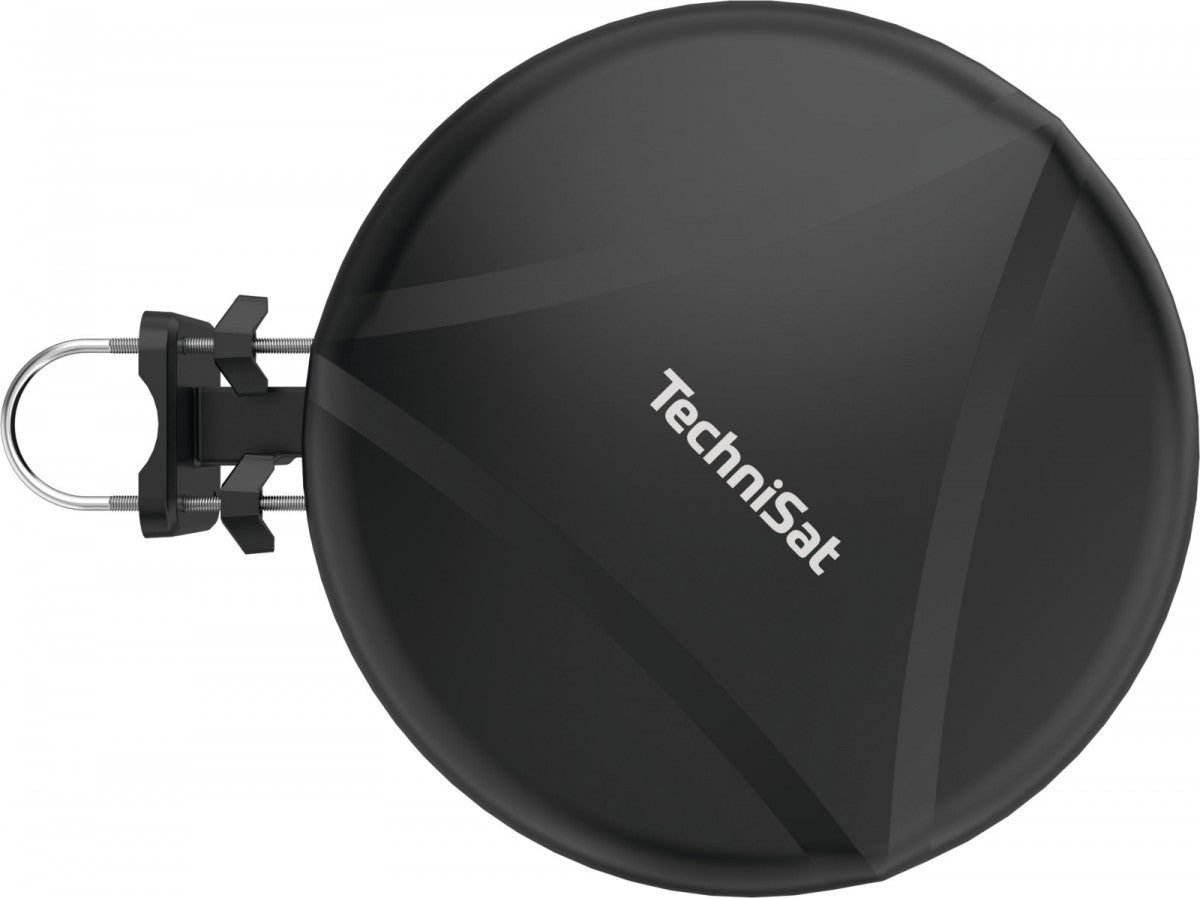

Lauko antena DVB-T2 TechniSat SMARTTENNE 5 HD, 32 dB, kryptinė

Trumpai apie prekę

Prekė: Lauko antena DVB-T2 TechniSat SMARTTENNE 5 HD, 32 dB, kryptinė. Kategorija: Antenos.

• Gamintojas: TechniSat
• Modelis: 76-4837-00
• Spalva: black

🚀 Key benefits and functions in a nutshell:

• 🔄 Omnidirectional characteristics 360° (Horizontal): Forget about cumbersome and precise targeting of the transmitter. The antenna collects the signal evenly from each horizontal direction!
• 📺 DVB-T2/HEVC standard and high gain: Full readiness to receive free channels in HD and Ultra HD (4K) quality. The integrated, low-noise amplifier offers a powerful power of up to 32 dB!
• 🌦 Airtight and armored housing: The construction is designed for stable operation outside buildings in our climate – completely resistant to rain, snow and frost.
• 🌐 Broadband VHF + UHF reception: Seamlessly captures the full TV band, including the demanding MUX-8 multiplex and digital radio.

Are you tired of constantly losing signal and pixelosis on your TV screen? Are you looking for an antenna that can easily handle signals from various, even distributed transmitters? TechniSat SMARTTENNE 5 HD is a professional, active outdoor antenna with a unique omnidirectional design. Thanks to the maximum operating range of up to 40 km from the transmitter, the device guarantees excellent image quality and stability where traditional directional antennas require constant rearrangement.

✨ Why SMARTTENNE 5 HD is a revolution in television reception?

🔄 Full freedom thanks to omnidirectional characteristics Traditional directional antennas require tedious positioning and “shooting” at a specific point on the map. If the transmitters of different multiplexes are in different directions, a big problem arises. SMARTTENNE 5 HD solves it once and for all! Thanks to the omnidirectional horizontal performance, the antenna captures radio waves within a 360° radius, ensuring stable reception regardless of where the signal is transmitted from.

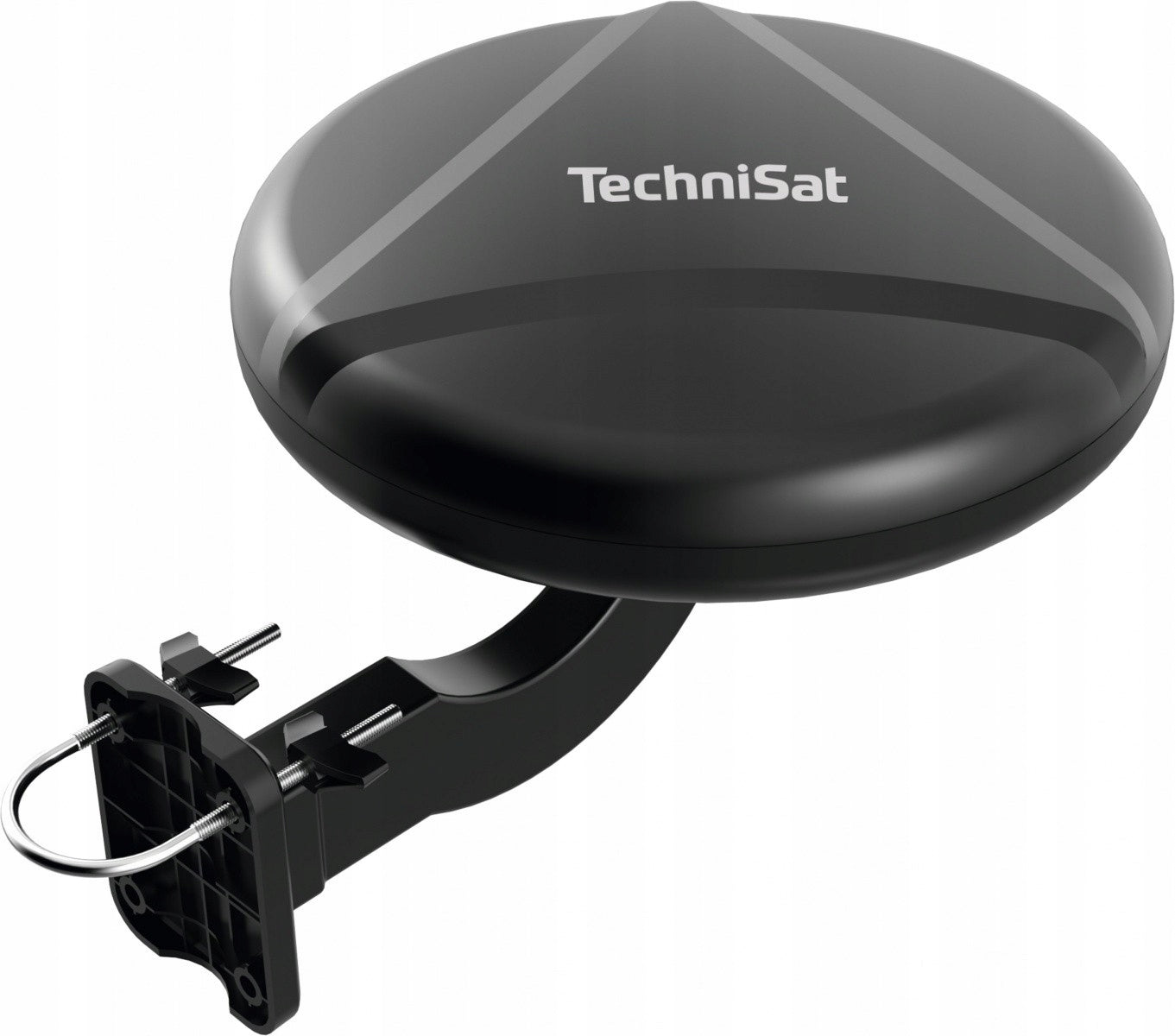

🛠 Universal 3-in-1 arm: Mast, balcony or wall TechniSat engineers have designed a brilliant, multifunctional mounting system. With the included universal arm and a special butterfly screw, you can quickly install the antenna in several ways:

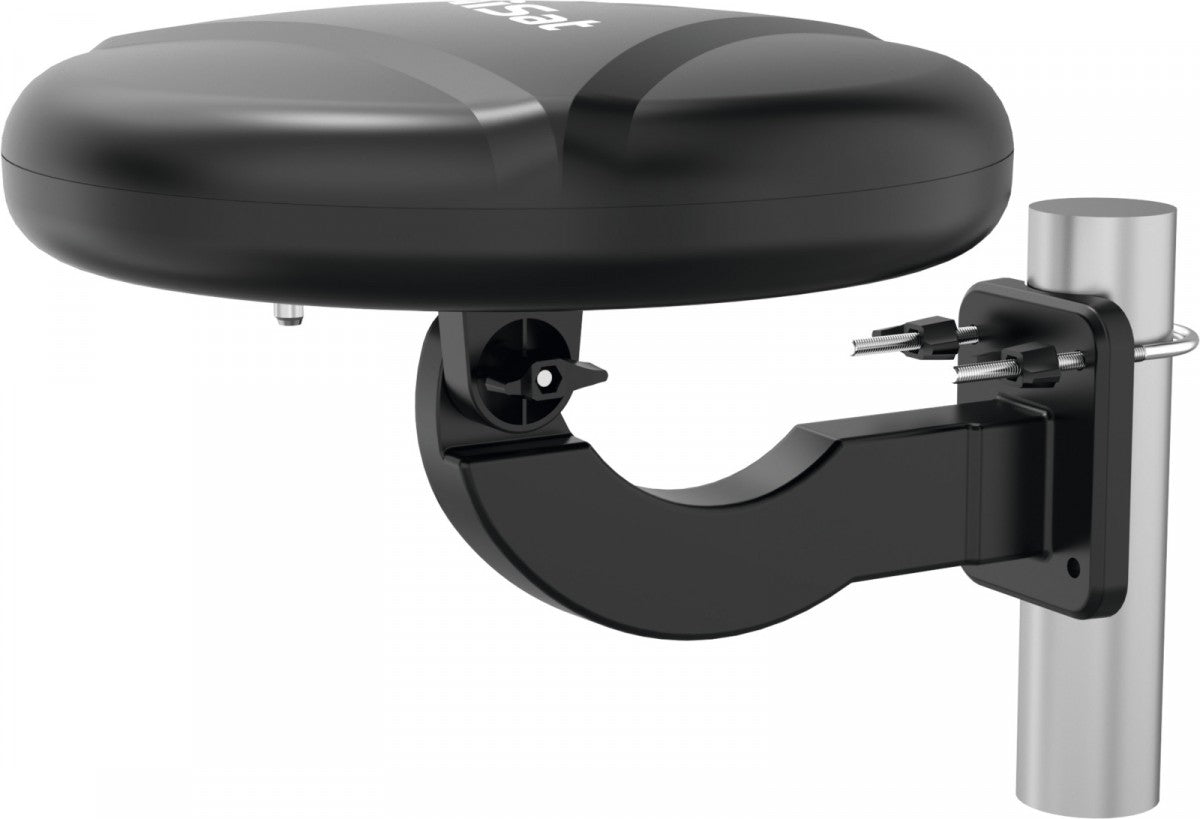

1. For mast or pipe – using a durable clamp from the set.
2. For balcony railing – the perfect solution for blocks and apartments.
3. Directly to the wall of the building – as an aesthetic panel on the facade.

🛡 Professional sealing and protection against moisture Water is the biggest enemy of antenna installations. In the SMARTTENNE 5 HD model, the type F connector has been placed underneath the housing, and in the set you get a special, thick rubber waterproof cover. After screwing the RG6 cable, simply slide the seal onto the plug – this gives 100% certainty that moisture will not get inside and weaken the signal after years of operation.

💡 How to get the perfect picture? Practical installation guide

According to the official technical documentation of BDA_SMARTTENNE_5_HD, following the following rules will allow you to squeeze the maximum quality from the device:

• ⬆ Mount as high as possible: In order for the digital signal to reach without loss, install the antenna at the highest possible point of the building towards the transmitter. This will reduce natural terrain obstacles.
• 🚫 Avoid direct interference: Try not to mount the antenna close to devices that can generate strong electromagnetic waves or wireless interference (such as base stations, high-power electrical installations or microwave ovens).
• 🔌 Correct connection order: When installing at home, remember to first connect the antenna cable to the signal amplifier, then connect the amplifier to the TV/decoder, and finally plug the power supply plug into the amplifier and into the 230V network. Important: The power cord cannot be connected to electricity before the final completion of outdoor installation! During a storm, disconnect the cable from the decoder.
• 🗺 Check your location (Important! ): Before buying and installing, make sure where the nearest TV transmitter is located, what distance separates you from it and what the terrain in your area looks like (the presence of hills, valleys or dense forests). This will allow you to optimally select and attach the equipment to the specifics of your place of residence.

📋 Detailed technical specification

• Manufacturer: TechniSat
• Model: SMARTTENNE 5 HD
• Article number: 76-4837-00
• Work characteristics: Omnidirectional (horizontal)
• Reception frequency range: VHF: 174 – 230 MHz, UHF: 470 – 694 MHz
• Powerful gain: 32 dB
• Maximum range: up to 40 km from the transmitter
• Maximum output level: 105 dBμV
• Input Impedance: 75Omega
• Dimensions of the antenna itself: 90 x 290 x 60cm
• Antenna dimensions with arm: 350 x 290 x 180mm
• Net weight: 850 g
• Power supply included: Model SW1200200-A02 (Output: DC 12V / 200mA, Power: 2,4W). No-load power consumption is only 0,046 W.
• Certification: CE mark – full compliance with Radio Directive 2014/53/EC and RoHS.

📦 Rich set of accessories – Everything included!

By choosing an original TechniSat product from our auction, you receive a gigantic, factory-ready set:

• 1x Active omnidirectional antenna SMARTTENNE 5
• 1x Special, profiled arm for mounting to a mast, railing or wall
• 1x Solid metal mast clamp
• 1x Long antenna cable (up to 10 meters! )
• 1x Waterproof rubber rain cover for F connector
• 1x Dedicated internal signal amplifier
• 1x Energy-saving power supply 12V/200mA
• 1x Full user manual in Polish
