Lauko antena INPREL INP-ANT-601-UHF

Trumpai apie prekę

Prekė: Lauko antena INPREL INP-ANT-601-UHF. Kategorija: Antenos.

• Gamintojas: Reinston
• Modelis: ANZ05K
• Spalva: silver

Most important features:

• Frequency compatibility with the second digital dividend - the latest frequency range used in digital television, thanks to which the antenna receives only a TV signal, without interference generated by mobile telephony bands, therefore does not require the use of additional filters
• Support for terrestrial television in the latest standards - Full HD (1080i, 1080p), 4K/UHD (Ultra High Definition 2160p) and 8K (4320p)
• Reception of the latest digital terrestrial signal H.265 DVB-T2
• Reception of MUXs (multiplexes including terrestrial television channels) - MUX-1, MUX-2, MUX-3, MUX-5
• Power supply directly from the coaxial cable connecting the antenna to the decoder/TV. No additional amplifier or power supply required
• Simple installation and solid build quality

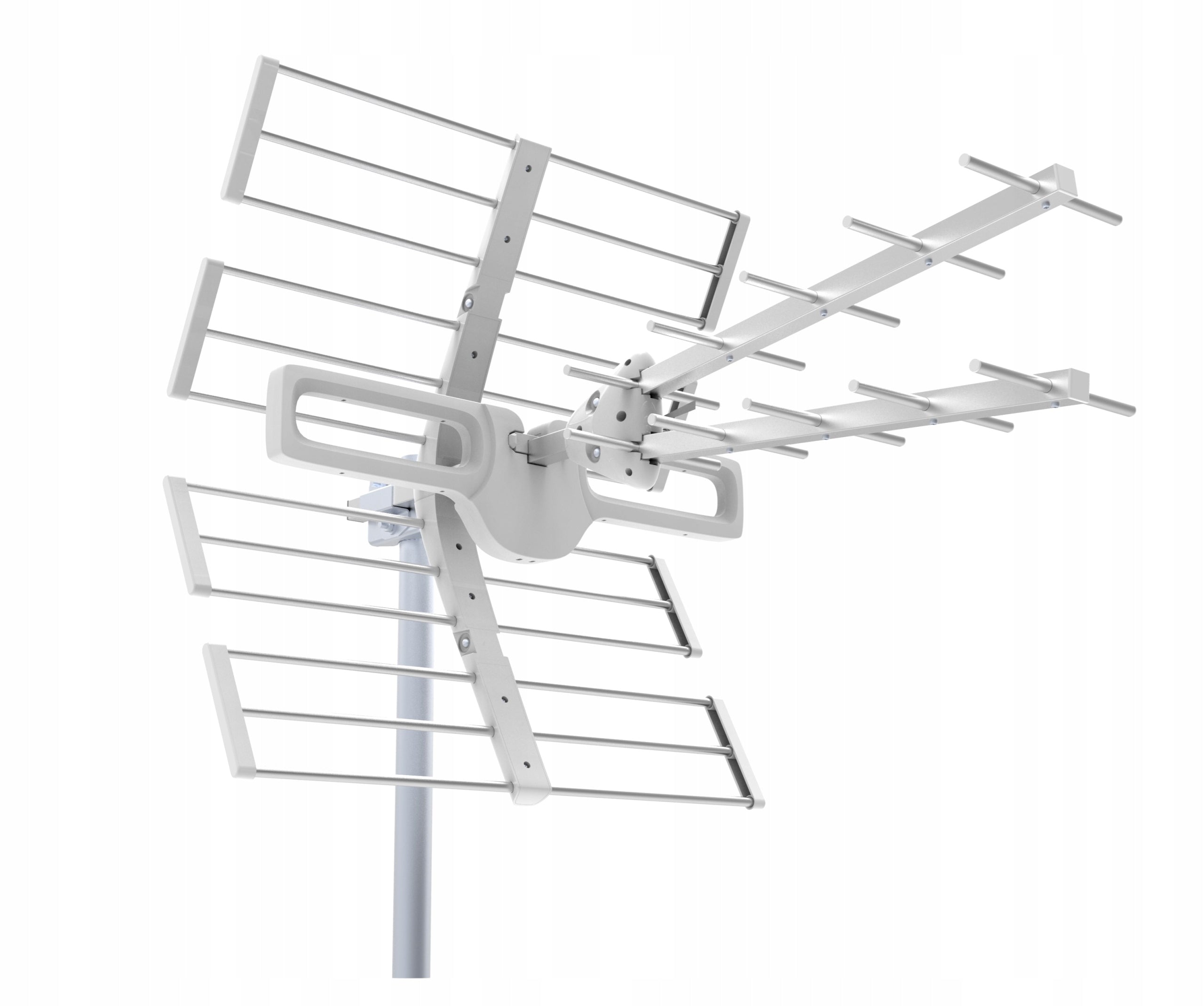

The Inprel 601-UHF directional antenna enables the reception of digital terrestrial television signals at frequencies of 470~694 MHz. Support for the bandwidth up to 694 MHz makes it one of the few antennas available on the market receiving only television signal, excluding the frequency of 694-790 MHz, currently occupied by the LTE Internet signal as part of the Second Digital Dividend implemented in June 2022.

Therefore, it does not require the use of an LTE filter, which is designed to limit the negative effects of interference, which can manifest as image retention, colored bars and squares. Inprel antennas are 100% free of these kinds of problems!

• Frequency: 470~694 MHz
• Channel: 21-48
• Impedance: 75 Om
• Number of Elements: 12
• Energy Gain: 9-13 dBi
• Front-back ratio: 15-20 dB
• H/V radius: H60 degrees/V65 degrees
• Length: 815 mm

As a Polish brand trade, Inprel offers products developed for the domestic market. Therefore, the Inprel 601-UHF antenna has been designed to receive the latest available in Poland H.265 DVB-T2 encoding. Thanks to this, you can enjoy both TV channels broadcast in Full HD quality (image resolution 1920 x 1080 pixels) and 4K Ultra HD (image resolution 3840 x 2160 pixels), and in selected transmissions, even 8K UHD (image resolution 7680 × 4320 pixels).

Choose a proven, Polish brand!

Specifications
