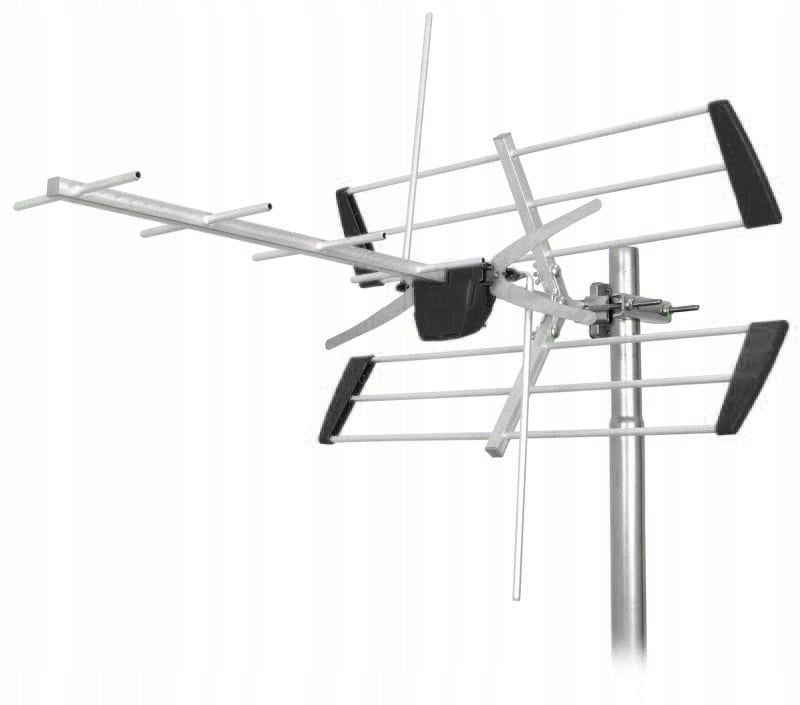

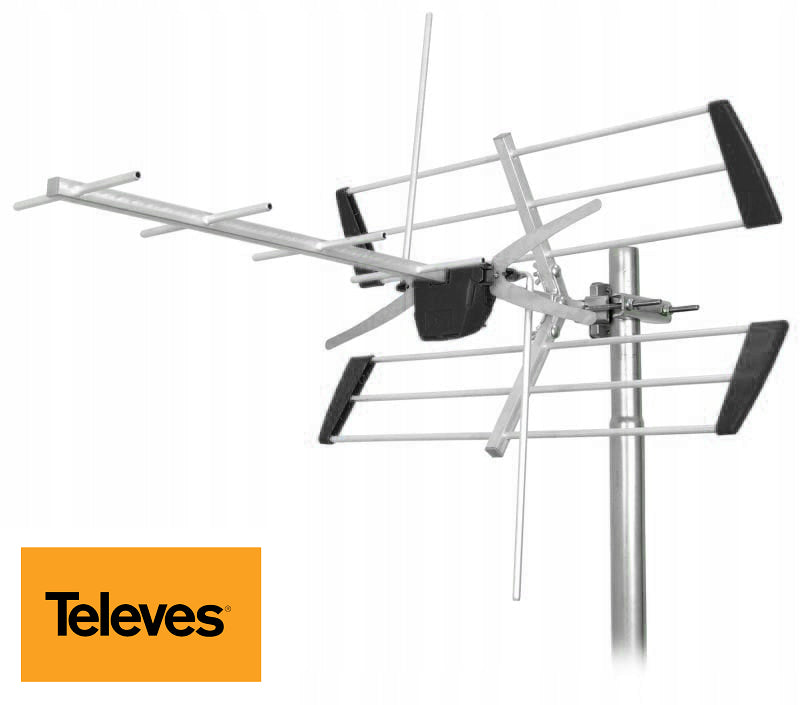

Lauko antena Televes Edge+ MIX 111810, UHF/VHF, su LTE 5G filtru, aktyvi/pasyvi

Trumpai apie prekę

Prekė: Lauko antena Televes Edge+ MIX 111810, UHF/VHF, su LTE 5G filtru, aktyvi/pasyvi. Kategorija: Antenos.

• Gamintojas: Televes
• Modelis: EDGE MIX+

Are you looking for an antenna that will provide stable reception of digital terrestrial television? Televes EDGE MIX 111810 is a high-end external antenna designed to receive DVB-T and DVB-T2/HEVC signals. It receives both UHF and VHF bands (MUX-8), thanks to which it will work in most on Polish territory.

DVB-T2 antenna Televes EDGE MIX 111810 UHF VHF MUX-8 with LTE/5G filter

The most important advantages

✅ DVB-T and DVB-T2/HEVC terrestrial television reception

✅ Support for UHF and VHF bands (MUX-8)

✅ Built-in LTE/5G filter to reduce interference from mobile networks

✅ Ability to work as a passive or active antenna (after using the power supply)

✅ High resistance to weather conditions

✅ Robust construction from renowned manufacturer Televes

Stable TV reception

Televes EDGE MIX is designed to provide the highest possible quality TV signal reception. Thanks to the reception of UHF and VHF bands, it allows the reception of all available multiplexes, including MUX-8.

Modern design ensures high resistance to interference and stable operation even in more difficult reception conditions.

LTE/5G filter

The antenna is equipped with an LTE/5G filter, which limits the impact of mobile signals on terrestrial TV reception. This reduces the risk of interference and improves the stability of the received signal.

Reputable brand Televes

Televes has been producing professional antenna systems used by both installers and individual users for many years. The products of this brand are valued for their high quality, durability and reliability.

Technical data

• Producer: Televes
• Model: EDGE MIX 111810
• Antenna Type: External
• Operating Band: UHF + VHF
• MUX-8 reception: YES
• LTE/5G filter: YES
• Passive work: YES
• Possibility of active operation: YES (after using the appropriate power supply)

Manufacturer and model: Televes YAGI EDGE MIX Combo, ref. 111810

Supported bandwidth: VHF | 174 - 230 MHz | C.05 - C.12 UHF | 470 - 694 MHz | C.21 - C.48

Passive/active mode VHF: 2 dBi/12 dBi | UHF: 10 dBi/20 dBi

Supply Voltage: 12V/24V

Current consumption: 45mA max

Main beam width: 30º

Wind load: 38,4N (@130 Km/h) | 52,8N (@150 Km/h)

Why is it worth buying this antenna?

✔ Original product Televes

✔ Modern design

✔ High quality workmanship

✔ Effective DVB-T2 reception

✔ LTE/5G filter

✔ Support UHF and VHF bands

✔ Ideal for new installations and upgrades of existing antenna systems.

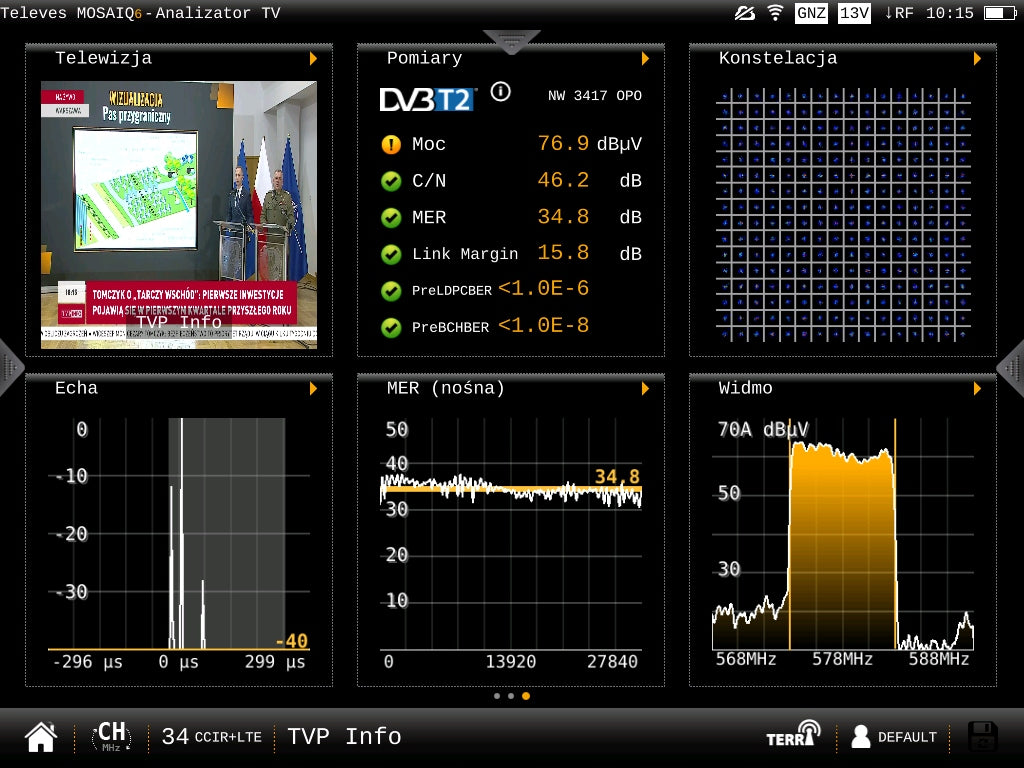

The following graphics show measurements taken on the EDGE+ MIX antenna in real conditions.

Distance from transmitter 18km.

Passive version and next to the version with the amplifier turned on.

Measurements taken during reception from a transmitter 84km away. Active version - with amplifier enabled

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Televes
Parametry	Model	EDGE MIX+
Parametry	Kind	external
Parametry	EAN (GTIN)	8424450318447
Parametry	Manufacturer code	111810
Parametry	Certificates of conformity	CE
