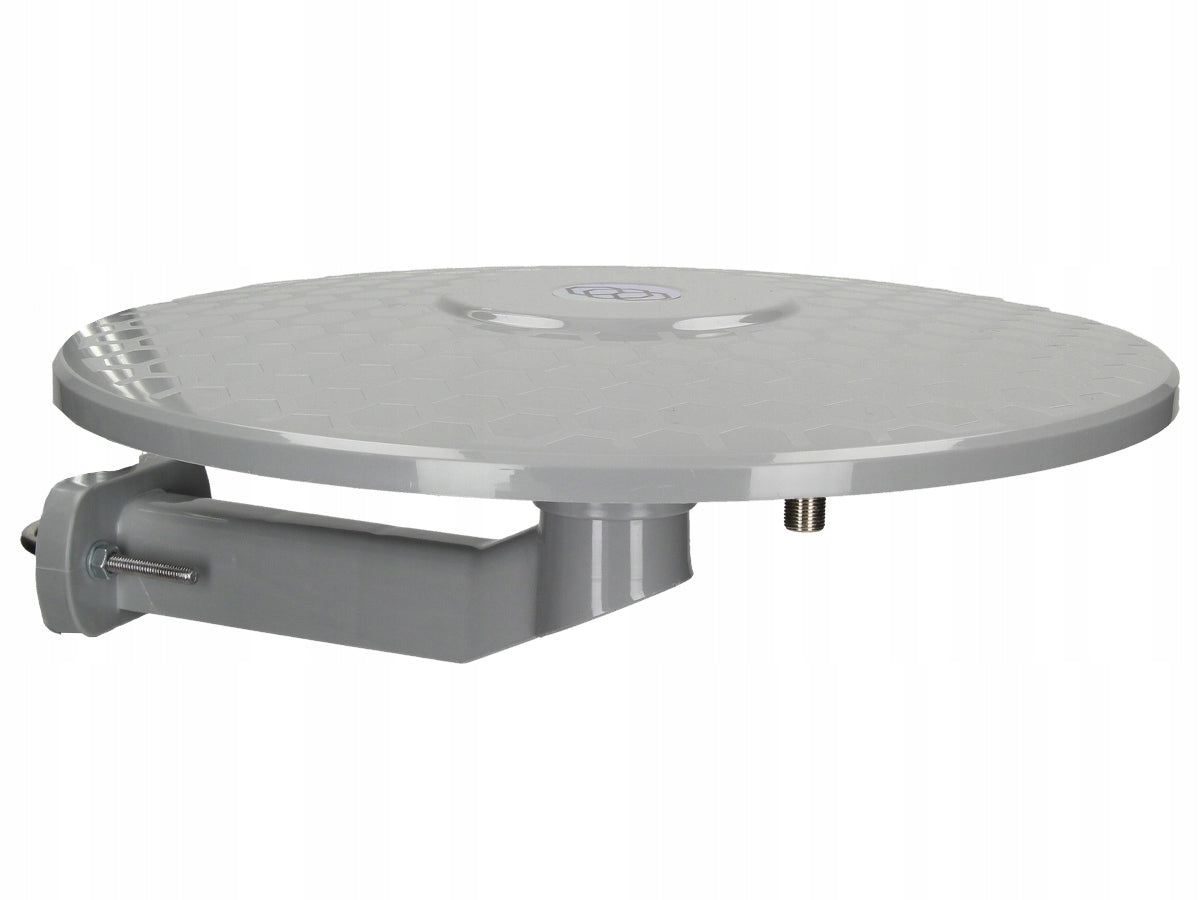

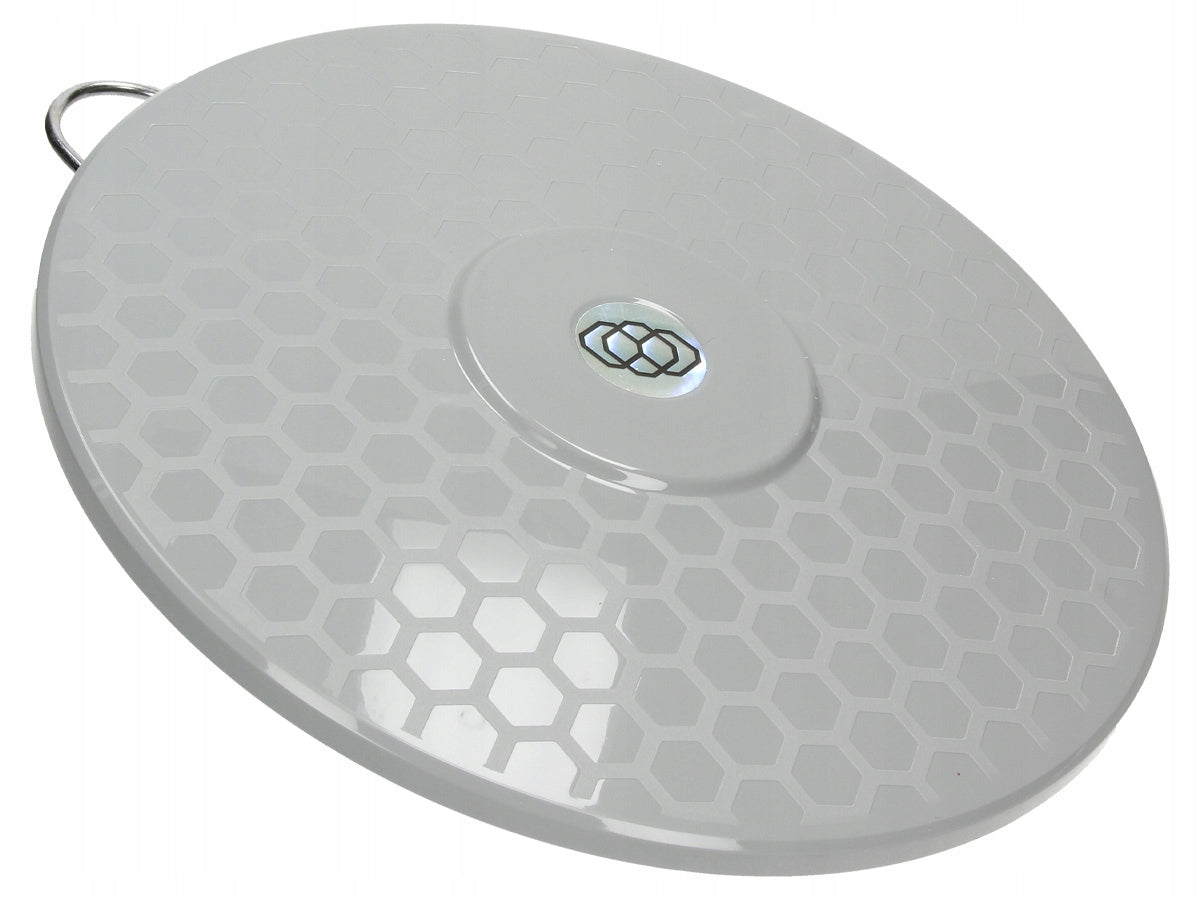

Lauko antena Wiedyska A9B_2, pilka, kompaktiška

Trumpai apie prekę

Prekė: Lauko antena Wiedyska A9B_2, pilka, kompaktiška. Kategorija: Antenos.

• Gamintojas: Wiedyska
• Modelis: A9B_2 Compact Szara
• Spalva: gray

product code A9B_2

Why choose this product?

• Prepared to receive the new DVB-T2 standard
• Receives all MUX 1,2,3, AND MUX 8) in the 174-230 MHz, 470-698 MHz range
• Built-in strong amplifier and LTE filter
• High energy gain max to 44db
• Multidirectional omnidirectional - 360 degree reception angle
• HD FullHD reception, prepared for 4K reception
• Easy installation - includes included
• Compact dimensions diameter approx. 27 cm
• Hermetic housing - resistant to weather conditions (UV solar radiation, frost, snow, strong wind)
• Power supply and F plug for coaxial cable included

Modern slim DVB-T / DVB-T2 omnidirectional antenna

Thanks to its light weight and compact dimensions, the antenna can be used both in professional home installation and on the go. The antenna is equipped with a convenient mount that allows you to maneuver in virtually any plane. Omnidirectional antenna, receives the signal from every direction (360 degrees), and a large radius of distance from the transmitting station will allow you to get interference-free reception in many places, so there is no need to direct it towards the transmitter.

Simple installation - balcony, window, roof of your home or vehicle

With the included clamp, you can mount the antenna on your pipe or balcony in minutes. You can also mount the antenna on the roof of your home or vehicle. If you are looking for an antenna whose installation is quick and simple, this antenna can meet your expectations.

Latest generation Compact antenna Wiedyska

DVB-T Compact antenna Wiedyska is a valued product available on the market for many years. The manufacturer decided to change the existing housing made of high impact polystyrene HIPS to polypropylene covered with a UV protective layer. Thanks to this, the new housing is stiffer and even more resistant to sunlight and other adverse weather conditions. The antenna mounting system and mounting bracket were also designed from scratch.

Modern built-in amplifier

It has a built-in modern amplifier that provides high antenna resistance to any external interference, such as cellular networks, WiFi networks, CB-Radia and other unwanted signals. The low-noise transistors used in the amplifier ensure high quality reception of TV programs and radio signals even Full HD (depending on the range and programming offer of the operator). The built-in amplifier in the antenna is powered by the included AC adapter.

Built-in LTE Filter

Simple antenna connection - mount yourself without the help of an installer!

DVB-T antenna is supplied with a type F terminal ready to be mounted on a coaxial cable, e.g. The antenna is equipped with a 230V AC power supply which ensures the proper functioning of the amplifier built into the antenna. The coaxial cable should be properly mounted inside the antenna power supply plug. The included AC adapter is designed to work indoors.

How to properly install a coaxial cable in the plug?

To ensure the proper functioning of the antenna, a properly prepared coaxial cable should be placed in the antenna power supply plug.

1. Cable + - middle conductor isolated from the braid

2. The wire braid should be placed directly in contact with the green plate in the designated copper place. The handle (silver plate) holding the cable does not conduct the signal (mass).

The antenna is also prepared to receive DVB-T2 / HEVC signal whose implementation of in Poland is planned for June 2022. The new DVB-T2 standard will allow you to receive an even wider programming offer, however, on the receiver side it may be necessary to use a DVB-T antenna with a high energy gain m.in. This DVB-T TV antenna provides a very high energy gain.

Polish DVB-T antennas produced in Poland

Do you also need a coaxial cable or plugs?

Technical specification:

• Colour grey
• Energy Gain: 30-33 dB to 44 dB
• Polarity: Horizontal
• Output: 75 Ohm
• Frequency Range: 174-230 MHz,470-698 MHz
• Targeting: 360 degrees
• Amplifier power supply: 230V AC 12V 100 mA DC
• Cybant for pipe with maximum size fi : 35 mm
• The pipe presented in the pictures is not included in the set

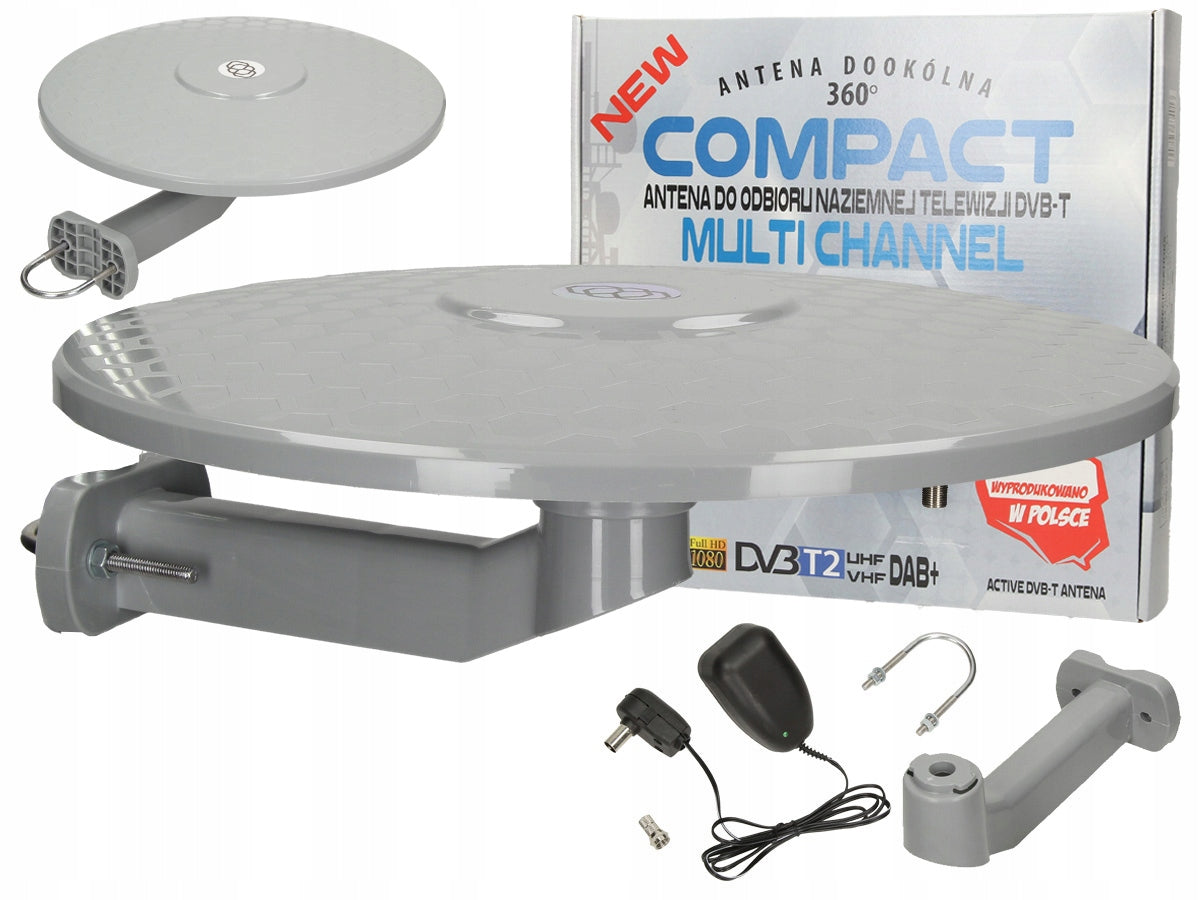

In the set you get:

• Antenna
• AC adapter 230V AC
• User manual
• Plug f
