Lauko antenos kryžminis filtras ZA-106Ms VHF/UHF su LTE apsauga AMS

Trumpai apie prekę

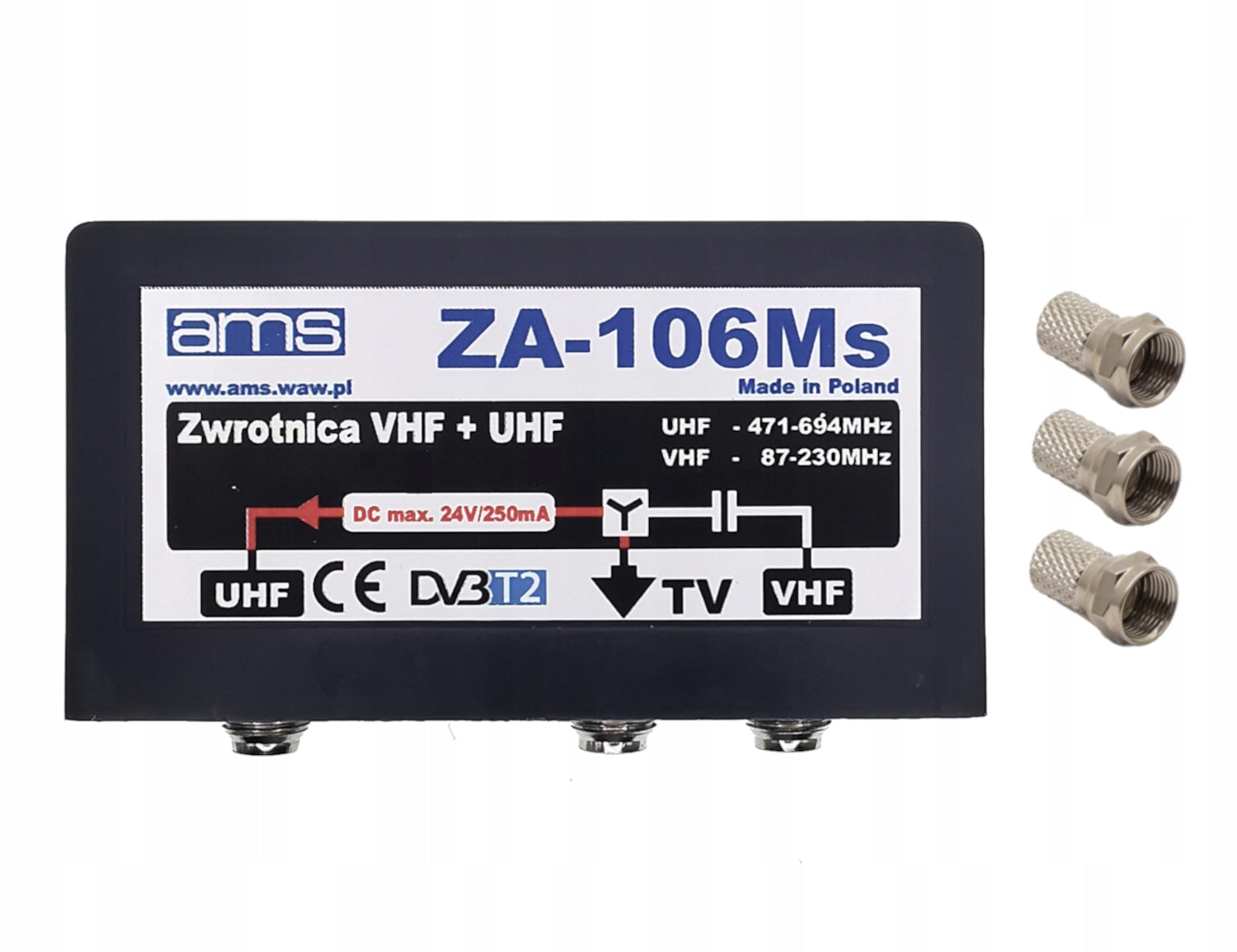

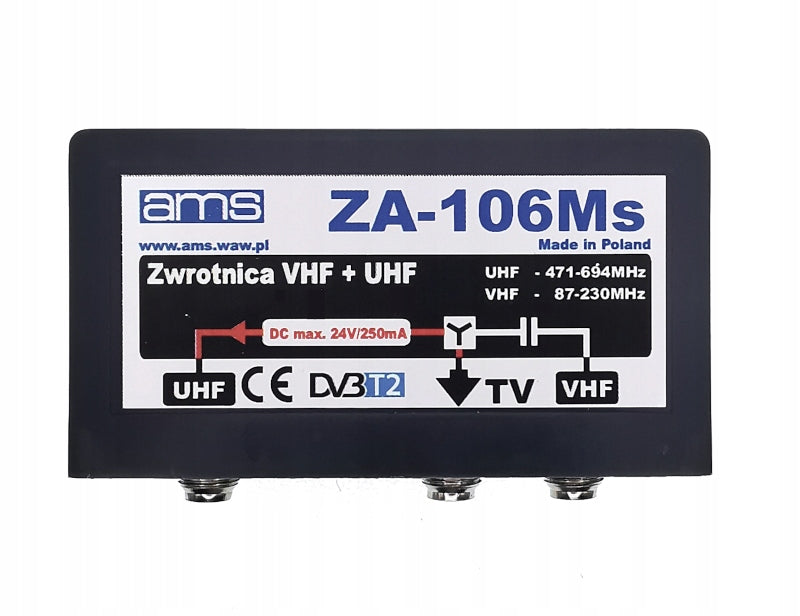

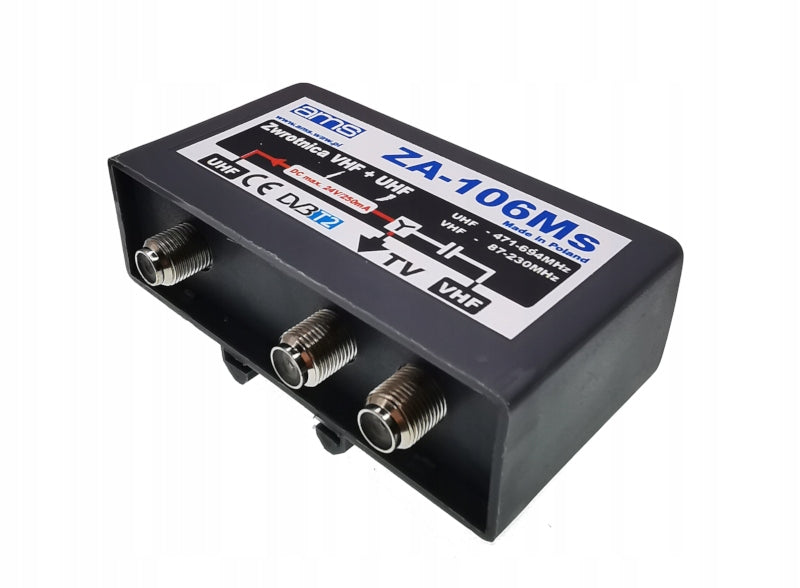

Prekė: Lauko antenos kryžminis filtras ZA-106Ms VHF/UHF su LTE apsauga AMS. Kategorija: Antenos.

• Gamintojas: AMS
• Modelis: ZA-106MS
• Spalva: black

Crossover has filters limiting the band below 87MHz and above 700MHz

Polish product

Distinguishing features:

• shielded housing
• built-in 5G LTE filter
• rubber covers for F plugs
• mounting on the mast with a clamp band
• current transition in the UHF track (max. 24 V/250 mA)

The ZA-106Ms is a mast crossover that sums signals from two antennas: VHF (87-230 MHz) and UHF (470-694 MHz).

The ZA-106Ms crossover is designed to work in open spaces.

The housing design prevents rain from entering the crossover. Simple installation on the mast thanks to the plastic band.

The crossover is equipped with an additional filter limiting the bandwidth above 694MHz (LTE 5G).

The set includes:

Rubber casings to protect F connectors from water access

3 type F connectors for connecting wires

Examples of the use of crossover:

Scheme of using a crossover to connect two passive antennas: VHF / UHF to one TV.

Scheme of using a crossover to connect two antennas: VHF with a symmetrizer / UHF with an amplifier to one TV. A power supply is required for the TV. The crossover transmits voltage to the amplifier in the UHF antenna, while the voltage is blocked to the VHF antenna.

A crossover diagram for connecting two antennas: VHF/UHF to 4 TVs using AWS-144. An amplifier or symmetrizer can be installed in the UHF antenna. AWS-144 automatically detects the amplifier and provides voltage or blocks it if a symmetrizer is used in the antenna.

Technical data:

Number of inputs/outputs: 2 / 1

Input frequency ranges:

• VHF band: 174-230 MHz
• UHF band: 471-694 MHz

Transmission attenuation (+ / - 0,5dB): 1 dB

Separation: >35 dB (VHF/UHF)

R in. and output. Socket F: 75 Om

Transition of constant component U max.24V: in. UHF 250 mA
