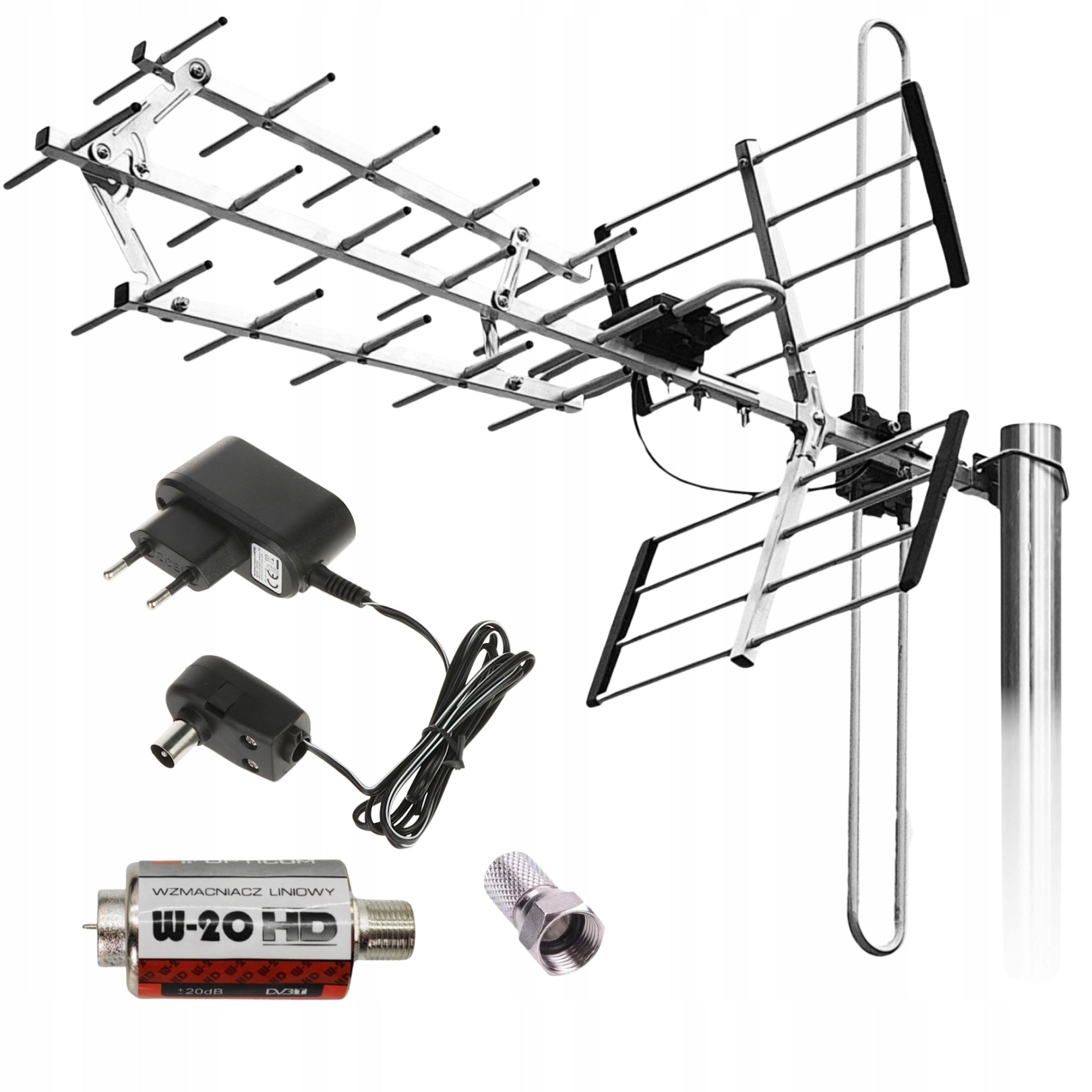

Lauko antžeminė TV antena TAMDEL TAZ-19A PRO

Trumpai apie prekę

Prekė: Lauko antžeminė TV antena TAMDEL TAZ-19A PRO. Kategorija: Antenos.

• Gamintojas: TAMDEL
• Modelis: TAZ-19A PRO
• Spalva: silver

▶ 20 dB amplifier – strong signal even from a greater distance

▶ 12 V power supply included – antenna ready for operation immediately after connecting

▶ Receives all free MUX-y, including MUX-8 (horizontal and vertical)

✅ The most important advantages of the TAMDEL TAZ-19 antenna (with amplifier)

▶ Directional design – effective in and out of the city

▶ Range up to 160 km – under favorable conditions and with good transmission signal

▶ Supports MUX 1 to 4 and MUX-8 – also in vertical polarization

▶ COMBO antenna – full VHF (MUX-8) and UHF (MUX1–4)

▶ 20 dB amplifier and 12 V power supply – ready to connect kit

▶ Resistant aluminium construction – resistant to wind, rain and snow

▶ CE and RoHS certificates – compliance with EU standards

✅ DVB-T2 / 4K – compliant with the new standard

▶ Supports DVB-T2 with H.265 compression (HEVC) – valid in Poland since 2022.

▶ Allows you to receive channels in Full HD and 4K quality.

▶ Adapted to Polish conditions – without the need to replace equipment.

✅ LTE filter – clean and stable signal

▶ Built-in filter cuts off interference from (LTE 800 MHz) cellular networks.

▶ Protects DVB-T2 signal – image does not jam, no interference appears.

▶ The antenna works stably even near GSM masts and base stations.

✅ Assembly without tools

▶ All elements fit together – installation is simple and intuitive.

▶No drilling, cutting or twisting required.

▶ It takes less than 5 minutes to assemble the antenna, even for beginners.

✅ How to connect an antenna with an amplifier – step by step

▶ Mount the antenna outside – as high as possible (mast, balcony, facade).

▶ Set it to the nearest transmitter (check the DVB-T2 map).

▶ Connect the amplifier through (20 dB) to the antenna output.

▶ Then connect the antenna cable.

▶ At the end of the cable, install a power supply with a separator and connect it to electricity.

▶ Plug the output from the separator into the antenna input in the TV or set-top box.

▶ Enable automatic channel search (DVB-T / DVB-T2).

⭐ Tip: For best effect, set the antenna exactly to the transmitter – a map or mobile application will help.

✅ How to set the antenna to receive MUX-8 (vertical polarization)

The TAMDEL TAZ-19 antenna has two dipoles:

• larger – up to MUX-8 (VHF)

• smaller – for MUX1–MUX4 (UHF)

In many regions, MUX-8 is broadcast in vertical polarization, therefore:

▶ Turn only the larger dipole 90° – position it vertically.

▶ Do not rotate the entire antenna – just change the dipole position.

▶ The remaining channels will continue to be received correctly (in horizontal polarity).

⭐ Thanks to this function, the antenna operates simultaneously in two polarities – and receives all DVB-T2 channels even in difficult conditions.

In the pictures below:

• first photo – horizontal setting (MUX 1 – 4 + MUX-8 horizontally)

• second photo – vertical setting (MUX 1 – 4 + MUX-8 vertically)

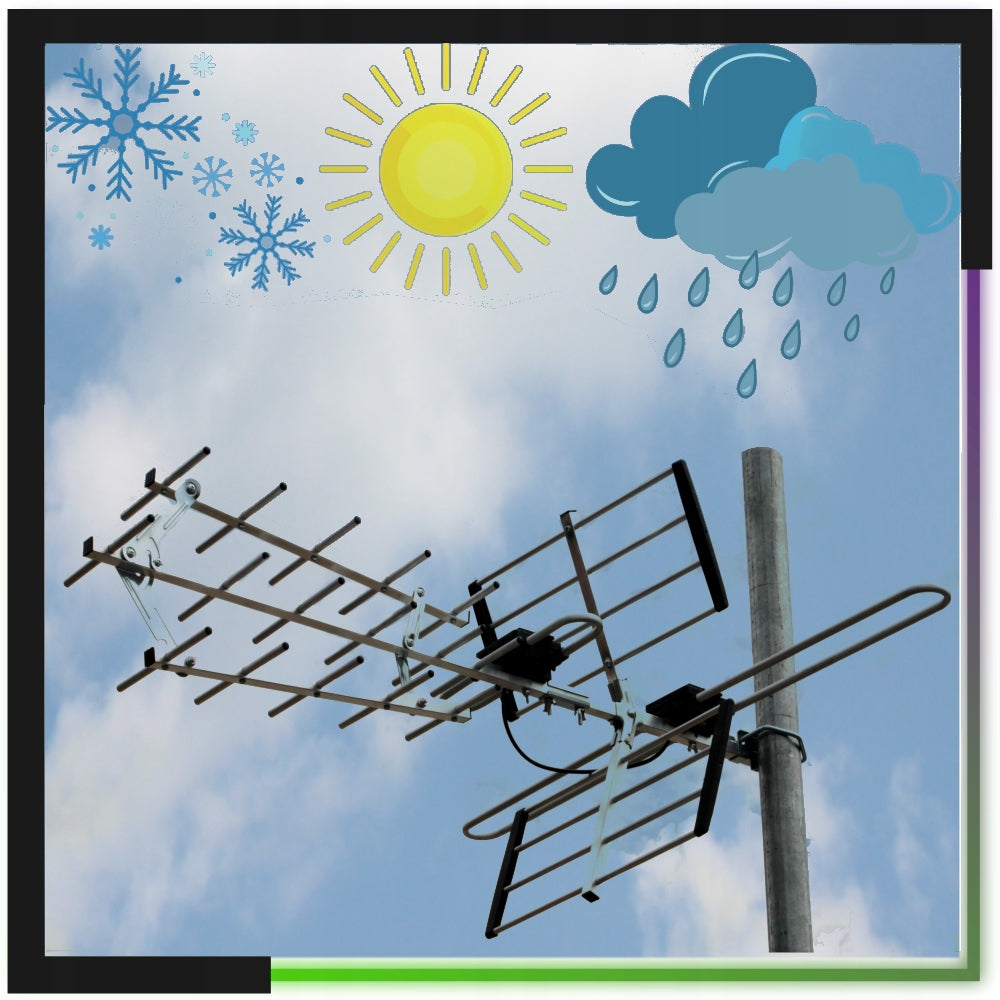

✅ Weather resistant

The antenna has been designed to work all year round – regardless of the weather.

▶ Aluminum construction – lightweight and corrosion resistant.

▶ Hermetic antenna box – protects electronics from moisture.

▶ Resistance to wind and UV radiation – works in all conditions.

⭐ Ideal for mounting on a balcony, facade or mast – even in difficult terrain.

✅ Technical specification

Model: TAMDEL TAZ-19A PRO

Type: directional, external

Standard: DVB-T / DVB-T2 (HEVC)

Band:

• VHF: 168 – 230 MHz

UHF: 470 – 790 MHz

Antenna gain (passive):

• VHF: 6 to 8 dB

• UHF: 16 to 18 dB

Amplifier:

• Gain: 20 dB

• Range: 5 to 862 MHz

Impedance: 75 Ω

LTE filter: yes

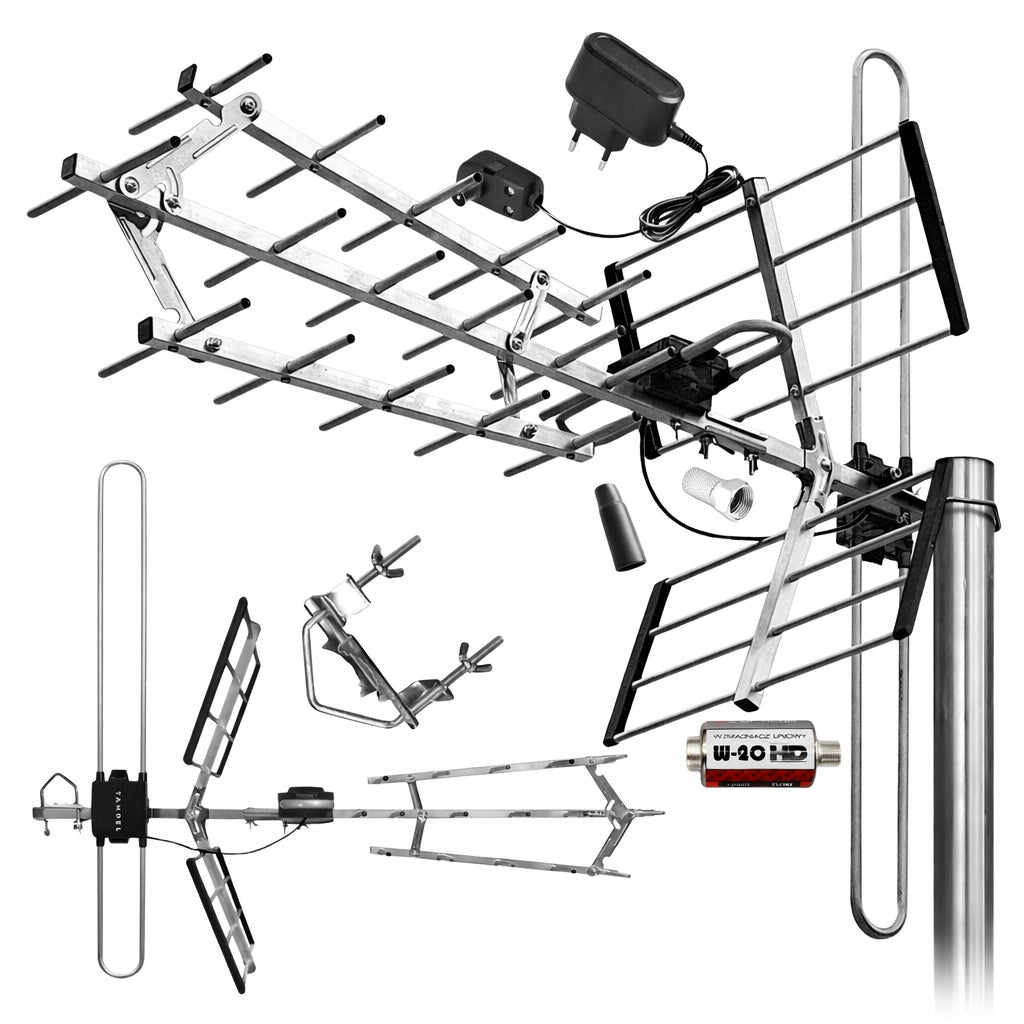

✅ Set includes:

• External directional antenna TAMDEL TAZ-19

• Mounting kit (screws, pipe holder)

• Antenna amplifier 20 dB

• 12 V antenna power supply with separator

• F plug with gasket (for cable connection)

• Assembly instructions

• Original manufacturer packaging

✅ Why choose TAMDEL TAZ-19 (with amplifier)?

✔ Receives all available DVB-T2 channels – including MUX-8 in vertical polarization

✔ 20 dB amplifier and 12 V power supply – stable reception even from a greater distance

✔ Assembly takes only a few minutes – no special tools required

✔ Durable, aluminum construction – resistant to wind and rain

✔ Ready for new 4K standard and DVB-T2 (HEVC)

⭐ Ideal for places with a more difficult signal – the active set provides strong reception and clear image without interference.

Choose TAMDEL TAZ-19 and watch without interruption!
