Lauko antžeminė TV antena TAMDEL TAZ-32A DVB-T2 MUX-8 LTE

Trumpai apie prekę

Prekė: Lauko antžeminė TV antena TAMDEL TAZ-32A DVB-T2 MUX-8 LTE. Kategorija: Antenos.

• Gamintojas: TAMDEL
• Modelis: TAZ-32A
• Spalva: white

TAMDEL TAZ-32A is a active directional antenna for receiving digital terrestrial television DVB-T / DVB-T2.

✔ reception MUX-1 / MUX-2 / MUX-3 / MUX-4 / MUX-8

✔ support for VHF + UHF bands – also for MUX-8

✔ built-in amplifier VHF 18 dB / UHF 25 dB

✔ LTE filter reducing interference

✔ 12 V antenna power supply with cable terminated with TV plug

✔ external mounting on the mast

🔄 Adjustable setting for MUX-8 – vertical / level

MUX-8 can be broadcast in vertical or horizontal polarization, depending on the transmitter.

TAMDEL TAZ-32A allows you to set the antenna in both positions:

✔ vertical setting – for transmitters with vertical polarity

✔ horizontal setting – for transmitters with horizontal polarization

✔ easier adjustment of the antenna to local reception conditions

🔧 Antenna connection diagram

▶ Connect the cable from the antenna to the ANT input in the 12 V antenna power supply.

▶ Connect the TV cable coming out of the power supply to the TV or DVB-T2 decoder.

▶ Connect the power supply to the electric socket.

▶ Additional TV2 output can be used to connect a second receiver.

🌧 Suitable for external installation

✔ closed antenna housing

✔ designed for all-year external assembly

✔ stable mounting structure

✔ aesthetic alternative to large mesh antennas

⭐ The antenna housing looks modern and does not visually dominate on the building or mast.

⚙ Technical specification

• Model: TAMDEL TAZ-32A

• Type: active external directional antenna

• Receive standard: DVB-T / DVB-T2

• Image compression: HEVC H.265

• Supported bands: VHF + UHF

• Frequency range: 47 – 790 MHz

• Reception: MUX-1 / MUX-2 / MUX-3 / MUX-4 / MUX-8

• Signal amplification: VHF 18 dB / UHF 25 dB

• LTE filter: yes

• Amplifier power supply: 12 V

• Installation: antenna mast

• Compatibility: Full HD/4K Ultra HD*

* The reception of 4K channels depends on the sender and the capabilities of the TV or set-top box.

📏 Dimensions and installation

• total width after unfolding the bars: 140 cm

• antenna height: 32 cm

• body dimensions: 38 × 32 × 5,5 cm

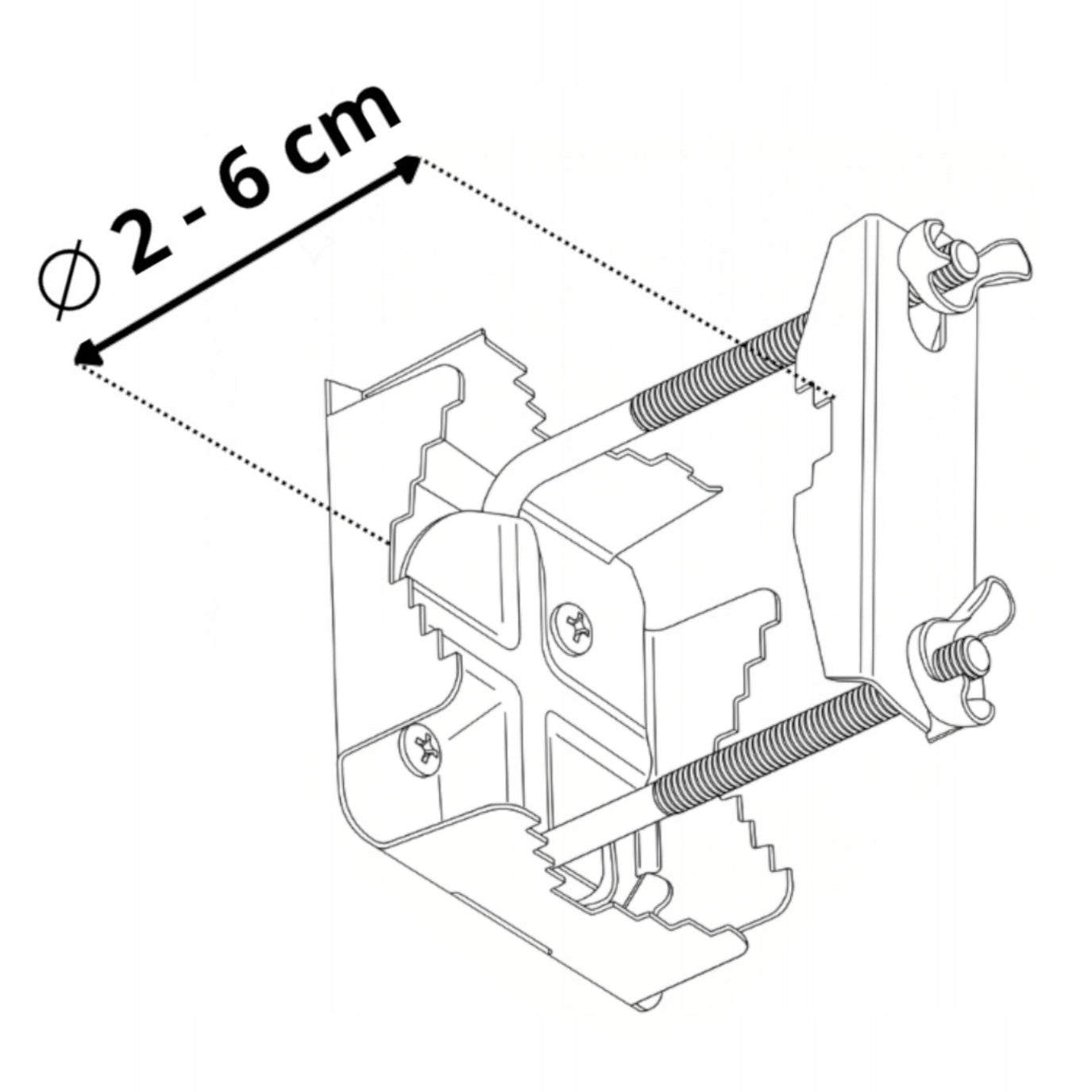

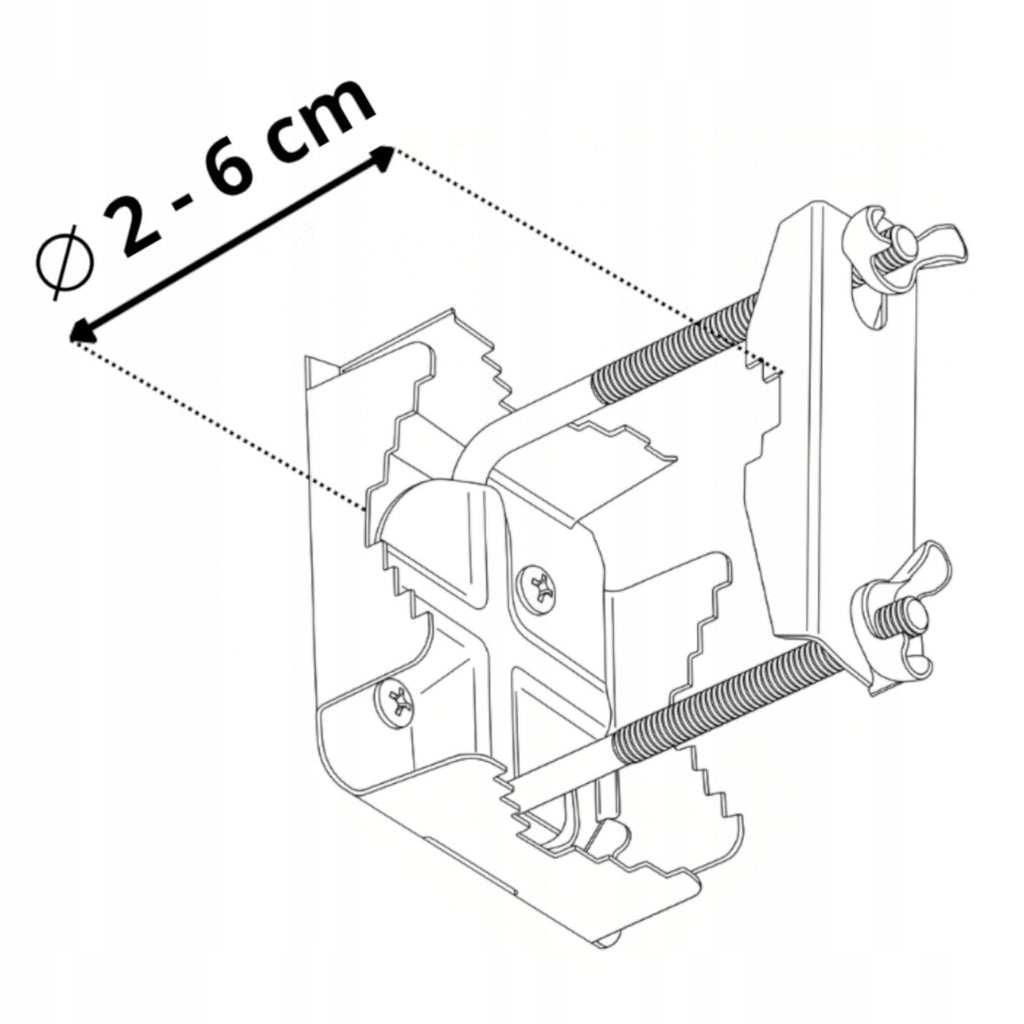

• handle for masts with a diameter of 2 – 6 cm

• handle height: 8,5 cm

⭐ After installation, both telescopic antenna rods should be extended to full length.

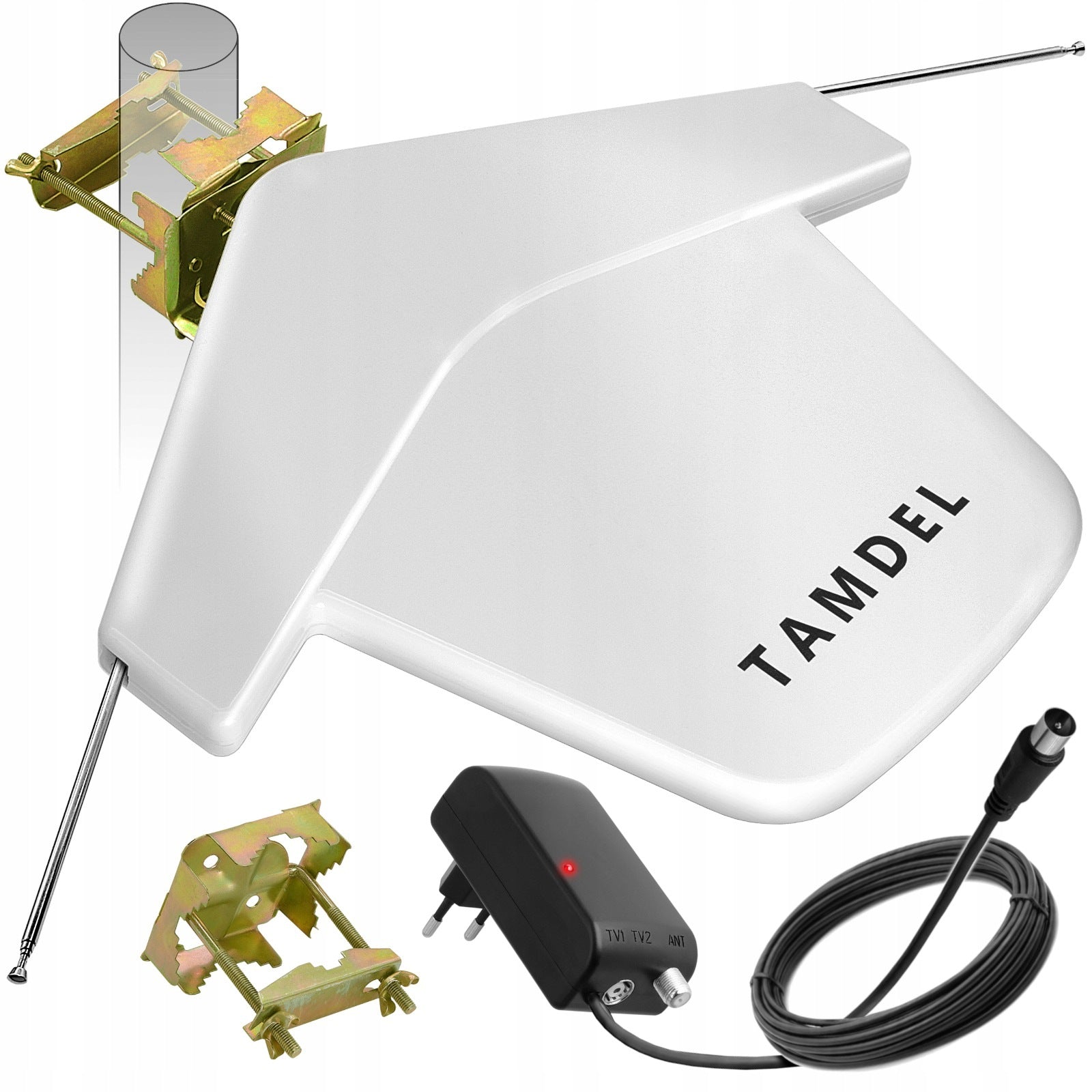

📦 Contents of the set

• TAMDEL TAZ-32A antenna with built-in amplifier

• 12 V antenna power supply with cable terminated with TV plug

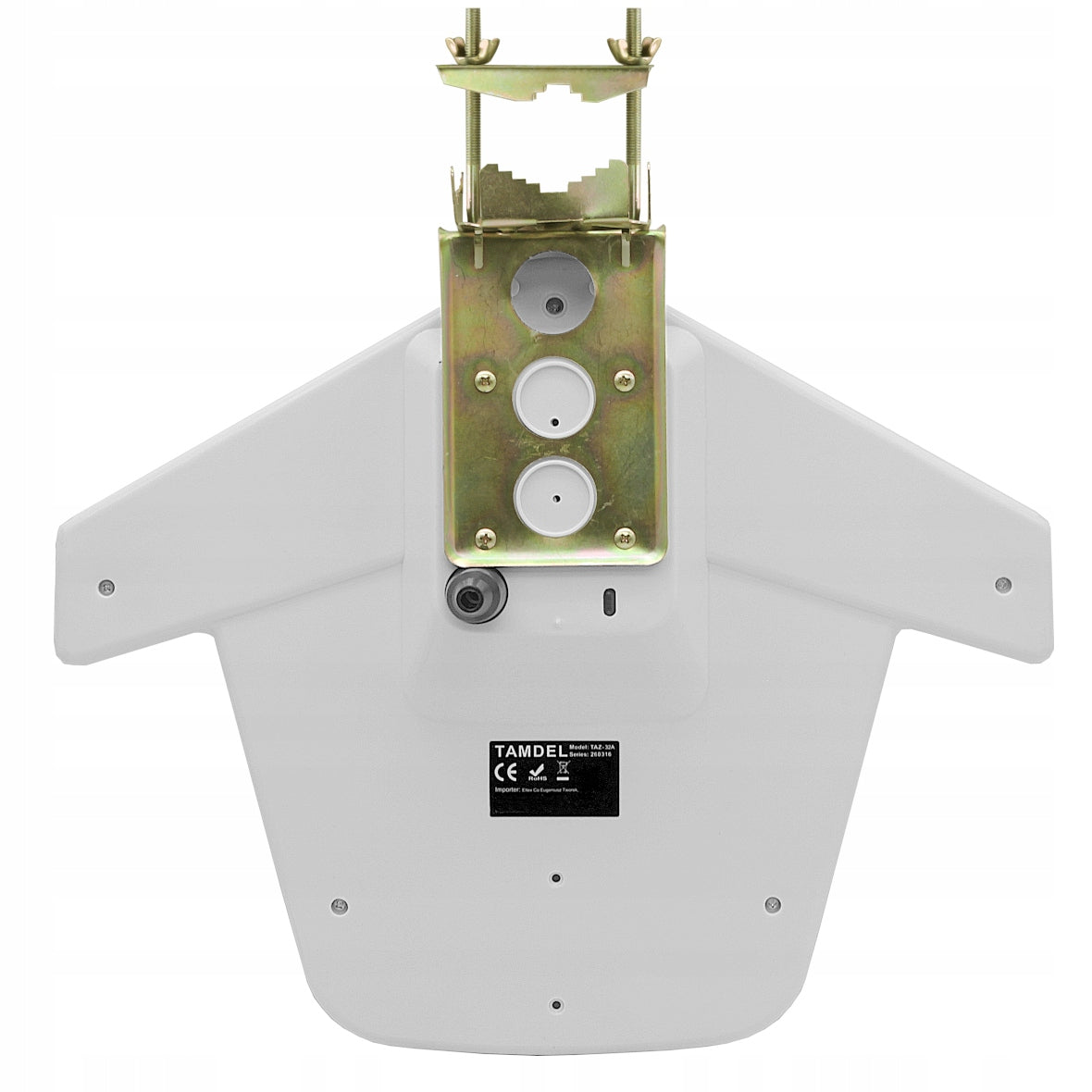

• mounting bracket for mast

• mounting elements

• instruction in Polish

• TAMDEL packaging
