Pristatymo terminas visoje Lietuvoje: 5-7 d.d.
Pristatymo kaina nurodytu adresu: 3 eur
Aprašymas
Trumpai apie prekę
Prekė: Lauko apšvietimo stulpas, 3 m / 4 m / 5 m, 120 W, 76 mm, 15x15. Kategorija: Lauko šviestuvų stulpai.
- Gamintojas: Masterled
- Modelis: Y0545
- Spalva: black
Lighting pole 3m 4m 5m Street lamp Park lantern 60W 76mm 15x15cm
▶ WHY CHOOSE THIS MODEL?
- SAVINGS: Thanks to the powerful SMD 2835 LEDs with a power of 120W, you get a luminous flux of up to 10465lm with low power consumption. The service life of 25 000h eliminates the cost of frequent replacement of bulbs.
- DESIGN: A classic lantern with a modern twist. Deep black and minimalist form of the SQ pole blend perfectly with modern architecture and park greenery.
- DURATION: The aluminium lamp housing and the Q235 galvanized steel pole guarantee full corrosion resistance. IP65 rating provides complete protection against rain and dust.

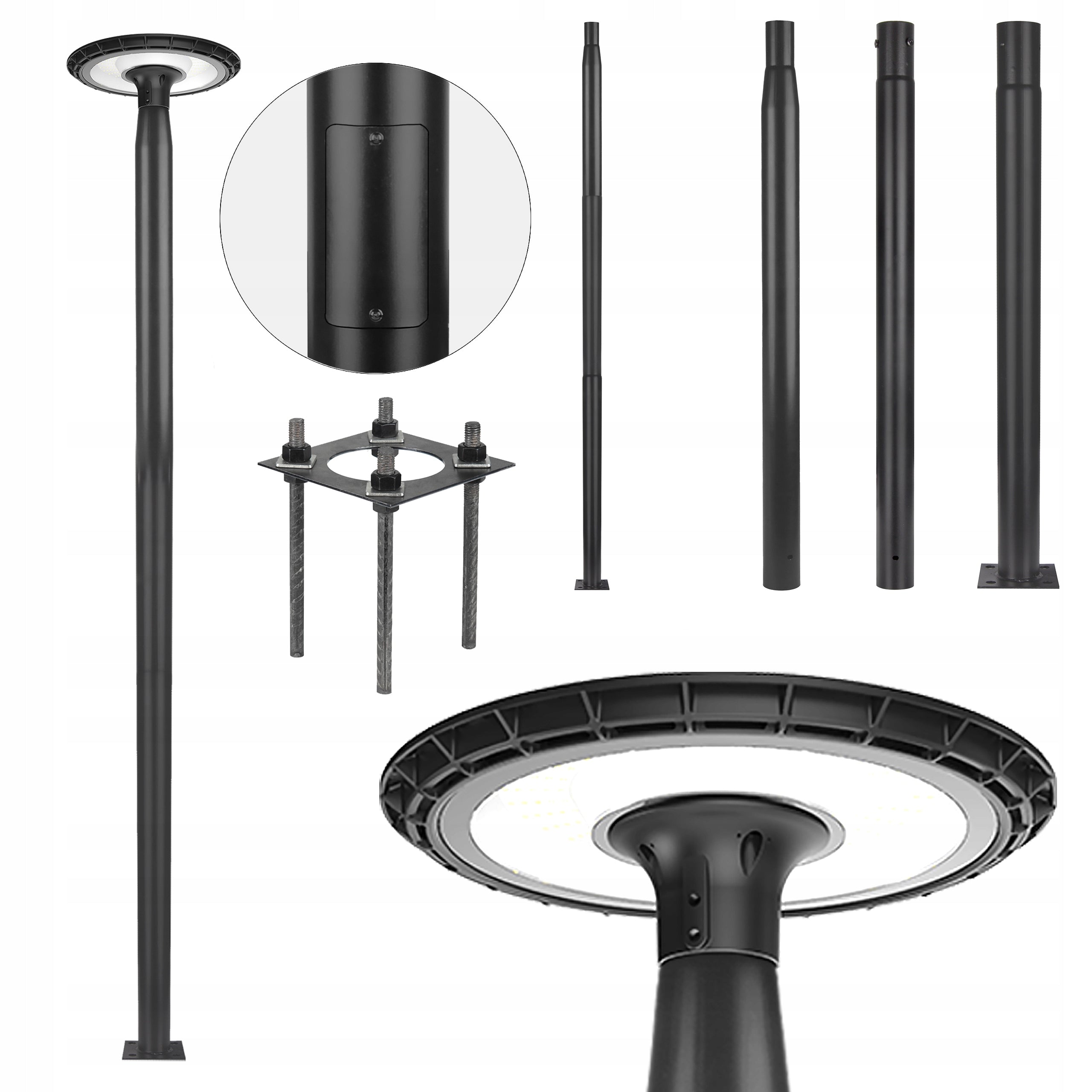

- FUNCTIONALITY: The complete set (lamp + pole + anchor) is a ready-made system solution that guarantees perfect fitting of elements and stability of the structure.
▶ THE MOST IMPORTANT FEATURES OF THE PRODUCT
✅ POWERFUL LIGHT OUTPUT: 10465 lumens with neutral color (4000K) provides excellent visibility and safety over a large area.
✅ SOLID CONSTRUCTION: Pole with a height of nearly 3 meters made of galvanized steel, resistant to strong wind gusts (max. lifting capacity up to 18kg).
✅ IMMEDIATE START: Turn-on time below 0,1s – the lamp reaches full brightness immediately after voltage supply.
ASSEMBLY TIPS – SIMPLE AND FAST!
- PLANNING: Prepare the concrete foundation for the mounting anchor (15x15cm) and bring the 230V power cord to the place where the pole is located.
- SAFETY: Before connecting the wires, absolutely turn off the fuses! The installation should be performed by a person with SEP privileges.
- INSTALLATION: Embed the anchor into concrete, then screw the pole base with the included screws. Remember to level the structure before final tightening.
- STARTING: After mounting the fixture on the pole and sealing the connections, turn on the power and enjoy professional lighting.
✅ Possibility of extending the pole through extensions maximum to a height 5m. The product is available at a separate auction.
✅ Can be mounted with anchor:
- Solar lanterns – fits most lamps available on the market
- monitoring
- Headlights on the construction site, pitch
✅ Installation instructions and application:
- Prepare a concrete base with anchors for the pole.
- Attach the pole.
- Install the lamp at the end of the Ø58mm – it fits perfectly into the pole.

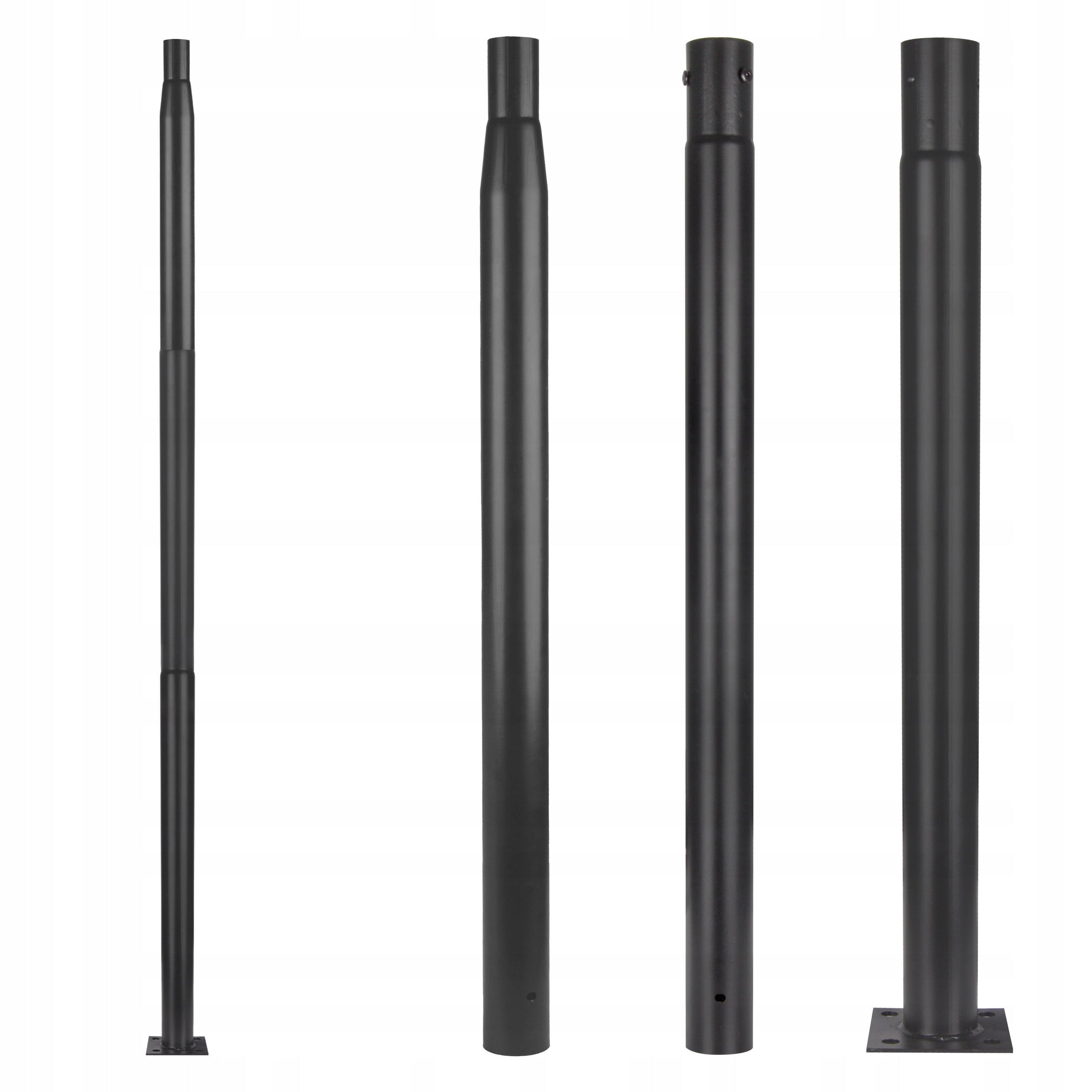

Specification (9283 + 1553 + 2671):
- Material: Galvanized steel Q235
- Colour: Black
- Overall height: 2820 [mm]
- Pipe diameter: Ø76 [mm]
- End diameter: Ø58 [mm]
- Base dimensions: 150 x 150 x 8 [mm]
- Revision: No
- Package contents: concrete mounting pins, screws for connecting the pole, cap
Possibility to buy an extension pipe 1m
- Bolt spacing: 103 x 103 mm
- Max. lifting capacity: 18kg - 3m, 12kg - 4m, 9kg - 5m

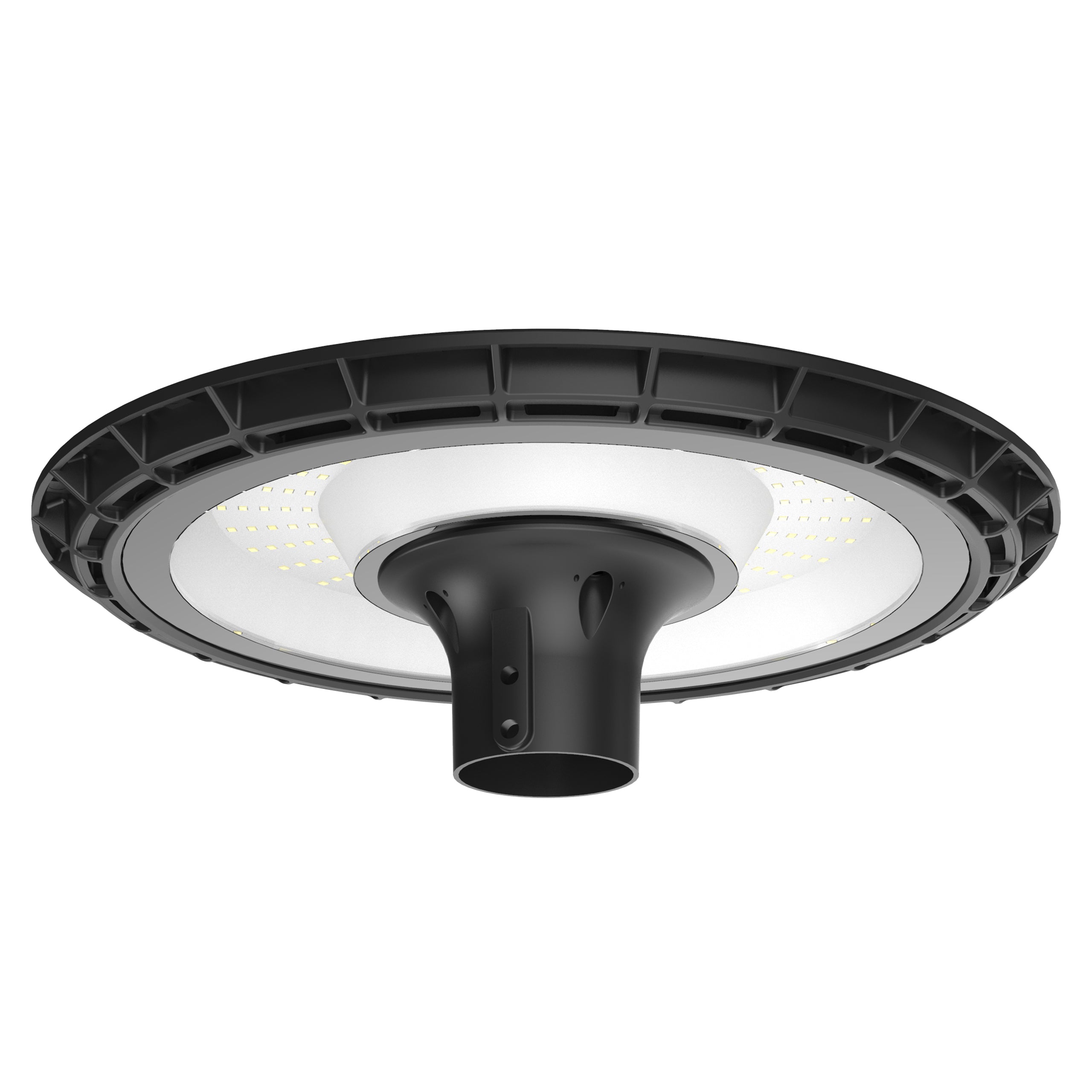

Specification (lamp):
- Input current: 220-240V AC 50/60Hz
- Power: 120W
- Light source: LEDSMD 2835
- Light temperature: 4000K
- Luminous flux: 10 465lm
- CRI(Ra): >70
- Light distribution angle: 100°
- Dimming: No
- Motion sensor: none
- Twilight sensor: none
- Lamp life: 25 000h
- Number of cycles on/off: 12 500x
- Turn-on time: < 0,1s
- Material: Aluminium + tempered glass
- Colour: Black
- Overall dimensions: Ø380 x 120 [mm]
- Hole diameter: 60[mm]
- Operating temperature: -20 ~ 40 [℃]
- Resistance class: IP65
- Electrical protection class: I
- Energy class: F
Specification (anchor):
- Material: Steel
- Dimensions: 150 x 150 x 300 mm
- Screw spacing: 100 x 100 mm
- Steel Thickness: 14mm
▶ MOST COMMON QUESTIONS (Q&A)
❓ Does the kit include everything needed for assembly? Yes, the kit includes a Brixon LED head, a lighting pole, a concrete mounting anchor, and the necessary mounting screws.
❓ Can the pole be extended? Yes, it is possible to buy a dedicated 1m extension pipe (index: 1555), which allows you to reach a higher height of the light point.
❓ How does the lamp withstand harsh winter conditions? The lamp has an IP65 resistance class and operates at temperatures from -20°C to +40°C, which makes it completely resistant to polish climatic conditions.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Masterled |
| Parametry | Power supply | mains |
| Parametry | Number of light points | 1 |
| Parametry | IP protection class | IP65 |
| Parametry | Thread type | other |
| Parametry | Product height | 282 cm |
| Parametry | Energy efficiency class | F |
| Parametry | Color | black |
| Parametry | Fixture shape | round |
| Parametry | Dominant material | stainless steel |
| Parametry | Product weight with unit packaging | 15 kg |
| Parametry | Manufacturer code | Y0545 |
| Parametry | EAN (GTIN) | 5904703026037 |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
| Parametry | Illumination angle | 120° |
