Lauko apšvietimo stulpas 3 m, Ø76 mm, pagrindas 15x15 cm

Trumpai apie prekę

Prekė: Lauko apšvietimo stulpas 3 m, Ø76 mm, pagrindas 15x15 cm. Kategorija: Sodo šviestuvų stulpai.

• Gamintojas: Masterled
• Modelis: 8603
• Spalva: black

▶ WHY CHOOSE THIS MODEL?

• SAVINGS: The robust Q235 galvanized steel construction eliminates the need for frequent maintenance and replacements, which in the long run generates real savings in time and money.
• DESIGN: Minimalistic, black form with a cross section of 15x15 cm fits perfectly into modern garden, urban and commercial architecture.
• DURATION: Made of galvanized steel, resistant to corrosion, changing weather conditions and mechanical damage. Guaranteed stability for years.
• FUNCTIONALITY: The modularity of the design allows for easy extension of the pole by an additional meter and installation of a wide range of lighting fixtures thanks to the standard 58 mm tip.

Specification:

• Material: Galvanized steel Q235
• Colour: Black
• Overall height: 2820 [mm]
• Pipe diameter: Ø76 [mm]
• End diameter: Ø58 [mm]

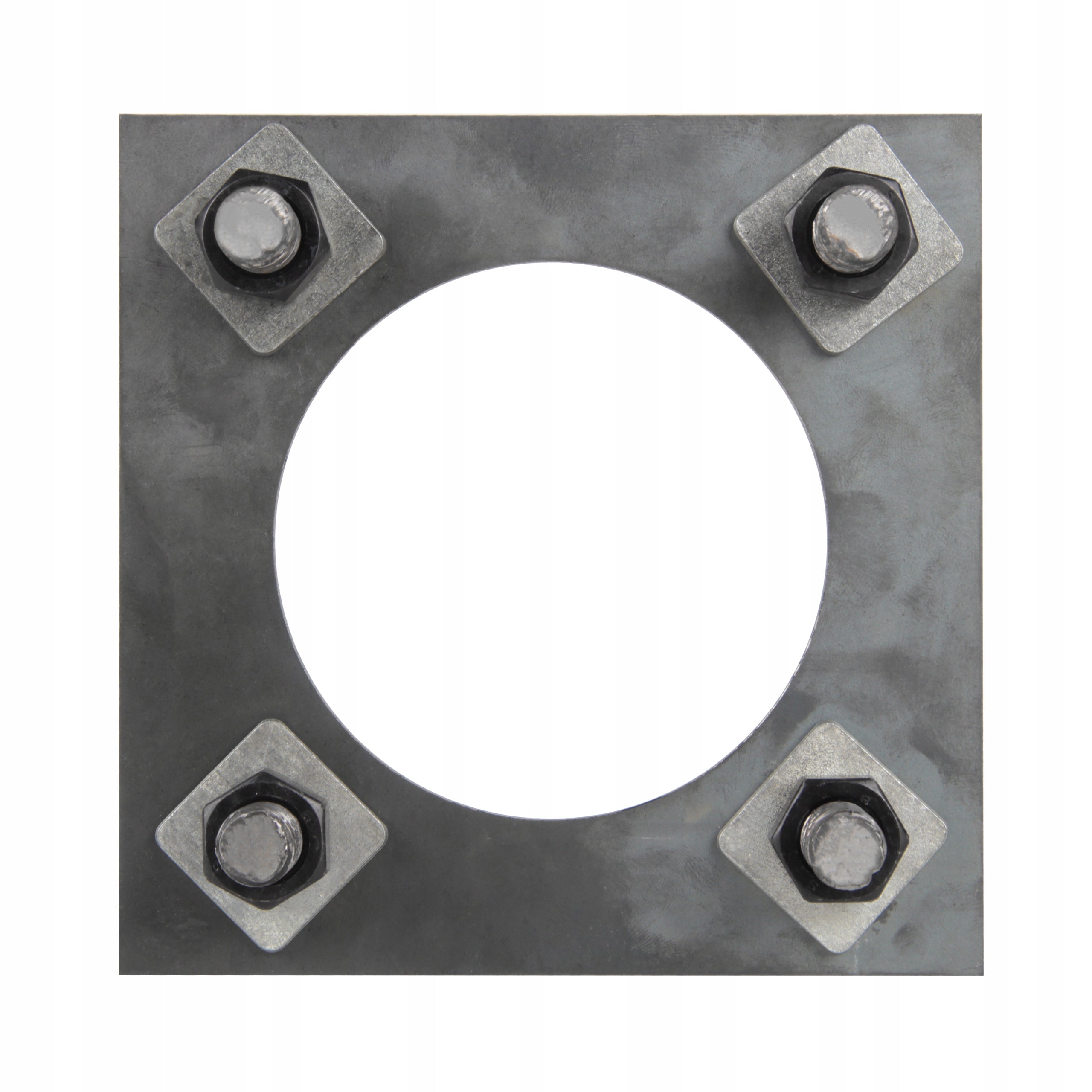

• Base dimensions: 150 x 150 x 8 [mm]
• Revision: No
• Package contents: concrete mounting pins, screws for connecting the pole, cap

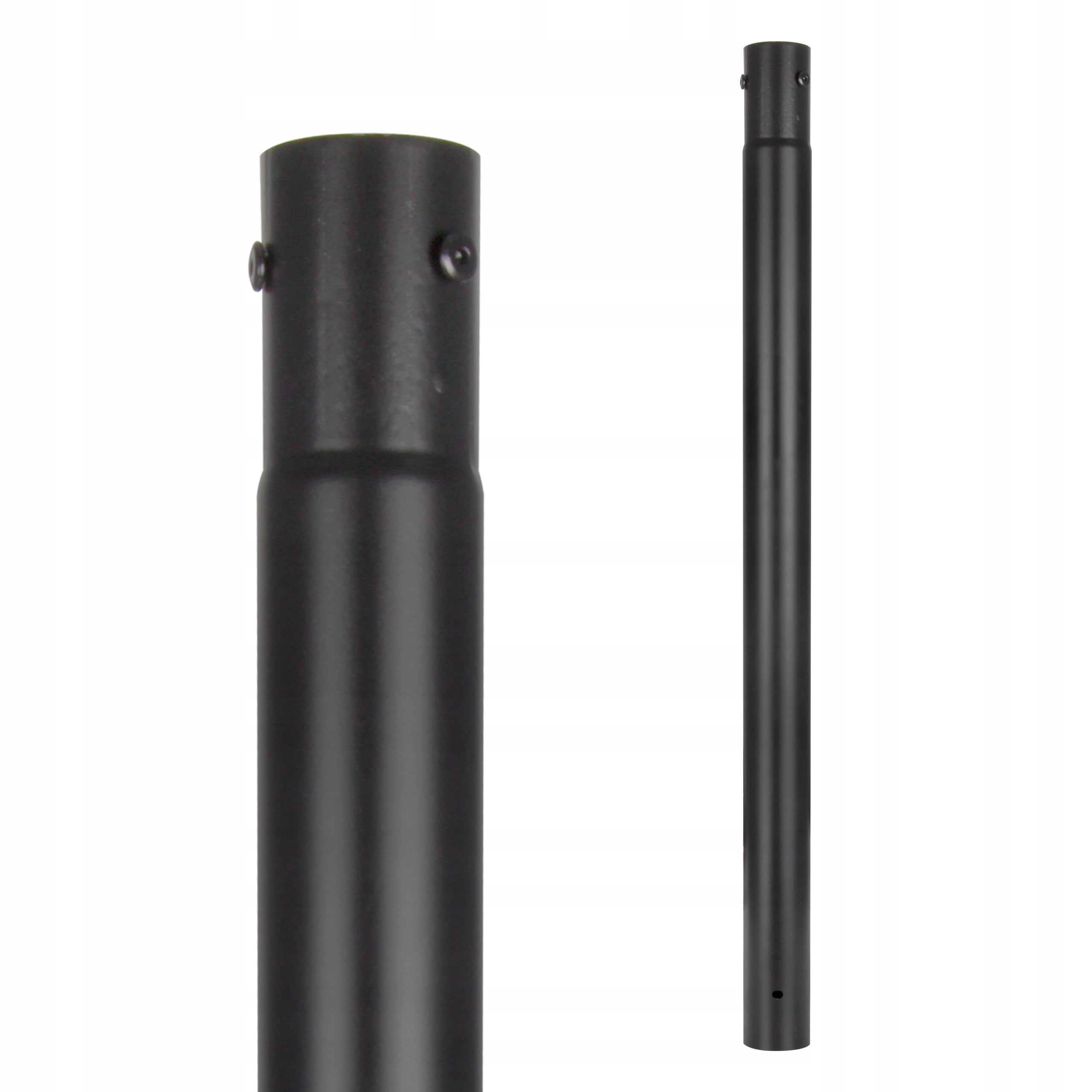

Possibility to buy extension pipe 1m (index: 1555)

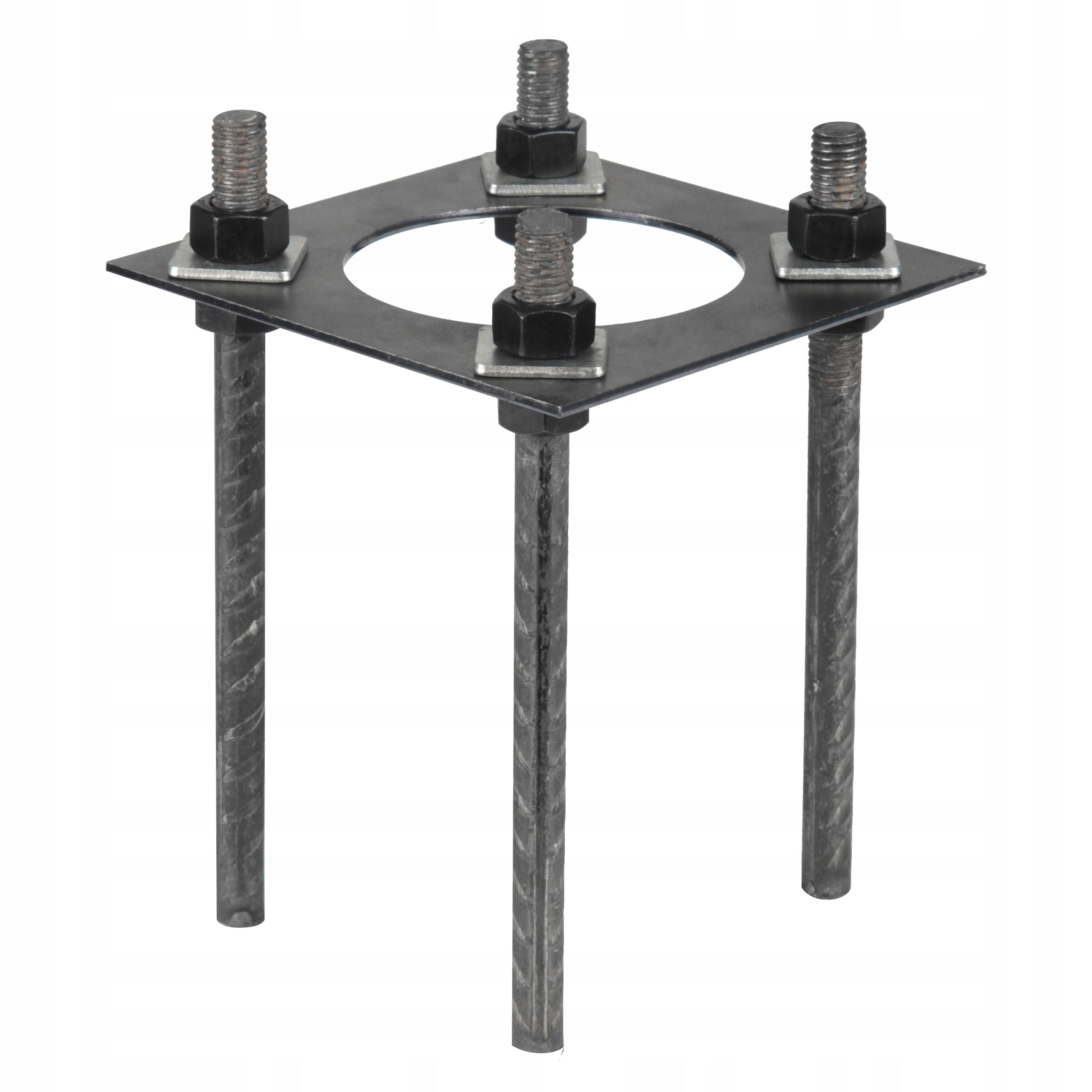

Possibility to buy mounting anchor (index: 1561)

• Bolt spacing: 103 x 103 mm
• Max. lifting capacity: 18kg - 3m, 12kg - 4m, 9kg - 5m

▶ THE MOST IMPORTANT FEATURES OF THE PRODUCT

✅ STURDY STEEL Q235: Material with high mechanical resistance, ensuring stability even under full load.

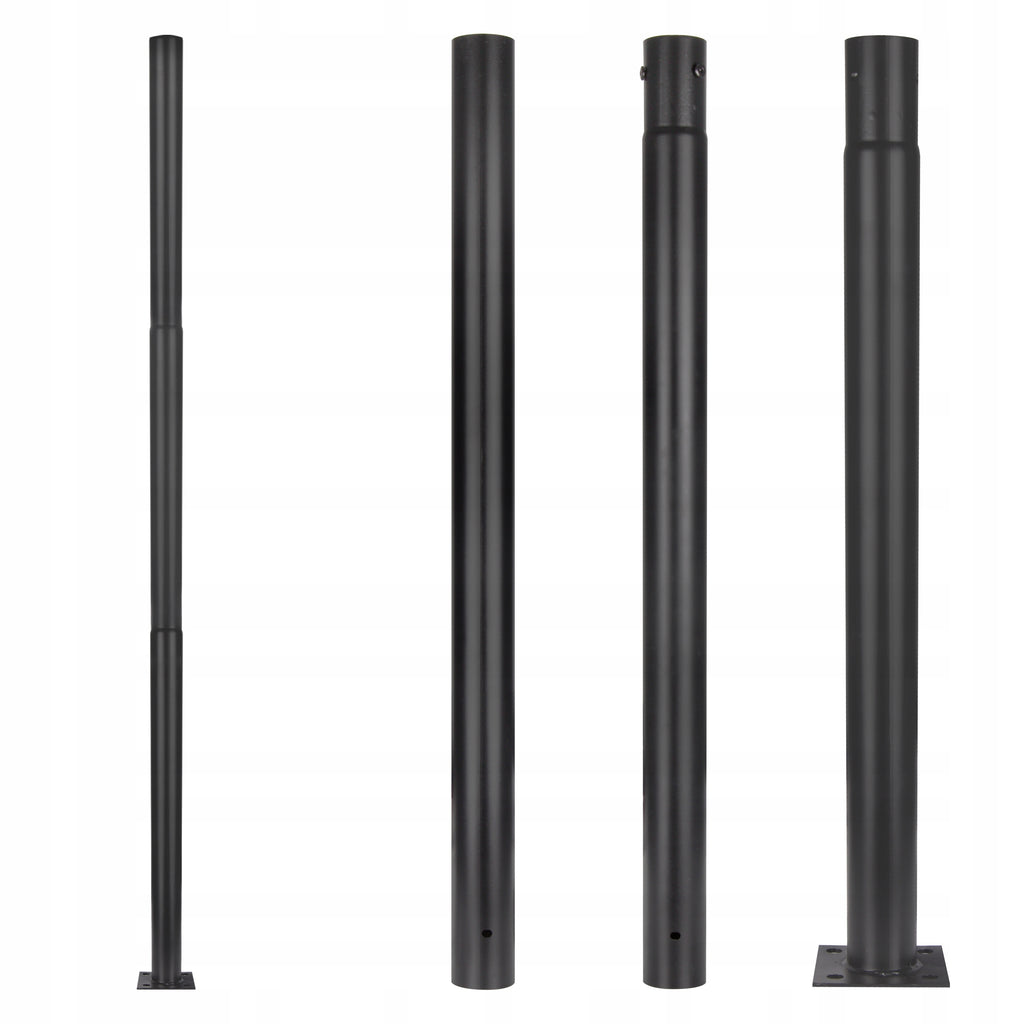

✅ MODULE CONSTRUCTION: Possibility to buy an extension pipe (index: 1555), which allows for flexible height adjustment to the needs of the project.

✅ COMPLETE SET: In the package you get all the necessary mounting accessories: concrete pegs, connecting screws and an aesthetic cap.

ASSEMBLY TIPS – SIMPLE AND FAST!

• PLANNING: Designate a stable concrete substrate before installation. If the ground is soft, we recommend buying a dedicated mounting anchor (index: 1561).
• SAFETY: Remember to disconnect the power supply and check the lifting capacity adjusted to the height of the pole before starting work on the electrical system.
• INSTALLATION: Use the included concrete mounting pins. Make sure that the base is precisely leveled (150x150 mm) so that the pole retains the perfect vertical.
• STARTING: After twisting the elements and installing the lighting fixture, apply a top cap that protects the inside of the pole from water.

▶ IDEAL USE:

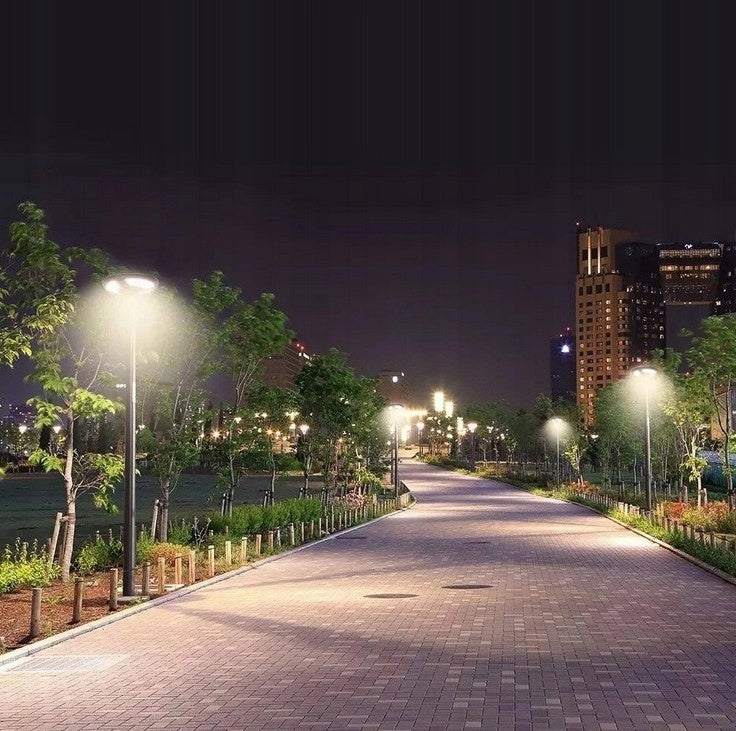

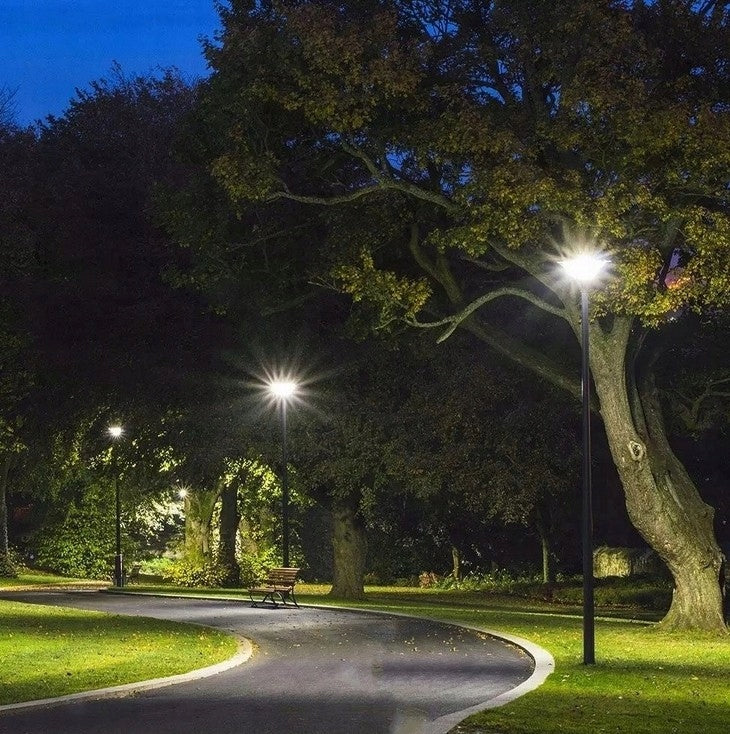

✅ PUBLIC SPACES: Lighting of parks, pedestrian routes and company car parks.

✅ PRIVATE PROPERTIES: Modern gardens, driveways and entrance areas to buildings.

▶ MOST COMMON QUESTIONS (Q&A)

❓ Does the pole have a revision?

No, this particular model does not have a revision window. Wires should be carried through the inside of the pole directly to the luminaire.

❓ What is the maximum weight of the lamp I can mount?

For a height of 3 meters, the maximum lifting capacity is 18 kg, which allows the installation of even large and heavy street or decorative luminaires.

❓ What should I do if I need a higher pole?

The design allows you to buy an extension pipe (index: 1555), which increases the height by 1 meter. Remember, however, that at 4 meters max. lifting capacity drops to 12 kg.

✨ Invest in the foundation of perfect lighting and create a space that impresses with safety and style! ✨
