Lauko apšvietimo stulpas StreetPole MAX, 5 m, pilkas, Ø114 mm, 18x18, B-50

Trumpai apie prekę

Prekė: Lauko apšvietimo stulpas StreetPole MAX, 5 m, pilkas, Ø114 mm, 18x18, B-50. Kategorija: Lauko šviestuvų stulpai.

• Gamintojas: EnergoMania
• Modelis: StreetPole MAX 5m szary
• Spalva: gray

Meet StreetPole MAX from EnergoMania® – innovative split lighting masts. The unique modular construction is based on several meter segments, made of high quality steel Q235, protected by a layer of zinc coating and matte powder coating in gray (RAL 9007). StreetPole combines unparalleled durability with modern design. Thoughtful design solutions guarantee not only assembly speed, but also ease of transport, which allows for significant savings of time and costs during the implementation of projects.

MAXIMUM - heavy loads

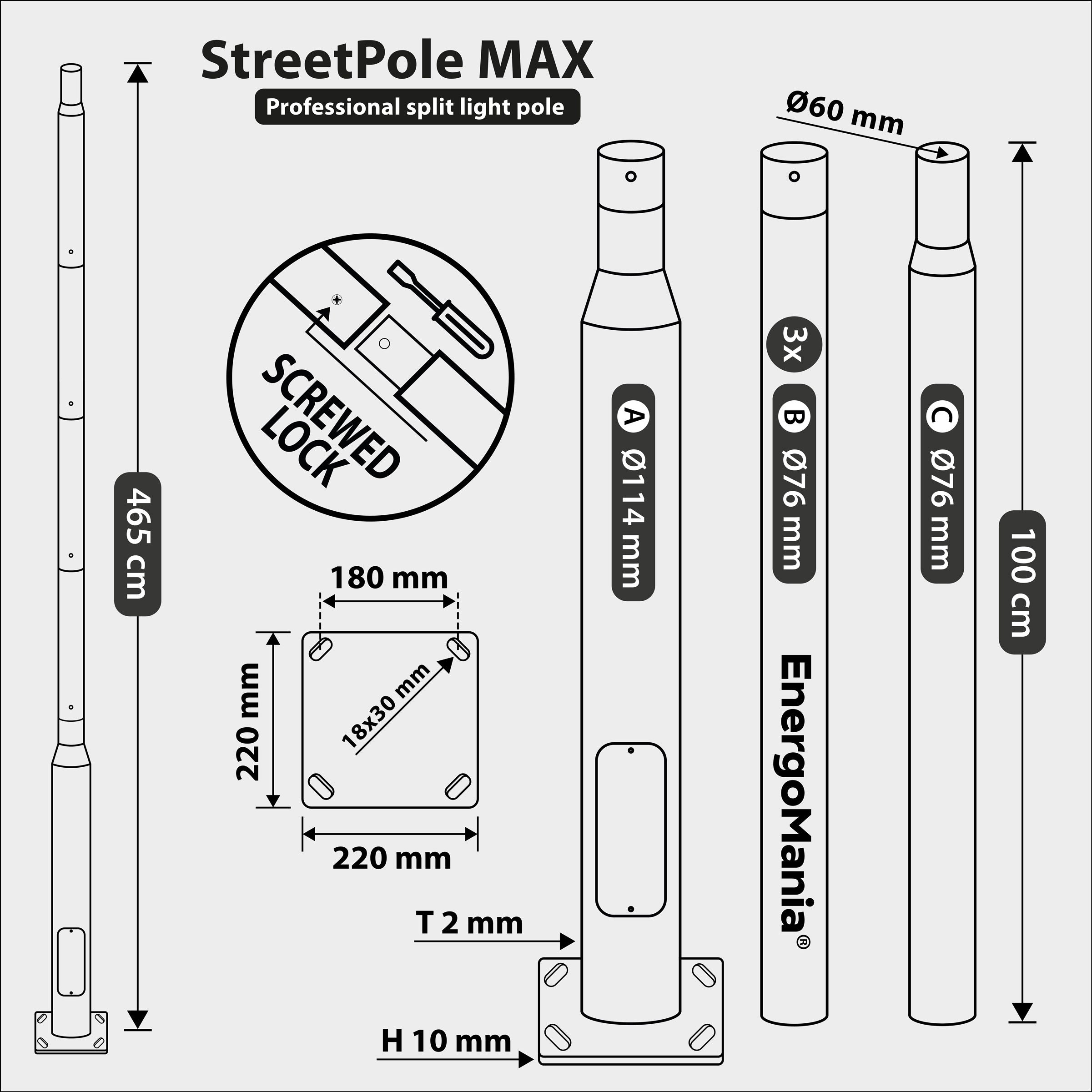

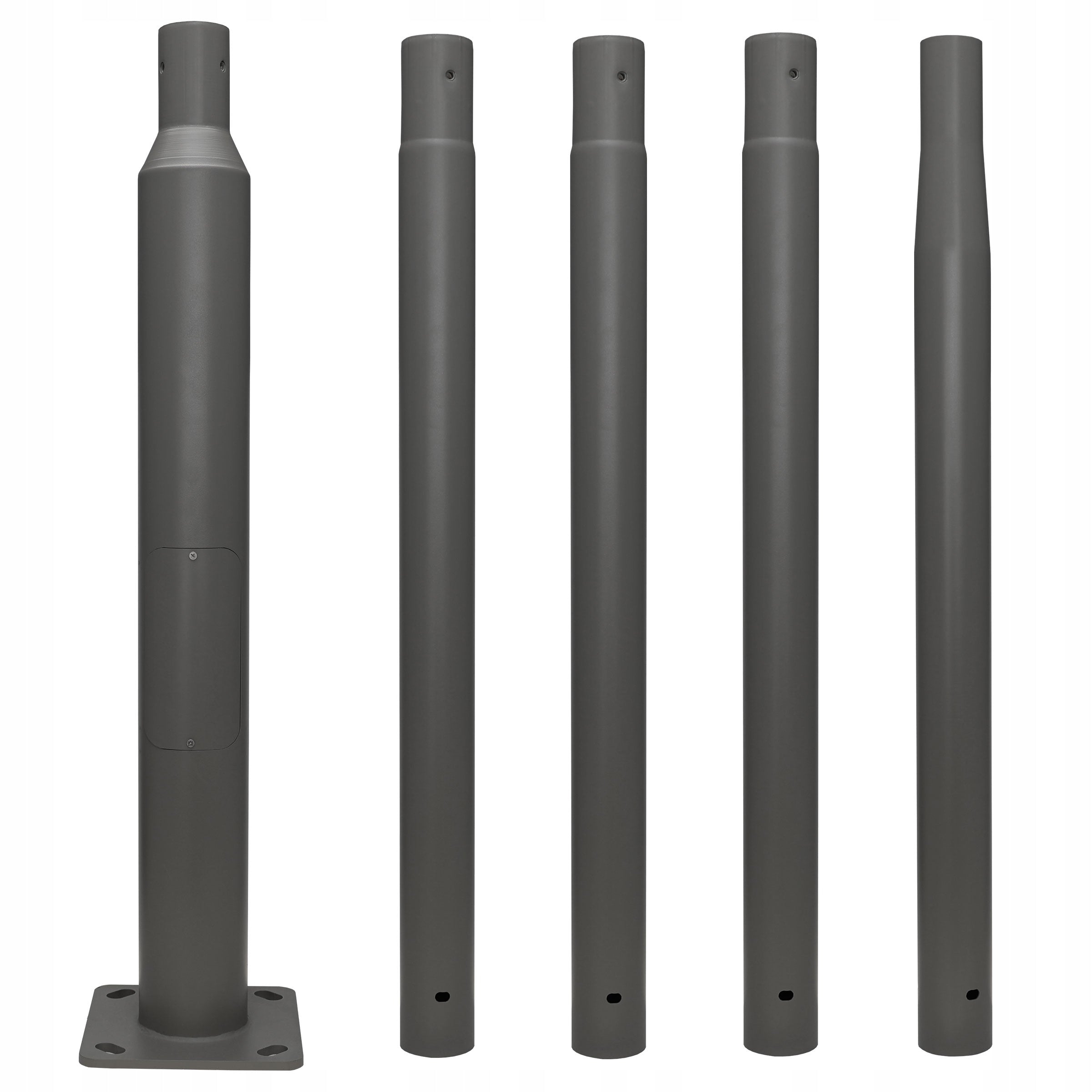

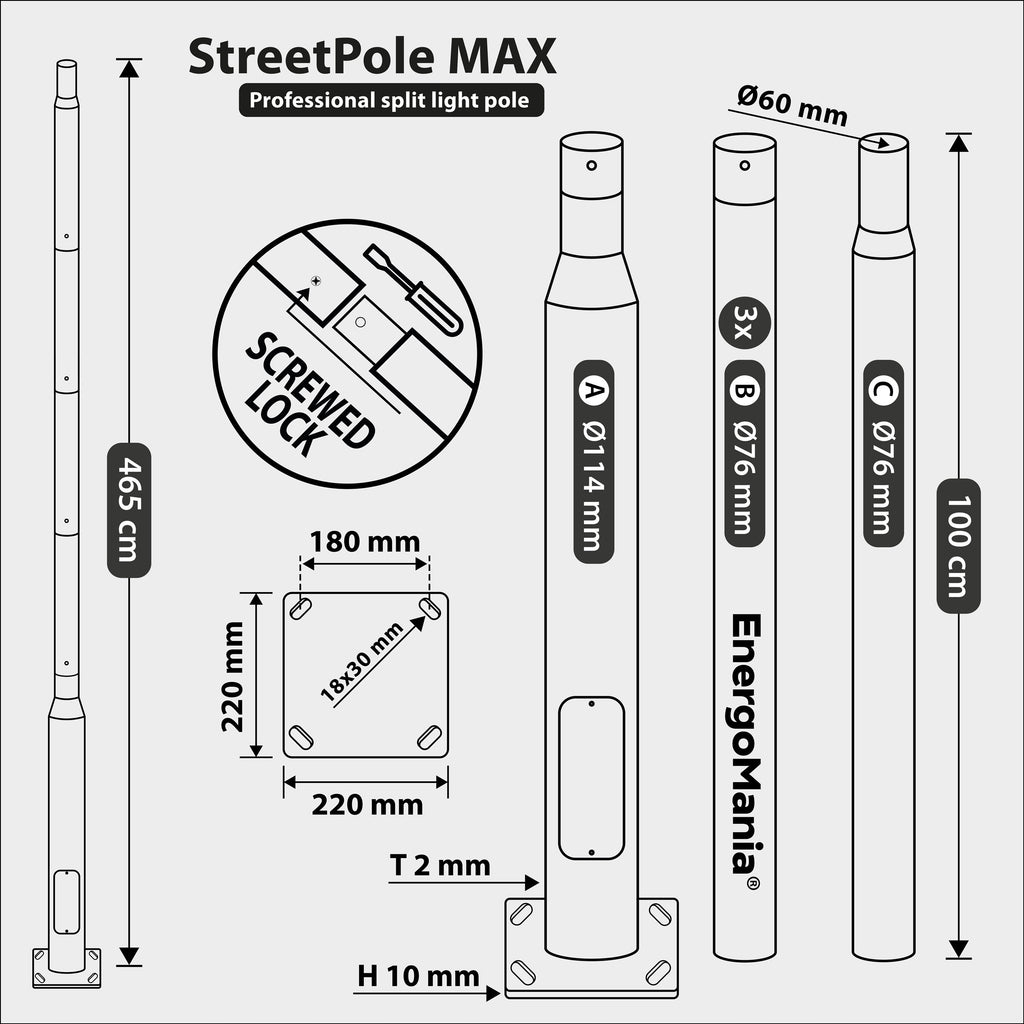

The StreetPole MAX pole has a durable construction made of pipes with a wall of 2 mm. It will keep large streetlights and flags at heights up to 7 meters. The complete mast consists of:

✅ Lower mounting base 220x220x10 mm with holes for screws M14 (spacing 180x180 mm ➡ compatible with ready-made foundations B-50).

✅ Post A diameter Ø114 mm with inspection window and internal mounting screw M6 (for DIN rail/ fuse box/ grounding).

✅ Center section 3x B Ø76 mm - is an element that allows extending the pole by further segments.

✅ Final pipe C diameter Ø76 mm with reduced finial to Ø60 mm - typical handle size most street lamps. Cutting the narrowing allows you to mount park lamps with a socket diameter of Ø76 mm.

✅ Includes: imbus screws blocking segments, wrench and C-pillar hole cap.

Modular - easy to transport and assemble

✅ 3/4/5 meters - thanks to three B elements in the package, the StreetPole MAX mast can be freely configured.

✅ One package - a complete pole is located in a carton 100 cm long - fits in a passenger car and on a transport pallet.

✅ Low installation cost - the pole will be installed by one person (❌without the need to rent heavy equipment, ladders).

✅ SCREWED Lock - connecting StreetPole MAX segments by inserting C➡ B ➡ A and locking with the included screws.

⬇ A number of additional mounting accessories at our other auctions:

➡ StreetPole PRO extensions 1m

➡ PoleHolder concrete anchors 18x18 cm

➡ ready foundations B-50 18x18 cm

➡ StreetGrip street lamp booms

➡ adjustable StreetHolder handles

➡ TopGrip floodlight mounts

• Model Name: StreetPole MAX
• Total height: 465 cm
• Diameter of pole base: Ø114 mm
• Upper pole diameter: Ø76 mm
• Post finial diameter: Ø60 mm
• Pillar wall thickness: 2 mm
• Dimensions of mounting base: 220 x 220 mm
• Thickness of mounting base: 10 mm
• Mounting hole spacing: 180 x 180 mm / M14
• Revision opening: yes
• Protection rating: IP54 (for pole recess)
• Material: steel Q235
• Housing colour: grey (RAL 9007)
• Anti-corrosion protection: galvanized, powder coating
• Dimensions of unit packaging: 105 x 24 x 23 cm
• Volume of unit pack: 0,058 m³
• SKU CODE: 48109
• EAN code: 5906647991099
• Quantity on pallet: 21 pcs.
• Weight: 20 kg
