Lauko DVB-T2 antžeminė TV antena MUX8 LTE Full HD 4K

Trumpai apie prekę

Prekė: Lauko DVB-T2 antžeminė TV antena MUX8 LTE Full HD 4K. Kategorija: Antenos.

• Gamintojas: TAMDEL
• Modelis: TAZ-26
• Spalva: silver

▶ Without amplifier, without power supply – works immediately after connecting.

▶ Just set towards the transmitter and search for channels.

▶ Receives all free MUX-y, including MUX-8 (horizontal and vertical).

▶ Extensive Director Section (VHF) – increases the profit and stability of MUX-8 reception.

✅ The most important advantages of the TAMDEL TAZ-26 antenna

▶ Directional design – effective in the city and beyond.

▶ Range up to 120 km – depends on transmitter power and terrain.

▶ Supports MUX 1 to 4 and MUX-8 – horizontal and vertical polarization.

▶ COMBO antenna – full VHF + UHF band.

▶ Resistant aluminium construction – resistant to wind and rain.

▶ CE and RoHS certificates – compliance with EU standards

✅ DVB-T2 / 4K – compliant with the new standard

▶ Supports DVB-T2 with H.265 compression (HEVC) – valid in Poland since 2022.

▶ Allows you to receive channels in Full HD and 4K quality.

▶ Adapted to Polish conditions – without the need to replace equipment.

✅ LTE filter – clean and stable signal

▶ Built-in filter cuts off interference from (LTE 800 MHz) cellular networks.

▶ Protects DVB-T2 signal – image does not jam, no interference appears.

▶ The antenna works stably even near GSM masts and base stations.

✅ Assembly without tools

▶ All elements fit together – installation is simple and intuitive.

▶No drilling, cutting or twisting required.

▶ It takes less than 10 minutes to assemble the antenna, even for beginners.

✅ How to connect the antenna – step by step

1. Mount the antenna outside – preferably as high as possible (wall, balcony, mast).
2. Set it towards the nearest transmitter (check the DVB-T2 map).
3. Connect the antenna cable to the TV or decoder (antenna input).
4. Enable channel search – select automatic or manual mode (DVB-T / DVB-T2).

⭐ Tip: For best results, point the antenna exactly at the transmitter – a transmitter map or mobile application will help.

✅ How to set the antenna to receive MUX-8 (vertical polarization)

The TAMDEL TAZ-26 antenna has two independent reception paths:

• larger dipole and director – up to VHF band (MUX-8)

• smaller dipole – up to UHF band (MUX1–MUX4)

In many regions, MUX-8 is broadcast in vertical polarization, therefore:

▶ Turn the larger VHF dipole and its director 90° – position them vertically.

▶Do not rotate the entire antenna – just change the position of these elements.

▶ MUX1–MUX4 (UHF) channels will continue to be received in horizontal polarity.

⭐Expanded section of directors in the VHF band (model TAZ-26) significantly improves the stability of MUX-8 reception – even at a greater distance from the transmitter.

⭐ Thanks to this design, the antenna works in both polarities simultaneously and receives all free DVB-T2 channels, also in difficult terrain.

▶ In the pictures below:

• first photo – horizontal setting (MUX1–4 + MUX-8 horizontally)

• second photo – vertical setting (MUX1–4 horizontal, MUX-8 vertical)

✅ Weather resistant

The antenna has been designed to work all year round – regardless of the weather.

▶ Aluminum construction – lightweight and corrosion resistant.

▶ Hermetic antenna box – protects electronics from moisture.

▶ Resistance to wind and UV radiation – works in all conditions.

⭐ Ideal for mounting on a balcony, facade or mast – even in difficult terrain.

✅ Technical specification

Model: TAMDEL TAZ-26

Antenna type: directional, external

Reception range: up to 120 km (under favorable conditions)

Compatibility: DVB-T, DVB-T2

Supported bands: VHF + UHF

Multiplexes: MUX1, MUX2, MUX3, MUX4, MUX8

LTE filter: yes

Signal quality: Full HD, 4K Ultra HD

Assembly: mast, balcony or facade

Frequency range:

• VHF: 168 – 230 MHz

UHF: 470 – 790 MHz

Antenna gain:

• VHF: 12 to 14 dB

• UHF: 16 to 18 dB

Working channels: 5 – 57

Impedance: 75 Ohms

📏 Antenna dimensions and mounting method

• compatible with masts with a diameter of 2 to 5 cm

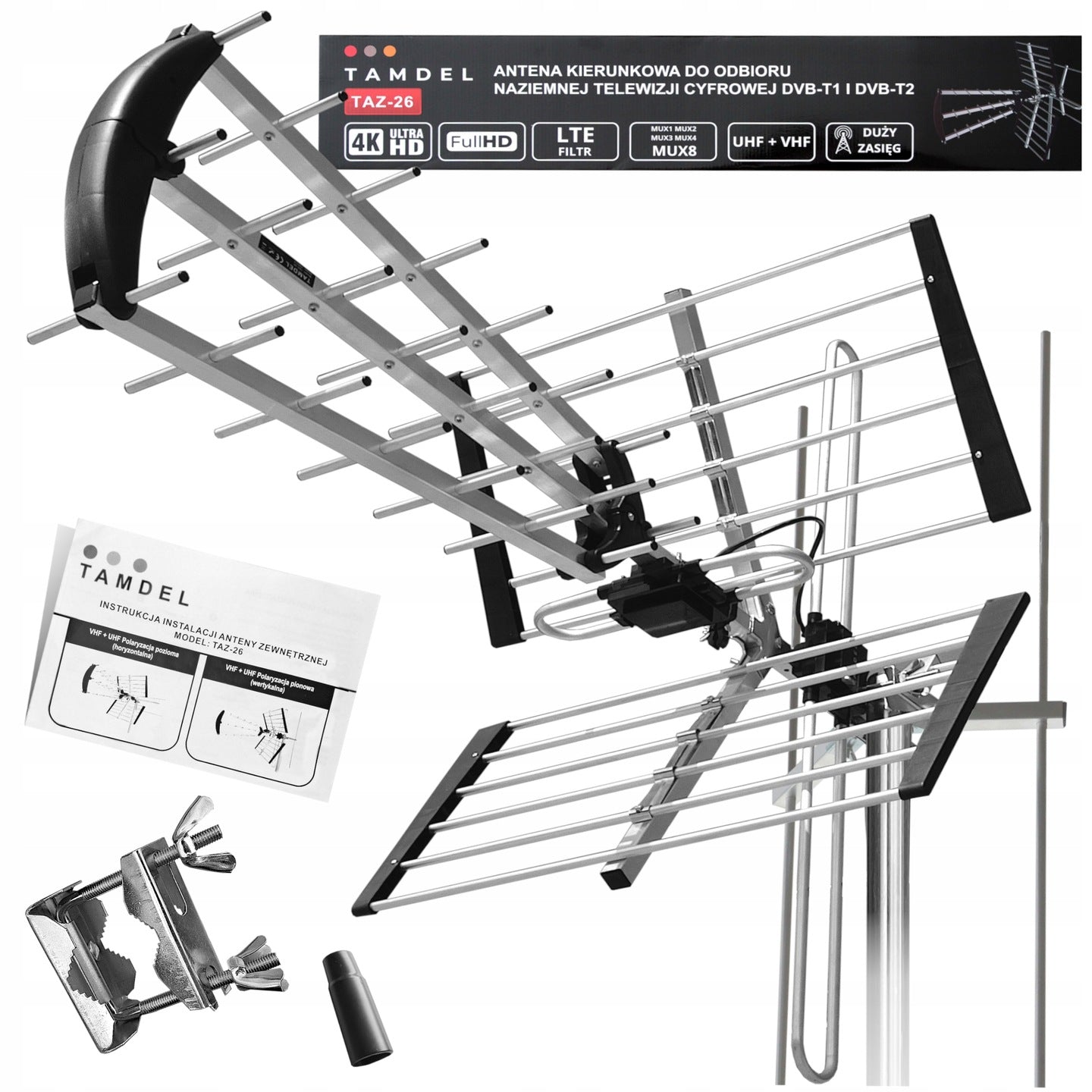

✅ Set includes

• External directional antenna TAMDEL TAZ-26

• Mounting kit (screws, pipe holder)

• Assembly instructions

• Original manufacturer packaging

✅ Why choose TAMDEL TAZ-26?

✔ Strong reception from long distances – range up to 120 km

✔ Extensive Director Section (VHF) – more effective reception of MUX-8

✔ High signal gain – up to 18 dB (UHF)

✔ Without amplifier and power supply – works immediately

✔ Supports all DVB-T2 channels, including MUX-8 in both polarities

✔ Durable aluminium construction – weather resistant

✔ Ready for DVB-T2/HEVC and 4K Ultra HD

⭐ If you are looking for a reliable antenna with high parameters – bet on TAMDEL TAZ-26 and watch without interference.

✅ CE and RoHS quality certificates

The product is certified CE and RoHS, which confirm high quality and compliance with strict European Union standards in the field of safety, health and environmental protection.
