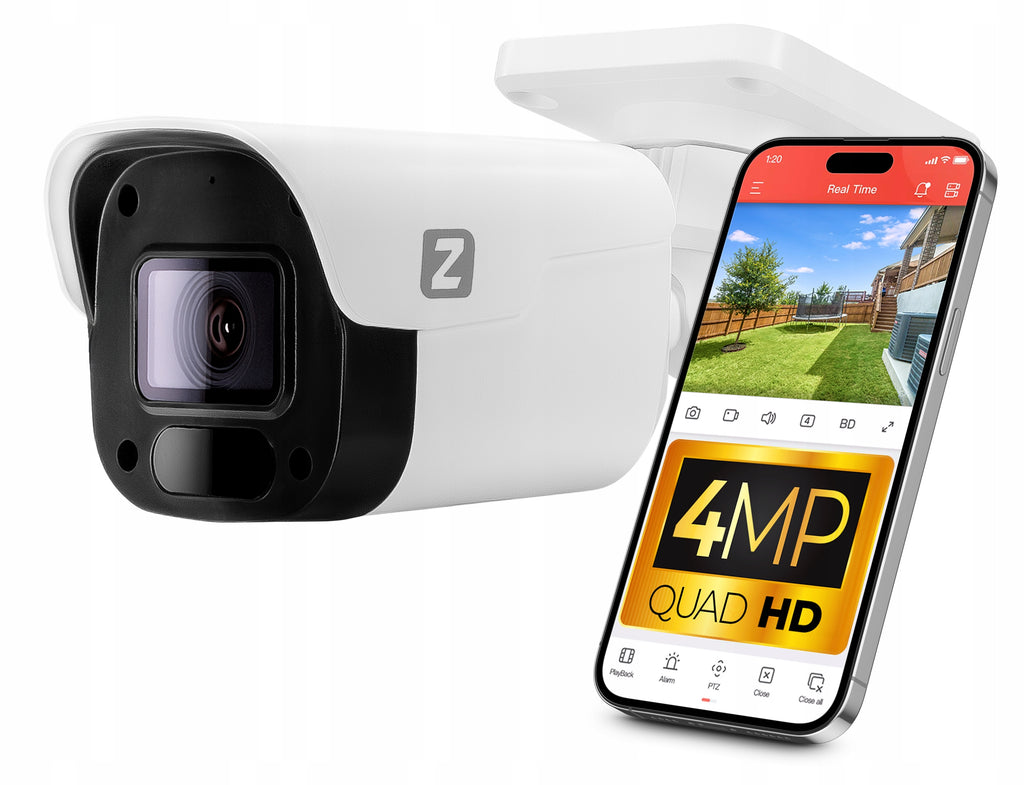

Lauko IP kamera 4MP, 3.6 mm, PoE, IR iki 30 m, IP66, su garsu

Trumpai apie prekę

Prekė: Lauko IP kamera 4MP, 3.6 mm, PoE, IR iki 30 m, IP66, su garsu. Kategorija: IP kameros.

• Gamintojas: Zintronic
• Modelis: B4

The offered horn camera of the B4 model is not only simplicity, but also attractive aesthetics and solid components, which guarantee pleasurable experience from use. The Universality of the camera makes it perfect for both inside and outside buildings, enabling uninterrupted observations around the clock.

Ideally suited for monitoring a variety of spaces, such as: ✅DOMU | ✅OFFICE | ✅GARDEN | ✅WAREHOUSE | ✅ PLANT ✅CABINET | ✅SHOP | ✅FOR PLOT | ✅NA CORRIDOR | ✅FOR CAGE STAIRS.

THE MAIN FEATURES OF THE CAMERA:

• Resolution 4MPx 2560*1440@25kl/s
• Swide viewing angle 3.6mm (85°)
• Remote support on the BitVision application
• Night mode 30 meters (night vision)
• Digital Zoo X8

• Motion detection and Alarm after motion detection (extension of write time /mail notification/applications)
• Cooperation with Zintronic recorders and other brands including HIKVISION / DAHUA / APTI
• Modern enclosure in standard IP66
• Simple installation and operation through a browser, PC program and smartphone applications

____________________________

Reliable regardless of weather conditions, compliance with the ONVIF 19.12 standard and great image quality make the camera popular among our customers.

Perfect for monitoring kit (recommended to work with the recorder)

⚠ LIVE VIEW FROM ANYWHERE

TV - Computer - Smartphone/Tablet

Keep an eye on your camera wherever you are on several devices at once! Log in to the camera from different devices and share the image with others.

Our equipment is dedicated to free software in Polish, which allows you to log in and operate cameras in the most convenient way for you:

1. Traditionally on TV/monitor via DVR
2. On your computer via a browser on your local network, IVMS320 or BitVision
3. Phone/Tablet - BitVision application

Resolution - 4MP 2560*1440@25kl/s

Thanks to the innovative solutions used, the camera guarantees smooth and sharply defined image both day and night. This will allow you to see even more precise details, meeting expectations both in the case of daytime monitoring and in more difficult lighting conditions at night.

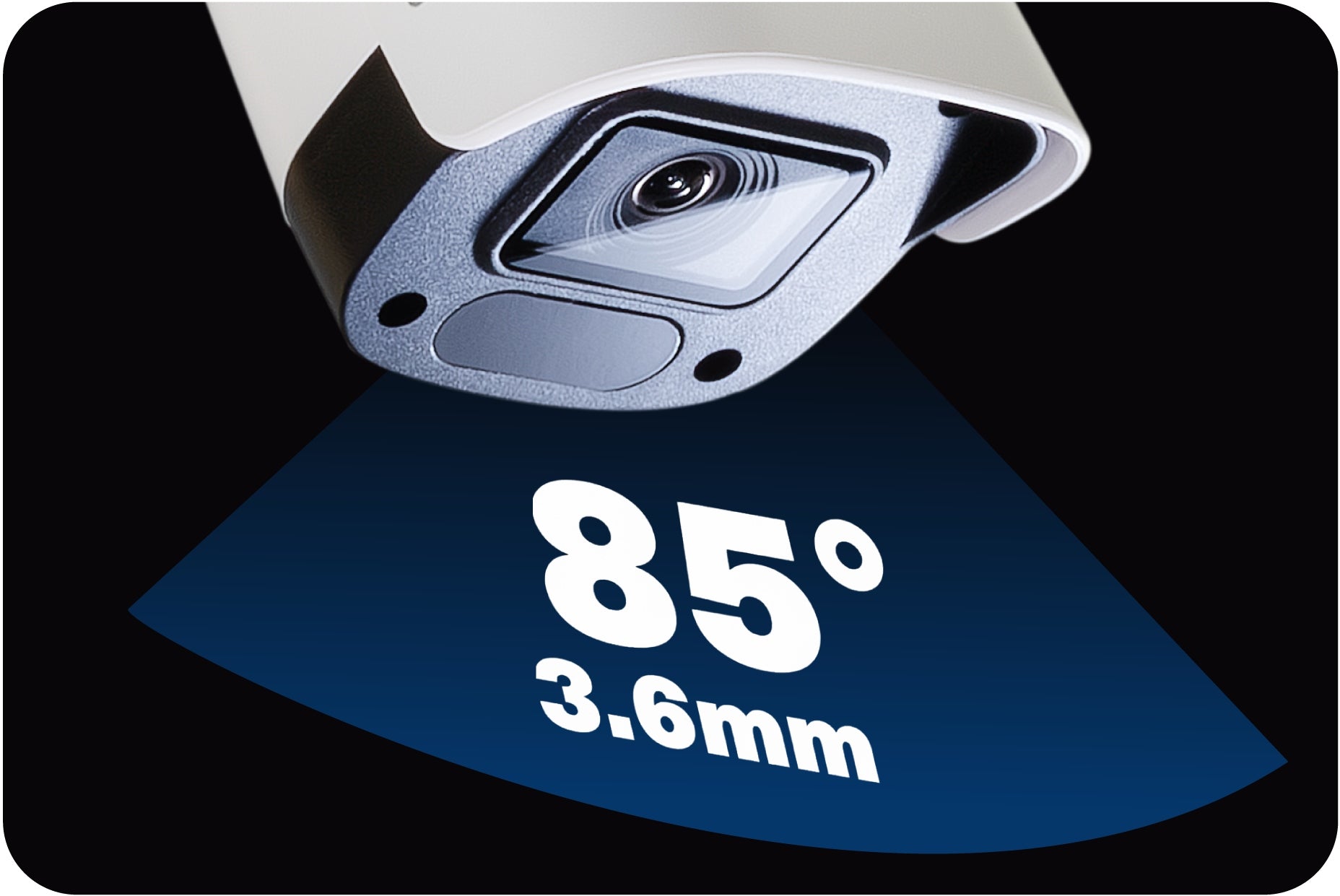

Lens with a wide viewing angle of 85°

Discover new horizons with our 3.6mm focal length lens, which will give you a wide viewing angle of 85°! With this innovative solution, you can enjoy a fuller picture, capture more details, and easily monitor areas with a larger footprint.

PoE (Power over Ethernet) technology

The integrated PoE board enables not only data transmission, but also power supply to cameras. This allows the camera to be connected to a switch or recorder using a single LAN cable, making installation more convenient and efficient.

Image magnification x8

In addition, the 8-fold zoom option (digital zoom) combined with 4MP resolution guarantees high quality of the recorded image, allowing you to see even the smallest details, even at a considerable distance from the camera.

Built-in MICROPHONE

Security is not just an image - it's also sound. The camera is equipped with a built-in microphone that allows not only precise image recording, but also excellent recording of sound in real time.

Automatic Night Mode

Ensure peace and safety in all lighting conditions with our advanced auto-infrared CCTV camera with a range of up to 30 meters. After dark, the camera automatically switches to night mode (black and white), allowing monitoring of the 24/7 area.

H.265 compression

Our camera uses the latest H.265 compression standard , which allows you to save up to twice as much content on the same medium compared to previous technologies. Thanks to this, using H.265 you gain spatial efficiency without losing image quality.

Motion Detection

After determining the area for monitoring, such as the driveway or door, you have the ability to precisely configure the start time of recording by the recorder or camera. This function works both according to the schedule and when motion is detected in a given area, sending notifications to the application or computer.

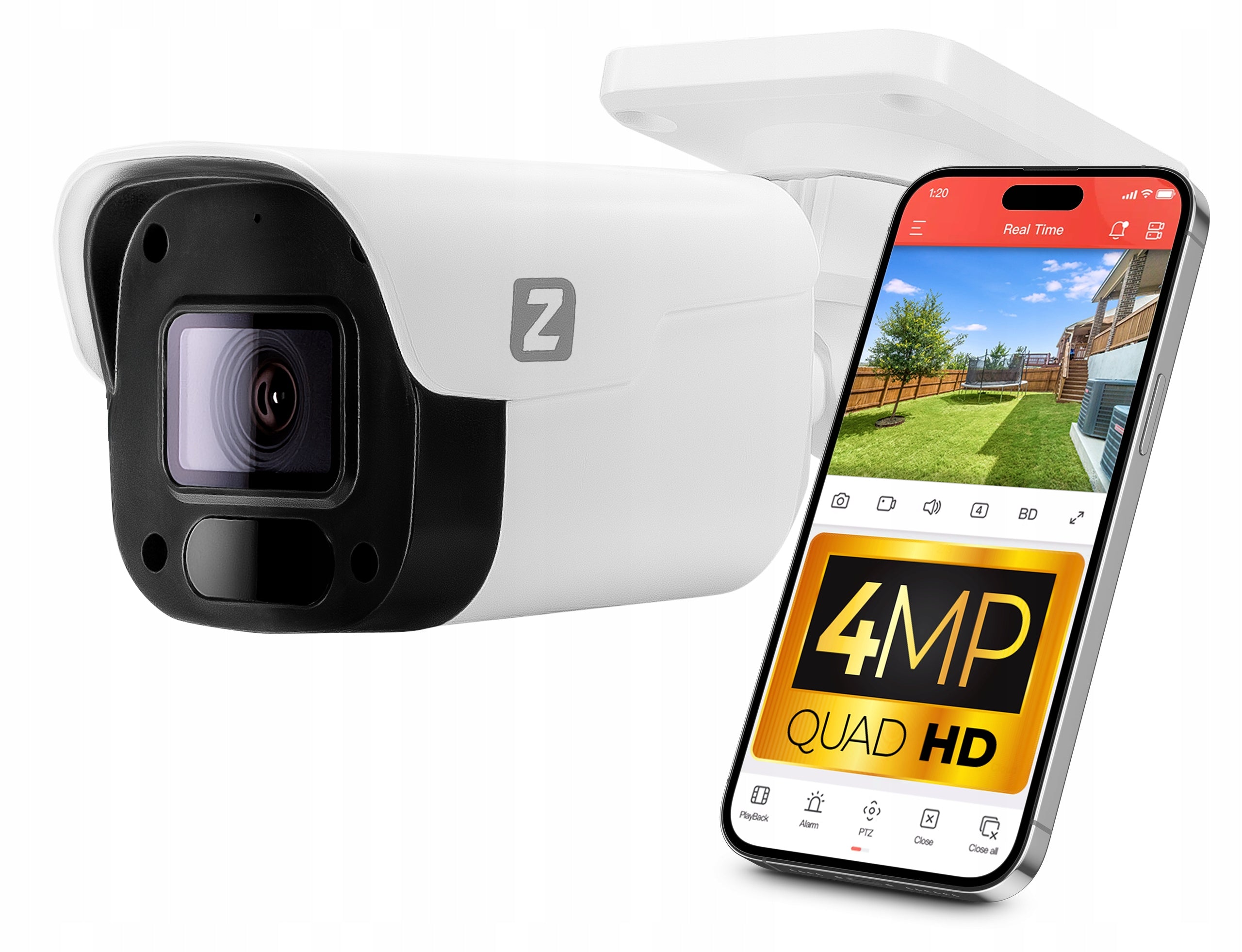

BitVision mobile application

Available in Polish , it is an intuitive tool that allows you to constantly view the monitored room and view recorded events on disk. Using this application, the user can also easily take photos and record videos, which will automatically be saved on a smartphone with the application installed.

In addition, BitVision offers the function of digital magnification of any area of the displayed image, which allows you to take a close look at the details using a digital zoom with a value of x8.

The main functions of the application are:

• Live preview from anywhere via the app,
• Receiving notifications in real time,
• Possibility of recording photos and videos directly on your smartphone,
• Browse recorded events stored on the disk,
• Digital magnification of any area of the displayed image by x8.

With these features, BitVision becomes a comprehensive security system management and monitoring tool, providing the user with easy access and control from anywhere.

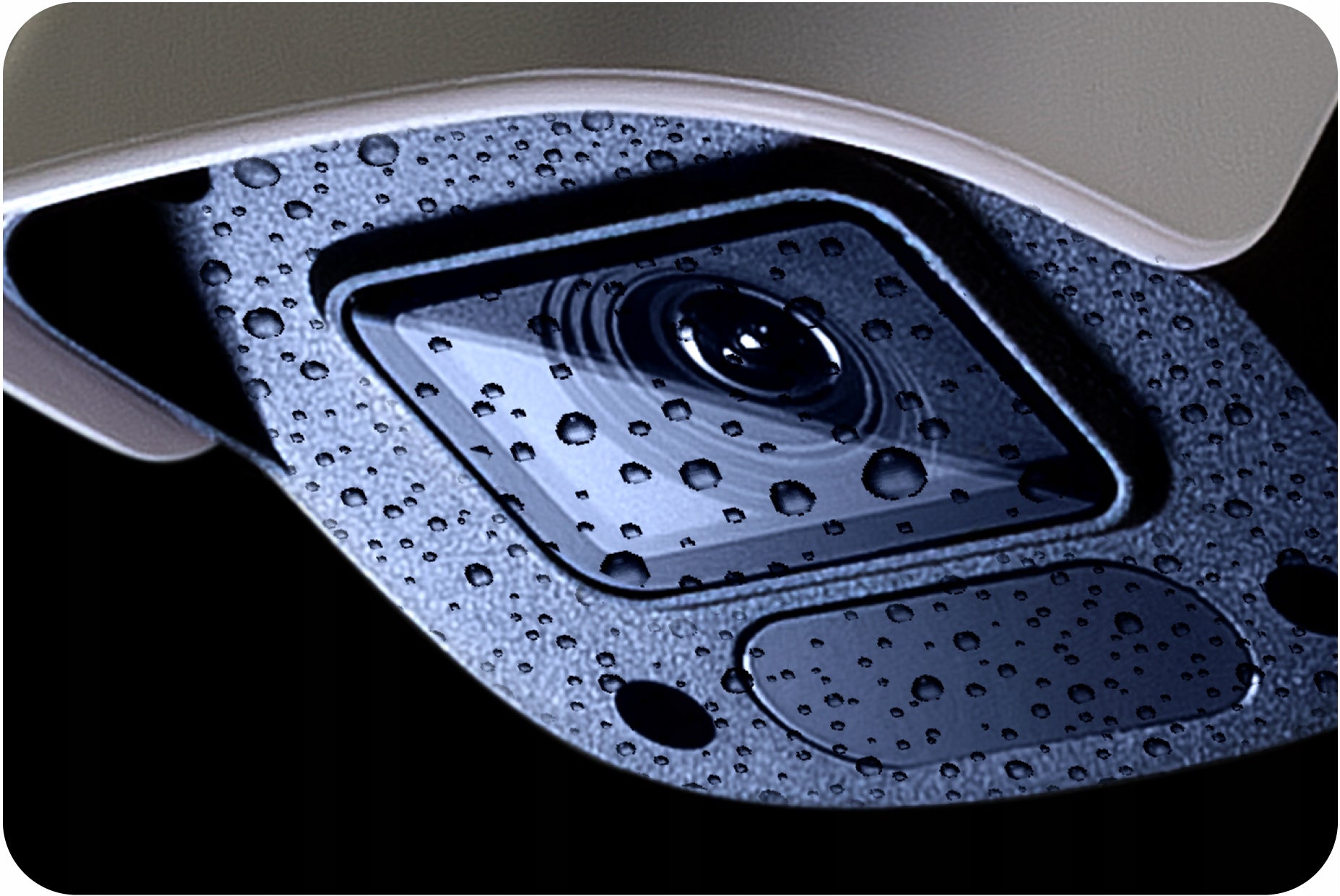

Tightness (IP66)

Thanks to the use of innovative technologies, our camera is characterized by a housing with IP66 tightness. This means that you are able to use it outdoors regardless of the weather conditions. Weather resistance ensures the camera will maintain reliable operation even in harsh environments, making it an ideal solution for outdoor surveillance.

• SKU - IKTP430LV2
• Type of camera - Network
• Resolution - 2560*1440@25kl/s
• Matrix: 1/3" Progressive Scan CMOS Sensor
• Main Processor: FH8852
• Lens focal length: 3.6mm (85°)
• Tightness: IP66
• Infrared range: 30m
• Built-in microphone: Yes
• Compression: H.264/H.265
• SMART devices: iPhone, iPad, Android, Android Pad
• Phone app :Yes - BitVision ( Android , IOS )
• Supported browsers: IE8-11, Google Chrome (below ver.44), Firefox(below ver.53),
• WDR: Yes
• Motion detection: Yes
• Privacy protection: Yes
• Recording options: NVR/NAS/CMS/Web
• Polish: Yes
• Operating temperature: -20°C ~ +60°C RH95% Max
• Power Supply: PoE Yes IEEE 802.3af DC 12V(900mA)
• Dimensions: 174x68x70mm
• Weight: 550g

⚠ Note: The Poe camera does not have a power supply in the box, you can power it either from the Poe recorder or switch by connecting it with a LAN cable, or by buying the power supply separately.

Foot with adjustment:

During the installation of our camera, it is possible to adjust the base both sideways, up and down, which allows you to freely position the camera exactly where it is needed. In addition, we offer a matching mount available for sale, which not only better secures cables during external mounting, but also facilitates installation with parallel positioning of the camera to the wall. Thanks to this feature, our solution is flexible and adapts to different mounting needs, ensuring maximum convenience during camera setup.

ACCESSORIES to match this camera that you can buy at our other listings:

• Fitting handle: AKU8V1 - the handle provides greater distance from the wall, especially needed for monitoring along the wall and protection of wiring against moisture
• Poe recorders: IR9P4S18MP(8mpx-9kan-4PoE) IR16P8S18MP (8mpx-16kan-8PoE),
• Recorders: IR9S18MP (8mpx-9kan) IR16S18MP (8mpx-16kan)
• Power supply 12V/1A/5.5: The Poe camera does not have a power supply in the box, you can power it either from the Poe recorder or switch by connecting it with a LAN cable, or by buying the power supply separately.

__________________________

⚠ Note: The holder in the picture is not included. It can be purchased at a separate auction.

Contents of the pack:

1. Camera
2. Cable Security
3. Screws and bolts to screw the camera
4. Polish Manual

__________________________________

Example view from the camera:
