Lauko IP kamera Hikvision HiLook IPC-B140HA-LUC, 4MP, su PoE ir mikrofonu

Trumpai apie prekę

Prekė: Lauko IP kamera Hikvision HiLook IPC-B140HA-LUC, 4MP, su PoE ir mikrofonu. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: IPC-B140HA-LUC

IP / 4Mpx / 2.8mm / Smart Hybrid Light 20m / IP67 / H.265+ / PoE / Microphone

The HiLook by Hikvision IPC-B140HA-LUC is a new camera from the ECO Smart Hybrid Light series, with a resolution of 4MPx, designed to work in small monitoring systems such as home, small businesses or parking lots.

The camera has a built-in dual illuminator (white + IR light) that allows you to record images at night both in color and infrared.

Key features:

✅ High image resolution in 4MPx @2560x1440 pixels

✅ Two illuminators on board the camera: IR and white light

✅ Motion detection with intelligent detection of person silhouettes

✅ Built-in microphone for audio recording

✅ Specific housing external IP67

✅ Power supply by PoE

✅ Easy installation and operation

• Converter: 1/2,8” 4MPx CMOS
• Recording resolution: 2560×1440 @20FPS
• Lens: wide-angle 2,8 mm
• Recording angle: ~104°
• Image compression: H.265, H.264+, H.264, MJPEG
• Wide dynamic range: DWDR
• Digital Noise Cancellation: Yes - 3D DNR
• Built-in microphone: Yes
• Night mode: Hybrid - color or infrared
• Infrared range: up to 20 m
• White light range: up to 15m
• Motion detection: yes - body detection and recognition: human
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in HiLook App: Yes
• Remote support: iVMS-4200, WEB interface, HiLook App/HikConnect
• Assembly: external or internal
• Power Supply: 12V or PoE
• Protection class: IP67

The camera is sold without a 12V power supply.

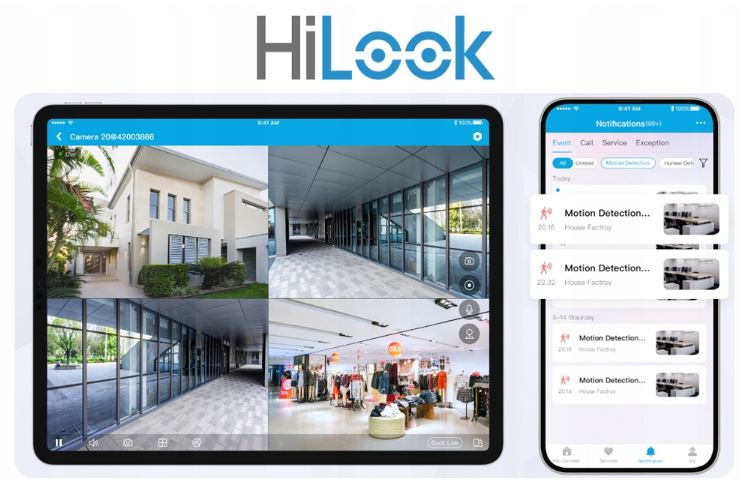

HiLook monitoring systems can be controlled, configured and operated using the intuitive mobile application HiLook App/HikConnect for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• create motion detection scenarios and rules
• Rotary camera control
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The IPC-B140HA-LUC is part of a series of cameras using the innovative Hybrid Light technology - thanks to two types of illuminators on board, the camera allows effective observation at night both in infrared (black and white) and fully color mode.

Thanks to this, it guarantees an even higher level of security, enabling effective identification of objects also after their color, in any lighting conditions.

The camera has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard drive, which positively affects its lifespan.

The advantage of the detection system in the IPC-B140HA-LUC camera is also the ability to recognize the silhouettes of people, which allows you to reduce false alarms by moving irrelevant objects.

Camera

• Image Sensor: 1/2.8" CMOS Progressive Scan
• Transmission Standard: IP
• Maximum Resolution: 4MP (2560x1440)
• Sensitivity: Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter Mode: Supported
• Lens: 2.8 mm
• Horizontal Field of View: Horizontal FOV 104°, Vertical FOV 57°, Diagonal FOV 123°
• Pan/Tilt/Rotate Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Illuminators

• IR Range: Up to 20m (65ft)
• IR Wavelength: 850 nm
• White Light Range: Up to 15m (49ft)

Video Compression

• Video Compression: Main Stream: H.265+/H.264+/H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
• H.264: Baseline Profile/Main Profile/High Profile
• H.264+: Main Stream
• H.265: Main Profile
• H.265+: Main Stream
• Video Bitrate: 32 Kbps to 8 Mbps

Smart Features

• ROI (Region of Interest): 1 fixed region for two streams


• Main Stream - Max Frame Rate:

  20 fps (2560 × 1440),

  25 fps (1920 × 1080, 1280 × 720)

• Sub-Stream - Max Frame Rate:

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

• Image Enhancements: BLC (Backlight Compensation), HLC (Highlight Compensation), 3D DNR (3D Digital Noise Reduction)
• Wide Dynamic Range: DWDR (Digital Wide Dynamic Range)
• Smart Dual Illumination: Yes
• Image Settings: Saturation, Exposure, Contrast, Sharpness, AGC (Automatic Gain Control), White Balance
• Day/Night Mode: Auto/Manual Switching

Network

• Network Interface: 1x RJ45 Ethernet 10/100 Mbps self-adaptive
• Network Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• Compatibility: ONVIF, ISAPI, SDK
• Key Features: Anti-flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark
• Simultaneous Live View: Up to 6 channels
• Alarm Trigger: Motion Detection, Video Tampering, Illegal Login
• User/Host Capacity: Up to 32 users, 3 permission levels: Administrator, Operator, User
• Client Software: iVMS-4200, HiLook App

General

• Built-in Microphone: Yes
• Power Supply: 12V DC or PoE (802.3af, Class 3)
• Material: Metal + Plastic
• Weather Resistance: IP67
• Dimensions: 138.8 mm × 60.9 mm × 57.9 mm (5.46" x 2.40" x 2.28")
• Weight: 0.2 Kg (0.44 lbs)

⚠ CHOOSE CONSCIOUSLY⚠

Monitoring systems are an investment in security – not only property, but also data. Unlike cheap, unverified OEM devices, Hikvision products provide:

✅ Regular device firmware updates to ensure compliance with the latest cybersecurity standards

✅ Stability and reliability of operation HikConnect - mobile application no.1 in the CCTV monitoring systems industry

By choosing Hikvision, you can be sure that your monitoring system meets the highest standards of quality, data protection, and reliability.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	0.25 kg
Parametry	EAN (GTIN)	6942160461960
Parametry	Manufacturer code	IPC-B140HA-LUC
Parametry	Brand	HiLook
Parametry	Model	IPC-B140HA-LUC
Parametry	Packaging status	original
Parametry	Kind	external
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
