Lauko IP kamera HILOOK by Hikvision, 4MP, 2K+, POE, Full Color

Trumpai apie prekę

Prekė: Lauko IP kamera HILOOK by Hikvision, 4MP, 2K+, POE, Full Color. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: IP-PTZ-N4MP (2C400MW)

IP camera PTZ-N2C400M-DE is a 4megapixel model rotating o wide-angle lens 2,8mm, equipped with infrared illuminator and white light illuminator with a range 30m. The camera also features a two-way audio system, allowing you to record audio and transmit messages through the speaker.

Thanks to its elegant design, compact dimensions and wide functionality, the camera is ideal for building small and medium-sized IP monitoring systems - e.g. at home, office or warehouse.

A big advantage of the camera is the algorithm for detecting AI motion detecting people's silhouettes. What’s more, the camera has an autotracking function (Autotracking Lite) of people moving within the protected area.

The most important parameters:

• 1/3" CMOS 4 Mpx sensor
• Recording resolution: 2560×1440 @25FPS
• Lens: wide angle 2,8mm
• Digital Zoom: x16
• Head rotation range: PAN: 0° to 340°, Tilt: -5° to 105°
• Smart Hybrid Light Technology: Yes
• Infrared illuminator IR30m
• White light illuminator LED 30m
• Motion detection: Yes - with person detection
• Autotracking: Lite - tracking people moving at normal speed
• Built-in microphone: Yes
• Built-in speaker: Yes

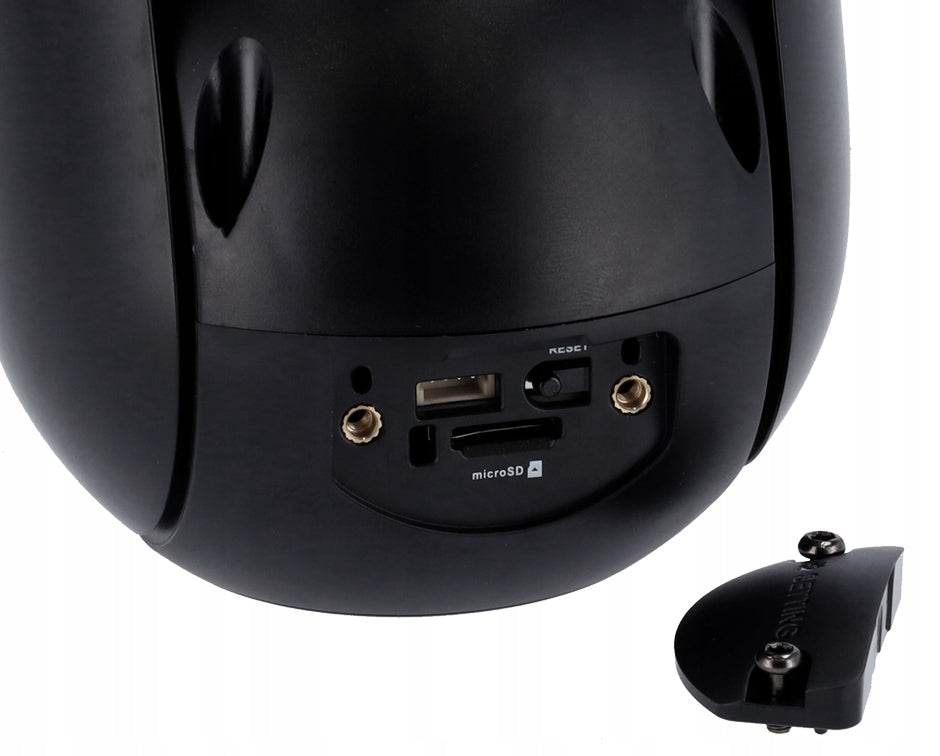

• SD card slot: Yes, up to 512Gb
• Image compression H.265+, H.265, H.264+, H.264
• ONVIF Compliance: Yes
• Image Features: dWDR, DNR, BLC
• Protection class: IP66
• Application: external or internal
• Power supply 12VDC & PoE (not included)
• Material: metal + plastic
• Installation: wall or ceiling

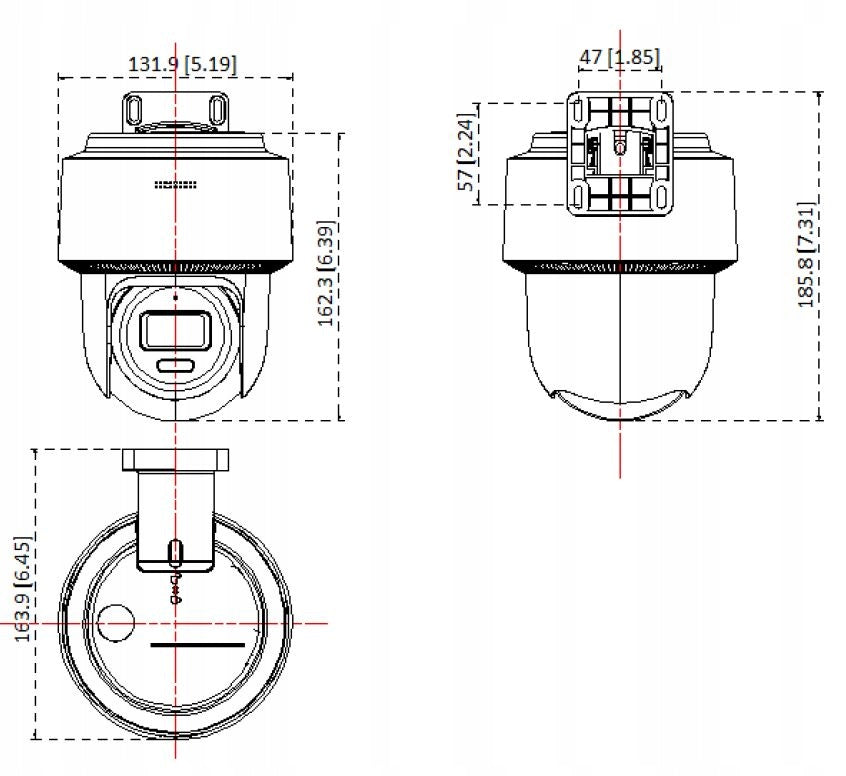

• Sizes: 163.9 mm × 185.8 mm × 131.9 mm

The camera is sold without a 12V power supply. Compatible power supply is available at auction No. 16007754465.

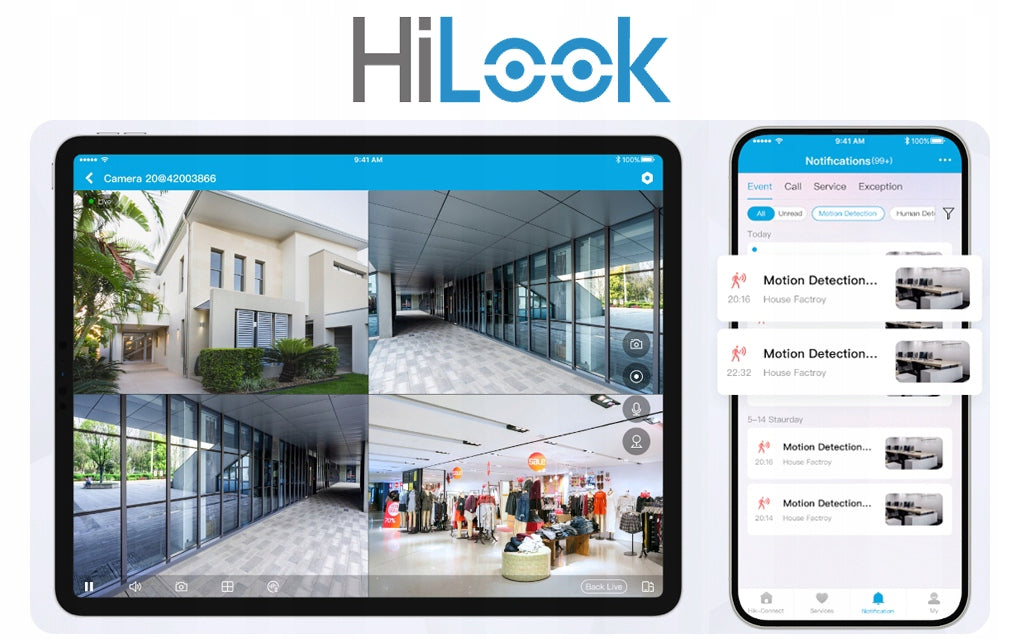

HiLook monitoring systems can be controlled, configured, and operated using the intuitive HiLook App mobile application for smartphones and tablets, and the iVMS-4200 software for PCs. This gives the user constant control and supervision over the monitored area from anywhere in the world with internet access. The app and software allow you to:

• View live video
• Remotely play back recordings
• Create scenarios and motion detection rules
• Control PTZ (Pan, Tilt, Zoom) cameras
• Receive notifications about events within the system

The application uses the P2P cloud for operation, so the system does not need to have ports forwarded on the router.

The presented camera model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an emergency notification to the program and application.

What’s more, thanks to the built-in human body detection function, the camera effectively reduces the number of false alarms caused by the movement of irrelevant objects (leaves, animals).

The PTZ-N2C400M-DE camera not only detects movement - it is also able to follow the head of moving people! This allows for precise observation without the need for a manual rotary head setting.

Important: camera allows you to track people moving at normal speed (without running).

The camera belongs to a series of devices using innovative Hybrid Light technology - thanks to two types of illuminators on board, the camera allows effective observation at night both in infrared (black and white) and fully colored mode.

Thanks to this, it guarantees an even higher level of security, enabling effective identification of objects also after their color, in any lighting conditions.

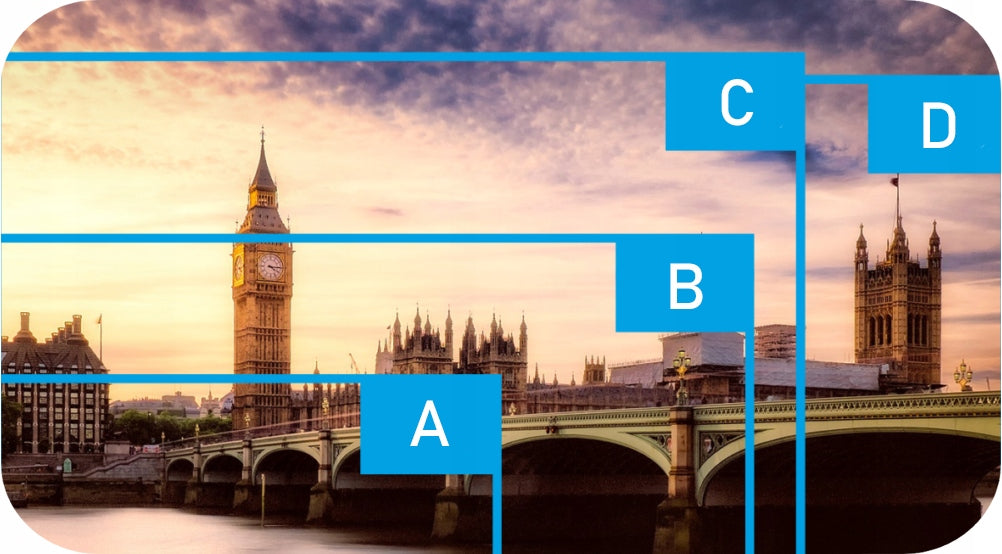

The PTZ-N2C400M-DE camera operates at 4Mpx resolution, allowing for much more accurate recording of details than standard FullHD models.

• A: HD 1280x720p
• B: FHD 1920x1080p
• C: 3Mpx 2048x1536p
• D: 4Mpx 2560x1440p

• Converter: 1/3" Progressive Scan CMOS
• Transmission standard: IP
• Maximum resolution: 4Mpx @2560 x 1440
• Sensitivity: Colour: 0.01 Lux @(F1.6，AGC ON), B/W: 0 Lux with IR
• Shutter speed: 1/3 s to 1/30,000 s
• Lens: 2,8mm

Illuminators

• IR range: 30m
• White LED range: 30m

Image compression

• Video compression: H.265+/ H.265/ H.264+/H.264
• Video Bitrate: 32 Kbps to 16384 Kbps


• Main stream - max. frame rate: 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Auxiliary stream - max. frame rate: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• Image functions: BLC, HLC, 3D DNR, DWDR
• Image settings: Rotation mode, saturation, brightness, contrast, sharpness, white balance (adjustable via software or web browser)
• Day/night mode: ICR
• Intelligent functions: motion detection, human body detection, autotracking lite

Network

• Network interface: 1x RJ45 Ethernet 10/100 Mbps self-adaptive
• Network protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• ONVIF: yes. Profile S, Profile G, Profile T),
• Selected functions: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Simultaneous preview: up to 20 channels
• Number of users / hosts: up to 32 users 3 permission levels: Administrator, Operator, User
• Client Software: iVMS-4200 (lite), HiLook App
• Supported browsers WEB: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

General

• Audio communication: Yes, built-in microphone and speaker,
• Power Supply: 12 VDCPoE 802.3af
• Power consumption: Max. 10.8W
• Protection class: IP66
• Mechanical resistance class: N/A
• Slot midroSD : to 512Gb
• Temp. work / Permissible humidity: -30 °C to 65 °C< 90% (non-condensing)
• Dimensions: 163.9 mm × 185.8 mm × 131.9 mm
• Weight: 0,6kg
