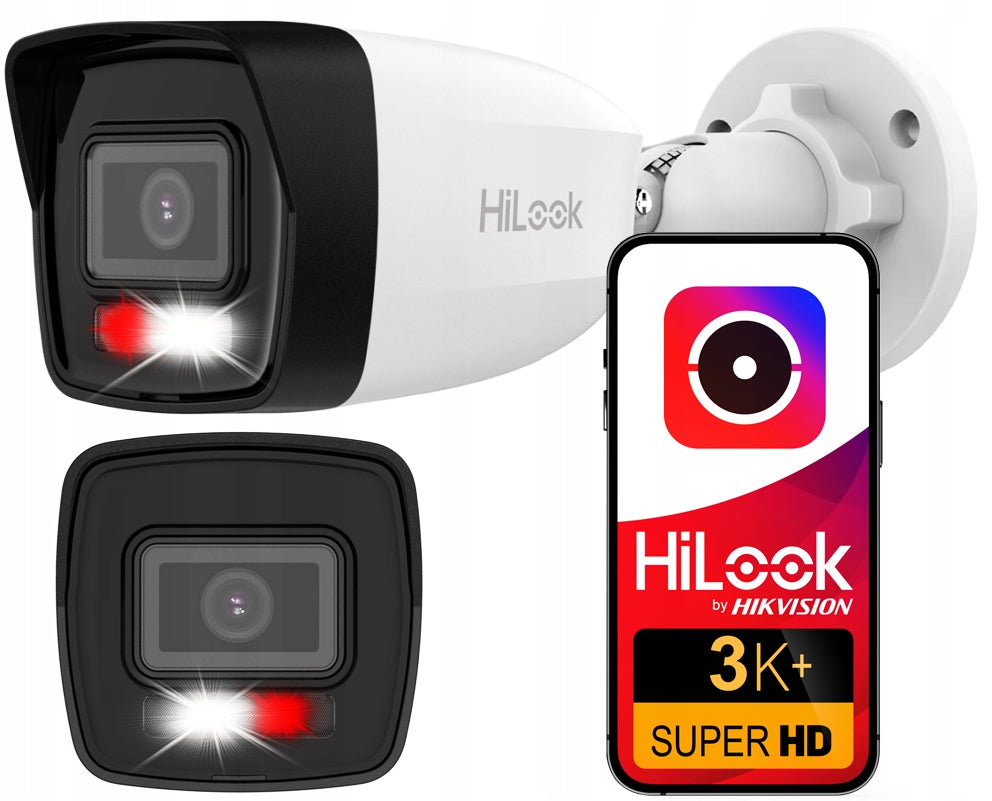

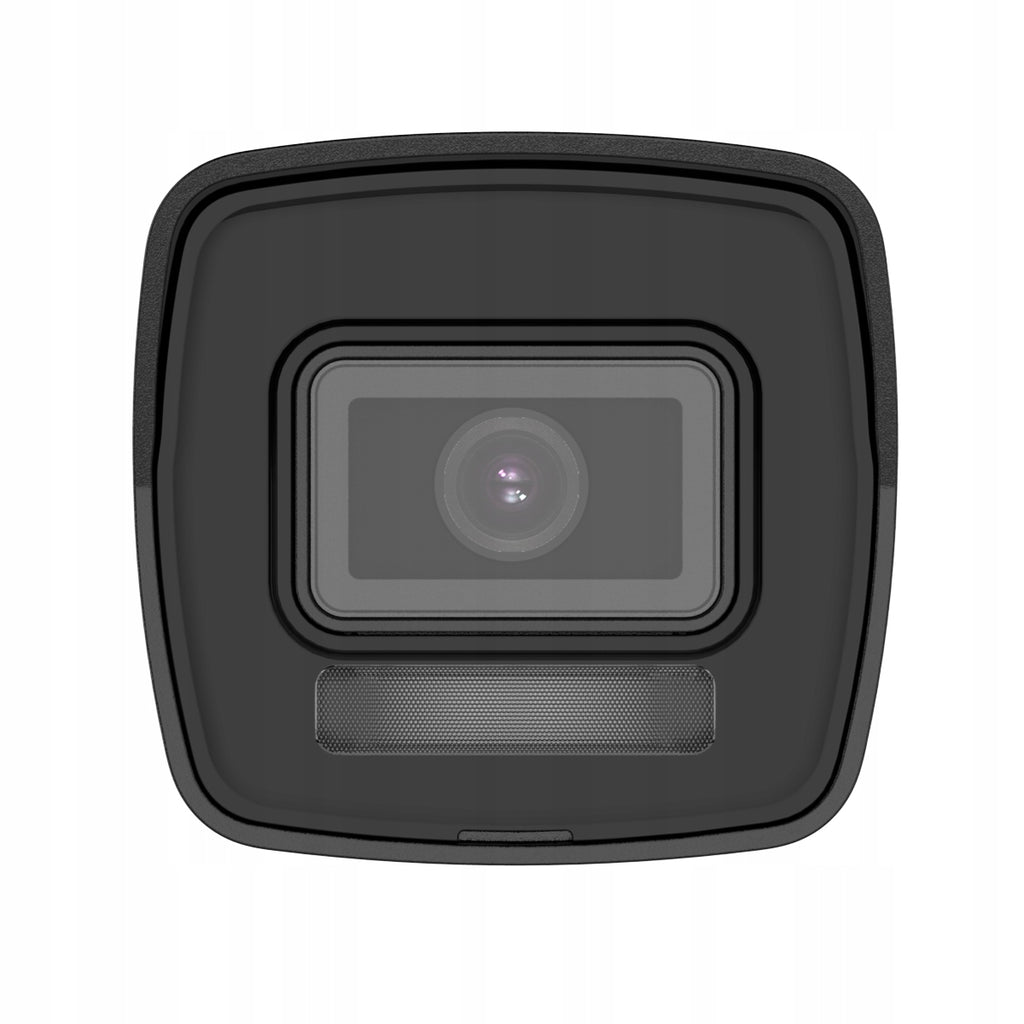

Lauko IP kamera HiLook by Hikvision IPC-B160HA-LU, 6MP, 2.8 mm, PoE

Trumpai apie prekę

Prekė: Lauko IP kamera HiLook by Hikvision IPC-B160HA-LU, 6MP, 2.8 mm, PoE. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: IPC-B160HA-LU (2.8mm) HiLook by Hikvision

IP / 6Mpx / 2.8mm / Dual Light 30m / IP67 / H.265+ / PoE / Microphone

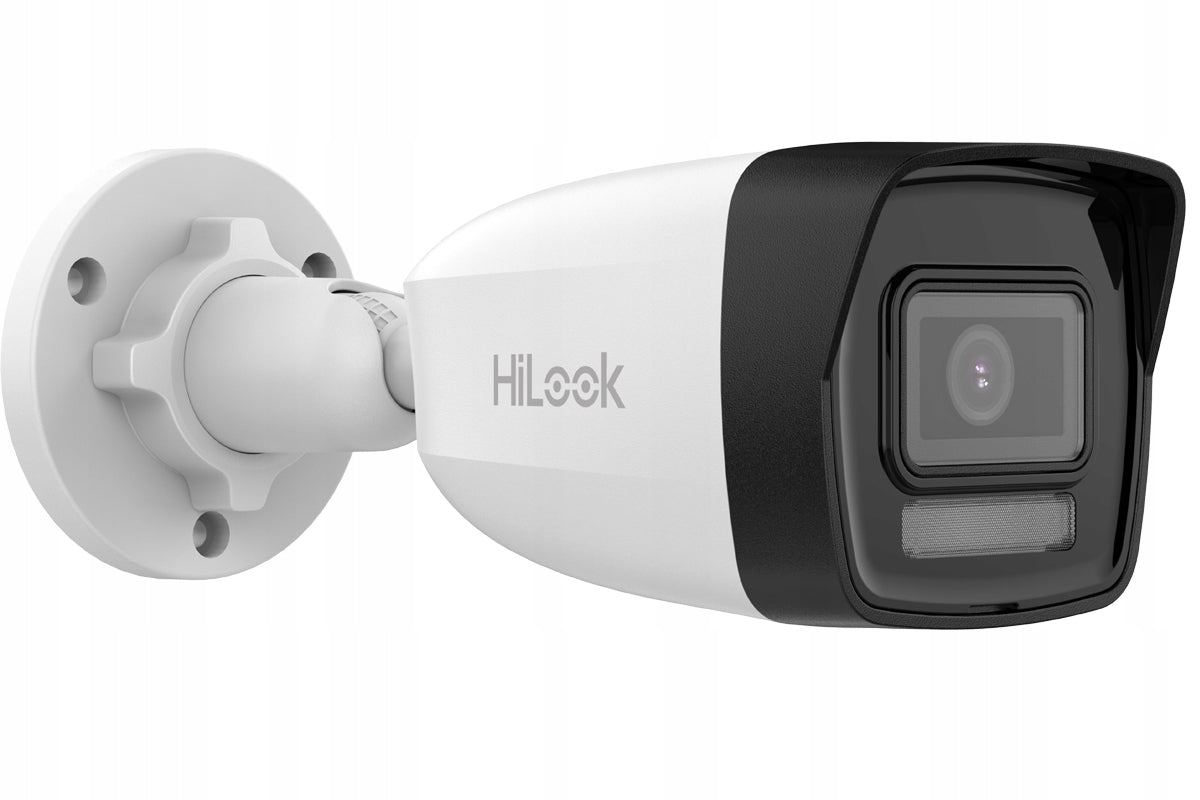

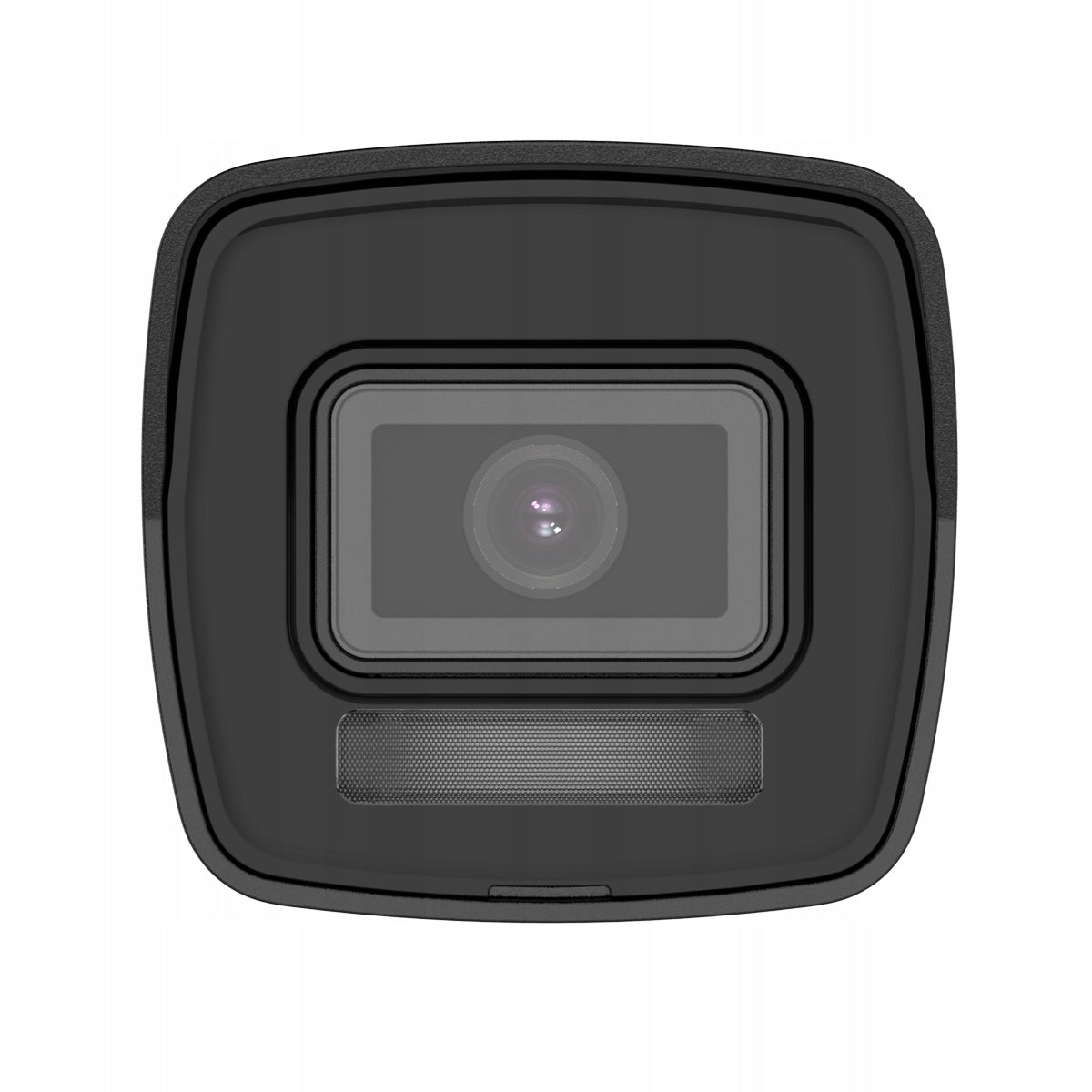

IPC-B160HA-LU is a high-quality tube model in IP technology, with a resolution of 6Mpx, dedicated to small and medium-sized monitoring installations in locations such as home, company or store.

The camera has a built-in hybrid illuminator (white + IR), which allows you to record images at night both in color and infrared.

The most important features of the camera:

• High resolution image - 3200 × 1800p @6Mpx
• Two illuminators on board the camera: IR and white light
• Built-in microphone for audio recording
• Tight outer casing IP67
• Powered by PoE
• Easy installation and operation

• Converter: 1/3” 6MPx CMOS
• Recording resolution: 3200 × 1800 @20FPS
• Lens: wide-angle 2,8 mm
• Recording angle: ~98°
• Image compression: H.265, H.264+, H.264, MJPEG
• Wide dynamic range: True WDR 120dB
• Digital Noise Cancellation: Yes - 3D DNR
• Built-in microphone: Yes
• Night mode: double - colored or infrared
• Infrared range: up to 30 m
• White light range: up to 20m
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in HiLook App: Yes
• Remote support: iVMS-4200, WEB interface, Application
• Assembly: external or internal
• Power Supply: 12v orPoE
• Protection class: IP67

The camera is sold without a 12V power supply. Compatible power supply is available at auction No. 16007754465.

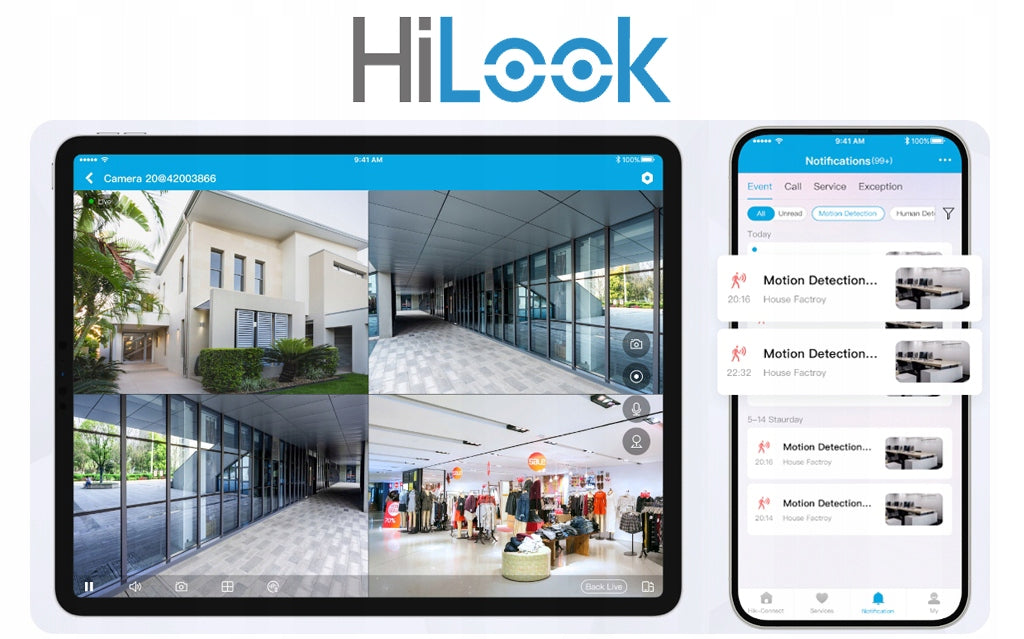

HiLook monitoring systems can be controlled, configured and operated using the intuitive HiLook App mobile application for smartphones and tablets and the iVMS-4200 program for PC computers. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The IPC-B160HA-LU is part of a series of cameras using the innovative Hybrid Light technology - thanks to two types of illuminators on board, the camera enables effective observation at night both in infrared (black and white) and fully color mode.

Thanks to this, it guarantees an even higher level of security, enabling effective identification of objects also after their color, in any lighting conditions.

The camera has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard drive, which positively affects its lifespan.

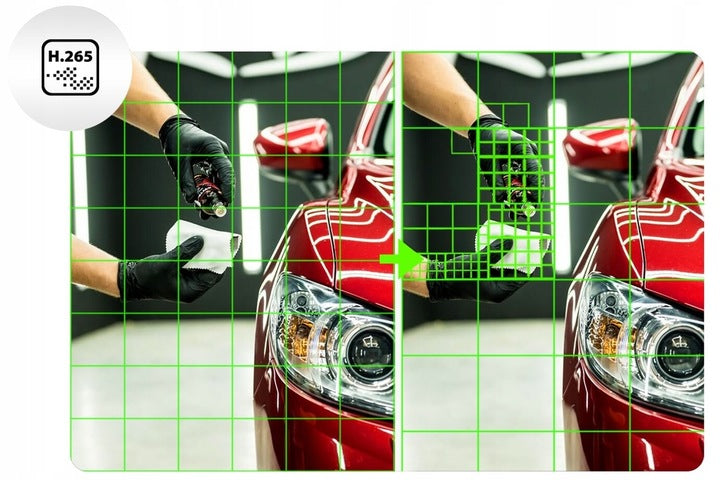

The camera uses an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

Camera

• Converter: 1/3" CMOS Progressive Scan
• Transmission standard: IP
• Maximum resolution: 6Mpx @3200 × 1800
• Sensitivity: Colour: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter speed: 1/3 s to 1/100,000 s
• Slow shutter mode: supported
• Lens: 2.8 mm
• Recording angle (horizontally): horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
• Head adjustment range: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Illuminators

• IR range: up to 30m
• IR wavelength: 850 nm
• White light range: up to 20m

Image compression

• Video compression: Main stream: H.265+/H.264+/H.265/H.264 Auxiliary stream: H.265/H.264/MJPEG
• H.264: Base Profile/ Main Profile/ High Profile
• H.264+: Main stream
• H.265: Main profile
• H.265+: Main stream
• Video Bitrate: 32 Kbps to 8 Mbps

Smart functions

• ROI: 1 fixed region for two streams


• Main stream - max. frame rate: 50Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)60Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
• Auxiliary stream - max. frame rate: 50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
• Image functions: BLC, HLC, 3D DNR
• Wide dynamic range: WDR 120dB
• Smart Dual Illumination: Yes
• Image settings: Saturation, exposure, contrast, sharpness, AGC, white balance
• Day/night mode: automatic / manual switching

Network

• Network interface: 1x RJ45 Ethernet 10/100 Mbps self-adaptive
• Network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• Compatibility: ONVIF, ISAPI, SDK
• Selected functions: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Simultaneous preview: up to 6 channels
• Alarm trigger: Motion detection, video sabotage, unauthorized login
• Number of users/hosts: up to 32 users3 permission levels: Administrator, Operator, User
• Customer software: iVMS-4200, HiLook App, HiLookVision

General

• Built-in microphone: Yes
• Power Supply: 12V DC or PoE (802.3af, Class 3)
• Material: Leak-proof class
• metal + plastic: IP67
• Dimensions: Weight
• 184.1 × 66 × 69.1 mm: 0.27kg
