Lauko IP kamera HiLook WIFICAM-B4, 4MP, WiFi, LED IR, EasyLink

Trumpai apie prekę

Prekė: Lauko IP kamera HiLook WIFICAM-B4, 4MP, WiFi, LED IR, EasyLink. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: WIFICAM-B4 Dual Light 4MPX

WiFi 6 / 4Mpx / 2.8mm / Smart Dual Light 30m / IP67 / H.265 / Microphone

Camera dedicated to work with WIFIKIT-xx set. Requires connection to an NVS recorder.

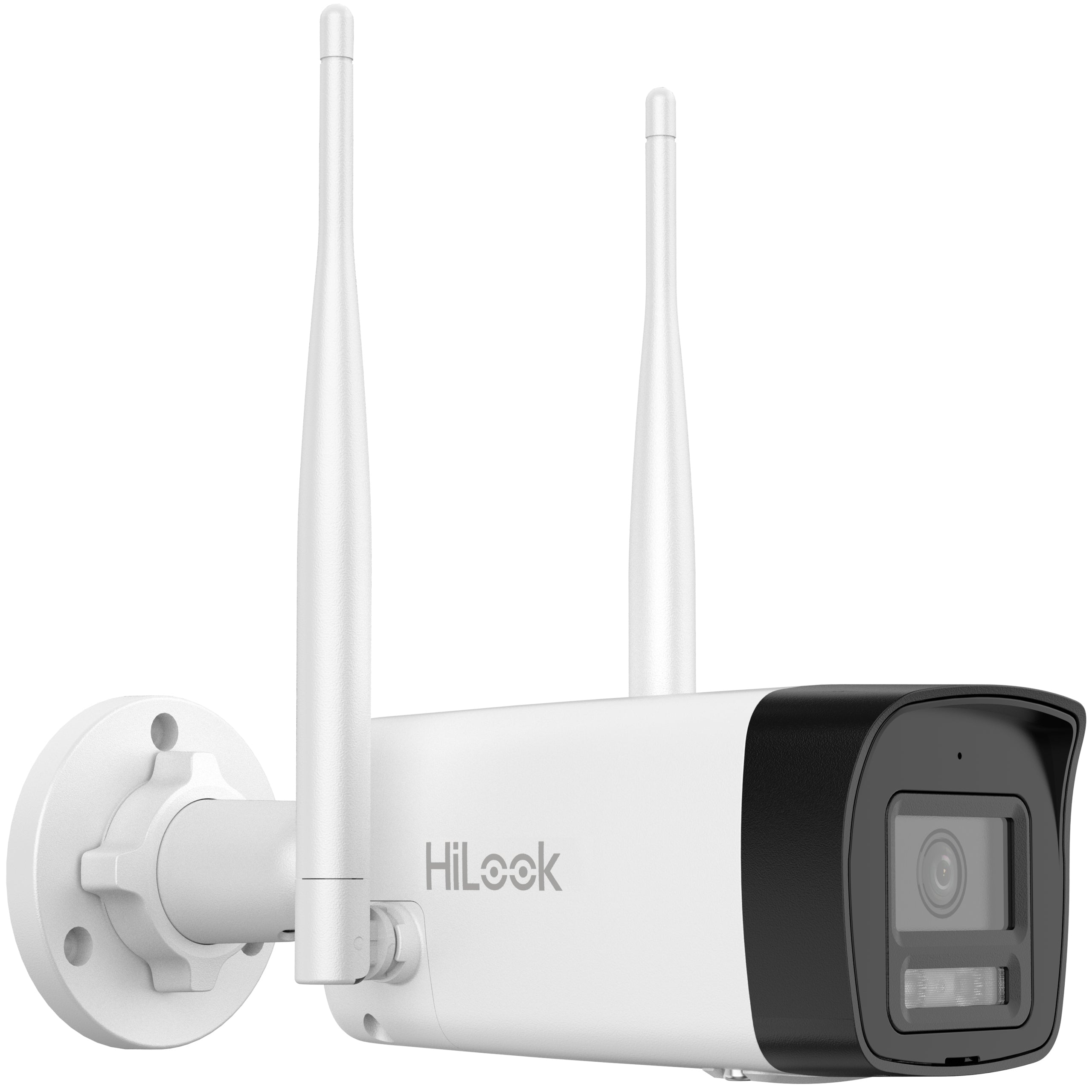

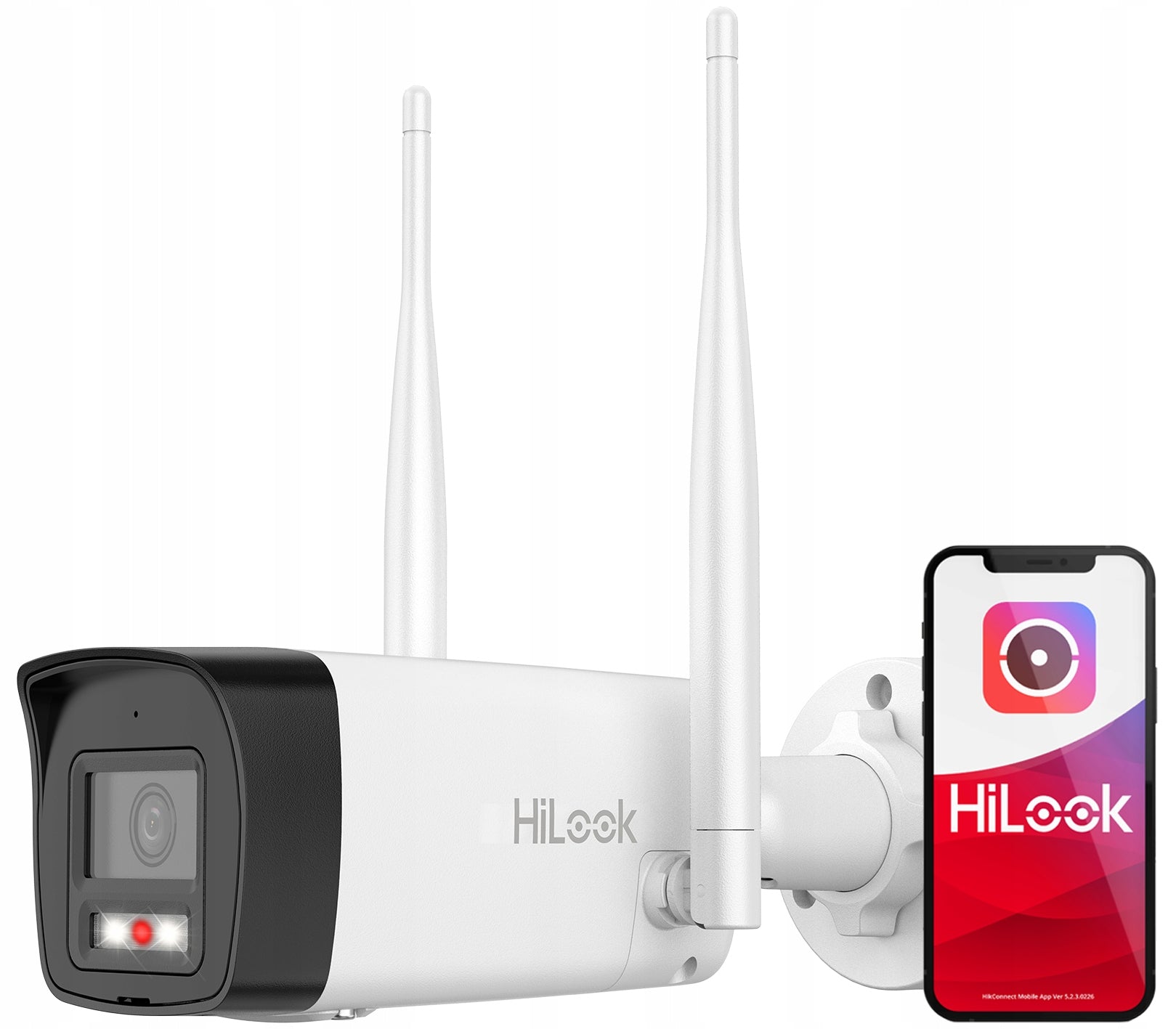

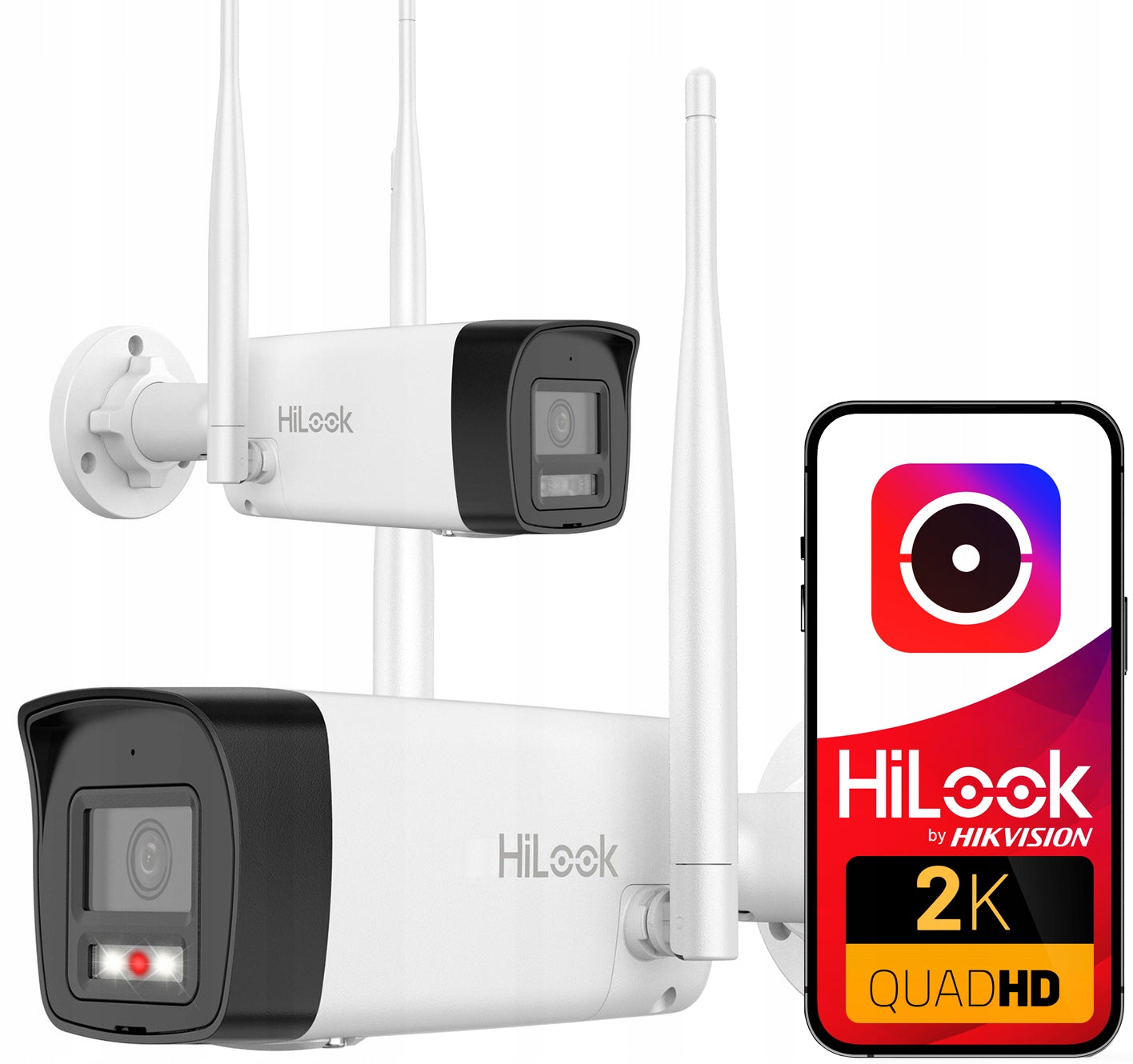

The WIFICAM-B4 model is a high-quality IP camera, with a resolution of 4MP, dedicated to small and medium-sized monitoring installations in locations such as a home, business or store.

The camera has a built-in dual illuminator (white + IR_ which allows you to record images at night both in color and infrared.

Most important features:

✅ High quality recordings thanks to camera resolution 4MPx @2560x1440p 25fps

✅ Wide recording angle approx. 94° horizontal - for great visibility

✅ Two illuminators on board the camera: IR and white light with a range of up to 30m

✅ Motion detection function - notifications in the application and recording important events

✅ Built-in microphone for audio recording

✅ Camera with the possibility of mounting inside i on outside the building - IP66

-------------------------------------------------------------------------------

Important:

The camera is dedicated to the expansion of the set with the HiLook NVS recorder. Does not work as a single device. You can find sets at our auctions: 16583819509 / 16737792667 / 16816713791 / 16822074572 / 16599024834

• Converter: CMOS 1,2/7'' 4MPx
• Image resolution: 4Mpx @2560 × 1440p
• Sensitivity: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Lens: wide-angle 2,8 mm
• Recording angle: ~94 degrees
• Type of illuminator: Dual - infrared + white light
• IR illuminator range: 30m
• White illuminator range: 30m
• Intelligent functions: motion detection
• Wide dynamic range: DWDR
• WiFi interface: Yes - 2,4Ghz
• Wired interface: Yes, RJ45
• Audio functions: built-in microphone and speaker
• Support in mobile app: HikConnect or HiLook App via NVS (camera requires NVS device to connect to app)
• Compatibility: EasyLink kits
• Assembly: external or internal
• Power Supply: 12V
• Leak-proof class: IP66

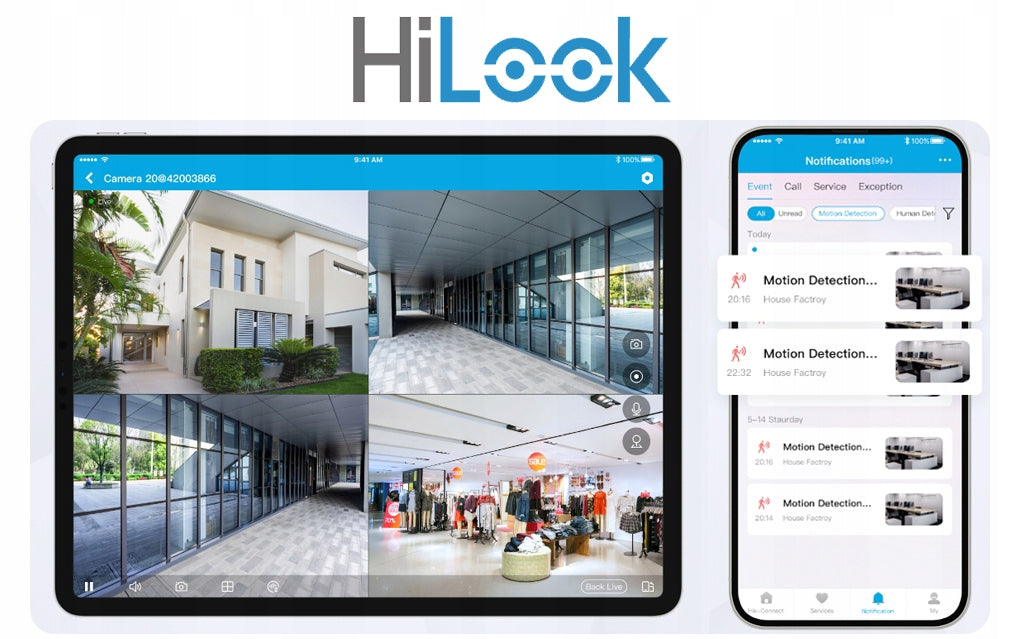

HiLook monitoring systems can be controlled, configured and operated using the intuitive mobile application HiLook App for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The WIFICAM-B4 camera belongs to a series of cameras using innovative Dual Light technology - thanks to two types of illuminators on board, the camera allows you to conduct effective observation at night both in infrared (black and white) and fully color mode.

Thanks to this, it guarantees an even higher level of security, enabling effective identification of objects also after their color, in any lighting conditions.

The camera has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an alarm notification to the program and application.

The camera uses an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

Camera

• Converter: CMOS 1,2/7'' 4MPx
• Transmission standard: IP
• Maximum resolution: 4Mpx @2560x1440
• Sensitivity: Colour: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter speed: 1/3 s to 1/100,000 s
• Slow shutter mode: supported
• Lens: 2.8 mm
• Recording angle (horizontally): horizontal FOV 94°

Illuminators

• IR range: up to 30m
• IR wavelength: 850 nm
• White light range: up to 20m

Image compression

• Video compression: Main stream: H.265+/H.264+/H.265/H.264 Auxiliary stream: H.265/H.264/MJPEG
• H.264: Base Profile/ Main Profile/ High Profile
• H.264+: Main stream
• H.265: Main profile
• H.265+: Main stream
• Video Bitrate: 32 Kbps to 8 Mbps

Smart functions

• ROI: 1 fixed region for two streams


• Main stream - max. frame rate: 50Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)60Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
• Auxiliary stream - max. frame rate: 50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
• Image functions: BLC, HLC, 3D DNR
• Wide dynamic range: WDR 120dB
• Smart Dual Illumination: Yes
• Image settings: Saturation, exposure, contrast, sharpness, AGC, white balance
• Day/night mode: automatic / manual switching

Network

• Network interface: 1x RJ45 Ethernet 10/100 Mbps self-adaptive
• Network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• Compatibility: ONVIF, ISAPI, SDK
• Selected functions: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Simultaneous preview: up to 6 channels
• Alarm trigger: Motion detection, video sabotage, unauthorized login
• Number of users/hosts: up to 32 users3 permission levels: Administrator, Operator, User
• Customer software: iVMS-4200, HiLook App, HiLookVision

General

• Built-in microphone: Yes
• Power Supply: 12V DC
• Material: Leak-proof class
• metal + plastic: IP66
• Dimensions: : 260.9 mm × 113.9 mm × 67.4 mm
• Weight: 0.3kg

Specifications
