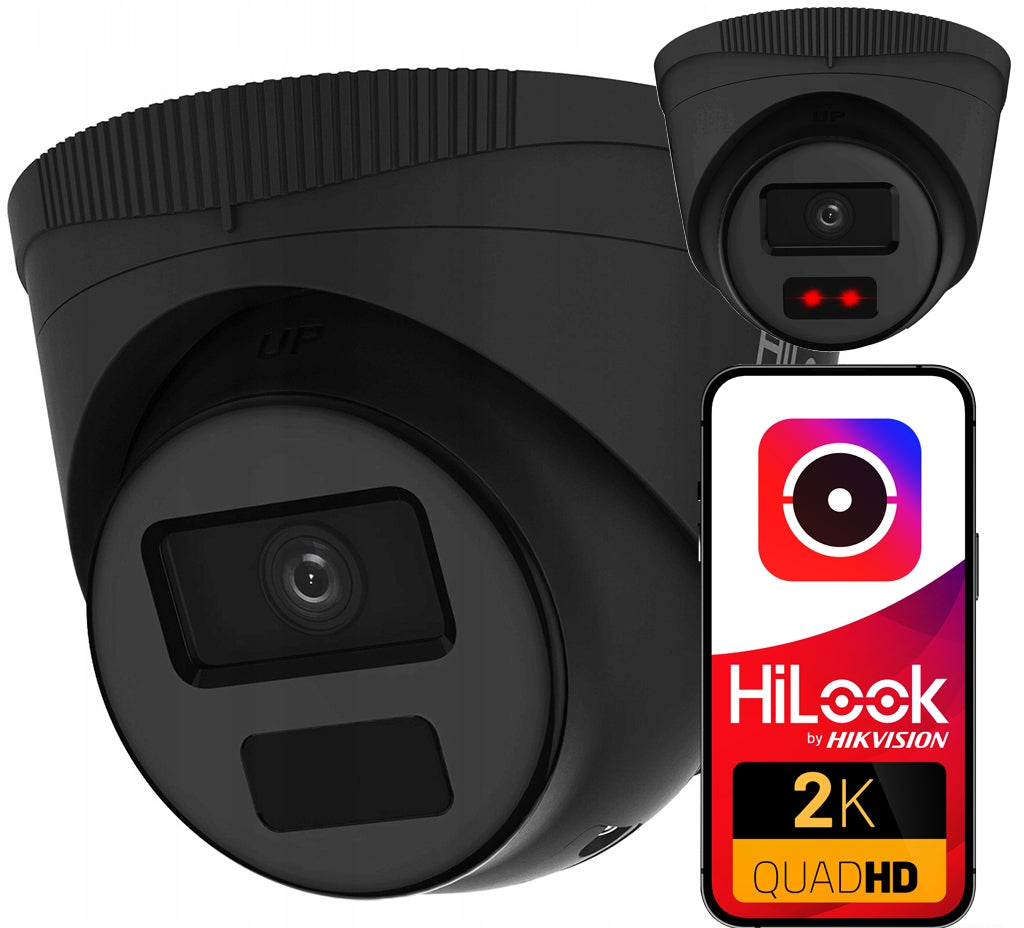

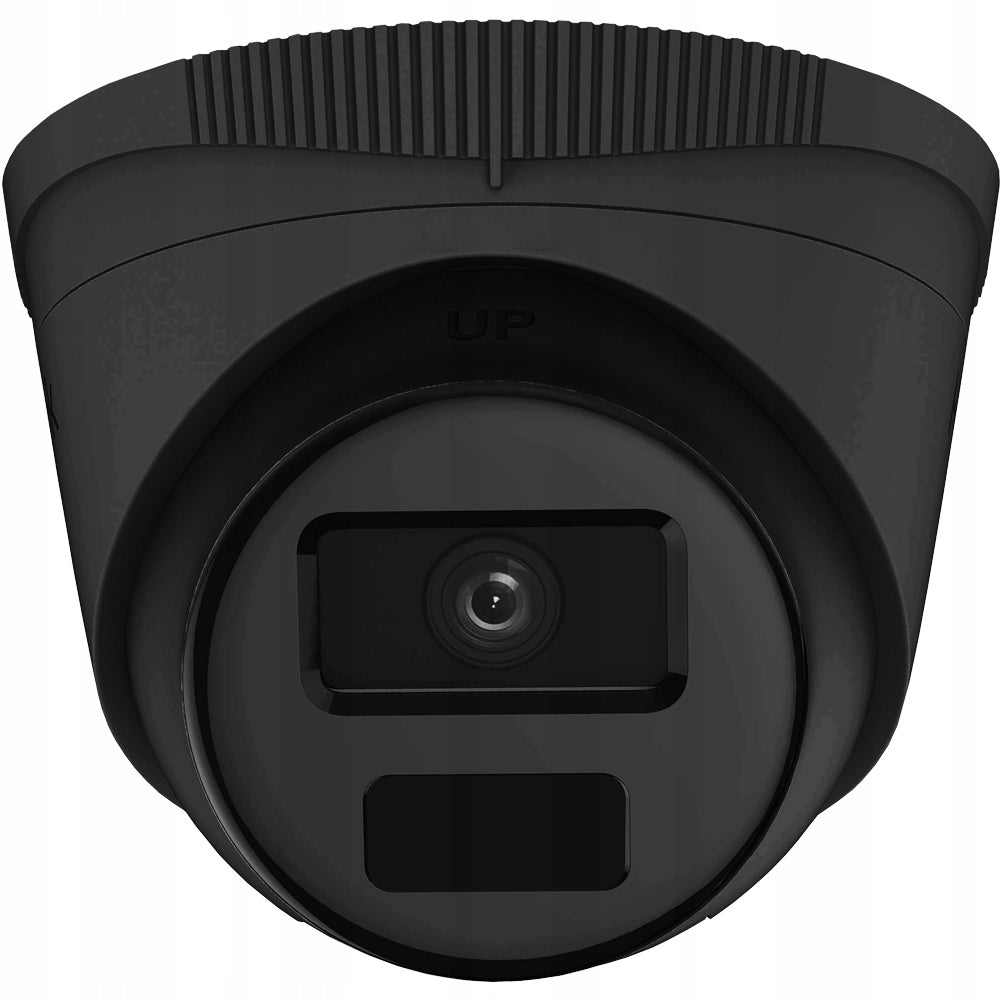

Lauko IP kupolinė kamera 4MP IPC-T241H-C, juoda, IR iki 20 m, PoE

Trumpai apie prekę

Prekė: Lauko IP kupolinė kamera 4MP IPC-T241H-C, juoda, IR iki 20 m, PoE. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: IPC-T241H-C BLACK HiLook by Hikvision

IP / 4Mpx / 2.8mm / IR20m / IP67 / H.265 / PoE / Detection / 24/7 preview

The most important features of the camera:

✅ High resolution image and wide recording angle - 2560x1440p (4Mpx) and 100 degrees

✅ IR illuminator with a range of 20 meters, made in black glass technology

✅ Motion detection function, allowing for precise viewing of recordings and saving disk space

✅ Cooperation with Hikvision IP systems and other via ONVIF protocol

✅ Easy installation and operation from the browser WEB, iVMS-4200 or smartphone app

✅ IP67 sealed housing, providing full protection against dust and moisture, allowing the camera to be mounted outdoors

• Converter: CMOS 1/3” 4MPx
• Image resolution: 2560 × 1440p @20fps
• Lens: wide-angle 2,8 mm
• Recording angle: ~100 degrees (wide-angle)
• Image compression: H.265+, H.265, H.264+, H.264
• Double Stream: Yes
• Wide dynamic range: digital WDR
• Digital Noise Cancellation: Yes - 3D DNR
• Other functions: ROI, BLC, Motion detection, Mirror, EXIR
• Infrared range: up to 20 m
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in the Hik-Connect mobile app: Yes
• Remote view: Hik-Connect, iVMS-4200, browser WEB
• Assembly: external or internal
• Housing: plastic / black
• Dimensions: Ø112 mm × 88.4 mm
• Power Supply: 12V or PoE
• Protection class: IP67

The camera is sold without a 12V power supply. Compatible power supply is available at auction No. 16007754465.

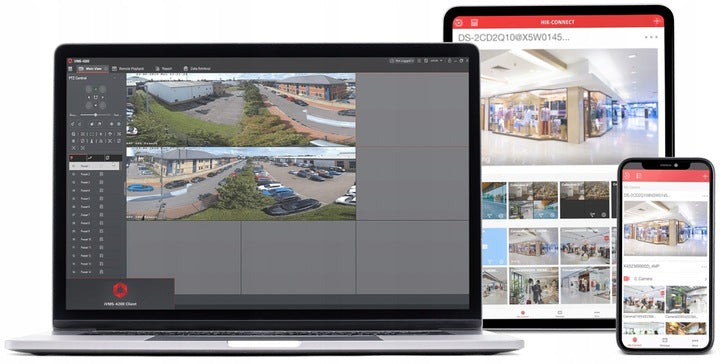

HiLook by Hikvision cameras can be controlled, configured and operated using the intuitive Hik-Connect mobile application for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings from the recorder
• create motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The presented model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard disk, which positively affects its lifespan.

IPC-T241H-C BLACK camera is equipped with automatic night mode - this means that when the lighting in the environment drops, the cameras go into black and white mode, supported by an infrared illuminator with a range of up to 20m. This function allows you to record images via 24/7 in any lighting conditions.

The camera operates at 4Mpx resolution, allowing for much more accurate recording of details than standard FullHD models. The high resolution of the camera allows you to maintain high values of the DORI parameter even with a wide recording account.

The DORI value for the HiLook IPC-T241H-C camera is:

• Detection(D): 56m
• Observation(O): 21m
• Recognition(R): 10m
• Identification(I): 5m

• Transducer: 1/3" 4 MP CMOS
• PAL/NTSC system
• Number of pixels 2560 × (H) × 1440(V)
• Sensitivity 0.01 Lux@(F1.2, AGC on. ), 0 Lux with IR
• Electronic shutter 1/3 s to 1/100, 000 s
• Function Day & Night IR cut filter
• 3D DNR Noise Reduction
• Digital WDR
• Synchronization Internal synchronization
• D/N Auto/Color/BW (Black and White)
• Lens: 2.8mm
• Viewing angle: ~100°
• Range: IR up to 20 m
• Video compression Main stream: H.265/H.264 Understream: H.265/H.264/MJPEG
• Video Bit Rate 32 Kbps to 8 Mbps
• Main stream Max. Video frame rate: 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720), 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
• Substream max. Video Frame Rate: 50Hz: 25fps (1280×720，640×480, 640×360) ; 60Hz: 24fps (1280×720，640×480, 640×360)
• Image Improvement: BLC, 3D DNR, DWDR
• Image settings: saturation, brightness, contrast, sharpness, AGC, white balance adjustable by dedicated software or browser
• Switching Day/Night : Auto, Schedule, Day, Night
• Alarm excitation: motion detection, video tampering, network disconnection, IP address conflict
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour
• Features: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Operating conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity: 90% or less (non-condensing)
• Power supply: 12 VDC ± 25%, PoE (802.3af, class 3)
• Protection class IP67
• Material: plastic
• Color: Black
• Size Ø112 mm × 88.4 mm

Specifications
