Lauko ir vidaus TV antena TAMDEL TAZ-W128, DVB-T2

Trumpai apie prekę

Prekė: Lauko ir vidaus TV antena TAMDEL TAZ-W128, DVB-T2. Kategorija: Antenos.

• Gamintojas: TAMDEL
• Modelis: TAZ-W128
• Spalva: black

💡 One antenna for two applications — works as a room or outdoor

▶ Internal use: put on a shelf, TV cabinet or near a window

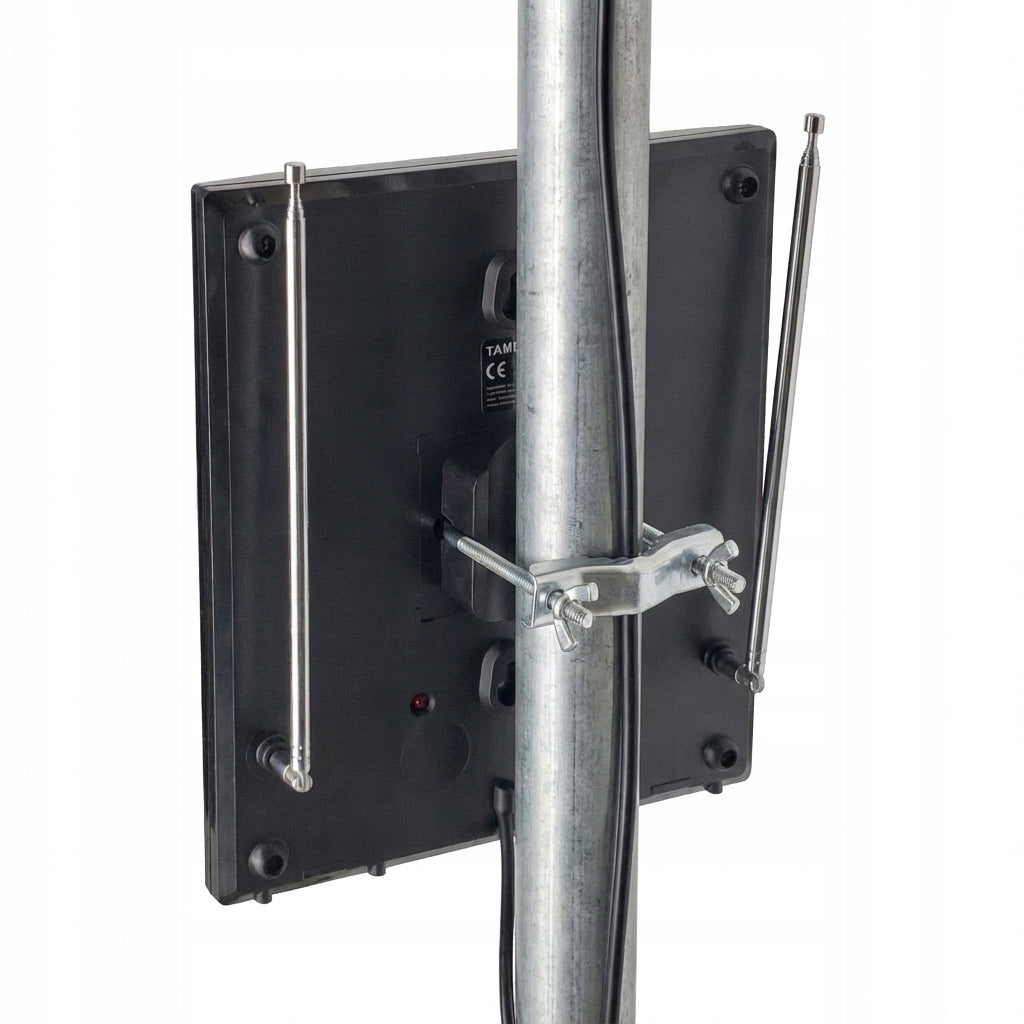

▶ External use: mounting on pipe, mast or railing

▶ Built-in amplifier + cable 10 m – ready to work immediately after connecting

▶ Supports free DVB-T2 channels (including MUX-8) — without replacing the TV

✅ The most important advantages of the TAMDEL TAZ-W128 antenna

▶ Omnidirectional design - works even without precise alignment

▶ COMBO antenna (VHF + UHF) - receives MUX 1-4 and MUX-8 : full range of channels in Poland

▶ Suitable for outdoor use - resistant to rain and UV radiation

▶ Compliance with EU CE, RoHS standards, material and construction safety

✅ DVB-T2 / 4K – compliant with the new in Poland

▶ Full DVB-T2/HEVC (H.265) compatibility

▶ Ready to receive Full HD and 4K channels – if they are broadcast and your TV/decoder supports them

▶ Stable reception of new MUX – compatible with Polish frequencies and UKE frequency plan

✅ LTE filter – clean and stable reception signal

▶ Built-in LTE filter (800 MHz) reduces interference from mobile networks and GSM transmitters

▶ Stabilizes DVB-T/T2 reception – less susceptibility to image stuttering and interference

▶ Works even near base stations – especially in cities and built-up areas

✅ Assembly without tools

✔ Inside: put on a shelf, TV cabinet or by the window

✔ Externally: handle fits pipes/masts up to 5 cm (Ø50 mm)

✔ It takes approx. to assemble the antenna. 3 minutes

If the signal inside is weaker — you take the antenna outside without having to buy a new one.

✅ Technical specification

▶ Antenna type: external / internal

▶ Operating system: active (with amplifier)

▶ Frequency range: VHF 174 – 230 MHz / UHF 470 – 790 MHz

▶ Working channels: 6 to 57 (MUX 1 to 4 and MUX-8)

▶ Signal gain: VHF up to 18 dB, UHF up to 25 dB

▶ Impedance: 75 Ω

▶ Amplifier power supply: 5 V DC (USB)

▶ Signal cable: 10 m (concentric), terminated with TV antenna plug (IEC), integrated with antenna

▶ LTE filter: yes — filters interference from 800 MHz LTE transmitters

▶ Receive standards: DVB-T / DVB-T2 (HEVC H.265), compatible with Full HD and 4K

▶ Resistance: rain, moisture, UV (outdoor and indoor)

✅ Dimensions of the antenna TAMDEL TAZ-W128

▶ Width: 20 cm

▶ Base height: 25 cm

▶ Depth with stand: approx. 5 cm

▶ Telescopic antennas: adjustable 20 to 80 cm

✅ How to connect the antenna – step by step

1 Connect the antenna with an antenna cable terminated with a TV plug (IEC) to the antenna input of the TV or set-top box.

2 Power the amplifier via USB port – it can be a TV, set-top box, powerbank or 5V charger

3 Set the antenna towards the nearest transmitter

4 Enable channel search — select DVB-T or DVB-T2 automatic mode

📺 After performing these steps, the antenna is ready for reception DVB-T2 / HEVC.

✅ Set includes:

• Antenna TAMDEL TAZ-W128
• Signal Amplifier with LTE Filter
• Coaxial cable 10 m
• Mounting bracket for pipe / mast / railing
• Stands for internal mounting
• Connection instructions (PL)
• Original manufacturer's packaging

ℹ USB power adapter is not included – any USB port is enough (e.g. in a TV, set-top box or 5V charger).
