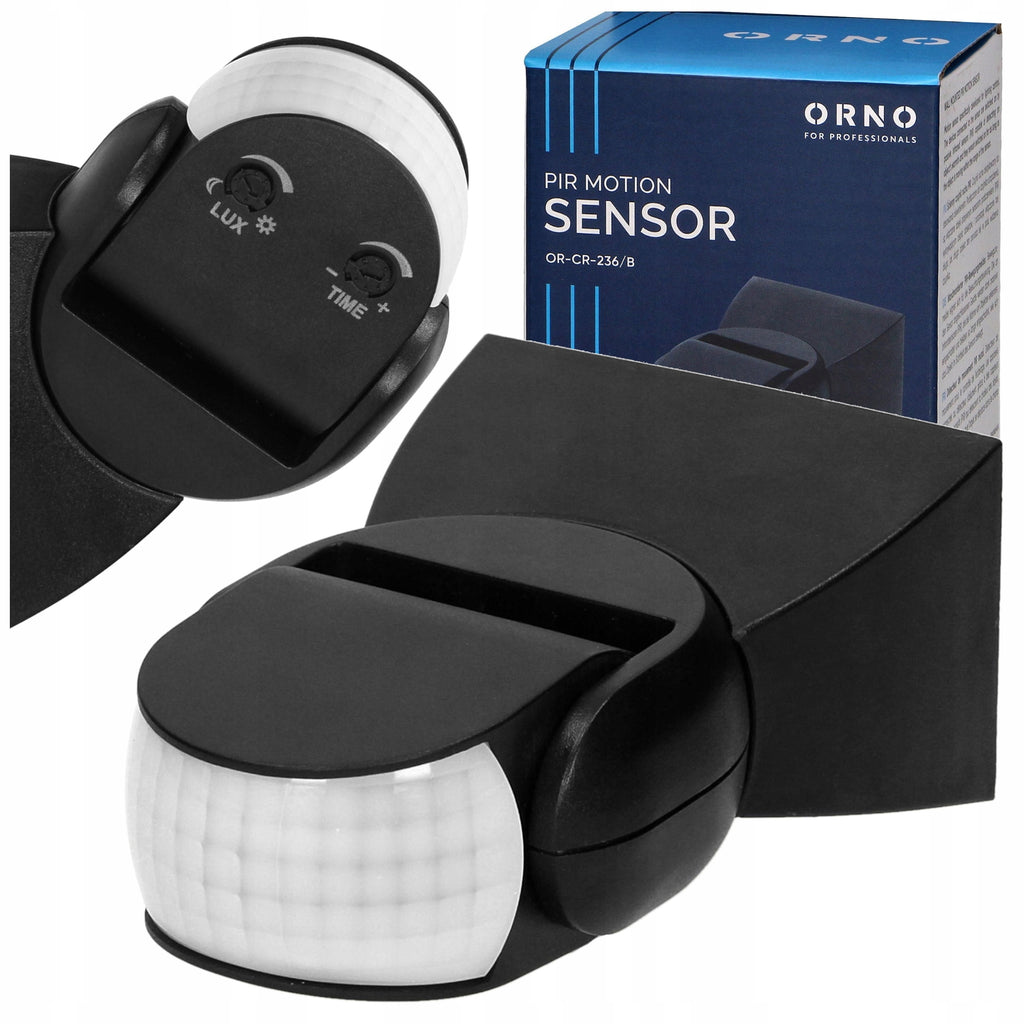

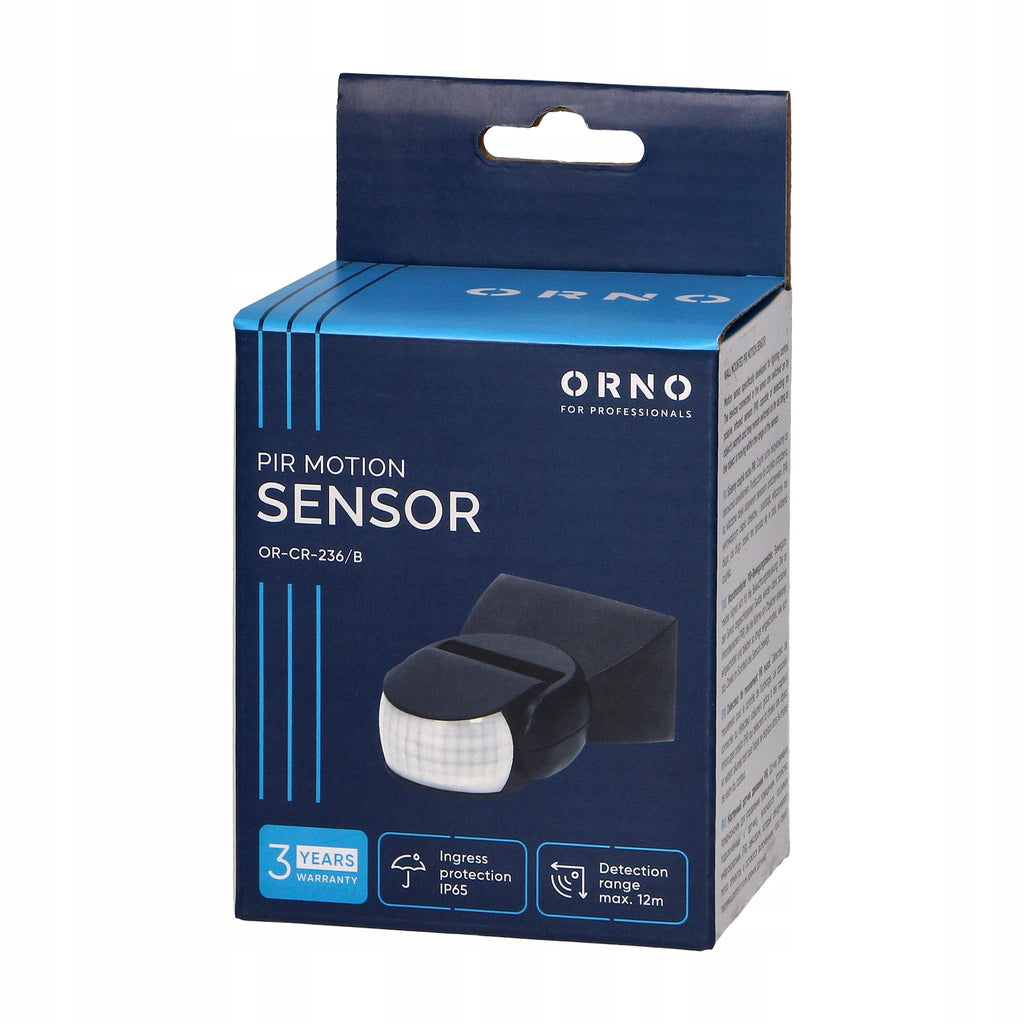

Lauko judesio jutiklis DUSK, IP65, reguliuojamas

Trumpai apie prekę

Prekė: Lauko judesio jutiklis DUSK, IP65, reguliuojamas. Kategorija: Jutikliai.

• Gamintojas: Orno

MODEL: ORNO OR-CR-236/B

⭐ Motion sensor for automatic control of lighting or other electrical devices, lighting is switched on using the PIR motion sensor, which operates infra-red.

⭐ Automatic enabling the load when motion is detected in the detection field.

⭐ Equipped with twilight function, programmed switching times.

⭐ Potentiometers for liquid regulation:

• lighting time TIME
• LUX light intensity sensitivity

⭐ Mechanical adjustable tilt of the sensor head vertically and horizontally.

⭐ Safety, durability and energy efficiency.

⭐ The device works with LED lighting.

⭐ Sensor angle of view: 180°

⭐ High degree of protection IP65

• LUX - Adjustment of the light intensity threshold at which the sensor is to switch on LUX lighting: < 3-2000 lux

• TIME - Adjustable lighting time – min: 10 sec. - max: 15 min.

• Device for external and internal mounting, surface mounted, IP65.

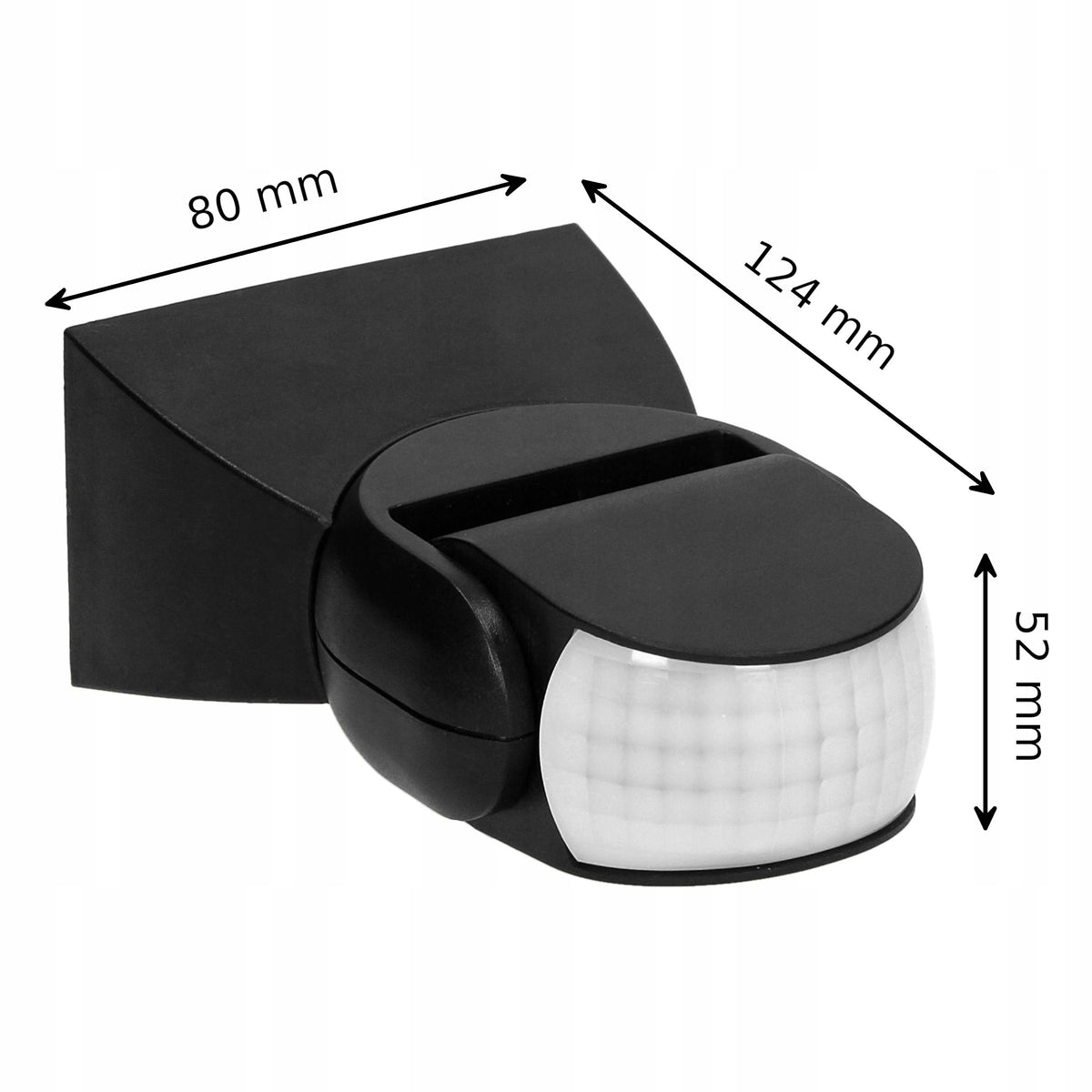

• Dimensions: 80 mm x 52 mm x 124 mm (W) / h. / d. )

• Sensor Type: Infrared (PIR)
• Viewing angle: 180st.
• Detection range: 12m
• Supply voltage: 230V~, 50Hz
• Max. load: 1200W
• Max. load for LED source: 300W
• Degree of protection: IP65
• Colour: black
• Assembly: wall-mounted

L - Input voltage

N - Neutral clamp

A - Output voltage

O - Load

• The sensor turns on the lighting under the motion of the object emitting heat within the sensor's field of view and remains on as long as the motion sensor detects movement within the field of view.
• The sensor should be mounted in the right place at a height of 1,8-2,5m.

• Motion sensor - 1 pc.
• Pins and fixing screws
• Original packaging
• Polish manual
• Warranty card
