Lauko kryptinė TV antena Dipol 16/21-48, DVB-T2, UHF, LTE700, 12dBi, su simetrikliu

Trumpai apie prekę

Prekė: Lauko kryptinė TV antena Dipol 16/21-48, DVB-T2, UHF, LTE700, 12dBi, su simetrikliu. Kategorija: Antenos.

• Gamintojas: Dipol
• Modelis: Dipol 16

Gain 12 dBi

Product Polish

Specially designed to receive new DVB-T2 frequencies

Dipol 16 was designed for reception in the UHF band 470-694 MHz (channels 21-48), in which it reaches gain up to 12 dBi.

Distinguishing features:

• antenna receives DVB-T2 signals from the UHF band in new frequencies 470 - 694 MHz
• Antenna made of aluminium
• Antenna box to protect against water
• possibility of mounting standard receipt amplifiers
• very easy installation
• 100% product Polish
• Antenna by Dipol

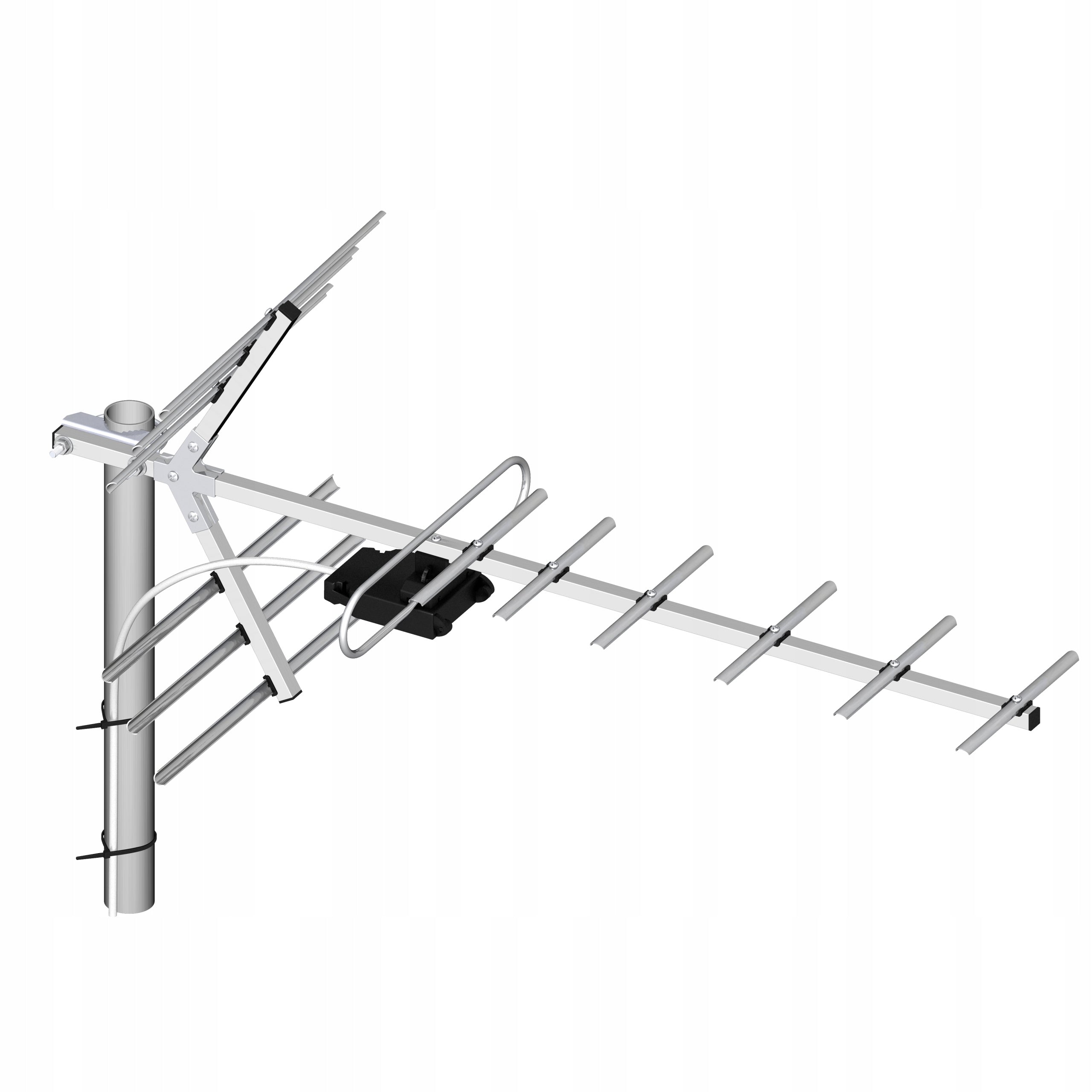

Dipol 16 is a directional antenna for receiving DVB-T and DVB-T2 digital terrestrial television in the UHF 470 - 694 MHz band. It receives channels 21-48, i.e. multiplexes: MUX-1, MUX-2, MUX-3, MUX-4 and MUX-6. It is characterized by small dimensions and relatively high gain: 12 dBi.

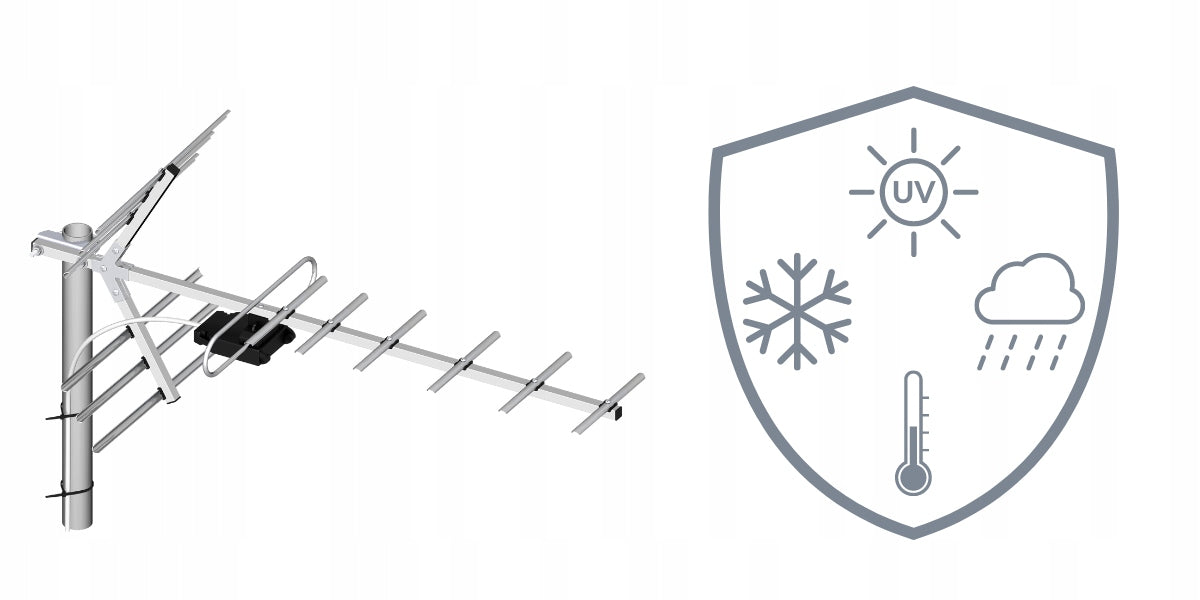

The main elements of the antenna are made of aluminium. Steel structural elements are galvanized. This guarantees high resistance of the antenna to weather conditions and damage. In addition, small dimensions ensure less susceptibility to wind. You can be sure that the antenna will serve you for many years!

Specially designed can antenna allows easy access to devices mounted inside (symmetrizer, amplifier), while perfectly protecting them from water.

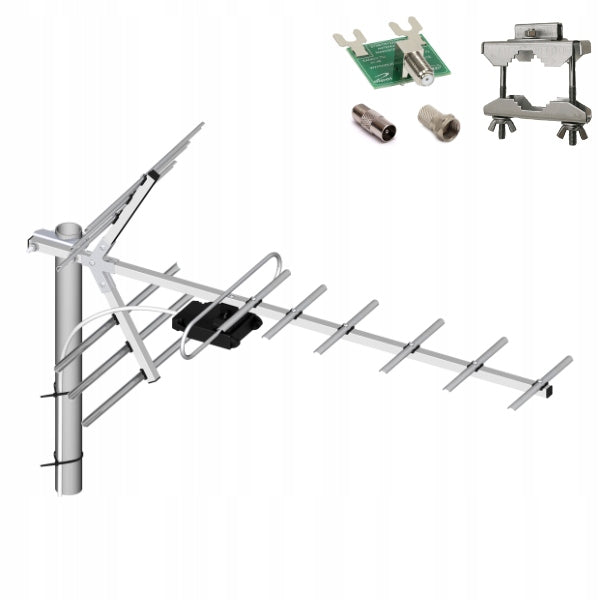

The set includes the latest symmetrizer brand Dipol for channels 21-48, antenna plug, connectors type F and cover used to mount the antenna to a vertical or horizontal tube. In our store you can buy a mast and antenna cable.

The antenna uses a symmetrizer for the F connector, which ensures a good matching of the antenna and small signal loss. In addition, the installation of the antenna cable is very simple and convenient. An additional advantage is the possibility of using compression connectors that provide the most durable connection.

You buy PROVEN Polish PRODUCT

The antenna was designed and manufactured in Poland and tested for the declared parameters in the Department of Electronics of the AGH University of Science and Technology in Krakow.

Energy gain [dBi] antenna as a function of frequency [MHz]

Easy installation

The antenna is pre-assembled at 90%. Installation involves attaching the headlight with two screws and takes about a minute.

All standard amplifier plates fit into the antenna.

Technical data:

• Profit [dBi]: to 12,2
• Channels: 21- 48
• Band [MHz]: 470 - 694
• Front/rear radiation ratio [dB]: 10,4 –17,4
• Standing Wave Ratio (VSWR): ≤ 1,48
• Polarization: H (V when rotated 90°)
• Impedance [Ω]: 75
• Packaging: foil
• Dimensions [mm]: 890x320x410
