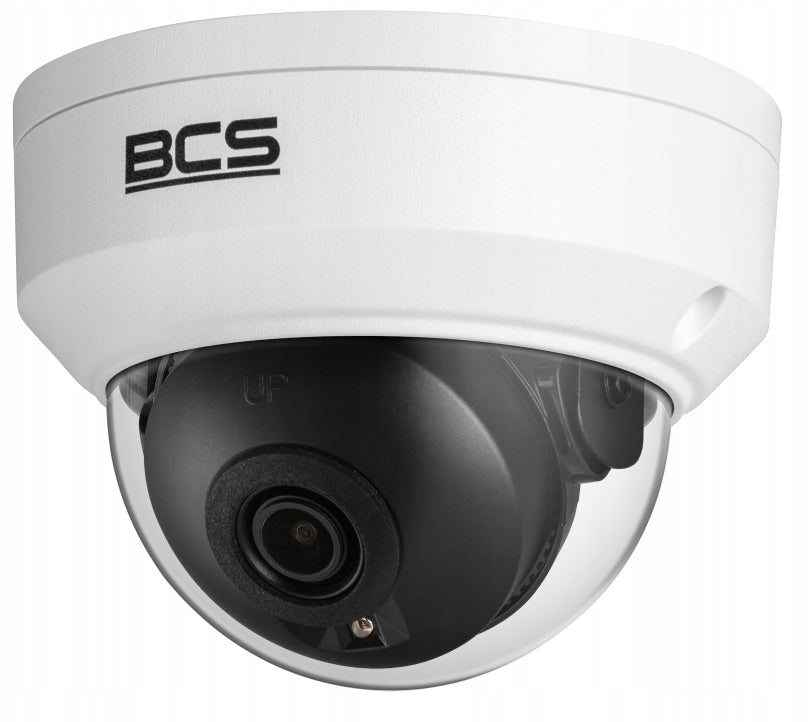

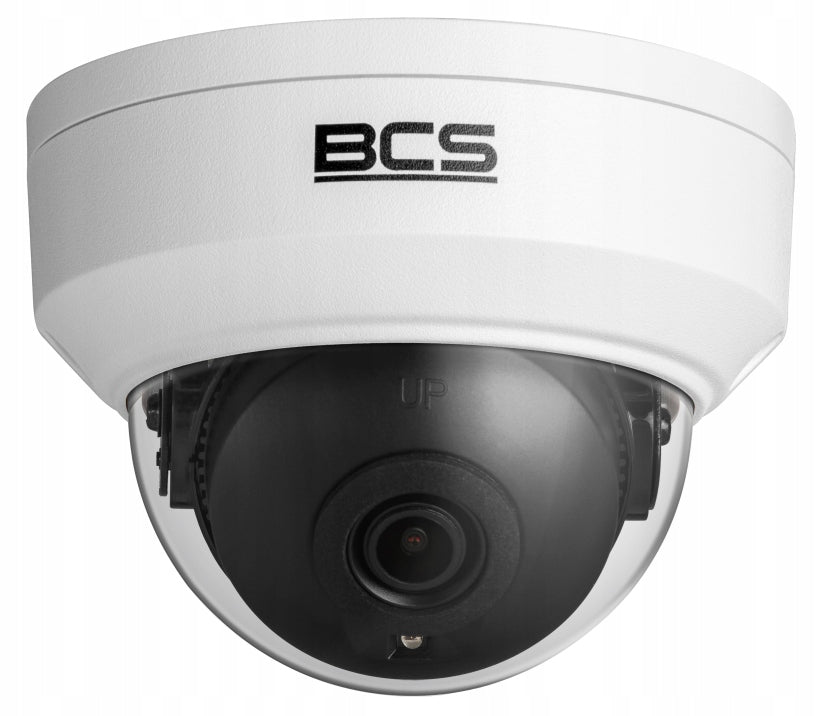

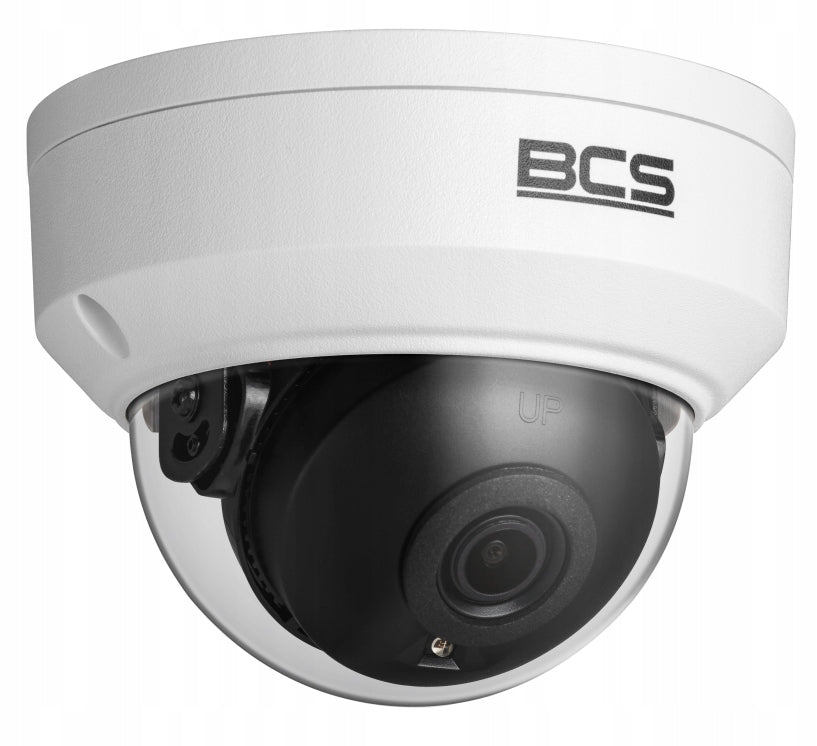

Lauko kupolinė IP kamera BCS-P-DIP15FSR3-Ai, 5MP, su mikrofonu, IP67, PoE

Trumpai apie prekę

Prekė: Lauko kupolinė IP kamera BCS-P-DIP15FSR3-Ai, 5MP, su mikrofonu, IP67, PoE. Kategorija: Fotoaparatai.

• Gamintojas: BCS
• Modelis: 1229

BCS

5Mpx Dome IP Camera

Series: BCS Point

Model: BCS-P-DIP15FSR3-Ai

Attention!

This is exactly the same model as BCS-P-DIP15FSR3(2), only the name has been changed.

IP camera BCS-P-DIP15FSR3-Ai – 5MPx, IR 30m, WDR, microphone, IP67, IK10

The BCS-P-DIP15FSR3-Ai is a modern IP dome camera with a high resolution of 5 megapixels, a wide-angle 2.8 mm lens and an infrared range of up to 30 meters. Equipped with microphone, advanced image processing functions (WDR, DNR, Defog) and damage-resistant housing (IK10). It will work perfectly in external and internal monitoring – both at home and in the company.

⭐ The most important advantages of the camera

• High resolution 5MPx – very detailed image: 2880×1620 pixels.
• IR night vision up to 30 meters – reliable monitoring also in complete darkness.
• Built-in microphone – recording video and sound in one device.
• Compliance with NDAA – safe choice for public institutions and companies.
• IK10 + IP67 housing – resistant to vandalism and weather conditions.
• Advanced image functions – WDR 120dB, 3D DNR, digital demisting.
• Slot microSD up to 512GB – local recording without DVR.
• PoE or 12V DC power supply – easy installation without additional power supply.
• Support for mobile applications and cloud BCS – remote viewing and recording.

Detailed technical specification

Image and transducer

• Converter: 1/2.7" PS CMOS – high sensitivity to light
• Maximum resolution: 5MPx (2880×1620 pixels)
• Type of scan: Progressive Scan – no interlace, clear image
• Sensitivity: 0.003 Lux (at F1.6, AGC), 0 Lux with IR enabled
• WDR: 120 dB – extended dynamic range
• Noise reduction: 2D/3D DNR – clear image in difficult conditions
• Light compensation: BLC / HLC / WDR
• Additional features: Defog (digital demisting), Mirror, Flip, Corridor mode, RoI (selected priority areas)
• White Balance / Amplification / Shutter: auto / manual settings

Lens and field of view

• Type: fixed focal length
• Focal length: 2.8 mm
• Aperture: F1.6 – bright lens
• Digital Zoo: to 16x
• Angle of view: horizontal 110°, vertical 58.7°, diagonal 130°
• DORI (EN62676-4):

  • Detection: 63 m

  • Observation: 25 m

  • Recognition: 13 m

  • Identification: 6 m

IR lighting and night mode

• Type of illuminator: IR LED (infrared)
• IR range: up to 30 meters
• Day/night mode: ICR filter (mechanical infrared filter)

Audio

• Microphone: built-in
• Audio compression: G.711A / G.711U

Video streaming and compression

• Stress: 2 independent
• Codes: H.265 / H.265+ / H.264 / MJPEG
• Resolutions:

  – Main: 2880×1620, 2560×1440, 2304×1296, 1920×1080 @ 25–30 fps

  – Second: 1280×720, 720×576, 640×360, 704×288, 352×288 @ 30 fps

• Bitrate: 128 Kbps – 6144 Kbps

Remote recording and access

• Slot microSD: support for cards up to 512 GB
• Recording support: NAS (NFS), cloud BCS
• Access: via web browser, mobile application (Android/iOS), CMS BCS Manager (Windows/Linux/Mac)

Smart features

• Motion detection: 4 areas
• Privacy masks: 4 areas
• Image rotation: Mirror, Flip, Corridor mode (90°)

Compatibility and network

• Network interface: RJ-45 (10/100 Mbps)
• ONVIF: Profiles S/G/T
• Protocols: TCP/IP, HTTP/HTTPS, RTSP, RTP, FTP, NTP, SMTP, DHCP, UPnP, TLS, SNMP and others
• Security: HTTPS encryption, strong passwords, operation logs, Digest authorizations, TLS 1.2

Power supply and operating conditions

• Power supply: 12V DC or PoE (802.3af)
• Power consumption: max 4.4 W
• Working temperature: -30°C to +60°C
• Moisture: up to 95% (non-condensing)

Housing and dimensions

• Housing: metal
• Color: white
• Dimensions: Ø109 × 81 mm
• Weight: 0.36 kg
• Precision: IP67 (water and dust resistant)
• Mechanical resistance: IK10 (impact resistant)
• Overvoltage protection: 4kV

Optional accessories

• BCS-P-A173, BCS-P-U112, BCS-P-U113

1/12.7" PS CMOS STARLIGHT converter

Detailed image in max. resolution 5 Mpx and high sensitivity

A high-quality 1/2.7" progressive scan CMOS image sensor was used to build the BCS-P-DIP15FSR3-Ai camera. Thanks to it, it is able to generate smooth and detailed video material, at a maximum resolution of 2880 x 1620 (max. 25 fps @ 5 Mpx). The image in 5 Mpx resolution allows you to make an effective digital close-up and correctly reproduces even very small details of the observed plan.

This makes the camera work great in systems where high image quality is crucial. It can be successfully used in commercial facilities, industrial facilities or public facilities.

The transducers also have a very high sensitivity. Thanks to it, the camera can capture clear and colorful images, even in very low light conditions. The minimum sensitivity for a color image is only 0.003 lux (F1.6, AGC on. ).

Lens 2.8 mm

Dedicated for general preview

The camera is also equipped with a standard fixed focal length lens, with a width of 2.8 mm (F1.6). It provides a wide viewing angle (110° horizontal / 58.7° vertical), making the camera versatile and great for general viewing functions. Placed in the corner of a relatively small room, it should be able to observe them whole. It is worth noting that cameras with fixed-focal lenses are usually characterized by better image quality, compared to their counterparts with adjustable lenses. They also have a more attractive price.

Network interface

Remote camera operation

The camera has a built-in WEB Server and a standard fast ethernet network interface, thanks to which you can establish a remote connection with it. A remote user can e.g. preview the image from the camera "live" or change its operating parameters (if it has the rights of the system administrator). The available functionality during remote work depends on how the connection is compiled, which can be implemented using:

• Web browser, from which the user has access to full functionality and can freely change the parameters of the camera
• Software BCS Manager, used to build a CCTV system operation center from a computer
• Applications for mobile devices with the operating system iOS or Android. From its level, the user has access to basic functionality

Characteristics of the BCS Manager software include:

• Support up to 1000 connections
• Live view of 256 channels (max. 64 windows on the card)
• Creating alarm schemes
• Synchronous playback of recordings from up to 36 cameras simultaneously (remotely and locally)
• Remote device configuration, device group creation and management
• Control of PTZ cameras
• Audio support
• Support for TV WALL

An additional advantage of the camera is the support of the network standard ONVIF (Profile S / Profile G / Profile T). Thanks to it, it can effectively cooperate with registrars from other manufacturers that also support this standard.

Working in the cloud

Convenient way to change settings

A big advantage of the BCS Point system is the possibility of working in the cloud. From its level, you can establish a remote connection to the system and freely change the operating parameters of both the recorder and cameras. A characteristic feature of working in the cloud is that the user connecting through it can fully configure the system, exactly as if it were physically plugged into the same network. Additional benefits of working in the cloud include:

• The ability to create virtually any size arrays of devices. Then, when you connect to the cloud from another device, the entire array is already in the application and you don't need to re-create it
• Possibility of remote adjustment of illuminator power
• Possibility to generate a 1-day password

Built-in microphone

Ability to record video and audio

The camera has a built-in microphone, so it can transmit recorded video and sound. Thanks to this, we do not have to buy and install a separate device. It is a convenient solution in rooms where vision and phony must be recorded

PoE 802.3af

WDR 120 dB

SD card

Powering the camera via PoE (Power over Ethernet) eliminates the need for additional power cables, simplifying installation. With this solution, you can power and transfer data with a single cable, which increases the reliability and aesthetics of the system.

WDR 120 dB technology improves image quality in harsh lighting conditions, reducing overexposure and darkening. Thanks to this, the camera captures clear and detailed recordings even at high light contrasts.

The SD card in IP cameras allows local recording, ensuring recording even in the event of a loss of network connection. This solution increases the reliability and security of data without the need for an external recorder.

P2P function

Easy remote viewing from mobile devices

The camera also supports P2P functionality, which excludes the need for an external IP address. All the user has to do is scan the QR code to get a remote view from their phone or tablet. This is an extremely convenient way to set up a remote connection that requires virtually no configuration.

Basic functions of the BCS-P-DIP15FSR3-Ai camera:

• Day/night - Adjusts camera operation depending on the time of day, so as to maintain the best image quality during the day and the highest sensitivity at night in low light
• NR (2D/3D) - Noise reduction for improved overall image quality in low light conditions
• AWB - Automatic white balance for accurate color reproduction
• AGC - Automatically amplifies the output signal in case of a decrease in illuminance
• AES - Automatically adjusts the exposure time of the transducer, depending on the prevailing lighting conditions
• BLC - Background light compensation, enables effective observation of objects on a strongly lit background
• HLC - Compensation of headlights, increases the probability of e.g. correct detection of license plates at night when the car lights are on
• ROI - Improves the quality of the user-specified image fragment. Thanks to it, it is possible to implement an "economic" way of recording
• Defog - Reduces interference caused by fog, precipitation, etc.
• Privacy Zones - Programmable controls, allowing you to mask areas of the image that should not be observed (4 zones)

Infrared light and filter

Effective operation in all lighting conditions

The camera has a built-in infrared illuminator, with an effective range of up to 30 m. Thanks to it, it can improve work at night, in low light conditions and even in complete darkness. The infrared illuminator starts automatically when the camera switches to night mode. An additional advantage of the BCS POINT series cameras is the ability to adjust the lighting power of the IR radiator. Properly selected illuminator power guarantees that the observed objects will not be overexposed or underexposed.

The camera is also equipped with a mechanical sliding infrared filter (ICR). In day mode, it is active and reflects a significant part of infrared radiation. Thanks to this, the image retains natural colors and high quality. When the camera switches to night mode, the filter is automatically removed from the transducer. Sensitivity parameters are improved and it is possible to work with artificial infrared light.

H.265 compression and dual encoding stream

Effective remote viewing and high quality recordings at the same time

A big advantage of the camera is the support for advanced image compression H.265. It uses the improved H.264 algorithm, which enables up to twice as much compression, with virtually unchanged image quality. As a consequence, it is possible to archive recordings from an even longer period and the bandwidth requirements for remote work are reduced. Image compression available:

• H.265+
• H.265
• H.264+
• H.264
• MJPEG

The camera also supports 2 independent encoding streams, each of which can be freely configured by the user. Thanks to them, it is possible to simultaneously set high-quality images for archiving and images with much lower parameters for remote viewing.

IP67 / IK10

Sealable, vandal-proof housing

The camera is placed in a sealed outer housing (IP67), which guarantees almost complete resistance to weather conditions. Thanks to it, the camera can be mounted outside, without fear that bad weather conditions will damage it. Housing in IP67 protection class provides protection against:

• Pollination and getting into its interior of small dirt
• Precipitation and splashing water from all sides
• Extremely low and high temperatures in the range of -30...+60 °C

The housing is also characterized by good resistance to mechanical damage IK10 (vandal resistant). Theoretically, even after a direct impact, the camera should still work properly. Consequently, it can be used in places particularly vulnerable to attacks by vandals and hooligans, such as e.g. underground passages or bus stops.

Why choose the BCS-P-DIP15FSR3-Ai?

This is a camera that combines high image quality, durability, advanced video processing functions and simplicity of installation. Perfect for monitoring at home, business, warehouse, hall, school or office. Housing resistant to external conditions and acts of vandalism, built-in microphone and the ability to record directly to a microSD card are the features that distinguish this model from the competition.

If you are looking for a IP camera 5MPx with a good image, microphone, IR up to 30m and want to have peace of mind for many years – BCS-P-DIP15FSR3-Ai will be an excellent choice.
