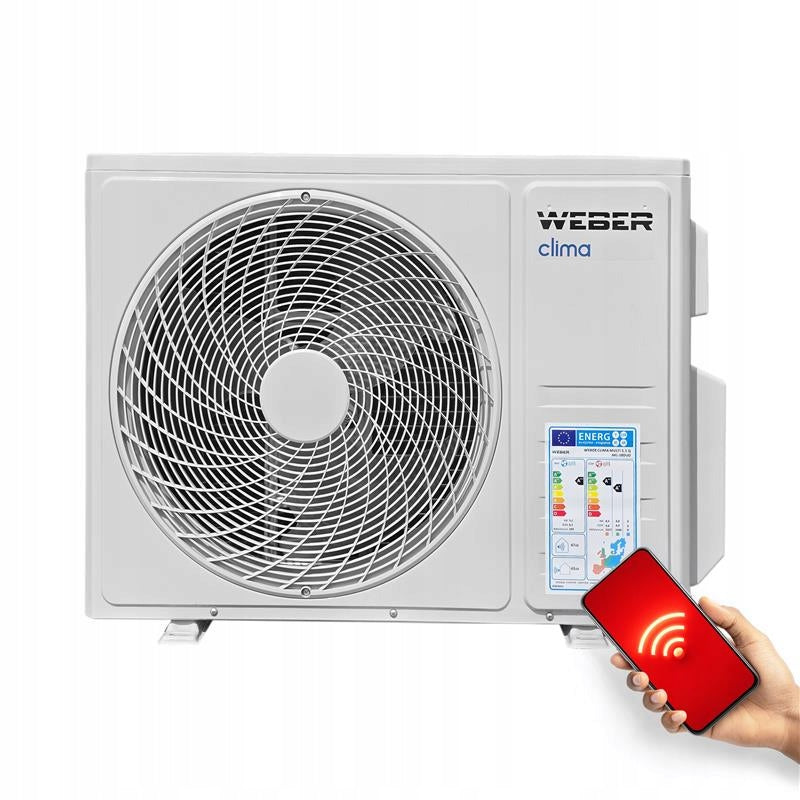

Lauko oro kondicionieriaus blokas WEBER CLIMA MULTI Q 5,1

Trumpai apie prekę

Prekė: Lauko oro kondicionieriaus blokas WEBER CLIMA MULTI Q 5,1. Kategorija: Oro kondicionieriai.

• Gamintojas: Weber
• Modelis: 05010252

Index: 05010252

Multi split air conditioner is used to cool or heat several rooms at the same time, using several indoor units of a common outdoor unit. This offer applies to the external unit itself.

RELEVANT INFORMATION

The WEBER CLIMA MULTI air conditioner is a device used to ensure adequate comfort of use of rooms, by cooling, heating, drying or forcing air circulation.

The multi split air conditioner provides adequate operating conditions in several rooms at the same time, using several indoor units and one central outdoor unit.

This solution allows independent temperature settings in each room, but in one selected mode (heating or cooling). The number and type of indoor air conditioning units should be selected each time according to the needs of the room for cold / heat.

After selecting the internal units, proceed to select the appropriate power of the external unit. Remember that the device is used to heat rooms and it is not recommended to use it as the main source of heating of the building, because its heating power decreases with lowering the external temperature.

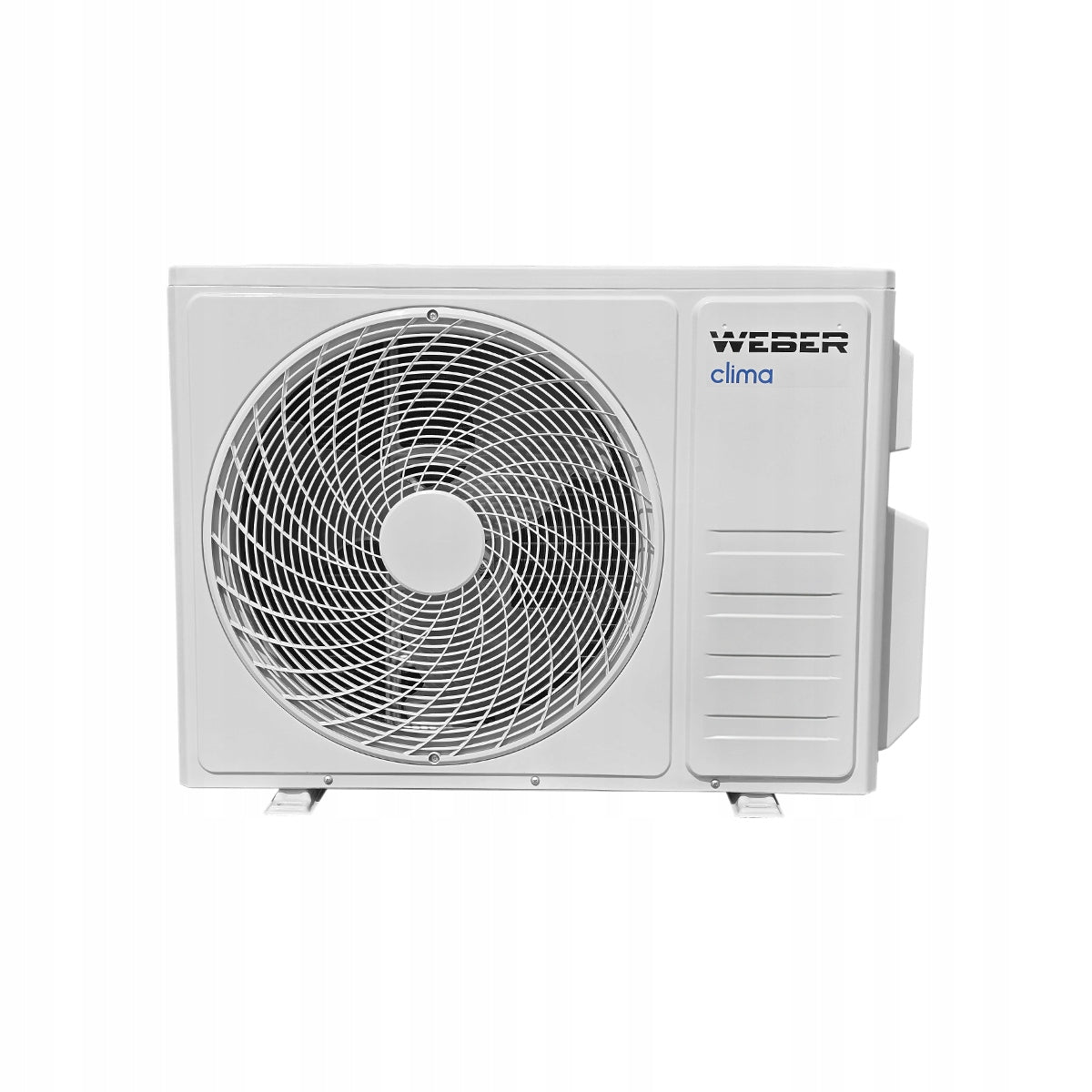

The outdoor unit of the WEBER CLIMA MULTI Q multi split air conditioner with a capacity of 5,1 kW is designed to provide temperature comfort in several rooms, using independent indoor units. It is recommended to select the power of the external unit each time based on the previously selected power of the internal units according to. real demand for heat/cooling, taking into account the thermal insulation of the room and its exposure to sunlight. Detailed product specifications included in the downloads.

UNIT SELECTION

The internal unit with a capacity of 2,5 kW usually corresponds to rooms with an area of approx. 25 m², and with a capacity of 3,5 kW, rooms with an area of approx. 35 m².

The outdoor unit WEBER CLIMA MULTI Q 5,1 can handle the following configurations of indoor units:

• 2 x 2,6 kW
• 1 x 2,6 kW + 1 x 3,4 kW
• 2 x 3,4 kW

The outdoor unit WEBER CLIMA MULTI Q 7,9 can handle the following configurations of indoor units:

• 3 x 2,6 kW
• 2 x 2,6 kW + 1 x 3,4 kW
• 1 x 2,6 + 2 x 3,4 kW
• 3 x 3,4 kW

Please note that when selecting configurations with the highest power of indoor units, their power may be slightly lower than 2,6 and 3,4 kW respectively.

DIMENSIONS OF OUTDOOR AIR CONDITIONING UNIT MULTI SPLIT WEBER CLIMA MULTI 5,1 Q

• A – 516 mm (mounting dimension)
• B – 314 mm (mounting dimension)
• D – 349 mm
• H – 603 mm
• W – 863 mm

MAIN FUNCTIONS OF AIR CONDITIONING WEBER MULTI Q

• Operation of several rooms at the same time
• Cooling, heating, dehumidification, circulation mode
• Control from the Pilot
• Control via WI-FI
• Timer and sleep mode
• Temperature setting
• Fan power setting
• Automatic adjustment of horizontal and vertical blades
• Energy saving mode
• Turbo mode

MAIN ADVANTAGES

• Possibility of controlling from the phone
• Quiet operation
• Control of airflow and airflow direction
• Inverter technology
• High energy efficiency
• Intuitive operation
• Access to spare parts
• Hygiene certificate of the National Institute of Hygiene

• Model: AKL-18DUO
• Power of the device: 5,1 kW
• Air conditioner type: Weber Clima Multi Q (one. external)
• Power supply f/V/HzL 1/220-240/50
• Input power: 1333 W (heating)
• Input power: 1545 W (cooling)
• Dimensions of external (width. x H x depth. ): 863 x 603 x 349 mm (net)
• Energy class:: A++
• Weight: 31 kg

SALES AND INSTALLATION OF DEVICES CONTAINING F-GASES

Pursuant to Regulation (EU) No 517/2014 and the amendment to the Act on SZWO and F-gases of 12 July 2017 (consolidated text Journal of Laws 2017 item 1951), the following provisions apply to air conditioning and refrigeration equipment, including heat pumps, containing F-gases:

NOTE

Portable air conditioners and monoblock heat pumps can be purchased without additional pre-purchase activities. If you place an order in a swatt warehouse or through our allegro account. Orders are not subject to any additional requirements as long as the buyer does not interfere with the refrigeration system.

Type split - Purchase of devices by natural persons

The purchase of split air conditioners and split heat pumps can be carried out only after the buyer has sent the scan an assembly agreement concluded with a company with an appropriate certificate for enterprises. The shipment of goods takes place after verification of the correctness of the contract. Failure to send the contract is tantamount to resignation from the purchase due to the fault on the part of the buyer. Access to companies with appropriate authorizations can be found here: udt.gov.pl/wykazy/REJ_ZAKL_UPR_FG.html

Due to the restrictive compliance by our company with the provisions of Regulation No. 517/2014 and the Amendment to the Act on SZWO and F-gases of 12 July 2017 (consolidated text Journal of Laws 2017 item 1951), the time of execution of orders covering air conditioning equipment and heat pumps may slightly increase due to the need to verify documents (statements,

Type split - Purchase of devices by installation companies certified F-Gaz

The purchase of split air conditioners and split heat pumps can only be carried out after the buyer has sent an active F-Gas certificate number for enterprises, which is issued identical to the data on the invoice.

Type split - Purchase of devices by companies not certified F-Gaz

The purchase of split air conditioners and split heat pumps can only be carried out after the buyer has sent a statement that the devices are intended for further resale or an assembly contract with a company with an appropriate certificate for enterprises.

A model statement regarding the sale and installation of devices containing f-gases can be downloaded in the auction link under the name guide.
