Lauko PoE vaizdo stebėjimo kamerų rinkinys HiLook, 3 vnt., 4MP

Trumpai apie prekę

Prekė: Lauko PoE vaizdo stebėjimo kamerų rinkinys HiLook, 3 vnt., 4MP. Kategorija: Rinkiniai.

• Gamintojas: HiLook
• Modelis: Zestaw 3x IPC-B141H-C (x3) + NVR + HDD Hikvision

Reliable monitoring with in-app preview

Reliable and easy to use network monitoring system with four HiLook horn IP cameras by Hikvision, supporting 2560x1440p resolution. The system is ideally suited as monitoring in:

• offices in the company
• home
• apartment
• shop

Features and functions of the system:

✅ allows constant supervision over the monitored area, both day and night (lighting up to 20m)

✅ guarantees high image quality in resolution 4Mpx 2560×1440

✅ uses power supply after twisted pair (PoE) directly from the recorder

✅ allows archiving of 24/7 recordings on the disk in the recorder

✅ can be operated from the mobile application via smartphone or computer

✅ includes a set of wiring and accessories to speed up installation

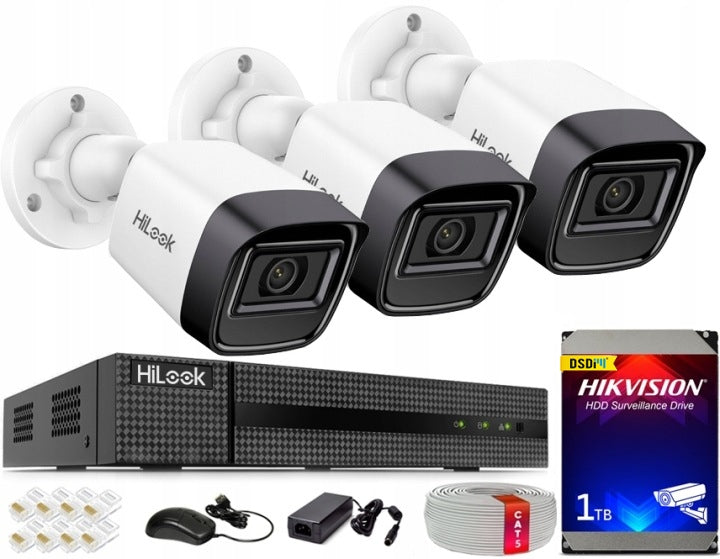

This set includes:

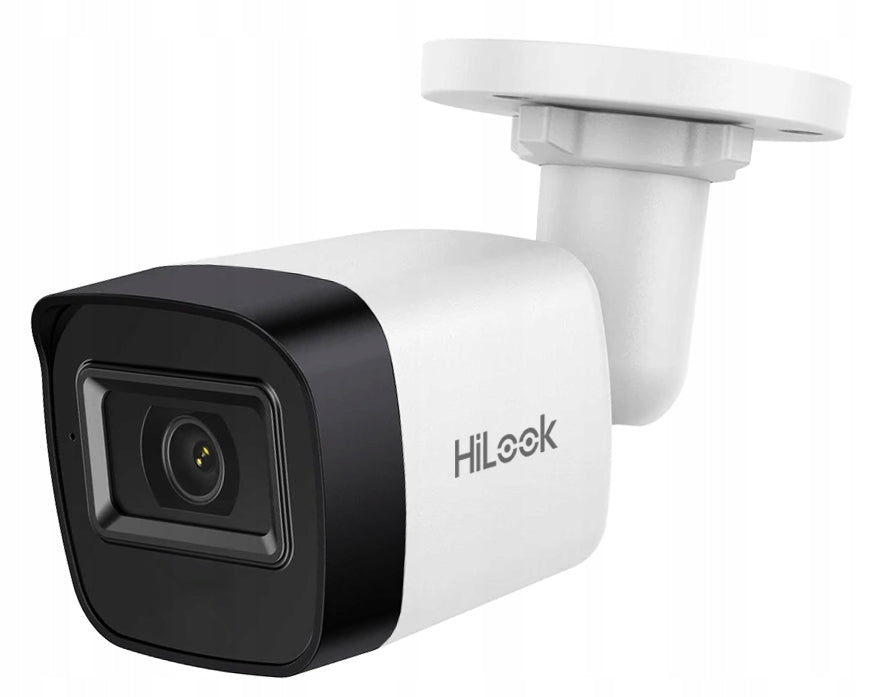

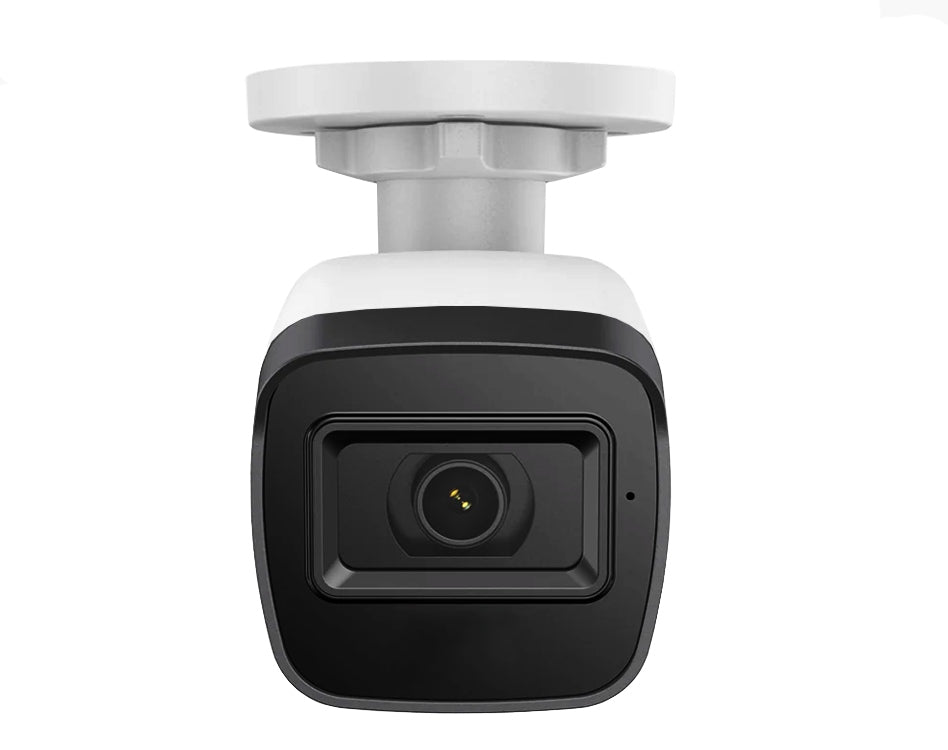

• 3x Tube camera 4Mpx (2560x1440 True 2.5k) - IPC-B141H-C HiLook by Hikvision
• 1x 4-channel IP recorder with PoE switch - NVR-104MH-D HiLook by Hikvision
• 1x PoE Switch 4+2 Eiflex for powering cameras - EI-H1064PL
• 1x Drive hard to CCTV ( 24/7 recording) - Hikvison Surveillance 1TB (or equivalent Seagate/Toshiba/WD Purple - subject to availability)
• 1x UTP twisted pair cable - 15 meters - DS-PL-5E Hikvision
• 6x RJ45 plug

The HiLook by Hikvison monitoring systems have been designed to make their installation as simple and intuitive as possible. The instructions included in the kit will guide you step by step through the process of installing and configuring the kit.

HiLook by Hikvision monitoring systems can be controlled, configured and operated using the intuitive Hik-Connect mobile application for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The IPC-B141H-C is equipped with automatic night mode - this means that when the ambient lighting drops, the camera goes into black and white mode, supported by an infrared illuminator with a range of 20m.

This function allows you to record images via 24/7 in any lighting conditions.

The offered camera model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an emergency notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a lot of space on the hard drive, which positively affects its lifespan.

The cameras included in the kit are equipped with PoE (Power over Ethernet) power supply, making their installation extremely simple. Each camera with the recorder is connected using a single UTP cable.

• Converter: CMOS 1/2.8” 4MPx
• Image resolution: 2560 × 1440p @20fps
• Lens: wide-angle 2,8 mm
• Recording angle: ~100 degrees (wide-angle)
• Image compression: H.265+, H.265, H.264+, H.264
• Double Stream: Yes
• Wide dynamic range: digital WDR
• Digital Noise Cancellation: Yes - 3D DNR
• Other functions: ROI, BLC, Motion detection, Mirror, EXIR
• Infrared range: up to 20 m
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in the Hik-Connect mobile app: Yes
• Remote view: Hik-Connect, iVMS-4200, browser WEB
• Assembly: external or internal
• Housing: plastic
• Power Supply: 12V or PoE
• Leak-proof class: IP67

• Number of channels: 4
• Recording resolution: to 6Mpx
• Bitrate in/out: 60/60 Mbps
• Video outputs: 1x HDMI, 1x VGA
• USB ports: 2x USB 2.0
• Video compression: H.265+ / H.265 / H.264+ / H.264
• Ethernet interface: 1x RJ45 10 / 100 Mbps
• Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™
• Preview/remote support: HIK-Connect/HiLook App, iVMS-4200 (lite)
• Storage for HDDs: 1 (up to 6TB)
• Power Supply: 12 VDC
• Power consumption: 18 W (without 10W disk)
• Dimensions: 265 x 225 x 48mm
• Weight: ≤ 1 kg

The presented model is a universal switch that has 6 ports with a speed of 10/100Mbps, including 4 PoE ports with a total power budget 65W and unit power up to 30W per port.

• Number of ports: 6
• PoE ports: 4x 10/100Mbps RJ45
• Uplink ports: 2x Uplink 10/100Mbps RJ45
• Switch Type:Unmanaged
• Network protocols: IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x
• PoE power standard: IEEE 802.3af/at PoE+
• Power of one port: up to 30W
• Total PoE power: 65W
• Bandwidth: 1.6Gbps
• EXTEND mode: Yes - transfer up to 250m @10Mbps
• Dimensions: 140*115*40mm
• Weight: 0.4kg
• Power supply: AC100-240V (built-in power supply)

The drive included is a model from the Hikvision Surveillance HDD series, dedicated to monitoring, characterized by a higher service life.

• Capacity: 1TB
• Cache: 64 MB
• rpm. /min: 5400 rpm

*(or equivalent Seagate/Toshiba/WD Purple - subject to availability)

UTP cable included is a high-quality category 5E twisted pair computer cable, with four pairs of asymmetrically twisted conductors

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 6x RJ45 plug
• A set of instruction manual

DSDi® Ready

The monitoring system we offer, marked with the "DSDi" tag, has a license that allows you to use the services of the DSDi® system, which provides additional after-sales support and control over the purchased equipment. Thanks to the intuitive application, the user can easily check the warranty period for individual devices, as well as expand the package of available service services within the DSDi ecosystem.

DSDi license activated only for devices purchased from an authorized reseller. Products outside DSDi distribution are not supported by the application.
