Lauko radijo antena Dipol DL-1 RUZ B, visakryptė FM su simetratoriumi

Trumpai apie prekę

Prekė: Lauko radijo antena Dipol DL-1 RUZ B, visakryptė FM su simetratoriumi. Kategorija: Antenos.

• Gamintojas: Dipol
• Modelis: 1/RUZ/B/88-108/S
• Spalva: other

Polish product

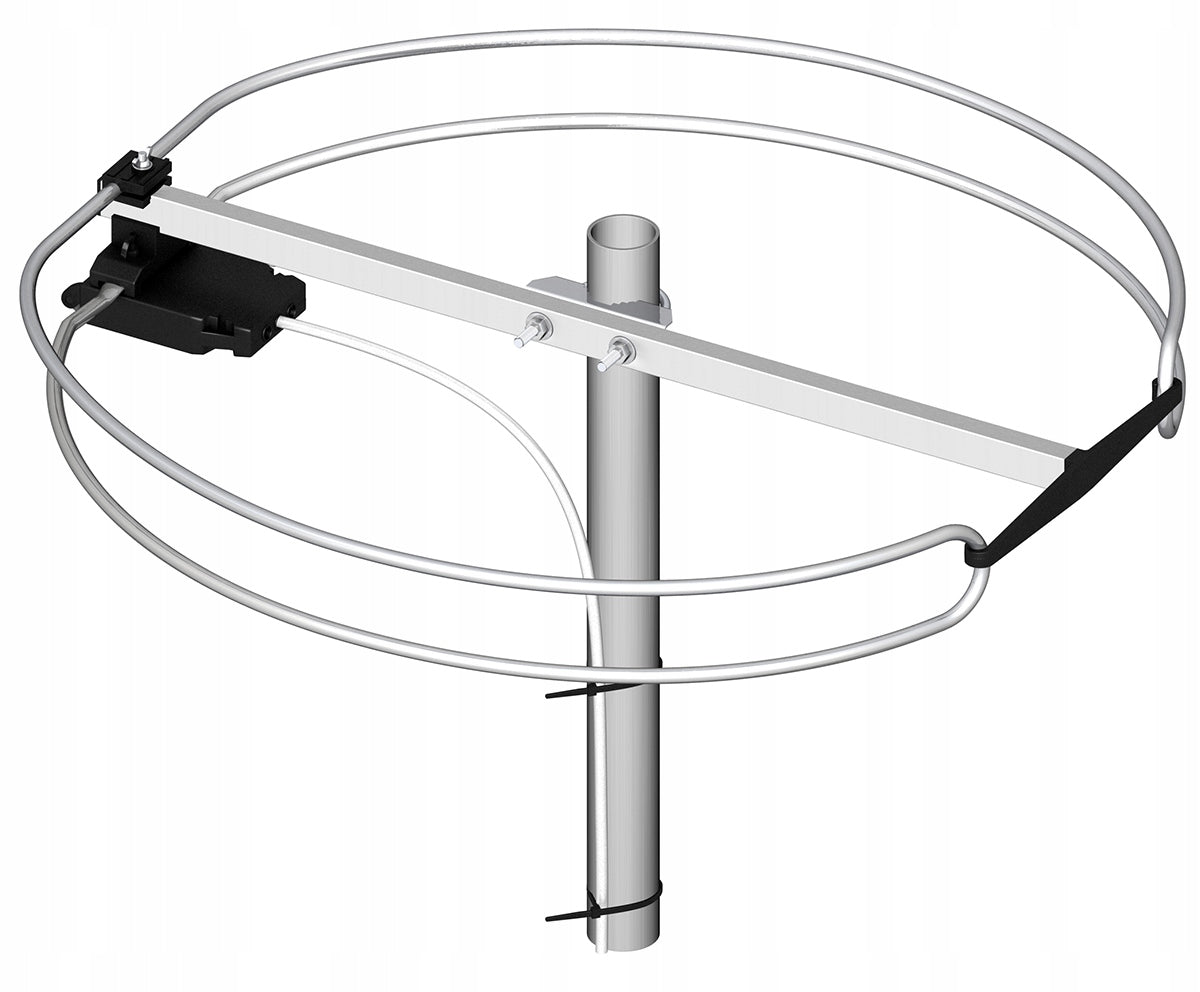

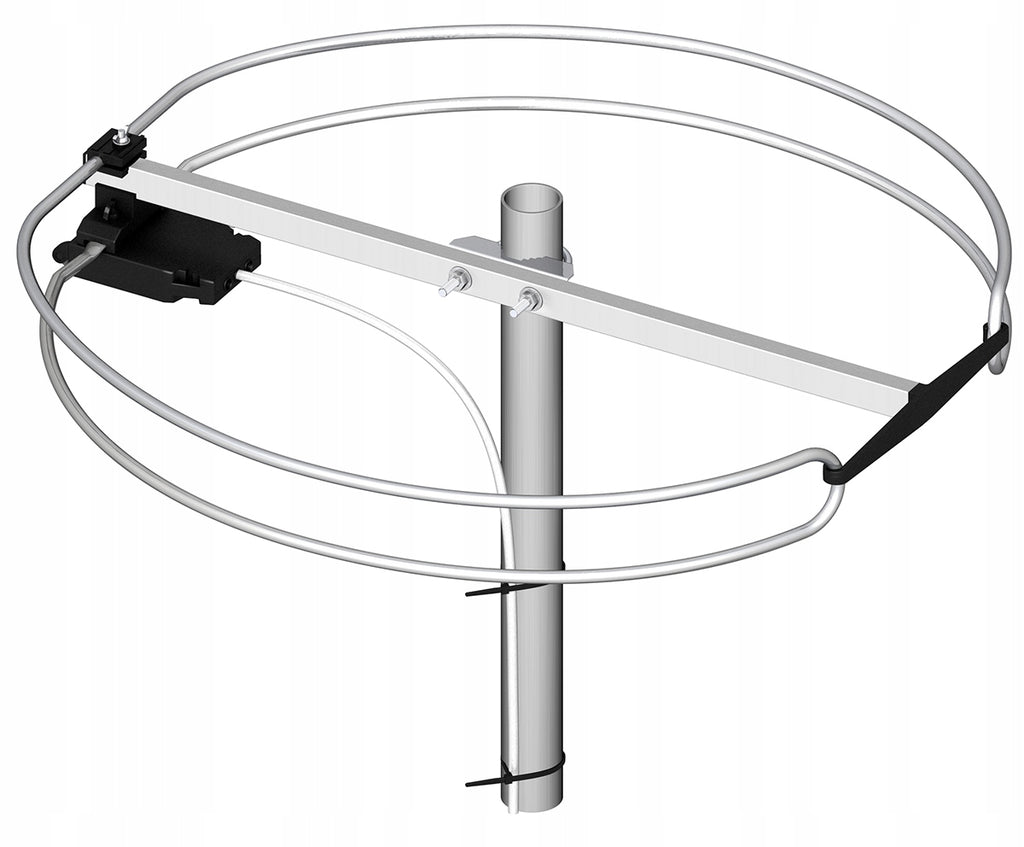

The antenna is used to receive radio stations in the UKF 88-108MHz band in horizontal polarization. It is an omnidirectional antenna so it collects signal from all directions at the same time. Galvanized steel structural elements.

If the distance to the transmitter is very large, use an AP-FM amplifier and a power supply (preferably adjustable) - available at our auctions.

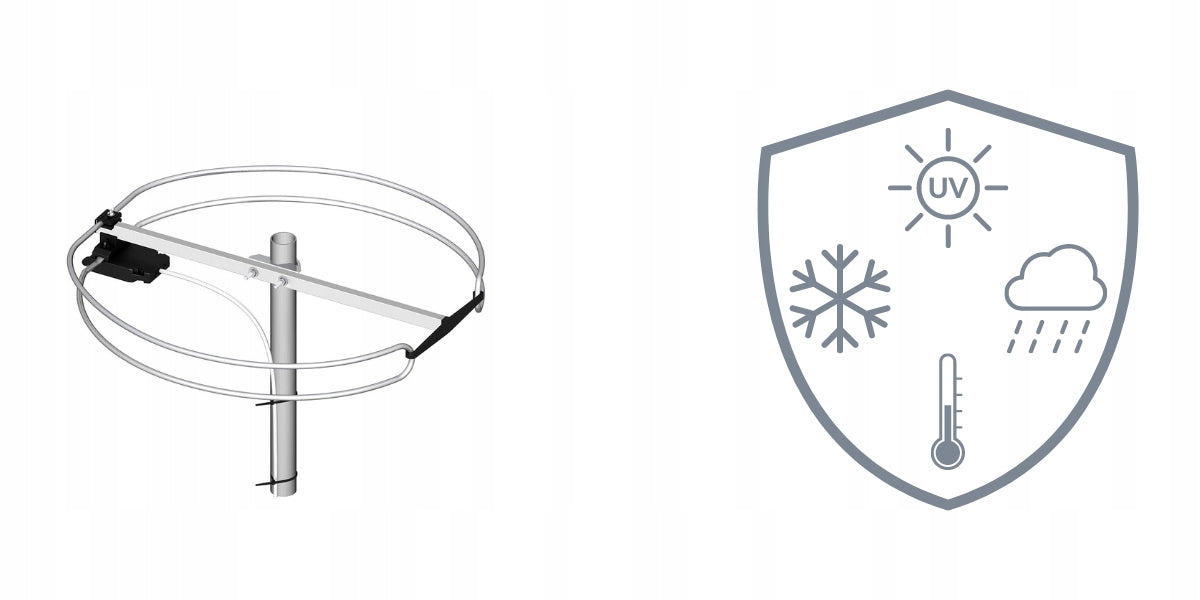

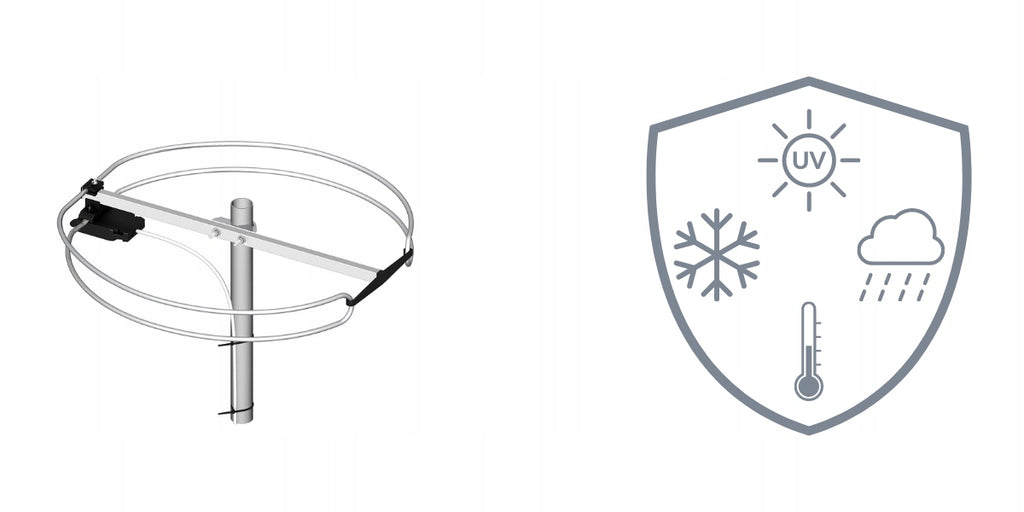

The main elements of the antenna are made of aluminium. Steel structural elements are galvanized. This guarantees high resistance of the antenna to weather conditions and damage. You can be sure that the antenna will serve you for many years!

You buy a proven Polish product

The antenna was designed and manufactured in Poland

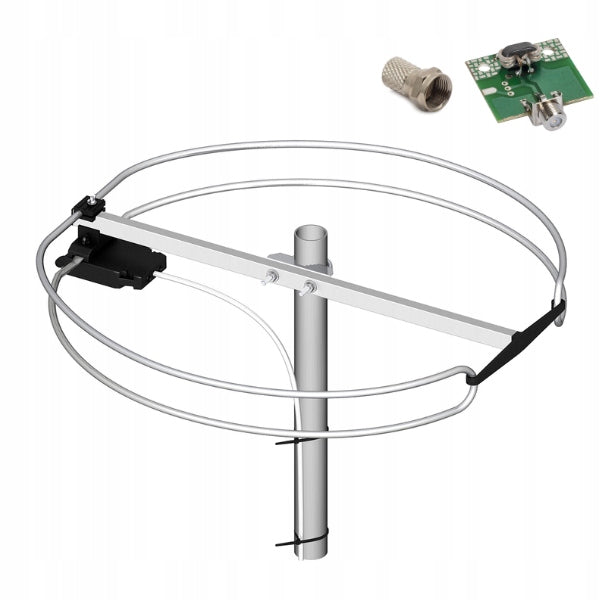

The set includes a symmetrizer and a type F connector.

The antenna uses a symmetrizer for the F connector, which ensures a good matching of the antenna and small signal loss. In addition, the installation of the antenna cable is very simple and convenient. An additional advantage is the possibility of using compression connectors that provide the most durable connection (the set includes a screw-on connector).

Technical data:

• Standard: FM
• Frequency [MHz]: UKF 88-108
• Front radiation. / back [dB]: 0
• Polarization: H
• Number of items: 1
• Output Impedance [Om]: 75
• Dimensions [mm]: 570x570x100
• Mass [kg]: 0,5
• Profit [dBi]: 1
• Maximum mast diameter [mm]: 50
