Lauko stebėjimo kamera HiLook Hikvision, 4 sukamos 4MPx kameros, PoE

Trumpai apie prekę

Prekė: Lauko stebėjimo kamera HiLook Hikvision, 4 sukamos 4MPx kameros, PoE. Kategorija: Rinkiniai.

• Gamintojas: HiLook
• Modelis: PTZ-N4MP-P

4x 4MP Rotary Camera | IP Recorder for 4 Cameras | PoE Switch | Hikvision 1TB HDD | Mounting Accessories

Cameras are powered directly from the recorder with one cable via the built-in PoE switch.

✅ Complete IP surveillance kit with 4 PTZ Smart Hybrid Light rotating cameras

✅ High image quality with recording resolution of 4Mpx @2560x1440p

✅ Cameras can be mounted indoors and outdoors - IP66 weatherproof rating

✅ Easy installation with PoE switch

✅ Automatic Tracking Function (Autotracking Lite) for people moving within the protected area

✅ Dual illuminator in cameras - Smart Hybrid Light technology:

• IR infrared illuminator - for discreet black-and-white recording
• White light illuminator - for full color images day and night

✅ AI motion detection algorithm - detects human figures

✅ App notifications and recording of important events

✅ Video material overwrite function (loop recording)

✅ Includes a durable Hikvision 1TB hard drive

✅ Internet viewing on computer, smartphone, tablet

✅ P2P (cloud) support - allows remote access without port forwarding or a public IP address

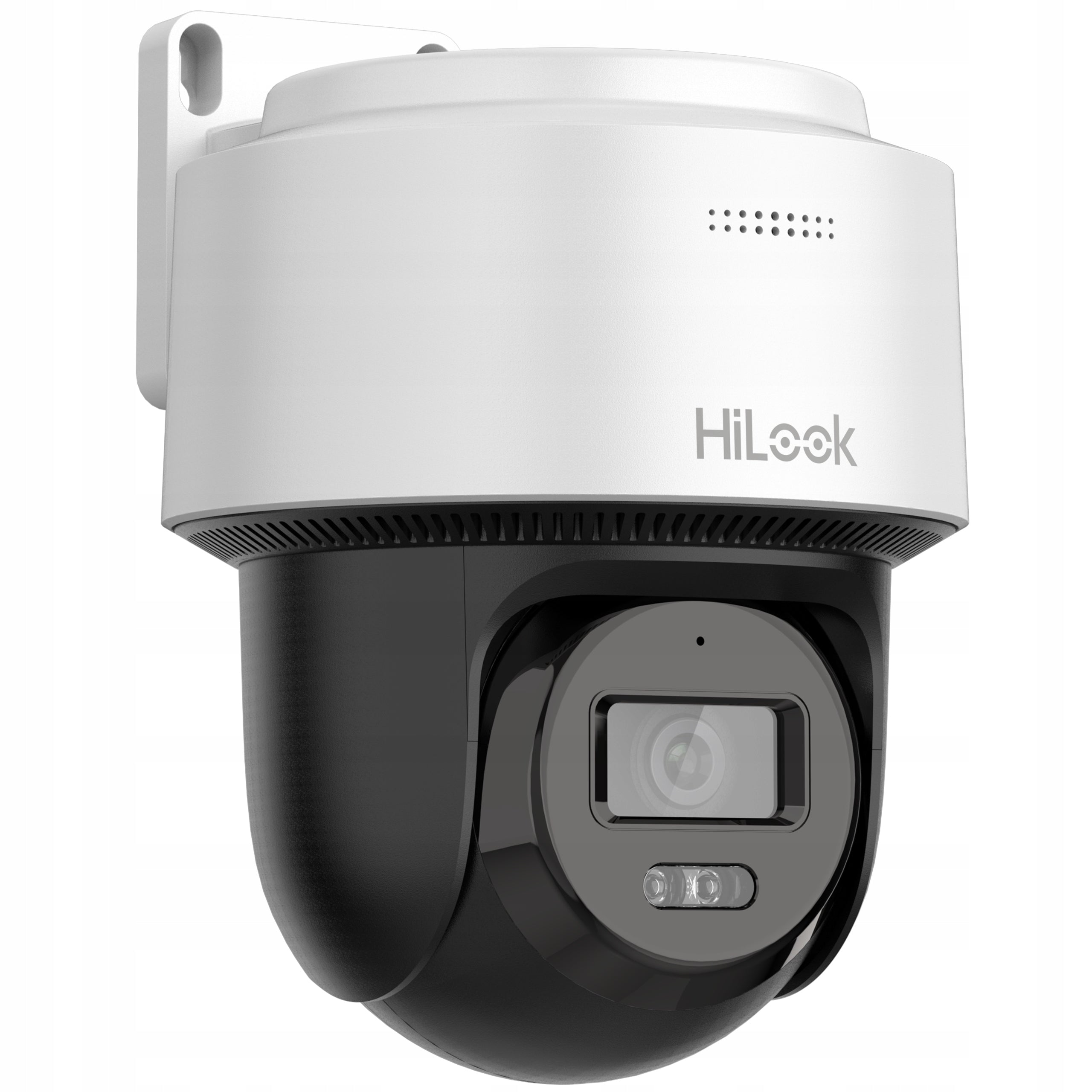

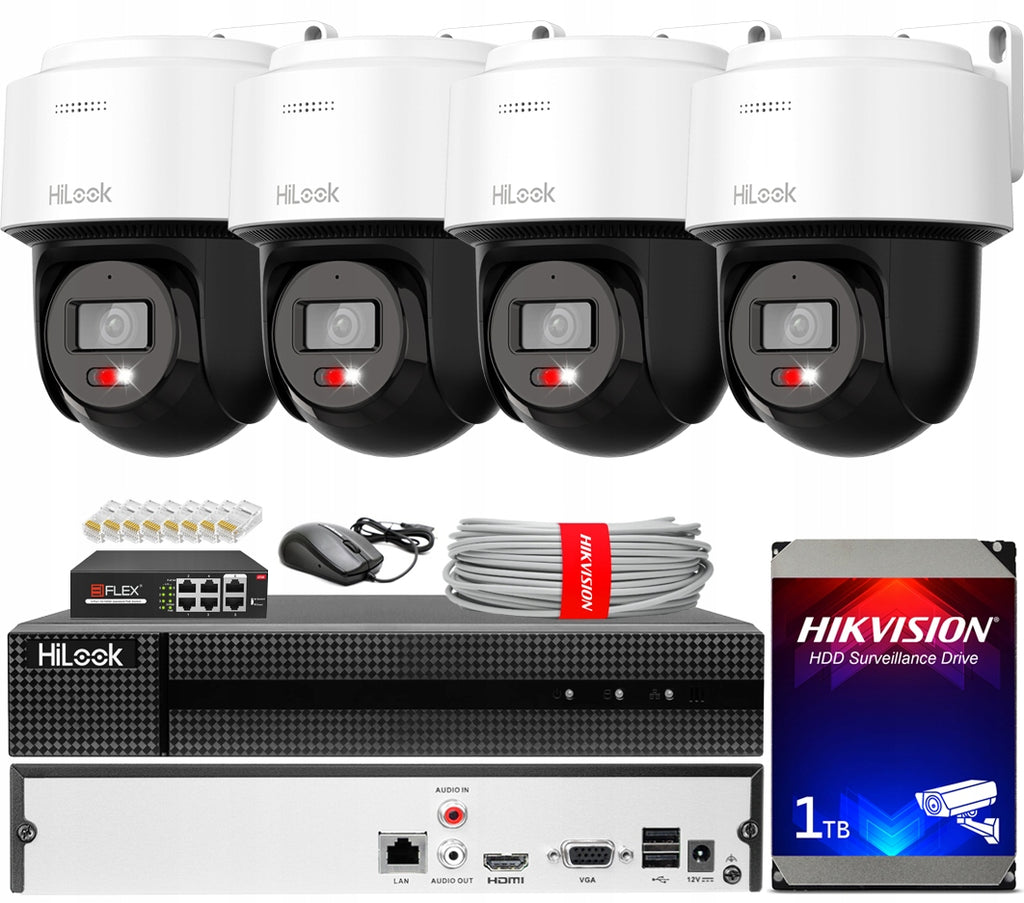

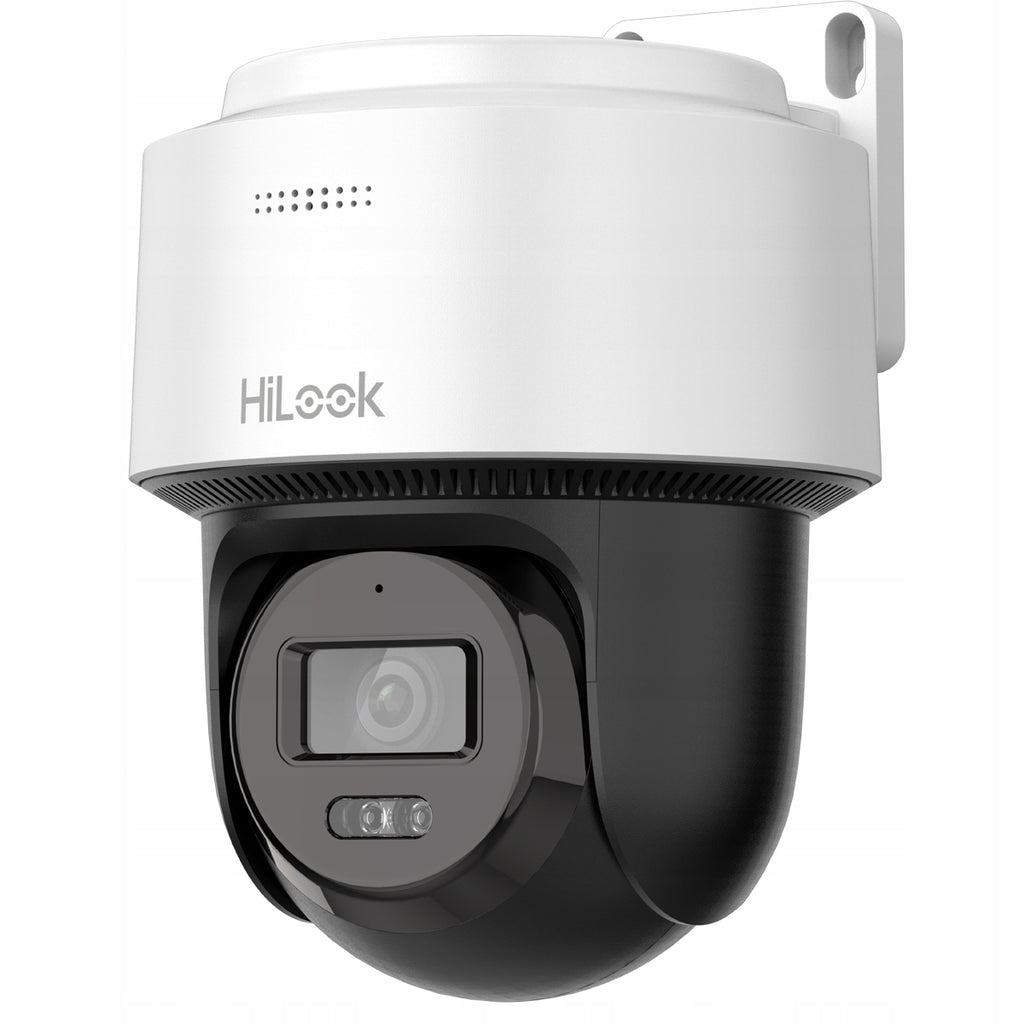

• 4x HiLook PTZ-N4MP-P Smart Hybrid Light rotary camera, with microphone and speaker and autotracking function
• 1x 4-channel recorder HiLook NVR-104MH-D/4P
• 1x PoE Switch 4+2 for connecting cameras and DVR
• 1x Hikvision drive with a capacity of 1 TB, dedicated to 24/7 operation
• 8x RJ45 plug
• 1x UTP twisted pair cable - 20 meters

HiLook monitoring systems can be controlled, configured and operated using the intuitive mobile application HiLook App for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The PTZ-N4MP-P camera not only detects movement - it is also able to follow the head of moving people! This allows for precise observation without the need for a manual rotary head setting.

Important: camera allows you to track people moving at normal speed (without running).

The presented camera model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an emergency notification to the program and application.

What’s more, thanks to the built-in human body detection function, the camera effectively reduces the number of false alarms caused by the movement of irrelevant objects (leaves, animals).

The camera belongs to a series of devices using innovative Hybrid Light technology - thanks to two types of illuminators on board, the camera allows effective observation at night both in infrared (black and white) and fully colored mode.

Thanks to this, it guarantees an even higher level of security, enabling effective identification of objects also after their color, in any lighting conditions.

• 1/3" CMOS 4 Mpx sensor
• Recording resolution: 2560×1440 @25FPS
• Lens: wide angle 2,8mm
• Digital Zoom: x16
• Head rotation range: PAN: 0° to 340°, Tilt: -5° to 105°
• Smart Hybrid Light Technology: Yes
• Infrared illuminator IR30m
• White light illuminator LED 30m
• Motion detection: Yes - with person detection
• Autotracking: Lite - tracking people moving at normal speed
• Built-in microphone: Yes
• Built-in speaker: Yes
• SD card slot: Yes, up to 512Gb
• Image compression H.265+, H.265, H.264+, H.264
• ONVIF Compliance: Yes
• Image Features: dWDR, DNR, BLC
• Protection class: IP66
• Application: external or internal
• Power supply 12VDC & PoE (not included)
• Material: metal + plastic
• Installation: wall or ceiling
• Sizes: 163.9 mm × 185.8 mm × 131.9 mm

• Number of channels: 4 IP channels
• Resolution supported: up to 4Mpx 2560x1440p
• Decoding: 1-ch @ 4 MP / 2-ch @ 1080p
• Motion detection: Yes, supported
• Video outputs: 1xHDMI, 1xVGA
• Video compression: H265+,H265,H264+,H.264
• USB connectors: 2x USB 2.0
• Max. number of disks: 1
• Max. Disk capacity: 6TB
• Mobile application: HiLook App
• Remote support: IVMS-4200, WEB Interface, application
• Supported protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™,HTTPS
• Ethernet speed: RJ45 10M/100M
• Power Supply: 12VDC

• Number of ports: 6
• PoE ports: 4x 10/100Mbps RJ45
• Uplink ports: 2x Uplink 10/100Mbps RJ45
• Switch type: Unmanaged
• Network protocols: IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x
• PoE power standard: IEEE 802.3af/at PoE+
• Single port power: up to 30W
• Total PoE power: 65W
• Capacity: 1.6Gbps
• EXTEND mode: Yes - transfer up to 250m @10Mbps
• Dimensions: 140*115*40mm
• Weight: 0.4kg
• Power supply: AC100-240V (built-in power supply)

The disk in the set is a model from the Surveillance series, dedicated to monitoring, characterized by a higher service life.

• Capacity: 1TB
• Cache: 64 MB
• Interface: Serial ATA III
• Size: 3,5”
• rpm. /min: 5400 rpm

UTP cable included is a high-quality category 5E twisted pair computer cable, with four pairs of asymmetrically twisted conductors

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 8x RJ45 plug
• A set of instruction manual

The presented set guarantees trouble-free and smooth operation of the monitoring system. The HiLook brand systems are solutions valued all over the world, with unbeatable operating parameters and the best value for money.
