Lauko sukama stebėjimo kamera V22, 4G, 4MPx, SIM kortelės palaikymas, dviem objektyvais

Trumpai apie prekę

Prekė: Lauko sukama stebėjimo kamera V22, 4G, 4MPx, SIM kortelės palaikymas, dviem objektyvais. Kategorija: IP kameros.

• Gamintojas: Zintronic
• Modelis: IKPGSM220DLV1

This camera is a great solution when you don't have access to Wi-Fi and want to have reliable monitoring. All you have to do is insert a SIM card and the camera will connect to the Internet itself via a mobile network, allowing you to view the live image from anywhere. Thanks to this, you can observe the house, plot or workplace, even in hard-to-reach locations, such as cottages, construction sites or parking lots.

With GSM connectivity, you have complete control over your property, regardless of your Wi-Fi network.

The camera works independently – it records directly to the SD card.

It has a small size, which makes it ideal for monitoring:

✅ home | ✅ offices | ✅ garden | ✅ warehouse | ✅ plant | ✅ office | ✅ store | ✅ plots | ✅ hallway | ✅ staircase.

MAIN FEATURES OF THE CAMERA:

• Transducer: MIS2008 + MIS2008
• Camera resolution: 4MPx(1920x2160@15kl/s)
• Night vision range: 15M
• Lens focal length: 4 and 4 mm (90° viewing angle)
• Data recording compression: H.265
• Call. micro SD card input: YES to 128Gb
• GSM/sim Card: Yes (nano sim) 4G
• Alarm when motion is detected: YES (email/application notification)
• Motion Detection: YES (Write Time Extension)
• Application for phone/tablet: YES
• Preview from browser: YES
• Reset button: YES
• Built-in speaker and microphone: YES (bilateral communication)
• Tightness: IP65
• Installation instructions in Polish: YES

✅ POWER SUPPLY INCLUDED

Reliable regardless of weather conditions, compliance with the ONVIF 2.0 standard (or higher) and great image quality make the camera popular among our customers.

Perfect for working single when recording to card.

Simple Installation in 4 steps:

1. We insert the SIM card (the SIM card must have the PIN code request disabled) and the SD card in a dedicated place.
2. Connect the power supply to the camera (which is included)
3. Download and install the application on your phone from the play store (V380 Pro)
4. We configure the device in the application according to the instructions attached to the camera

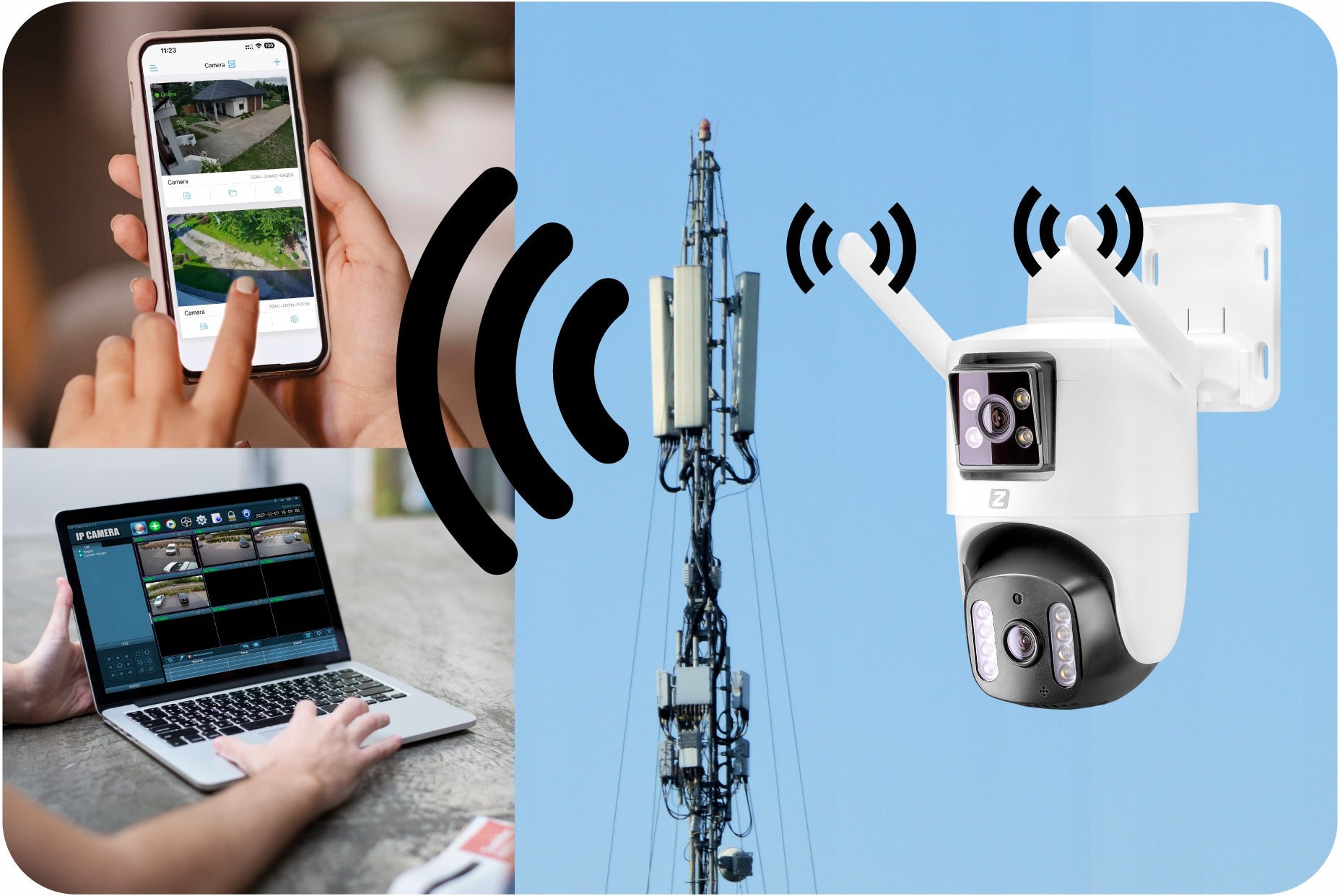

3/4G SIM CARD

An undoubted advantage of this camera is the ability to work in places where there is no WiFi coverage.

The camera has a sim card slot and 2 antennas to enhance GSM signal reception. This allows remote access to the camera using GSM 3/4G LTE network.

• A Nano SIM card enters the camera. ____________________________________

Attention! : SIM and Micro SD cards in the pictures are for illustrative purposes and are not included

The camera works with SIM cards from the T-Mobile, Plus, PLAY network and virtual operators using their transmitters. Due to the specifics of the configuration, it does not work with the Orange network.

High Resolution 4MPx with two lenses.

Every detail is clear and transparent, so you won't miss any important details.

Both lenses record in 2MPx resolution each with a frequency of 15 frames per second, while combining them into one image 4MPx(1920x2160) Regardless of lighting or movement conditions, you can be sure that our device records key details, allowing you to effectively monitor and analyze recorded images.

The image is combined as in the main thumbnail image. 2MPx from one lens is combined with 2Mpx from another into one image.

Dual Lens 2in1

The dual-lens camera eliminates the need to choose between a wide field of view and motion tracking. Both lenses work together to give you complete control at any time. This is a key advantage of this compact camera.

With this solution, you can simultaneously monitor key areas and track objects that go beyond the frame.

Switching between constant preview and dynamic tracking is done without having to physically rearrange the camera – just one click in the app to adjust the view to your current needs.

The lens with a 90° view angle is a huge advantage for users looking for maximum control over the monitored area. A wider viewing angle means:

• Greater monitoring area – reduces dead zones and allows you to observe more space.
• Less cameras in the surveillance system – one camera can replace several devices with a narrower viewing angle.
• Better adaptation to different locations – will work both in open spaces and in closed rooms.

Wide viewing angle is an ideal solution for monitoring of property, driveways, warehouses or office interiors. Thanks to this, the user can be sure that nothing will escape his attention.

Reduced dead zones

Traditional cameras often have a problem with dead zones – areas that remain outside their field of view. Our camera, thanks to the use of two lenses, solves this problem. The camera can be mounted so that each lens covers a different part of the monitored area, which provides fuller coverage.

Two-way communication (speaker + microphone)

Thanks to the built-in speaker and microphone, the camera offers not only sound recording, but also an intercom function, which allows direct communication with people within the range of the camera.

This functionality is ideal in many everyday situations, for example, you can easily call your children for dinner without moving, or communicate with a person in the monitored area – whether you are at home or using the camera remotely.

Two-way communication can also serve as an additional security measure, allowing for immediate response in case of unusual situations. For example, you can alert an intruder or give instructions to the supplier without having to open the door. Thanks to this solution, you have full control over the situation, not only visually, but also sound.

External micro SD card slot up to 128GB

Thanks to the external micro SD card slot, the camera allows direct recording without the need for an additional recorder. It supports cards with capacity up to 128GB, which allows you to save a large amount of material. The camera offers a loop recording function, so that older recordings are automatically overwritten with newer ones, which ensures continuous recording.

Saved recordings can be easily viewed directly from the app, allowing convenient access to the footage at any time. Thanks to the support of the latest H.265 compression standard, it is possible to save more data on the card, which significantly extends the storage time of recordings.

SD card capacity at 3MPx(2304x1296@20fps) resolution

enough for: 128GB - 14 Days 64GB - 7 Days

Nano SIM card enters the camera

PTZ FUNCTION

The Zintronic IKPGSM220DLV1 camera has the ability to rotate horizontally by ~355° and vertically by ~100°, which means that one equipment can replace multiple static cameras.

Benefits of the rotary lens:

• Motion tracking – The camera automatically follows the moving object, providing continuous control.
• Elimination of blind spots – thanks to the large rotation range, the user can monitor the entire room or open space.
• Full remote control – the ability to control the angle of rotation through the mobile application allows you to adjust the field of view in real time.

Thanks to the rotating function, the camera is ideal for dynamic environments, such as warehouses, construction sites or high-traffic areas.

Character Detection and Tracking

The camera allows you to detect the human figure and follow the detected person - he will follow the person until he leaves the monitoring area. The whole configuration is done in a convenient and simple way through the mobile application.

LED lighting at night

IR LEDs mounted in the camera will allow you to view from the camera even in the middle of the night. The camera is equipped with new generation infrared diodes, which are able to illuminate the monitored area at a distance of up to 15 meters.

The camera has traditional IR infrared LEDs at night but also 4 additional LEDs with white light.

Ideal for the Company, Office, Restaurant, Institution or private property where you also need lighting of the area.

Phone application (PL)

Intuitive, Polish-language application V380 Pro - allows you to constantly view the monitored room and view recorded events on the Micro SD card. In the application you can also take photos and record videos (photos and recordings will be saved to a smartphone with the application installed).

• Live preview from the app
• Incoming notifications for applications
• Ability to take photos and videos
• Ability to remotely view recordings from a micro SD card (without having to pull out the SD card)
• Ability to rotate the camera from the app
• Possibility of two-way communication via built-in speaker and microphone in the camera
• In-app access to camera settings

Full camera support via the App on your Smartphone/Tablet!

The camera has motion detection functions. At the time of appearance, e.g. or for mobile applications.

Below are the types of notifications:

✅ PUSH notifications for applications (cloud + sound)

✅ Sound signal when motion is detected (siren or own recording)

✅ Save photos and videos to SD card

_____________________________________

Below are the screenshots from the app view on your smartphone:

Technical specification:

• SKU: IKPGSM220DLV1
• EAN: 5906506440966
• Processor: KM01
• Main resolution: 4MPx(1920x2160@15kl/s) image combined with two 2MPx lenses
• Lens: 4mm (fixed and rotating)
• Angle of view: 90°
• Night vision: IR/white LEDs (range: fixed – 10m, rotating – 15m)
• Video compression: H.264/H.265
• Support memory card: up to 128GB
• Support GSM card: NanoSIM
• Ethernet port:10/100M RJ45
• Rotation range: horizontally ~355°, vertically ~100°
• Power supply: DC12V/1A, socket 5.5/2.1 (power supply included)
• Housing: plastic, IP65 resistance
• Reset button: next to the SD slot
• Usage environment: -20°C~+60°C, 10%~90% RH
• Dimensions: 186mm x 120mm x 255mm
• Weight: 0.46kg

NOTE:

An active SIM card with a PIN code request disabled is required for proper viewing of the remote camera.

Contents of the pack:

1. Camera with antennas
2. Plug-in power supply 3m
3. Screws and bolts to screw the camera
