Lauko TV antena INPREL 602-V/UHF, tinkama DVB-T2 H.265 4K televizoriams, nereikia filtro

Trumpai apie prekę

Prekė: Lauko TV antena INPREL 602-V/UHF, tinkama DVB-T2 H.265 4K televizoriams, nereikia filtro. Kategorija: Antenos.

• Gamintojas: DPM
• Modelis: HN62
• Spalva: black

Antenna adapted to the Second Digital Dividend (LTE700)

Most important features:

• Frequency compatibility with the Second Digital Dividend - the latest frequency range used in digital television, thanks to which the antenna receives only a TV signal, without interference generated by mobile telephony bands, therefore does not require the use of additional filters
• Support for terrestrial television in the latest standards - Full HD (1080i, 1080p), 4K/UHD (Ultra High Definition 2160p) and 8K (4320p)
• Reception of the latest digital terrestrial signal H.265 DVB-T2
• Reception of all MUXs (multiplexes including terrestrial TV channels) - MUX-1, MUX-2, MUX-3, MUX-5, MUX-8
• Power supply directly from the coaxial cable connecting the antenna to the decoder/TV. No additional amplifier or power supply required
• Simple installation based largely on latches and butterfly nuts - you can assemble the antenna without tools
• Solid build quality
• Long warranty period of 36 months

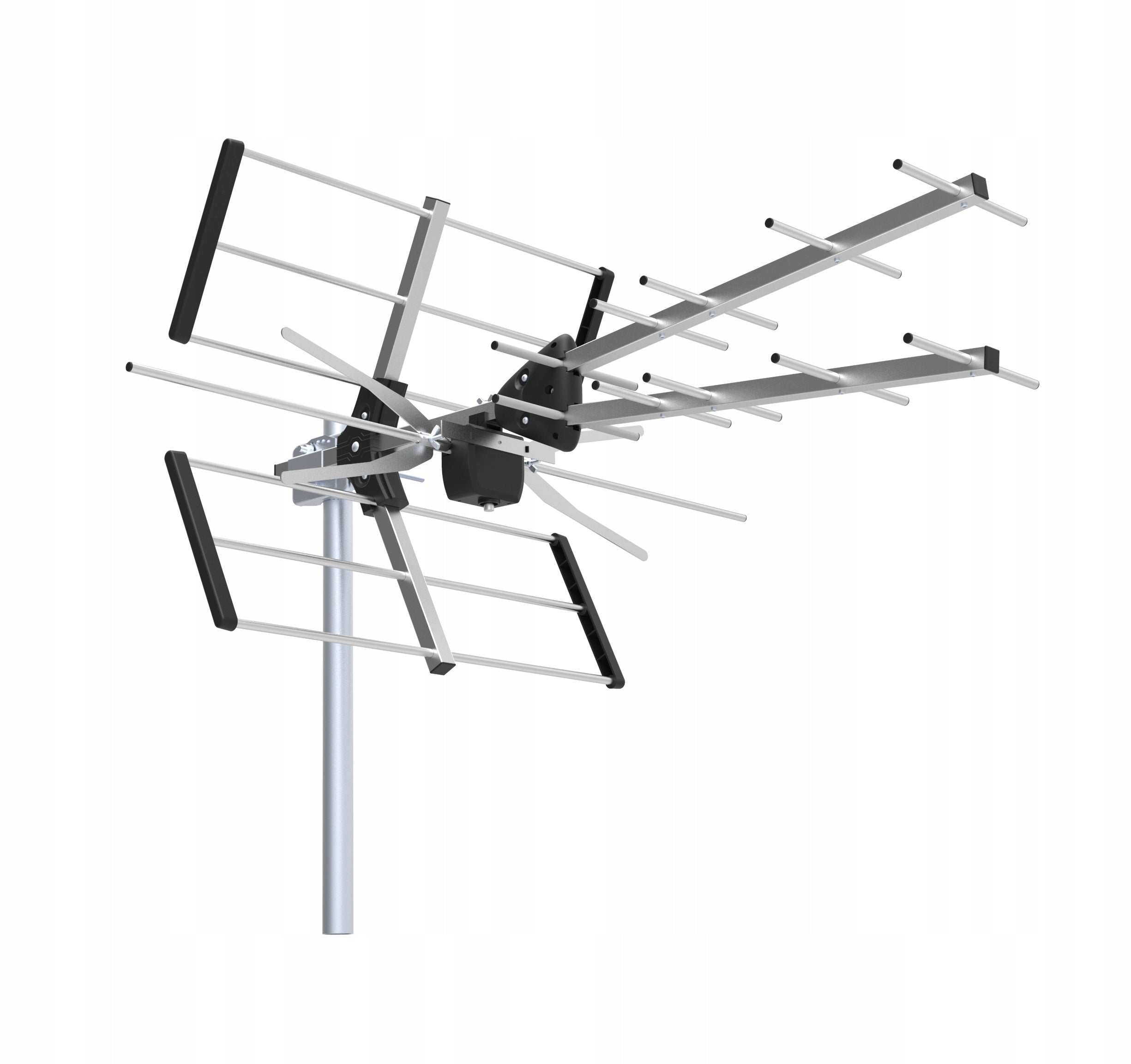

The Inprel 602-V/UHF directional antenna enables the reception of digital terrestrial television signals at frequencies of 174~230MHz and 470~694 MHz. Support for the bandwidth up to 694 MHz makes it one of the few antennas available on the market receiving only television signal, excluding the frequency of 694-790 MHz, currently occupied by the LTE Internet signal as part of the Second Digital Dividend implemented in June 2022.

This means that the Inprel 602-V/UHF antenna, unlike most DVB-T2 antennas available for sale, does not receive interference caused by the LTE Internet signal, guaranteeing the best possible signal quality. It does not require the use of an additional LTE filter, which is designed to limit the negative effects of interference, which can manifest as image retention, colored bars and squares. Inprel antennas are 100% free of these kinds of problems!

• Frequency: 174~230 MHz, 470~694 MHz
• Channel: 5-12, 21-48
• Impedance: 75 Om
• Number of Elements: 13
• Energy Gain: 4-7 dBi, 10-15 dBi
• Front-back ratio: 10-15 dB, 15-20 dB
• H/V radius: H60 degrees/V65 degrees, H45 degrees/V48 degrees
• Length: 815 mm
• Range: up to 100 km from transmitter

The Inprel 602-V/UHF antenna is characterized not only by excellent energy gain but also by a long operating range. Up to 100 kilometers from the transmitter. The range may vary, depending on the location of the antenna relative to the transmitter and the strength of the signal itself.

Inprel antennas have been designed in such a way that everyone can cope with their assembly. All its parts have therefore been prepared on the basis of latches or butterfly nuts, which can be screwed with your fingers. They do not require tools to assemble.

Do not worry if you mistakenly put an element in the wrong place - the whole is as simple to unfold as folding.

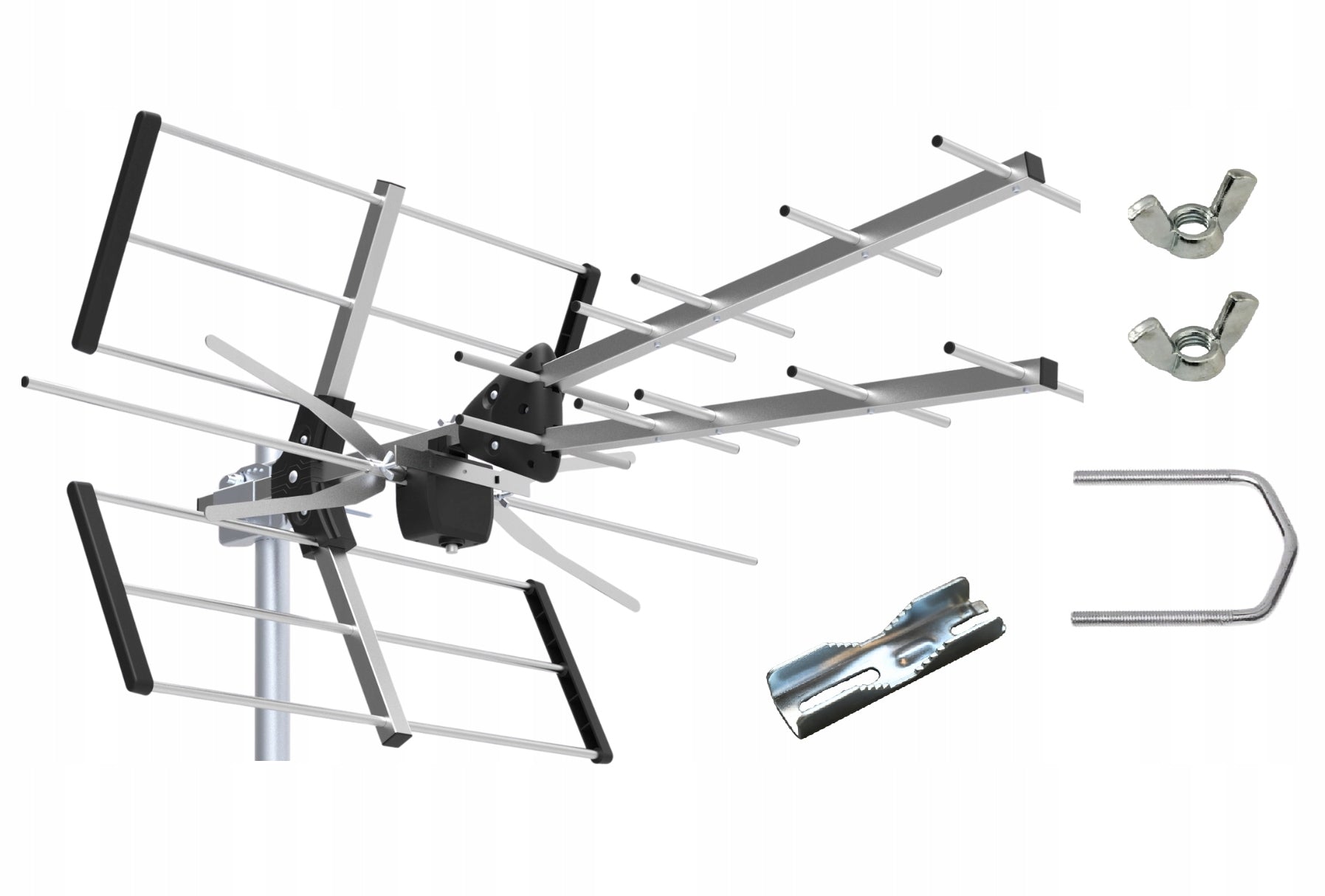

The set with the antenna includes a set of screws needed to assemble it, as well as a cover with a cybant allowing it to be placed on the handle or mast. The whole is complemented by a rubber cover for the connection socket, protecting them from moisture.

You buy a complete solution, ready to use immediately after assembly.

As a Polish brand trade, Inprel offers products developed for the domestic market. Therefore, the Inprel 602-V/UHF antenna has been designed to receive the latest available in Poland H.265 DVB-T2 encoding. Thanks to this, you can enjoy both TV channels broadcast in Full HD quality (image resolution 1920 x 1080 pixels) and 4K Ultra HD (image resolution 3840 x 2160 pixels), and in selected transmissions, even 8K UHD (image resolution 7680 × 4320 pixels).

We are confident in the highest quality products of the Inprel brand, which is why we are not limited to the warranty period of 24 months used by competing manufacturers and we provide a longer, 36-month warranty on our antennas!

Choose a proven, Polish brand!

Specifications
