Lauko TV antena Televes MIX Combo DVB-T2, UHF/VHF, MUX 1/2/3/8

Trumpai apie prekę

Prekė: Lauko TV antena Televes MIX Combo DVB-T2, UHF/VHF, MUX 1/2/3/8. Kategorija: Antenos.

• Gamintojas: Televes
• Modelis: Televes EDGE MIX Combo DVB-T
• Spalva: silver

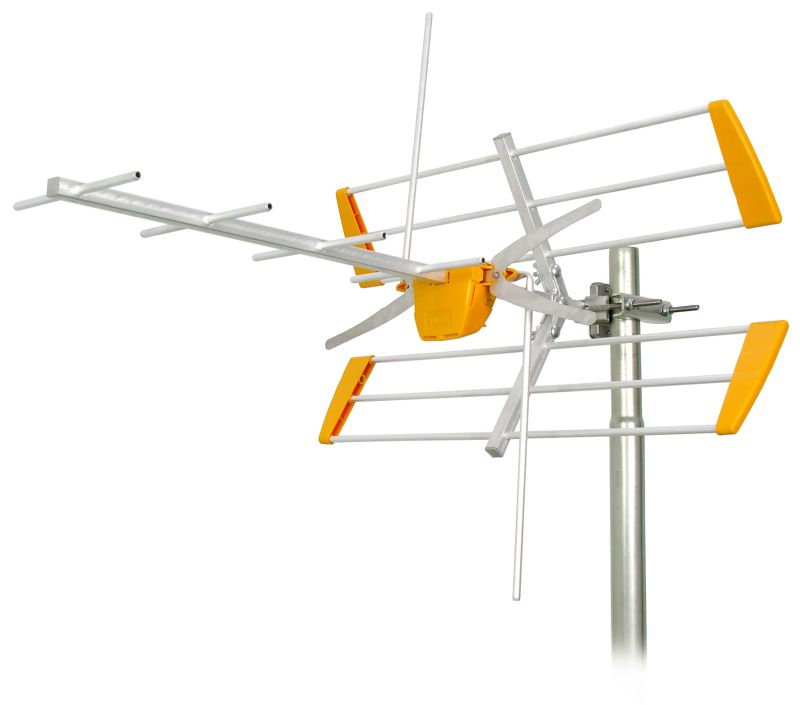

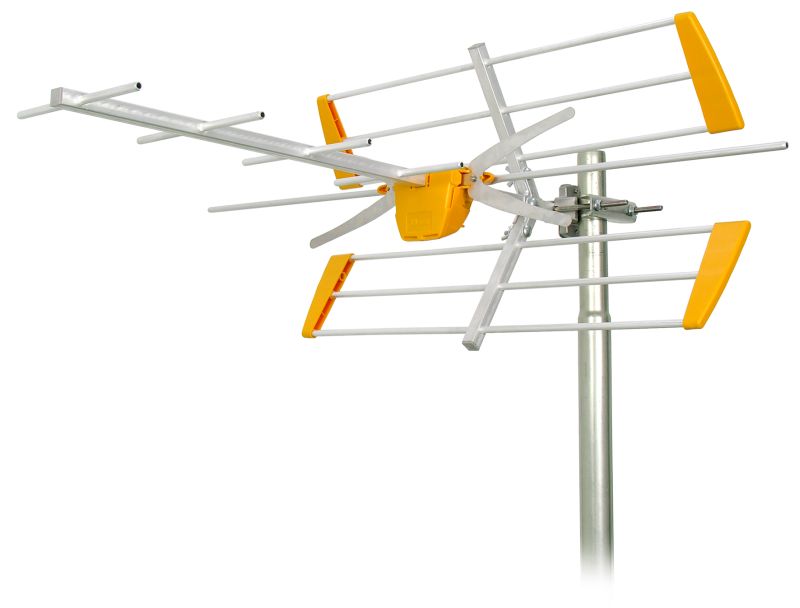

High-quality, reputable Spanish company TELEVES, modern directional antenna Televes EDGE MIX. Antenna designed to receive DVB-T digital terrestrial television signals broadcast in the VHF band - Mux 8 and UHF - Mux 1, 2, 3.

The Televes Edge Mix antenna has a built-in LTE filter, thanks to which eliminates the effects of LTE signals ensuring the best quality of terrestrial TV reception. Installation of this antenna enables continuity of service quality and proper functioning of the installation, also with LTE 800/4G.

The antenna provides optimal performance in terms of both bandwidth and gain. Undoubtedly, its advantage is easiness of assembly. It is made of high quality aluminum with high mechanical resistance.

High quality is guaranteed by the Spanish manufacturer - Televes brand.

Antenna Televes EDGE Mix thanks to its small dimensions, perfectly works in urban conditions. The small length of the antenna allows you to mount it without obstacles on balconies and terraces (to the vertical barrier or using the balcony holder to the horizontal barrier).

The antenna is made of high quality aluminum guaranteeing long life of the antenna. Plastic elements made of very resistant ABS plastic.

The Televes Edge Mix antenna consists of two antennas adapted to the VHF and UHF ranges. Thanks to this, it is possible to receive TV signals without having to install an antenna for each band. It is distinguished by the possibility of receiving the VHF band in vertical or horizontal polarization.

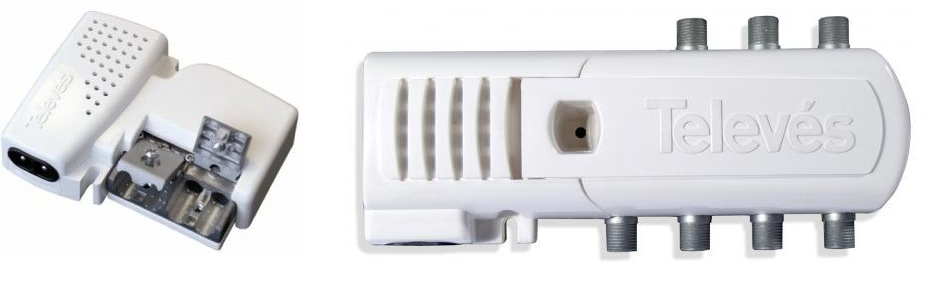

For antenna Televes EDGE Mix we recommend buying an amplifier Televes Picokom or an amplifier Televes 552220 with a built-in filter against LTE 5G interference. They can be found in "all items of the seller".

• Antenna adapted to any map of Digital Dividend channels, regardless of the upper channel.
• Equipped with elements for reception BIII.
• Sturdy and lightweight. Low wind load.
• Evenness in the band.
• Made of high quality aluminum for long antenna life.

The antenna enables receiving free DVB-T terrestrial TV channels from the UHF band (MUX 1, 2, 3) and channels from the VHF band, the so-called. MUX-8 (in any polarity - vertical or horizontal).

The effectiveness and ability to receive a terrestrial television signal depends on many variables, first of all, the distance from the transmitter, its power, the height at which the antenna will be installed, geographical conditions (landform, afforestation) and many others are important, which is why choosing the right antenna is very important. If you are not sure which antenna to choose or need advice when designing the installation, please use the advice of our employees who will be happy to analyze and advise the best solution for your location.

• VHF bandwidth: CH 5-12 (174-230Mhz)
• VHF Gain: 2 dBi
• UHF bandwidth: CH 21-60 (470-790Mhz)
• UHF Gain: 10 dBi

A more detailed description can be found in the product card, which is available in the "Additional information" tab.

• Antenna Televes EDGE MIX LTE DVB-T UHF VHF (ref. 111842)
• Instructions
• Mounting accessories
• Packaging

ATVS1350

Specifications
