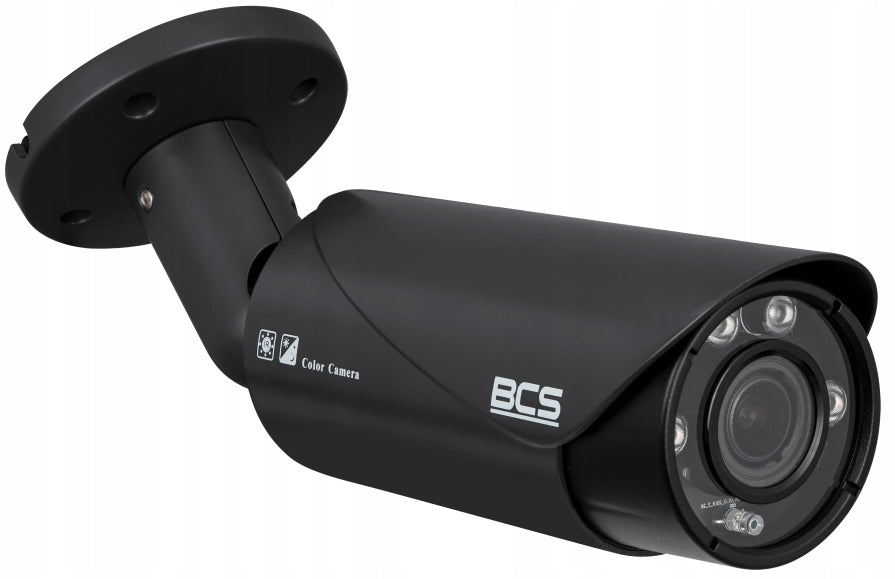

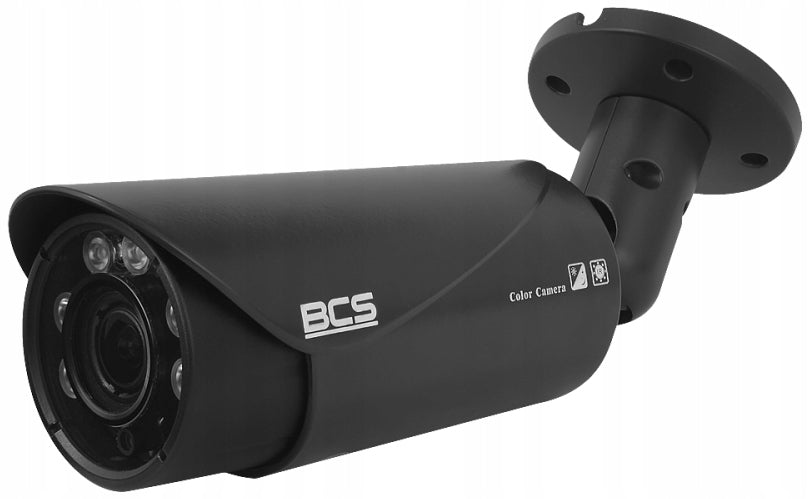

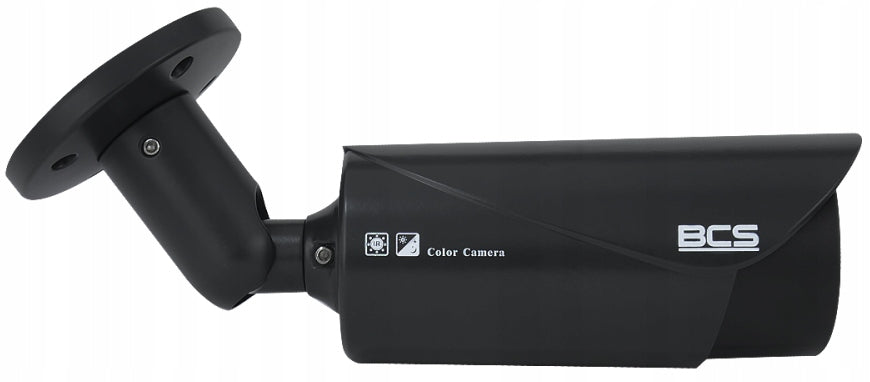

Lauko vaizdo stebėjimo kamera BCS-TA45VR5-G, 5 Mpx, IP66, 50 m

Trumpai apie prekę

Prekė: Lauko vaizdo stebėjimo kamera BCS-TA45VR5-G, 5 Mpx, IP66, 50 m. Kategorija: Fotoaparatai.

• Gamintojas: BCS
• Modelis: 11874

BCS-TA45VR5-G Tube multi-system camera, adapted to work in outdoor conditions. Included in the 4 in 1 series, it can work correctly in any analogue monitoring system: classic CVBS system or high-resolution HD-CVI / HD-TVI / AHD system.

The distinguishing features of the BCS-TA45VR5 cameras include:

• 1/2.5" PS CMOS sensor - max. resolution 2704 x 1950
• Variable focal length lens 3.3 - 12 mm - viewing angle 38° - 120° horizontally
• Built-in infrared illuminator with a range of up to 50 m
• Built-in mechanical sliding infrared filter (ICR)
• Support for settings in the OSD menu from the BCS-XVR recorder
• BNC 75 Ohm Composite Video Output (1 Vp-p)
• IP66 sealed housing

The BCS-TA45VR5-G is a universal camera and works great in standard CCTV systems. It can be successfully used in facilities such as houses, shops, warehouses, public facilities or companies. Due to its high resolution, it works great in places where high image detail is crucial.

Technical specification:

Camera

• Technology: HD-CVI / AHD / HD-TVI / ANALOG CVBS
• Converter: 1/2.8” 5Mpx STARVIS
• Number of pixels: 2592(H)×1944(V)
• Sensitivity: 0.01Lux(F1.2,AGC) 0Lux(B/W,IR)
• Infrared range: up to 50 meters

Lens

• Lens: Variable focal length 3.3 - 12mm
• Lens type: Variable focal length
• Maximum aperture: F1.2
• Field of view: H: 38°~120°
• Optical Zoo: 3x

Video

• Resolution: 5Mpx
• Refresh rate: AHD/TVI 5M(2592×1944)@20fps, AHD/TVI/CVI 4M(2560×1440)@25/30fps, 2M(1920×1080)@25/30fps

Audio

• Compression: -
• Input/output: -

Functions

• Improvement of image quality: BLC / HLC / WDR / 3D DNR / AGC / AES
• Day/night: ICR mechanical infrared filter

General

• Power Supply: DC12V
• Power consumption: < 8W
• Working temperature: -20°C ~ 60°C
• Protection class: IP66
• Vandal resistance class: -
• Weight: 750g
• Dimensions: Ø274×78mm

Multi-system camera

Working in HD-CVI / HD-CVI / AHD / CVBS

BCS-TA45VR5-G is a multi-system camera and can work in any CCTV system that uses coaxial cables for transmission. For example, it can be used to build a classic analogue system (CVBS) or a high-definition HD-CVI / HD-TVI / AHD system.

The biggest advantages of high-resolution systems include:

• Large effective transmission range
• Megapixel image transmission over a classic coaxial cable
• No visible delays that often occur in IP systems
• Wide bandwidth and no signal compression, which improves the quality during live view

1/12.5" PS CMOS converter

Detailed image in max. resolution 5 Mpx

For the construction of the BCS-TA45VR5-G camera, a standard 1/2.5" Progressive Scan CMOS image sensor was used. Thanks to it, it is able to generate smooth, good quality video, at a maximum resolution of 2704 x 1950 (max. 5 Mpx @ AHD / HD-TVI; 4 Mpx @ HD-CVI). Video footage of such detail correctly reproduces even small details and allows you to make an effective digital zoom. Thanks to this, the camera is used in systems where high resolution of the generated image is required.

Lens 3.3 - 12 mm

Free adjustment of proximity and viewing angle

The camera is also equipped with a zoom lens, with a focal width of 3.3 - 12 mm (F1.2). It allows you to freely adjust the proximity and viewing angle, making the camera universal. For example, it can be used to perform general preview functions or to observe a specific, relatively close frame. An additional advantage of the zoom lens is great freedom in choosing the place of mounting the camera. Practically regardless of the place of attachment, you can choose the observed frame so that the camera performs its function in the system.

Basic functions of the BCS-TA45VR5-G camera:

• Day/night - Adjusts camera operation depending on the time of day, so as to maintain the best image quality during the day and the highest sensitivity at night, in low light
• DNR - Digital noise reduction, improving overall image quality in low light conditions
• DWDR - Digital wide dynamic range, increasing the tonal span of the observed frame. Enables effective observation of the scene where there are both dark and light areas
• AGC - Automatically amplifies the output signal, in case of a decrease in illuminance
• AWB - Automatic white balance, allows faithful color reproduction
• BLC - Background light compensation, enables effective observation of objects on a strongly lit background
• HLC - Headlight compensation, increases the probability of e.g. correct detection of license plates at night when the car lights are on

Infrared light and filter

Effective operation in all lighting conditions

The camera has a built-in infrared illuminator, with an effective range of up to 50 m. Thanks to it, it can improve work at night, in low light conditions and even in complete darkness. The infrared illuminator starts automatically when the camera switches to night mode.

The camera is also equipped with a mechanical sliding infrared filter (ICR). In day mode, it is active and reflects a significant part of infrared radiation. Thanks to this, the image retains natural colors and high quality. When the camera switches to night mode, the filter is automatically removed from the transducer. Sensitivity parameters are improved and it is possible to work with artificial infrared light.

IP66 sealed housing

Failure-free operation in outdoor conditions

Housing in IP66 protection class, provides almost complete protection against the influence of weather conditions. Thus, it enables trouble-free operation in external conditions, practically regardless of the prevailing weather conditions.

IP66 housing provides protection against:

• Pollination and getting into its interior of small dirt
• Precipitation and splashing water from all directions
• Extremely low and high temperatures in the range of -20...+60 °C
