Lauko vaizdo stebėjimo kamera Hikvision TurboHD, 8 MP, 6 vnt., LED+IR

Trumpai apie prekę

Prekė: Lauko vaizdo stebėjimo kamera Hikvision TurboHD, 8 MP, 6 vnt., LED+IR. Kategorija: Rinkiniai.

• Gamintojas: Hikvision
• Modelis: Zestaw 6 Kamer Kopułowych 4K 8MPX IR LED Hikvision

6x Outdoor Camera 4in1 8Mpx / XVR Recorder for 8 Cameras / Mounting Accessories

Set for demanding

Are you looking for a branded monitoring kit that offers great recording quality while maintaining an optimal budget? The set based on DS-2CE76U0T-LMF cameras will meet all your expectations!

The most important features of this set:

✅ Ultra-high image resolution 8Mpx @3840x2160p

✅ Visibility at night up to 20m in colour and up to 30m in infrared thanks to Smart Hybrid Light technology

✅ Remote preview and access to recordings through the application and program on PC

✅ Filtering false alarms thanks to the recognition of people and vehicles

✅ Recording in loop - in continuous mode, according to schedule or in motion detection mode (no disk included)

✅ Indoor or outdoor installation - IP66 rated cameras

✅ Simple installation via UTP twisted pair wiring

✅ Expandable to 8 cameras

The offered set in TurboHD 4K technology is a reliable way to effectively protect your property, allowing you to record images both in infrared and in color 24/7. Thanks to automatic detection and alarm notifications functions, you can always sleep peacefully - your monitoring is awake!

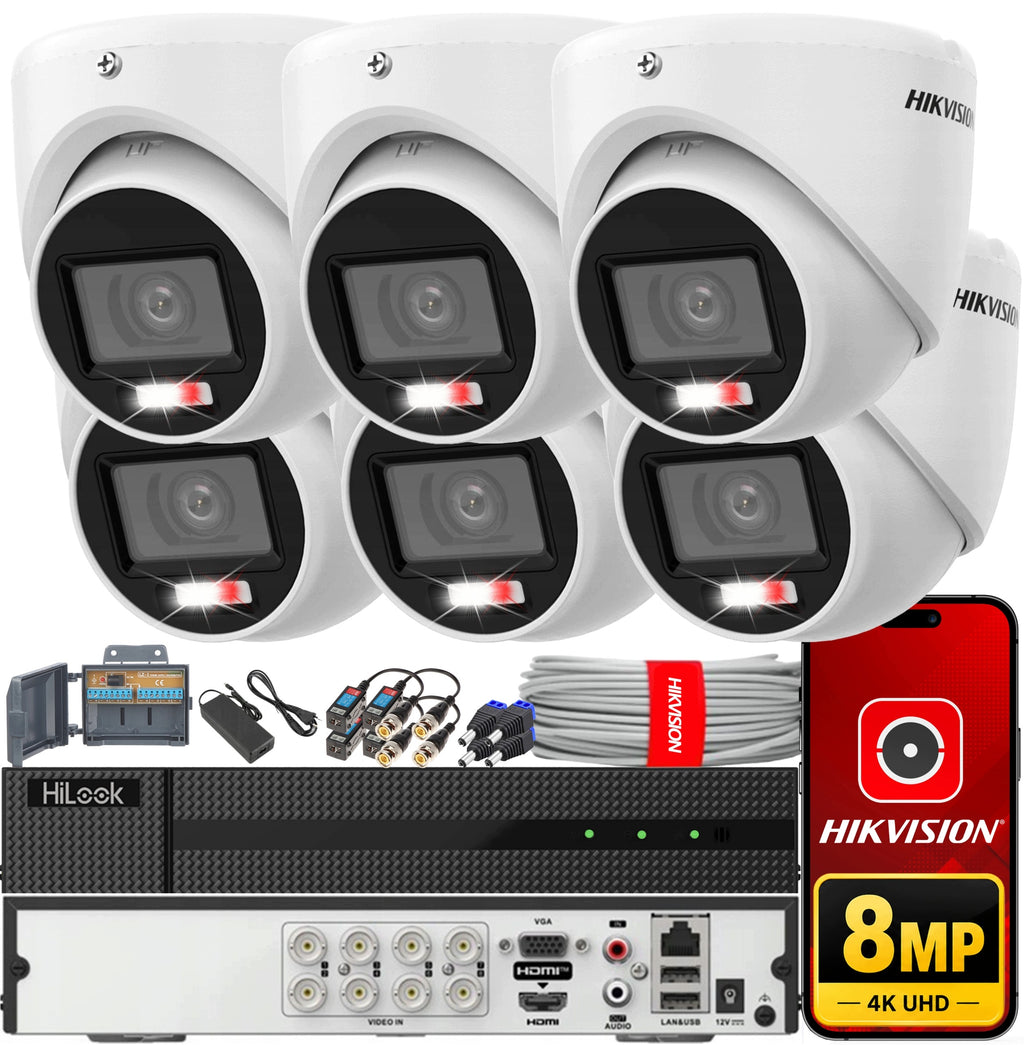

The set includes:

• 1x XVR 8-channel DVR - DVR-208U-M1/T HiLook by Hikvision

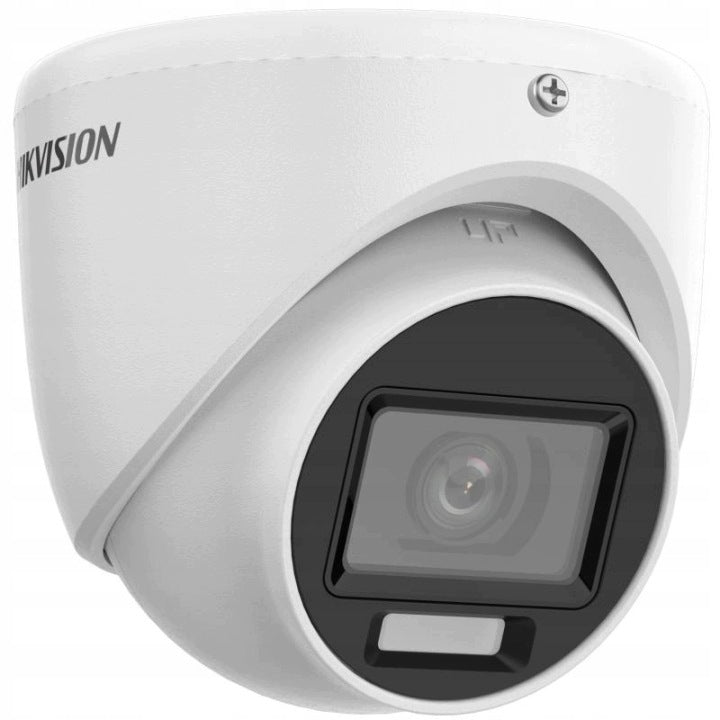

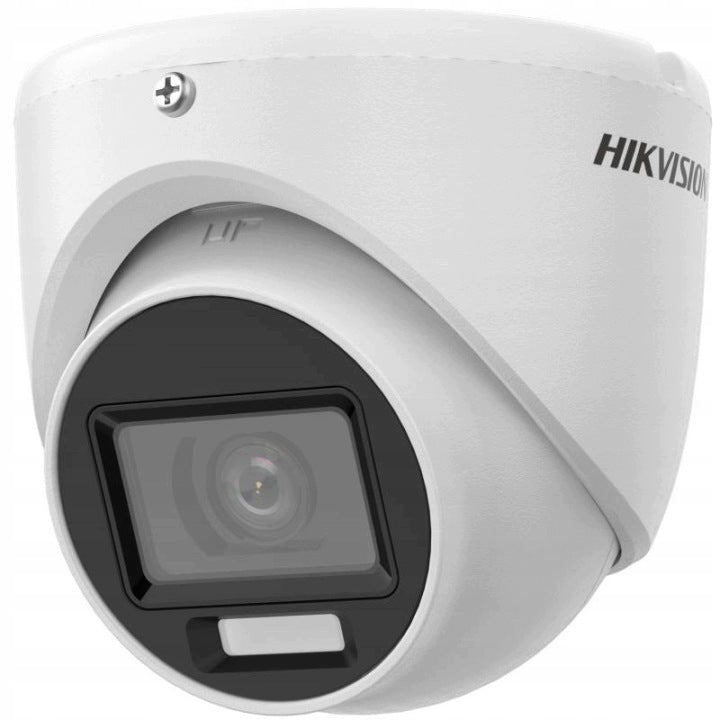

• 6x Outdoor Dome Camera 4K 8Mpx - DS-2CE76U0T-LMF HiLook by Hikvision
• 1x Desktop power supply 12V 6A
• 1x Power connector
• 12x BNC Converter for UTP Twisted Pair (6 Pairs)
• 6x DC power plug S-55
• 60 meters UTP twisted pair cable - DS-PL-5E Hikvision

⚠ CHOOSE CONSCIOUSLY⚠

Monitoring systems are an investment in security – not only property, but also data. Therefore, we encourage you to choose your equipment consciously from reputable manufacturers such as Hikvision. Unlike cheap, unverified OEM devices, Hikvision products provide:

✅ Regular device firmware updates to ensure compliance with the latest cybersecurity standards

✅ Stability and reliability of operation HikConnect - mobile application no.1 in the CCTV monitoring systems industry

✅ Advanced data encryption (AES-256, HTTPS, TLS 1.2/1.3) – guarantee of confidentiality of transmission

✅ Meeting strict ISO standards, including ISO 27701 (Personal Information Security Management) and CSA-Star (Cloud Data Security Guarantee)

By choosing Hikvision, you can be sure that your monitoring system meets the highest standards of quality, data protection and reliability.

HiLook by Hikvision monitoring systems can be controlled, configured and operated using the intuitive Hik-Connect mobile application for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

Thanks to the dual Smart Hybrid Light, the DS-2CE76U0T-LMF will allow you to record at night in three modes, which you can adjust to your needs:

✅ IR Infrared Mode - in this mode, the camera captures images in black and white using an IR illuminator to illuminate the scene

✅ 24/7 color mode - in this mode, the camera observes the scene all the time in color, permanently starting the white light LEDs after dark

✅ Intelligent Mode - in this mode, the camera watches, recording the image in infrared, after which it activates white light illumination as soon as it detects movement in the image. Thanks to this, it can quickly capture e.g. clothing colors or body color while remaining discreet when nothing happens in the image

The presented set supports motion detection function - when detecting moving objects on stage, the camera can send an alarm notification to the program and application.

What's more, the recorder in the set is equipped with object recognition function on the image - such as people and vehicles. With this feature, the system can ignore irrelevant traffic (e.g. leaves, animals) and inform you only when necessary.

• Converter: CMOS 8 Mpx
• Recording resolution: 3840 (H) × 2160 (V)
• Fixed-focal lens: 2,8 mm
• Angle of view: 108°
• Day/night automatic switch: Yes
• Infrared illuminator: up to 30m
• White light illuminator: up to 20m
• Working mode: 4in1 (HD-TVI/AHD/HDCVI/CVBS switch)
• Protection class: IP66
• Image functions: DWDR/BLC/HLC/
• Automatic white balance: Yes
• OSD Menu: Yes
• Application: external or internal
• Power Supply: 12V
• Dimensions: 80 mm × Ø85.1 mm
• Weight: 0.31 kg

• TurboHD support: 8 channels 4in1 AHD/CVBS/TVI/CVI
• IP support: 4 additional IP channels
• Resolution max. cameras: 8 Mpx for TVI, 5Mpx for AHD, CVI
• Decoding: 8 MP Lite/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Video compression: H265+/ H265/ H264+/ H.264
• Ethernet Interface: RJ45 10M/100M
• Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• USB connectors: 2x USB 2.0
• Video outputs: 1xHDMI, 1xVGA
• Max. HDD quantity: 1
• Max. Capacity: 6 TB
• Remote view and configuration: WEB interface, iVMS-4200
• Mobile application: Hik-Connect (cloud)
• Power supply: 12VDC
• Operating temperature: -10C ... +55C

• Input voltage AC 100-240V, 50/60Hz
• Output voltage DC 12
• Maximum output current [A] DC 6A

• Number of Power Outputs: 8
• Maximum supply current: 4 A
• Maximum supply voltage: 24 V DC

• 12x BNC Converter for UTP Twisted Pair
• 6x DC S-55 power plug

UTP cable included is a high-quality category 5E twisted pair computer cable with four pairs of asymmetrically twisted conductors

The presented set guarantees trouble-free and smooth operation of the monitoring system. Hikvision systems are solutions valued all over the world, with unbeatable operating parameters and the best value for money.

1. Is the UTP cable alone enough to power and route the signal from the cameras to the recorder?

Yes, UTP cable has 4 pairs of twisted wires - some of them should be used for power supply, part for signal transmission.

2. What can be the maximum distance between the recorder and the camera?

With local power supply of the camera, the signal can be guided up to 100m. When running power centrally from the LZ1/POL distributor, we recommend shorter sections.

3. How to connect the DVR to the Internet?

The recorder must be connected wired to a router that has access to the Internet.

4. Does the kit allow you to view the image from the cameras on your phone?

Yes, a dedicated Hik-Connect application is used for this. First of all, you need to connect the set to the Internet and properly configure it.

5. How to install the disk in the DVR?

Remove the top cover of the recorder by unscrewing the mounting screws, and then connect the disk with two wires (SATA + power supply). After installation, initialize the drive from the DVR menu.

6. How to get an image from the DVR?

The recorder can be connected to a TV or monitor via VGA or HDMI. After connecting it to the Internet, you can also access the menu and preview from the cameras on your computer (iVMS-4200).

7. How to access the DVR from the computer/laptop level?

The recorder must be connected to the Internet on the same network as the computer. After connecting, you can log in to the DVR from your web browser (recommended Internet Explorer) using its IP address.

8. How many days is the disk from the set enough?

The number of days of recordings depends on several individual factors, such as resolution, frame rate/second, recording schedule. The number of days varies from 7 to even 45 depending on these parameters. When the drive is full, the recorder will automatically delete the oldest recording and record the latest material.

9. Can the cameras in the kit be mounted outside?

Yes, the cameras have a sealed housing with IP66 rating and can be mounted outdoors.

10. What happens in the event of a power outage?

The recorder and cameras will turn off - when the power returns, the system will automatically resume its operation.

Specifications
